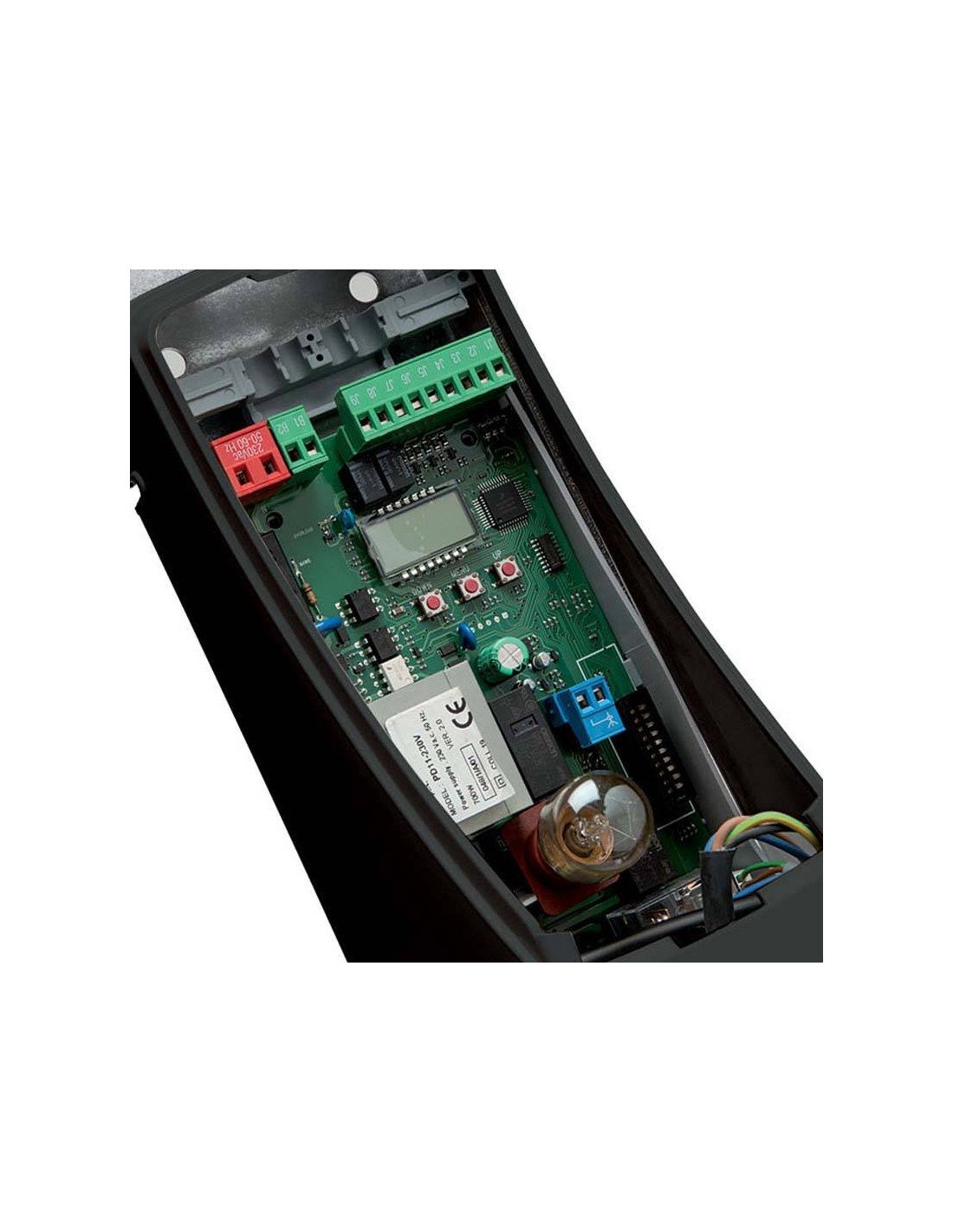

Change of maneuver board V2 OTHER for hinged doors up to 9 m2.

FUNCTIONS

• Programming by three buttons and screen
• Connector for the MR2 modular radio receiver
• 1 input for photocells with self-test function
• 1 entry for mechanical or resistive safety belts
• Output for 24V signalling lamp or pilot lamp
• Out for courtesy light
• Self-learning function of working time and obstacle detection
• Operating cycle counter with maintenance signalling
• Softly I stop the closing leaves
• Soft start in opening phase (programmable time)
• ADI connector for the connection of the optional module CL1+

MANUALS

Instruction manual V2 VEGA and table PD11
