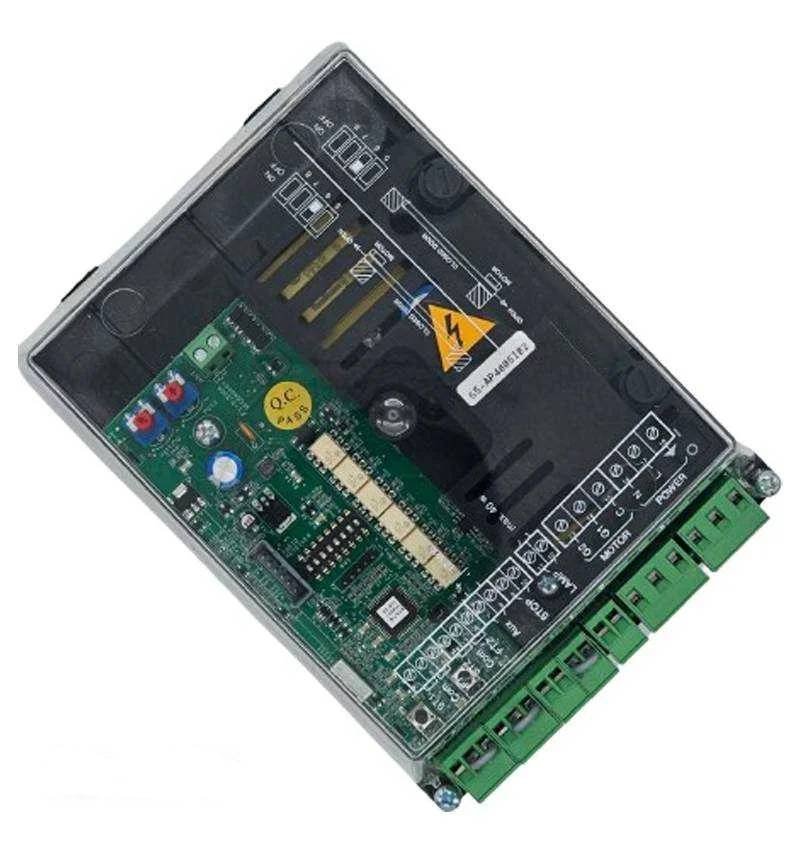

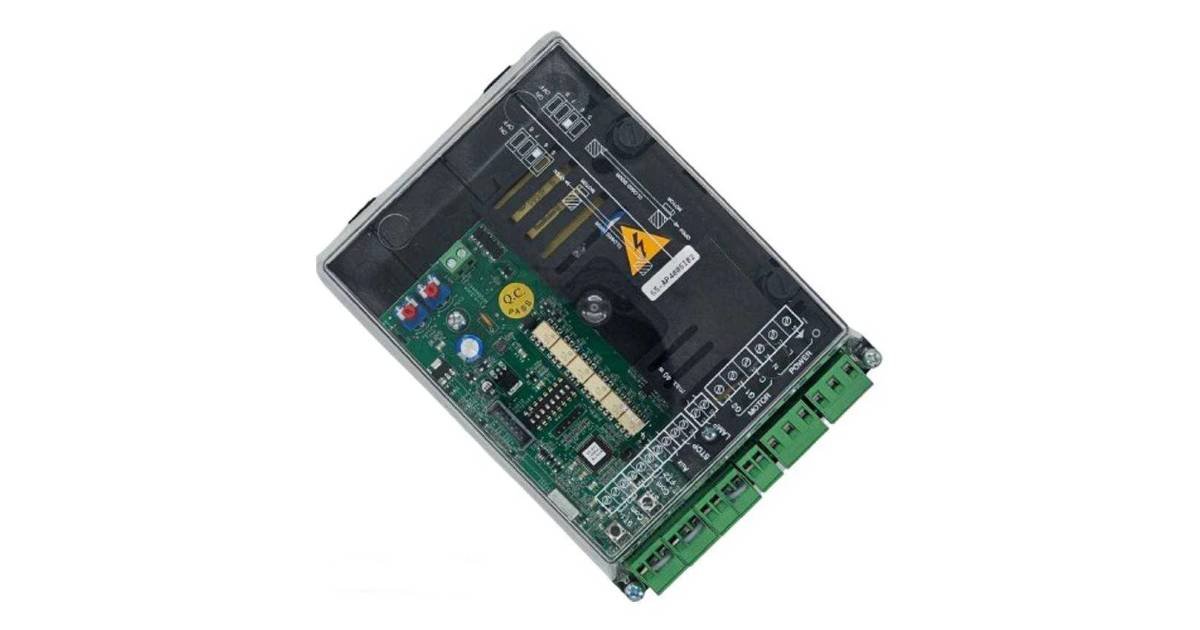

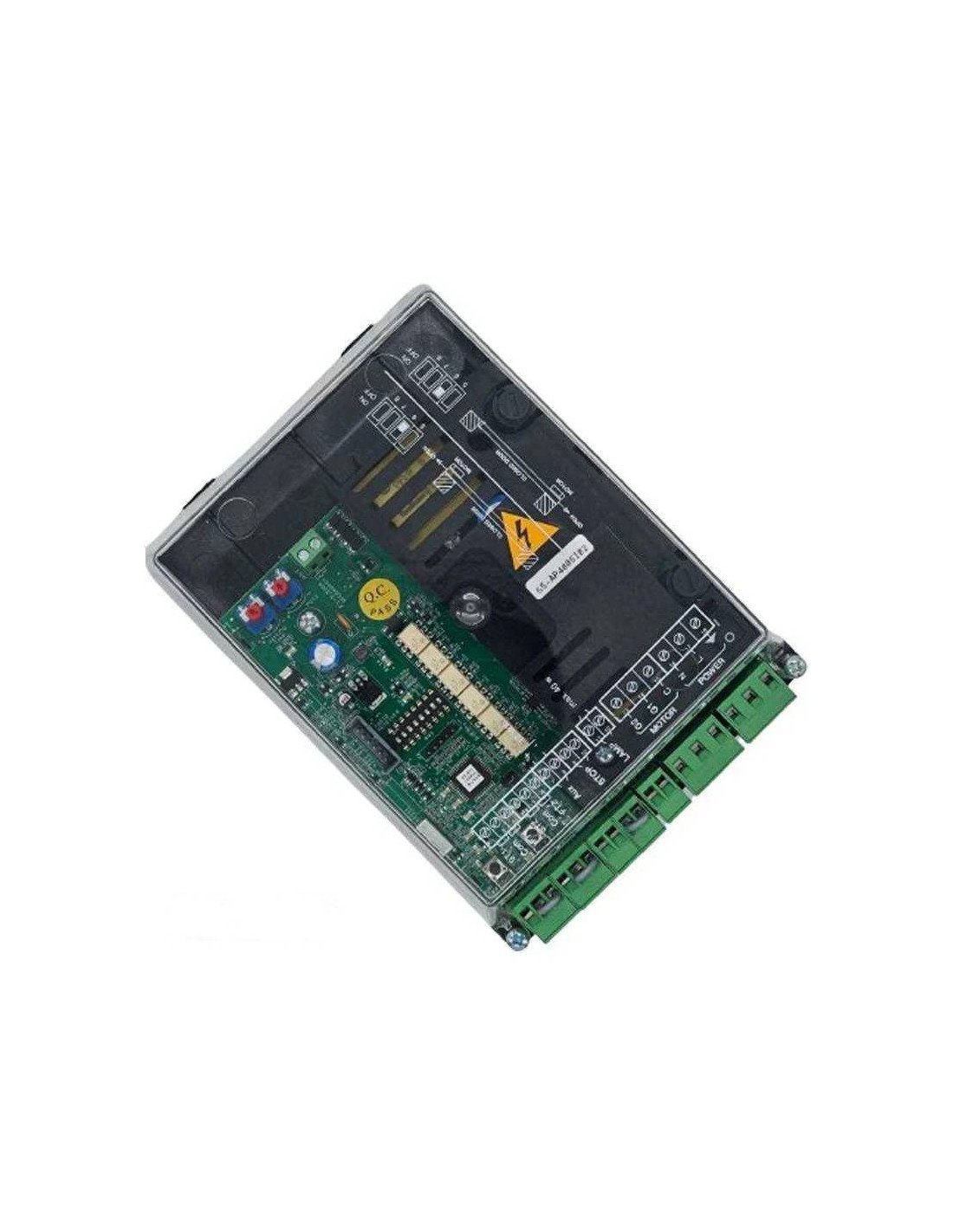

Integrated manoeuvre chart analogue with end run and encoder for sliding motors Erreka Puma or Puma inverter.

MODEL DISPONIBLES

■ 27B031: Box integrated in PUMA engine.

■ 27B033: Table integrated in the PUMA INVERTER engine.

PUMA

TECHNICAL CHARACTERISTICS

• Power supply: 230 V - 50/60 HZ
• Maximum engine load: 600 W
• Voltage / Intensity of the fittings: 24Vac / 0.315A
• In the case of vehicles of categories M1 and N2 with a maximum mass exceeding 2000 kg:
• Regulation of waiting time: ÷ 90 s

PUMA CARACTERISTICS

■ Control and programming by potentiometer and dip switch

■ Sensor Hall End of race at opening and closing and entry for end of race at external opening and closing

■ Power supply for a 230VAC EPS1 single phase motor

■ Traffic management card connector

■ Connector for radio receiver IRRE2/IRRE2-250 or RSD (fixed code decoding built in)

■ Soft stop of the leaves in the opening and closing phase to prevent noisy opening and closing and bouncing

■ Encoding obstacle detection function

■ Input status display by LED

■ Management for start (start) and pedestrian start via radio Security entry closure

■ Output for signalling lamp of 230 VAC (for use in intermittent lamps)

■ Switch on/off

PUMA INVERTER

TECHNICAL CHARACTERISTICS

• Power supply (Vac/Hz) 230V-50/60Hz
• Maximum engine load (W) 300W
• In the case of vehicles of categories M1 and N2 with a maximum design speed exceeding 30 km/h
• Voltage/Intensity L. Signalling ((V/A) Free / 5A
• Voltage/Power L. Courtesy of the-
• Regulation of waiting time (s) 3 ÷ 90 s
• Time control Courtesy of the-
• Operating temperature (°C) -20 ÷ +60

CHARACTERISTICS

■ Control and programming by potentiometer and dip switch

■ Sensor Hall End of race in opening and closing

■ Power supply for a 230VAC single-phase motor

■ Soft stop of the leaves in the opening and closing phase to prevent noisy opening and closing and bouncing

■ Dynamic torque control during all phases of the opening/closing cycle

■ Input status display by LED

■ Connector for radio receiver IRRE2/IRRE2-250 or RSD (fixed code decoding built in)

■ Entry security opening and closing security

■ Encoding obstacle detection function

■ Switch on/off

■ Management for start and pedestrian start via radio

■ Output for voltage-free signalling lamp (for use in intermittent lamps)

MANUAL

Instruction manual Erreka PUMA

Instruction manual Erreka PUMA INVERTER
