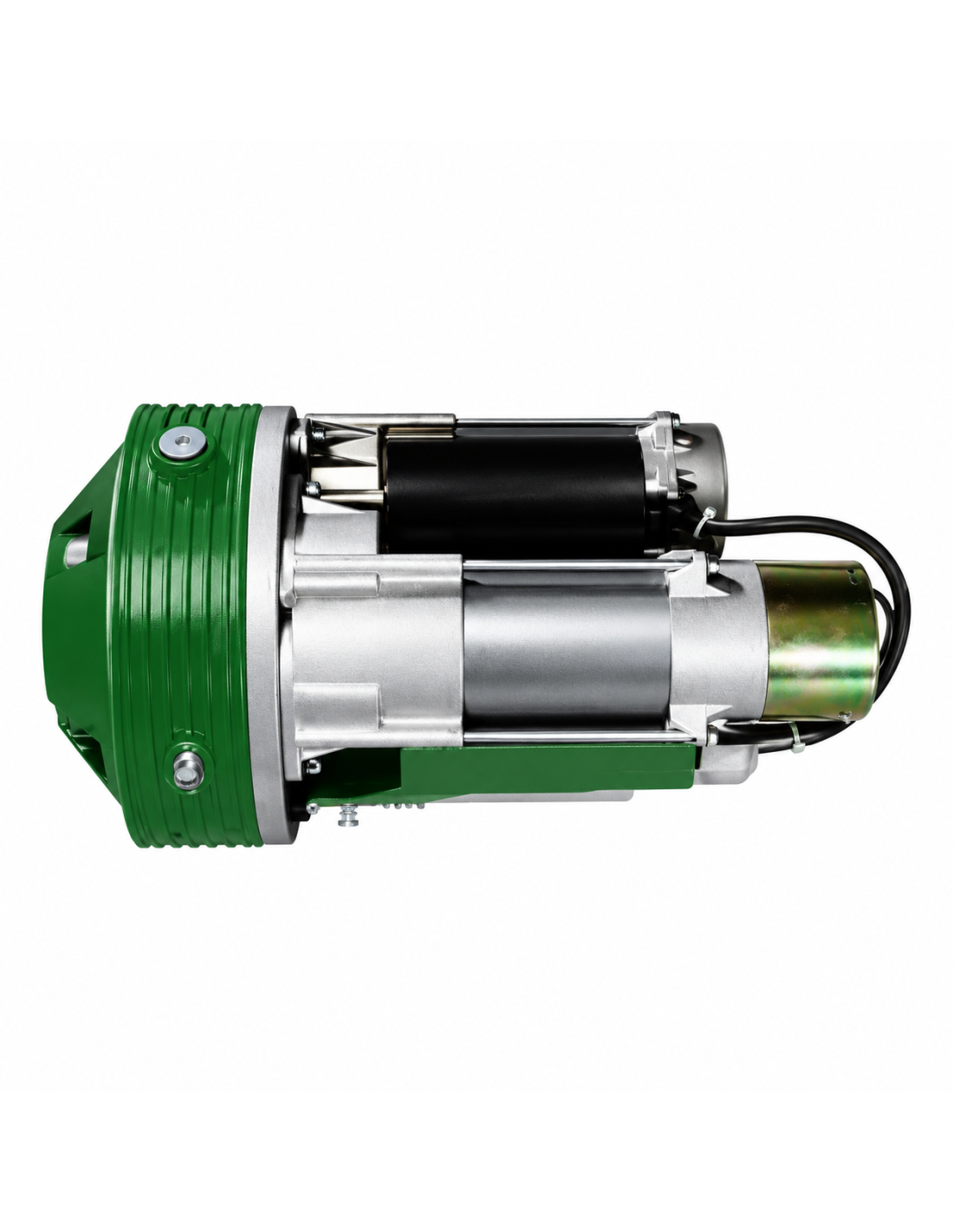

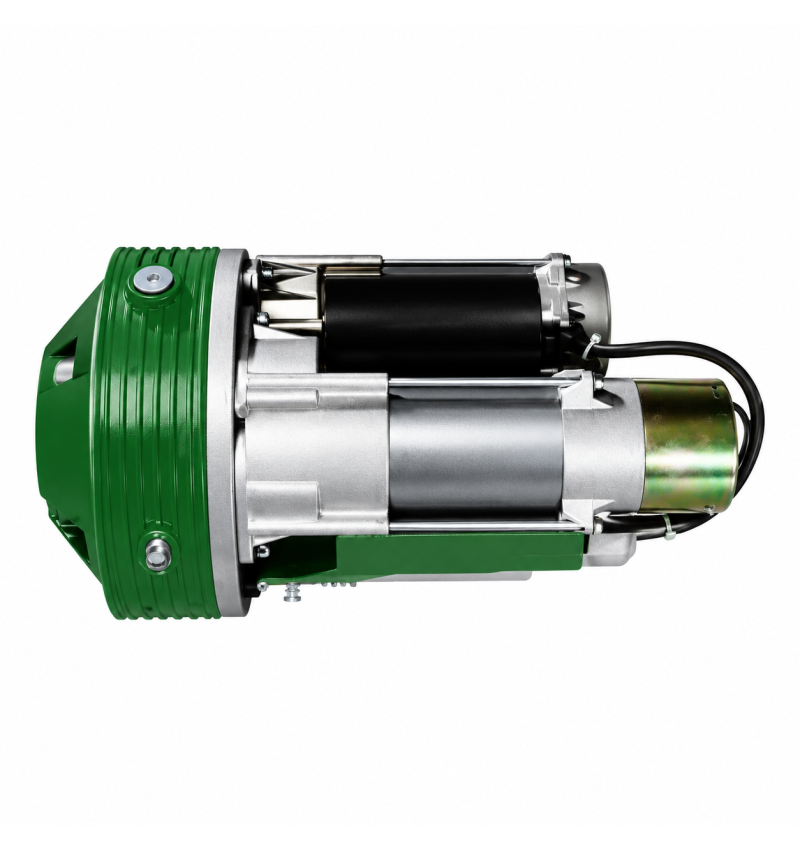

Twin Forsa UNIKO R-60 2M 230V for roller shutters up to 153 kg

Twin Forsa UNIKO R-60 2M for roller shutters up to 153 kg

The Forsa UNIKO R-60 2M, reference SAT012, it is a double engine central gearmotor designed to automate roller doors and shutters compensated through springs or pulleys.

This version has a power of 700 W, feeding 230 VAC / 50 Hz and a lifting capacity up 153 kg in the standard configuration.

It is supplied prepared for 60 mm axis and 200 mm crown, including reductions for axes of 48 and 42 mm and supplement to adapt the crown to 220 mm.

The model UNIKO R-60 2M is reversible and supplied without electrofrain. If the installation needs mechanical locking of the blind, the compatible electrofren is added as an accessory.

Bilotor 700 W for roller shutters

✓ Double engine / double coil.

✓ Elevation capacity up 153 kg.

✓ Total power of 700 W.

✓ 230 VAC / 50 Hz.

✓ 150 Nm.

✓ Turning speed of 11 rpm.

✓ Central gearmotor for rolled doors and shutters compensated.

✓ Configuration Bimotor Uniko R-60 2M.

✓ Reference Forsa SAT012.

✓ Prepared as standard for ø60 mm axis.

✓ Includes reduction for ø48 mm axis.

✓ Includes reduction for ø42 mm axis.

✓ Standard crown of Ø200 mm.

✓ Includes supplement for crown Ø220 mm.

✓ Regulable career end to establish the opening and closing positions.

✓ Protected motor against overheating.

✓ Possibility of installing optional electrofren.

✓ Possibility of incorporating different outer unlocking systems when electrofreno is installed.

Electrostry version

This product corresponds to UNIKO R-60 2M without electrofreno. Being a reversible version, the electromagnetic brake can be installed as an accessory when it is necessary to have an additional blocking of the blind.

UNIKO R-60 2M is prepared as standard for ø60 mm axis and Ø200 mm crown.

The supply includes adapters to be able to use it also with axes of Ø48 mm and Ø42 mm.

For facilities with crown Ø220 mm the corresponding expander supplement is included.

The Forsa Uniko incorporates end of race to regulate the opening and closing positions of the blind.

Your system is designed to facilitate regulation during the start-up of automation.

The UNIKO R-60 2M is destined for rolling doors with compensated axis through springs or pulley systems.

Before selecting the engine, it must be checked that the blind is properly compensated and that the dimensions of the axis, crown and door weight they are compatible with automatism.

The engine is intended for a occasional use.

Continuous or excessively frequent maneuvers should be avoided. The shutter must be correctly balanced to reduce the effort made by the engine.

■ Electrofreno Forsa UNIKO.

■ Exterior unlocking systems for installations with electrofreno.

■ Maneuver box compatible with 230 vac rolling motors.

■ Receiver and compatible remote controls.

■ Key selector or opening and closing pushbuttons.
