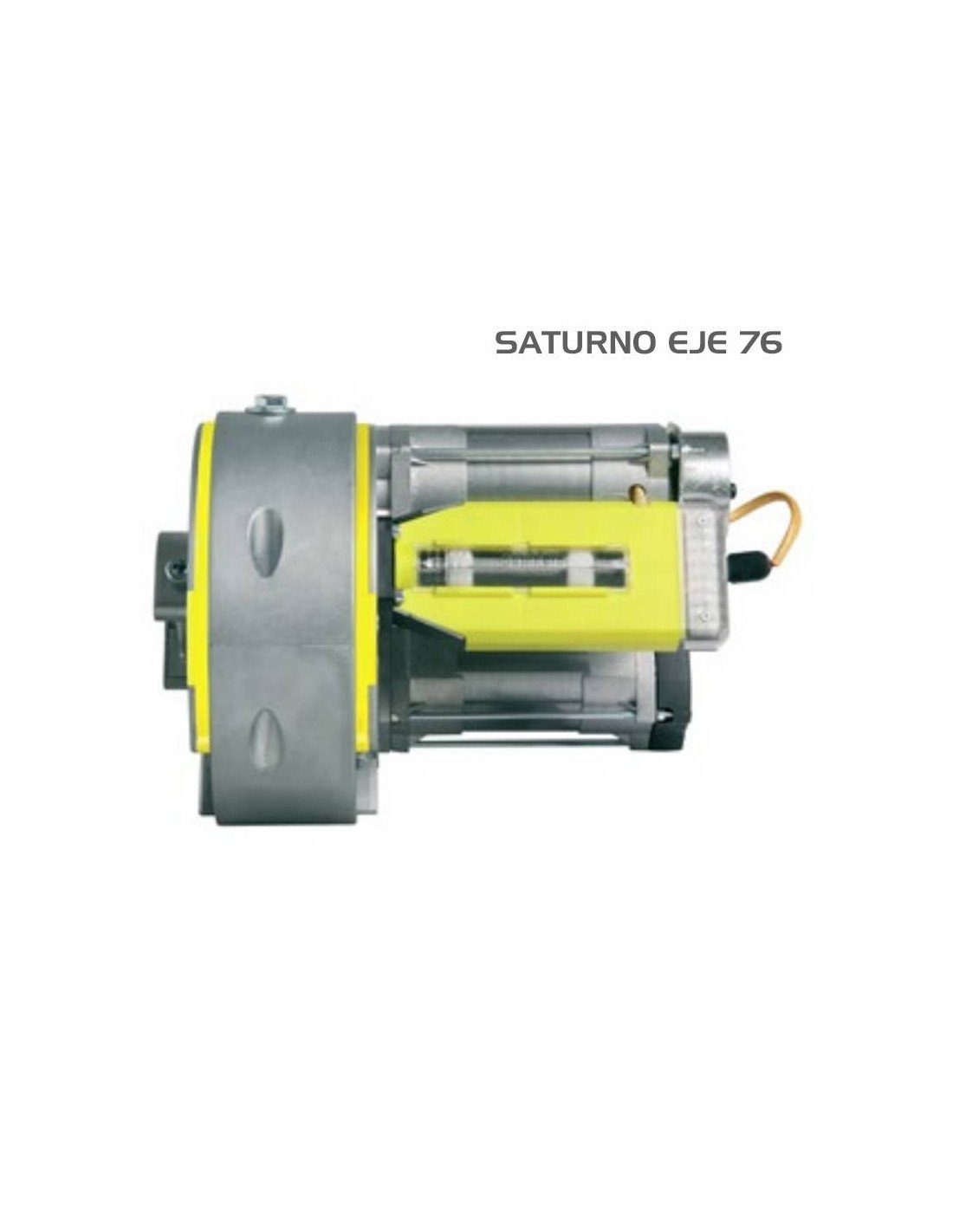

1 or 2 spools Forsa SATURNO motor for roller shutters with 76mm diameter shaft and 240mm pulleys.

SATURNO is a history of our products. It was the first two-part "open" motor to be installed in metal locks already in operation without the need to disassemble or modify the shaft; a primacy with a worldwide patent. A true revolution for its time and a current icon thanks to the continuous technological improvements applied. SATURNO is manufactured with state-of-the-art technical solutions and materials, which guarantee reliability and long life of the product.

Its double reduction phase, present on all versions, guarantees a significant increase in the lifting force on all metal fasteners.

Its limit switch uses the same innovative principle used in the first place with the UNIKO model: it allows for a long travel and, at the same time, extremely precise micrometric adjustment.

■ Saturn 76 is a motor designed to lift heavy and large doors with a 76 mm diameter shaft and 240 mm pulleys.

■ Available in 1 or 2 winding versions, with or without brake

AVAILABLE MODELS

■ SAT076R: Reversible 1-coil motor (without brake).

■ SAT076A: 1-coil motor with electric brake.

■ SAT078R: Reversible 2-coil motor (without brake).

■ SAT078A: 2-coil motor with electric brake.

MANUAL

SATURNO Forsa Instruction Manual
