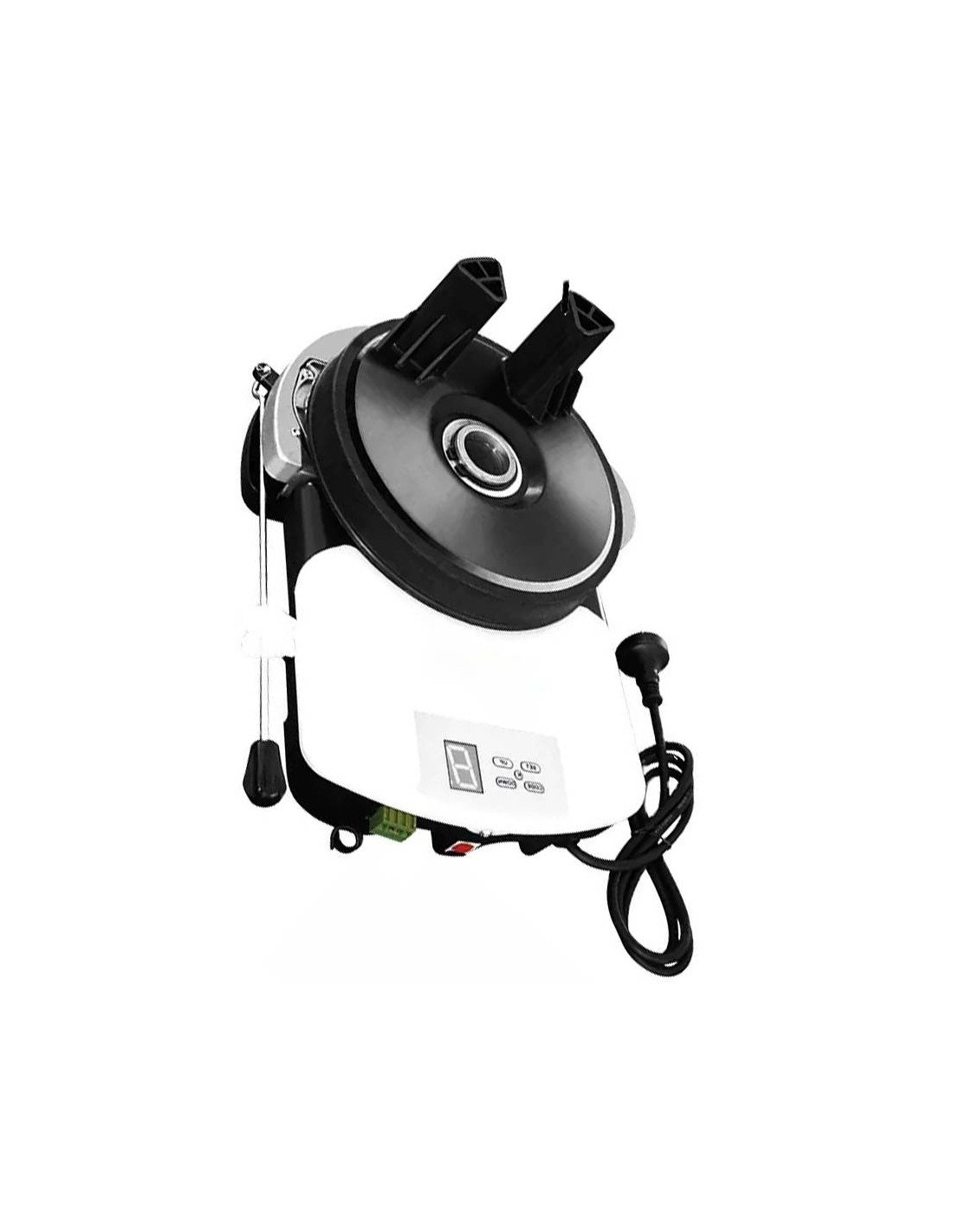

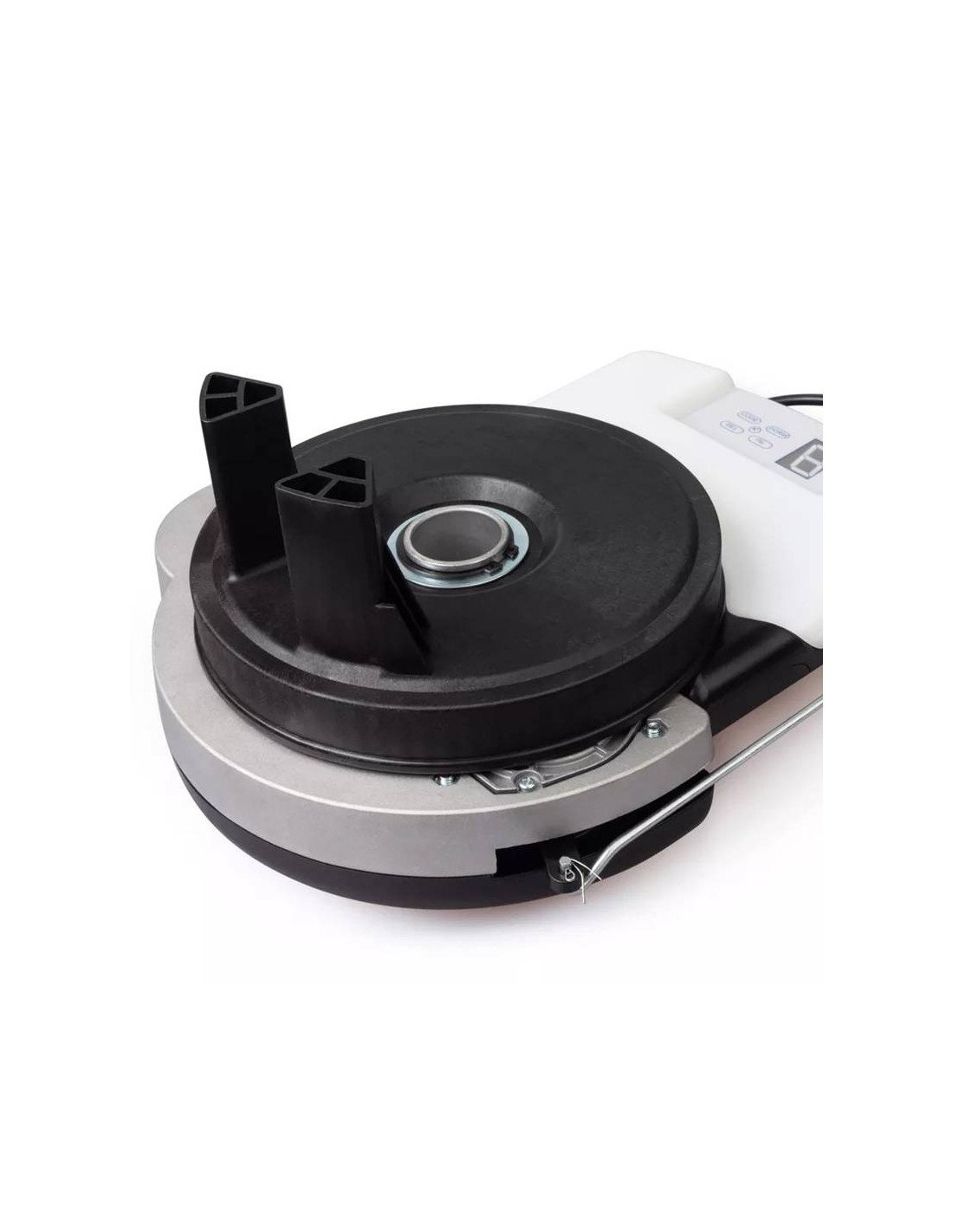

OTHER TRAILERS

Other trailers and semi-trailers with a lifting capacity of 400N (40KG). It incorporates a receiver compatible with VARIO4 transmitters.

TECHNICAL CHARACTERISTICS

✓ Power supply 230Vac - 50/60Hz

✓ Engine voltage 24Vdc

✓ Maximum power 235W

✓ Lifting force 400N (40KG)

✓ Working temperature between -20 °C and 40 °C

✓ Maximum height of the door 15 feet

✓ Built-in receiver with capacity for 20 transmitters

✓ Trapping system with obstacle detection

✓ Automatic closure

CHARACTERISTICS

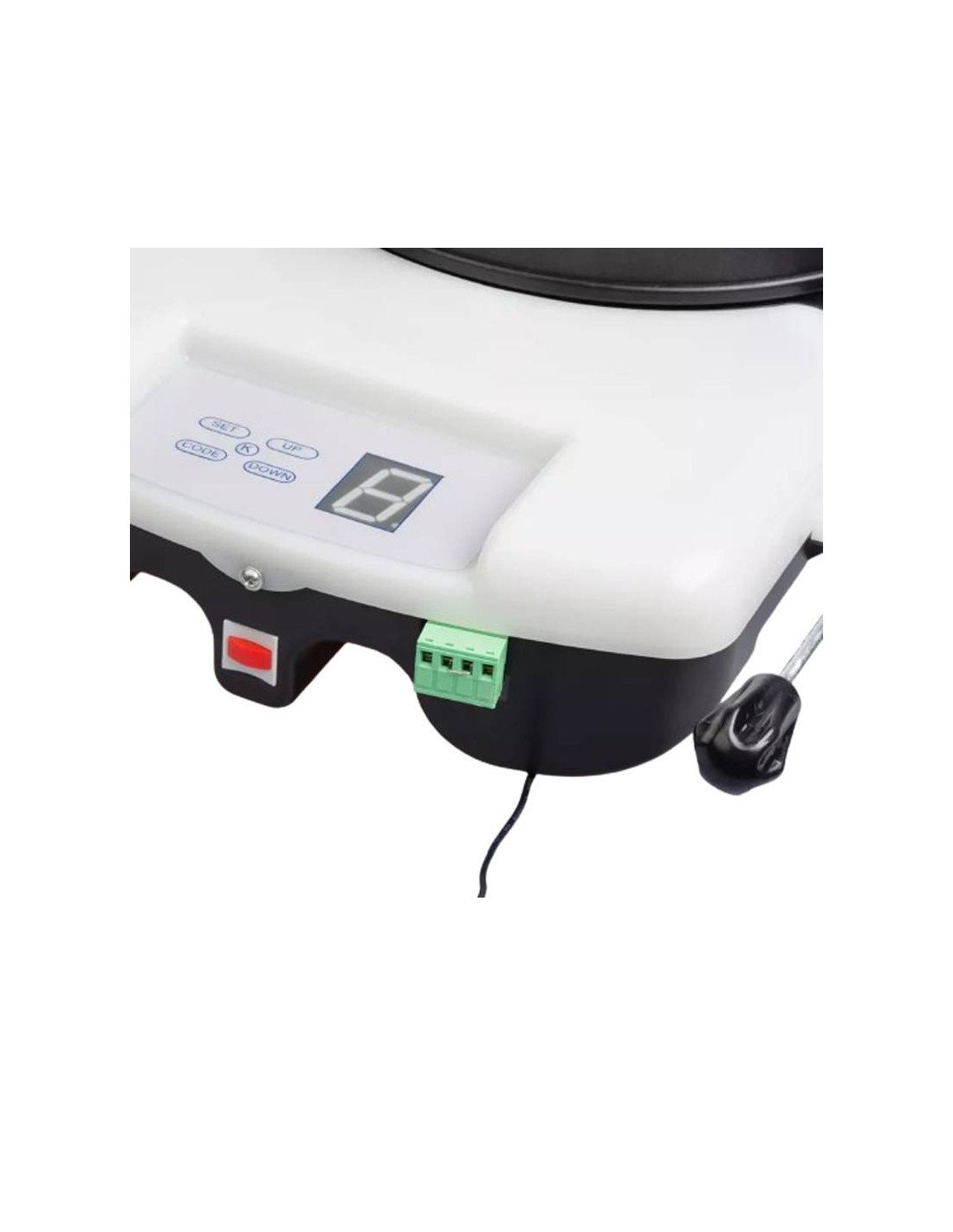

• Easy to use. Just press the remote control button or the O/O/D button on the motor to open, stop or close the door.
• The secure and reliable emitter system with variable code.
• Electronic race terminals, easy to operate, stable and reliable.
• This is the ISS (Intelligent Security System). When a door closing cycle is performed, it will automatically reverse if it hits an obstacle or is locked in some way. The door will also stop if it encounters an obstacle when opening.
• Up to 20 different emitters can be stored in the actuator's internal memory.
• Energy efficient LED light. The light will automatically turn on when working and turn off 3 minutes after stopping.
• Battery terminal is available. (optional battery)
• Automatic closure mode available. The door shall close automatically after it is fully open in the default auto-lock setting.
• Outlet to connect a photocell.
• Simple and reliable unlock. Pull down the manual unlock lever, the door works manually. Push up the manual unlock lever, the door will go back to automatic mode again.

VIDEO EXAMPLE ASSEMBLY

MANUAL

Instructions for use
