Rollable motor kit with WiFi and state control

Complete kit to automate roller shutters with WiFi control from the mobile, including real-time visualization of the state of the door (open, closed or moving).

This system combines the power and safety of Engine Pujol Winner Pro EF 600/200 with electrofreno for blinds up to 170kg with the intelligent power station Motorline Mc76 and the wifi module Mconnect link, allowing to open and close the blind from anywhere and know at all times if it is uploaded or down.

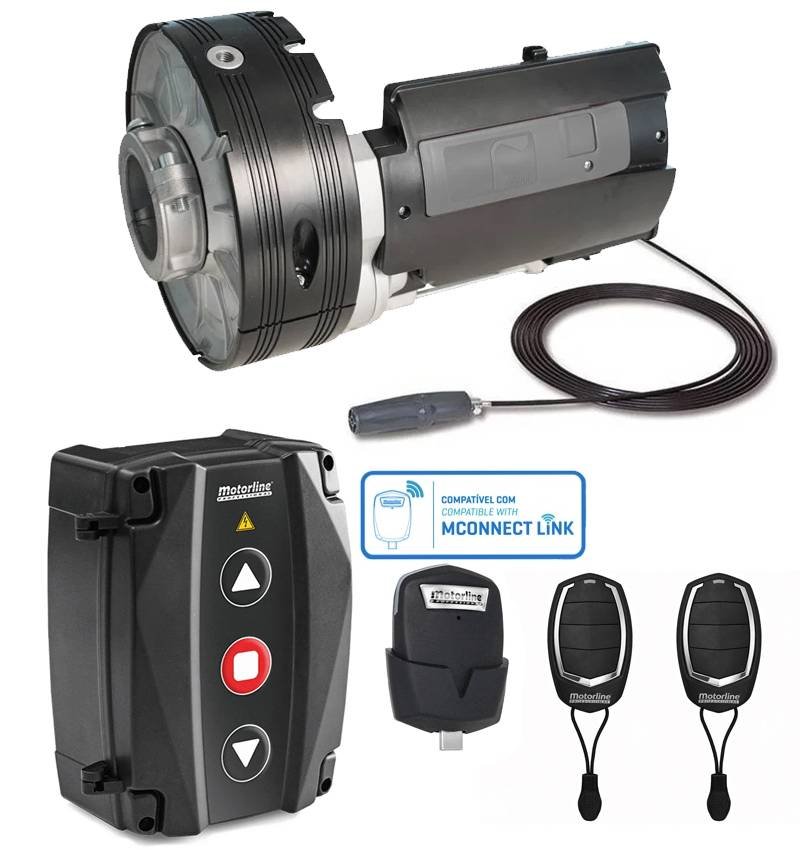

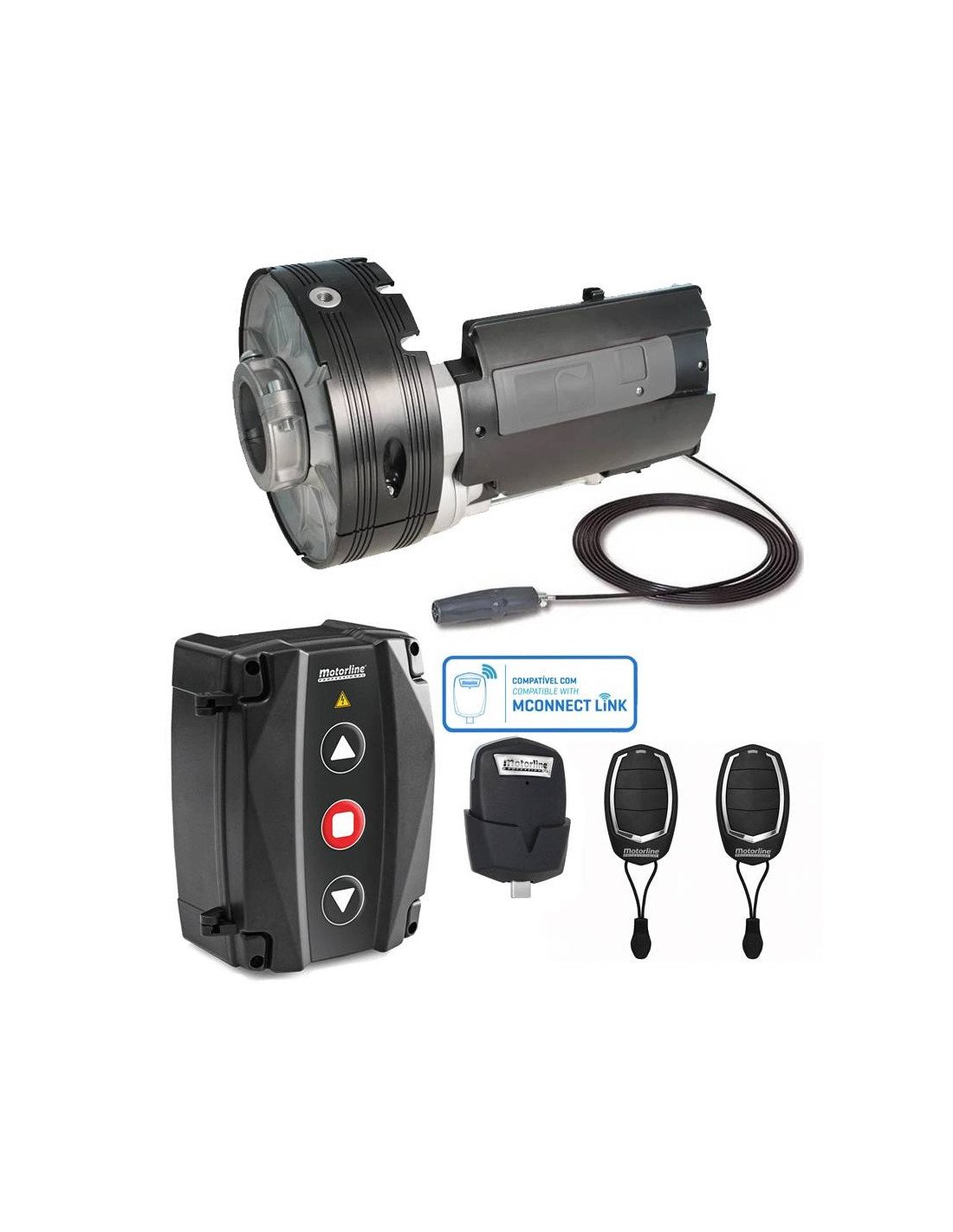

What includes this WiFi kit for roller shutters?

• ✔ Engine Pujol Winner Pro EF 600/200 with electrofreno (up to 170 kg)
• ✔ Electronic Motorline Mc76 with integrated receiver 433.92 MHz
• ✔ WiFi Module Motorline Mconnect link
• ✔ 2 controls Motorline Falk Rollingcode

Total control from the mobile

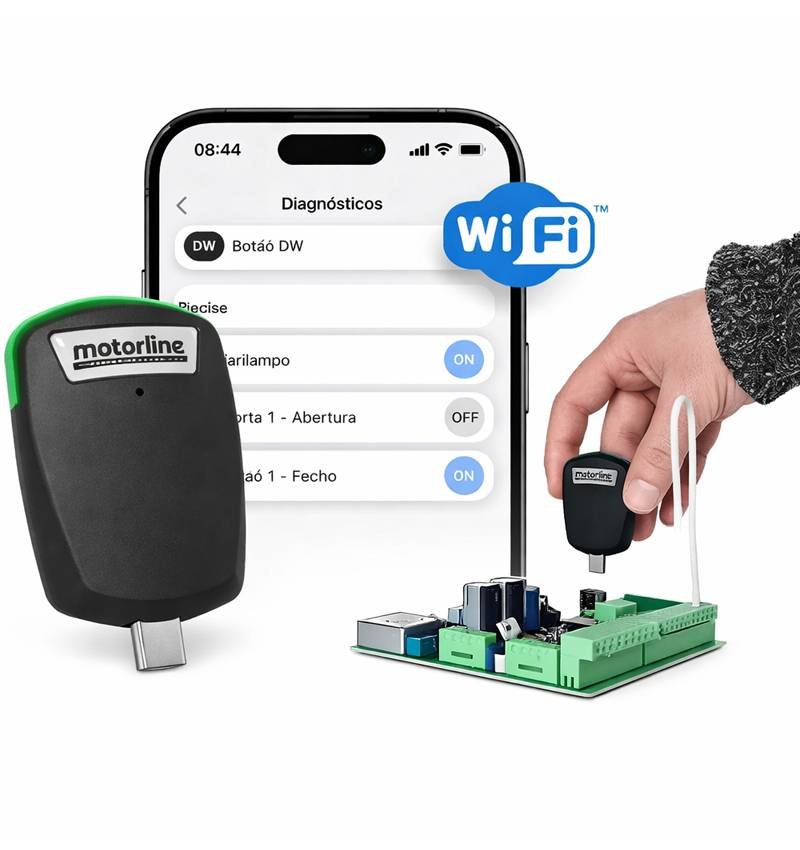

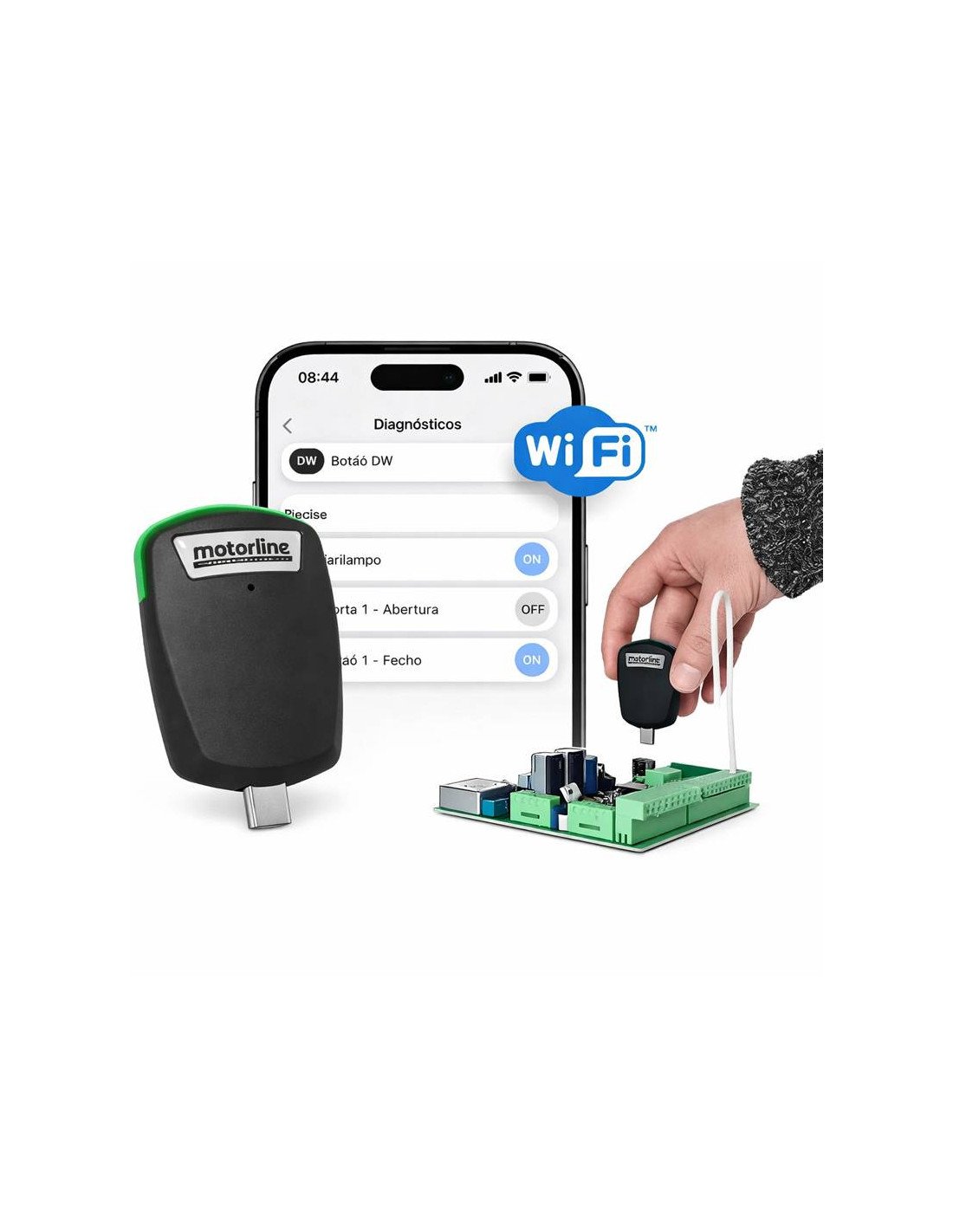

Thanks to the integration between MC76 + MCONNECT LINK, the user can:

• Open and close the shutter from anywhere
• Consult the status in real time (upload, down or stop)
• Check the History of Maneuver
• Receive remote diagnosis of the system
• Configure parameters without trips

Ideal for commercial premises, business and garages where is important Verify if the blind has been correctly closed.

Especially Recommended for Laundry Self-Service, Stores, Warehouses, Industrial and local ships without continuous presence of personnel, where there is not always anyone physically in the place to check the closure.

Thanks to the system Integrated wifi, the owner can Consult from your mobile if the blind is uploaded or lowered in real time, avoiding unnecessary displacements and reducing risks for forgetting or incomplete closures.

It is a perfect solution for businesses that need security, Remote supervision and tranquility outside business hours, allowing to check the state of access at any time and from anywhere.

Engine Pujol Winner Pro EF with electrofreno

Professional motor Rolling metal shutters with lifting capacity 170 kg.

The Electrofreno blocks the blind when closing, avoiding forced manual openings and increasing access security.

Includes manual unlocking system for maneuver in case of electrical failure.

Compatible with 48/60 mm axes and pulleys of 200/220 mm.

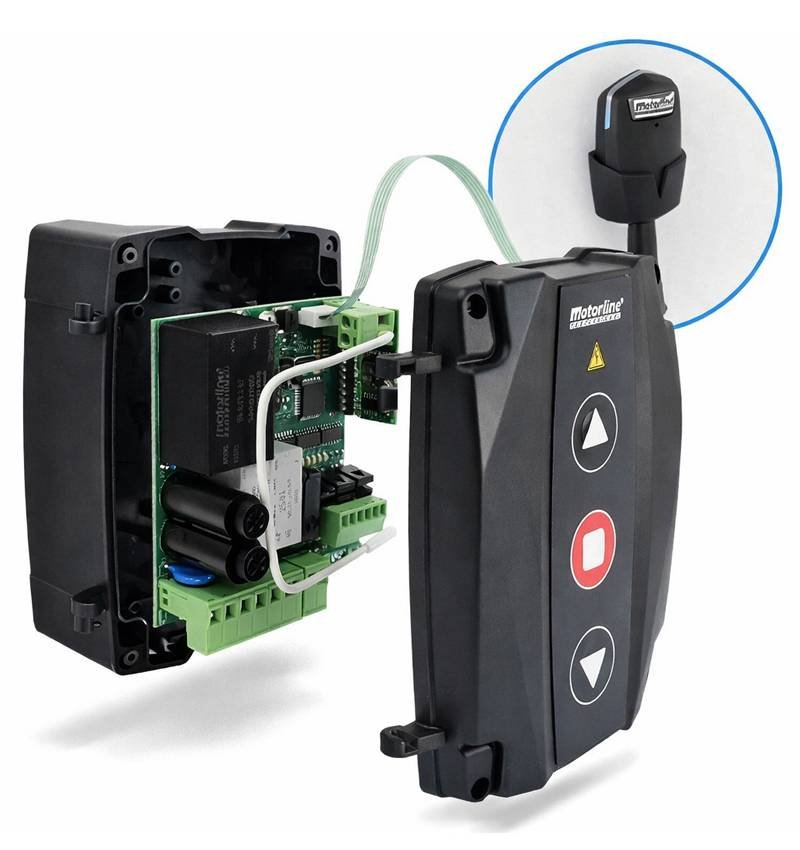

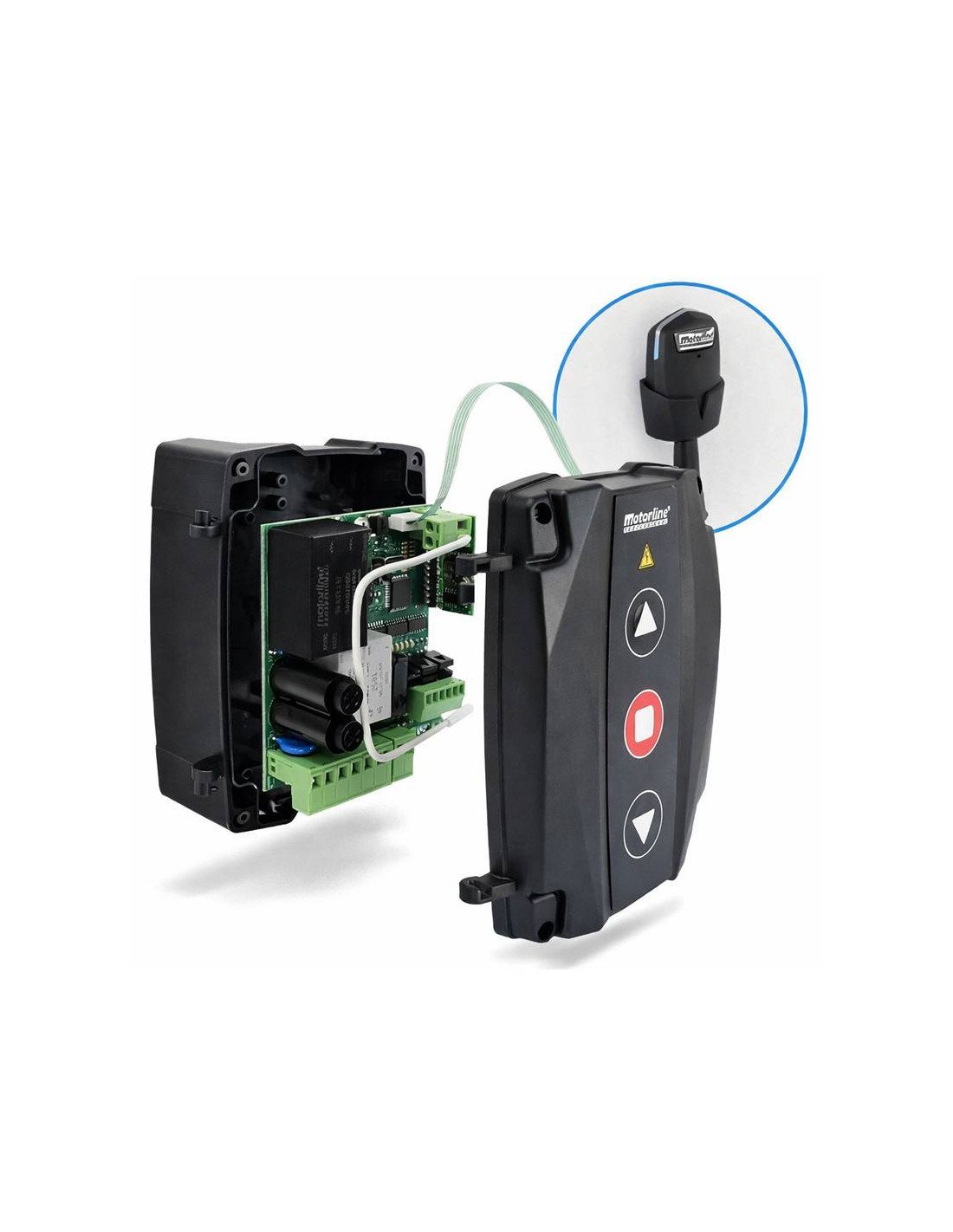

Central Motorline MC76 - SECURITY AND CONNECTIVITY

• Universal Food 85-265VAC
• Maximum power 1840W
• ROLLINGCODE RECEIVER 433.92 MHz integrated
• Capacity up to 120 controls
• Tickets for photocells with Autotest
• Input Security Band 8k2
• Exit for external lamp
• IP65 protection

The MC76 is the intelligent base of the system, allowing to know the actual state of the blind and transmit it to the WiFi module.

Controls included

The Kit incorporates 2 controls Motorline Falk Rollingcode 433,92 MHz, offering advanced safety through evolutionary code and total compatibility with the plant.

Advantages of this WiFi system for roller shutters

• ✔ Remote control from smartphone
• ✔ Display of the state in real time
• ✔ Greater security thanks to the electrofreno
• ✔ Full installation ready to work
• ✔ Professional Solution for Business and Garages

A modern solution, secure and connected to automate roller shutters with intelligent control.

Video Mconnect Link

Presentation Mconnect Link in Spanish.

» Video Initial configuration

» Video Edit programming parameters

» Video How to add transmitters

» Video How to share device with a technician

» Video How to obtain certified technical validation

» Video Export and Import Parameters

Documentation

Manual Motorline Mc76

Manual Motorline Mconnect link
