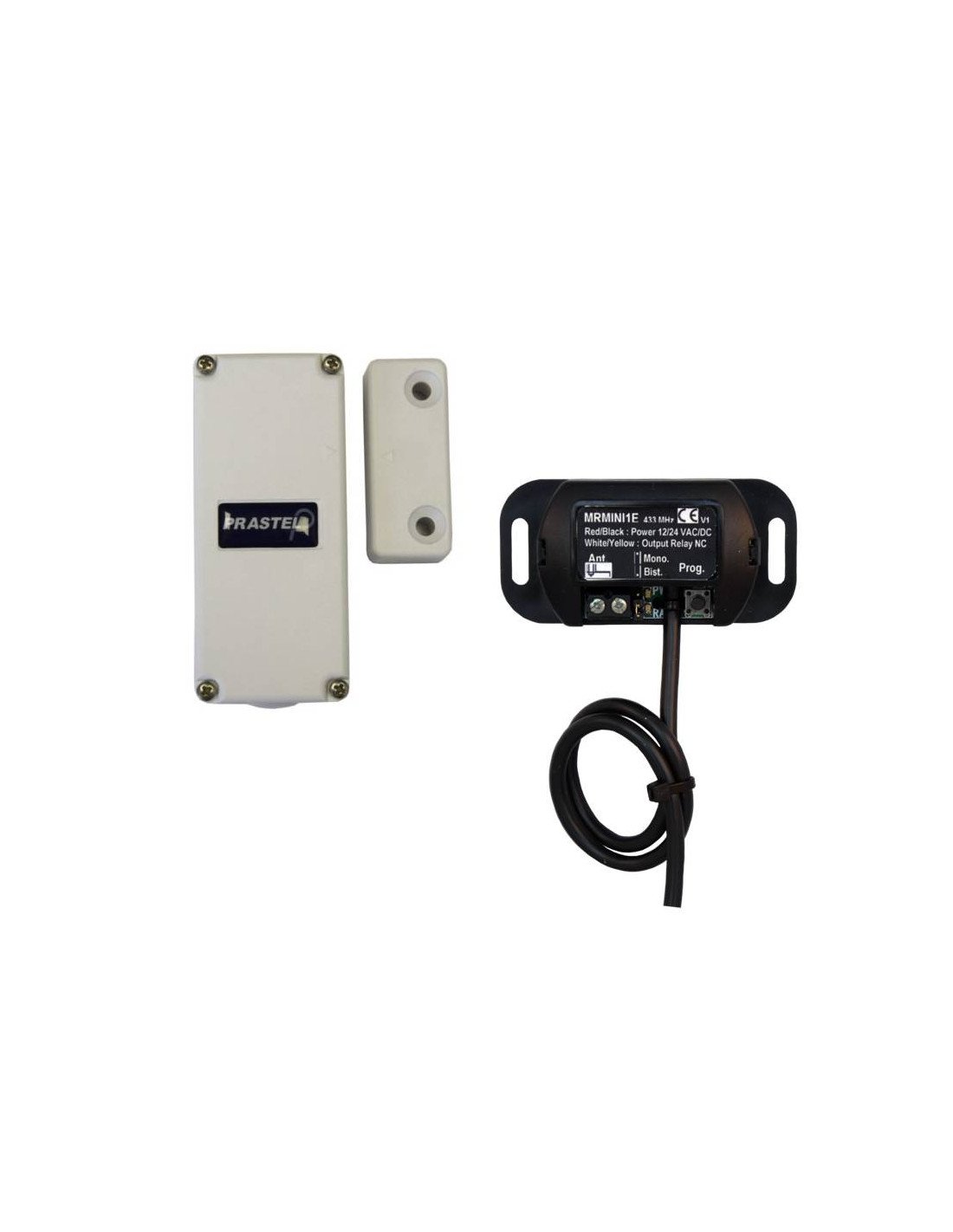

The system consists of a TX module and an RX module. Used to equip sectional doors fitted with an inserted pedestrian door. What. It can be used with external magnetic or mechanical contact, or with internal magnetic contact. This allows you to know the state of the pedestrian door (open or closed).

If the door is open:

It shall be prohibited to raise the door or operate the engine to avoid damaging the pedestrian door.

The TX module is installed in the door and the RX module is installed next to the power unit being connected to it. The RX module delivers a dry contact that must be connected to a security input of the control unit.

The battery life of the TX module is approximately 4 years.

For greater safety, the signals are transmitted bidirectionally and at the frequency of 868 MHz (2 channels are possible, in case of disturbances).

CHARACTERISTICS

TECHNICAL CHARACTERISTICS

TRANSMITTER CONFIGURATION

MANUAL

Instruction manual TCOG-KIT-P
