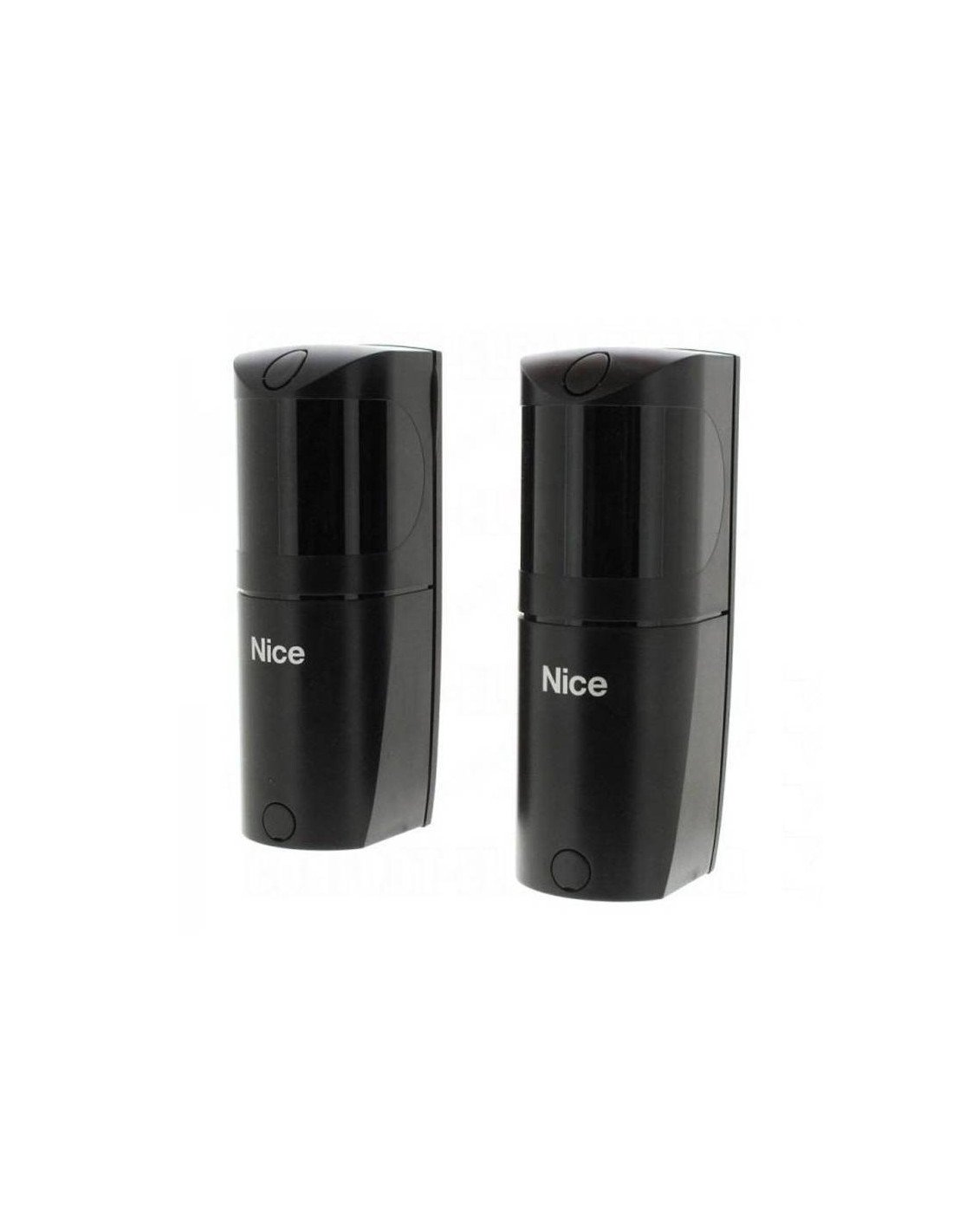

Pair of Nice FT210 optical devices adjustable to 210º for sensitive edges with wireless transmitter and movable fixation.

Optical equipment, with wireless transmitter for fixation on a movable leaf, adjustable to 210° on the horizontal axis and 30° on the vertical axis, for a system that is fully compliant with standards.

Attention paid to the safety of people and the quality of products.

An FT210/ FT210B device combined with a resistive sensitive band 8.2 KOhm (type TCB65) allows the "main band" safety level required by the EN 12453 standard to be achieved for any "type of use" and "type of activation".

The FT210/ FT210B, associated with resistive sensitive edges (8.2 KOhm), is safe against individual failure (category 3 according to EN 954-1) or can be used with automatisms, which include self-diagnosis at the beginning of each manoeuvre (category 2 according to EN 954-1).

Various models

Versions with relay output (FT210) or version with BlueBUS Nice technology (FT210B), available with the 2 Ah (FTA2) and 7 Ah (FTA1) battery kit, for intensive use.

State-of-the-art technology

The anti-collision circuit prevents interference with other detectors that are also out of sync.

The FT210/FT210B optical devices have a special sensor, which detects the door stopping, remaining in the low-power mode, and starting up only when the door moves.

Adjustable reach in 2 levels; Proportional LED alignment for easy and safe installation.

Suitable for all architectural frames and convenient to install.

Small dimensions: 46x128x45 mm; Option of electrical connection also on the lower side of the box.

Very robust and safe polycarbonate housing; FA1 vandal-proof metal wrap (optional); Partially discharged transmitter battery indicator.

AVAILABLE MODELS

• FT210: Pair of optical equipment with relay output. Battery kit (FTA1/FTA2) mandatory.
• FT210B: Pair of optical equipment with BlueBUS technology. Battery kit (FTA1/FTA2) mandatory.
