Engine Nice SPINBUSKIT BD 24V 650N with magnetic encoder and two-way emitter, for sectional doors up to 10,5 m2, and for hinged doors up to 11,8 m.

Quick installation in all spaces: with adjustable head, unlocking with cable positioned at all points of the garage and without installing controls on the wall.

Saving and respect for the environment: with the network connection, in standby mode, the central, with the radio connected, consumes only 5,2 W; connected to the battery or the Solemyo kit, the consumption in standby mode is reduced to 0,036 W.

Very simple with the BlueBUS system: which allows two-wire connections only between the control centre and the photocell pairs.

No power outage: powerless operation with optional batteries (PS124), to be placed inside the engine.

I 'm sure: obstacle detection and automatic scheduling of working times, monitoring of engine absorption in running, self-diagnosis by flashing light and courtesy light with LED.

Adjustable acceleration and deceleration at the beginning and end of each manoeuvre.

Pre-installation to connect the sensitive edges of the latest generation 8,2 KOhm.

Light of courtesy with an integrated LED.

Bi-directional products Nice indicate the status of the automatic systems and the receipt of the order.

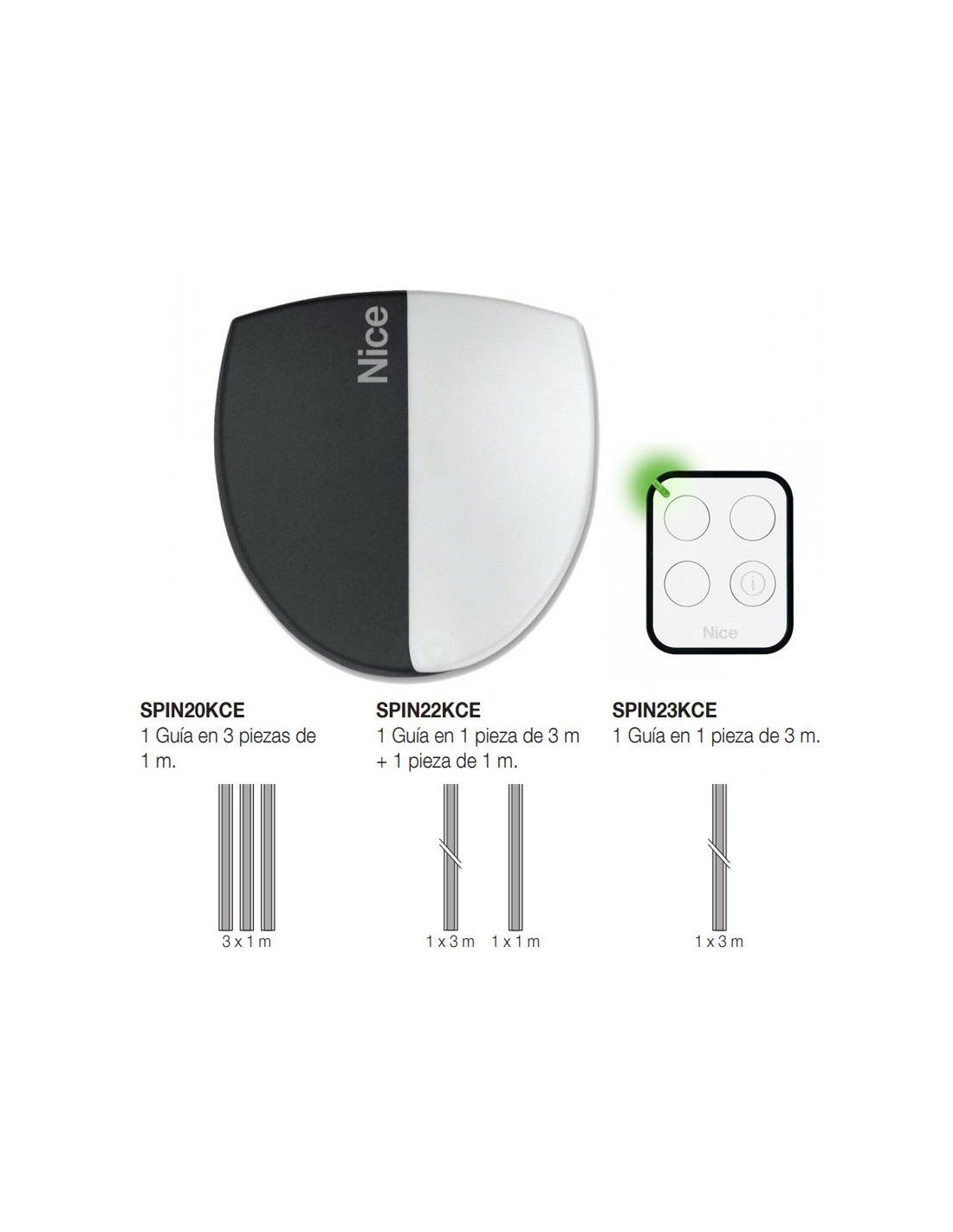

THE KIT CONTAINS:

■ OTHER: 1 Motor gearbox SN6021 with SNA20 hub and built-in OXIBD two-way radio receiver.

■ ON3EBD: 1 Transmitter 433.92 MHz with 3 channels, bidirectional.

■ Guide to choosing

AVAILABLE GUIDES

■ SPIN20KCE: 1 Guide in 3 pieces of 1 m.

■ SPIN22KCE: 1 guide in 1 piece of 3 m + 1 piece of 1 m.

■ SPIN23KCE: 1 guide in 1 piece of 3 m.

TECHNICAL CHARACTERISTICS

MANUAL

Instruction manual Nice SPIN
