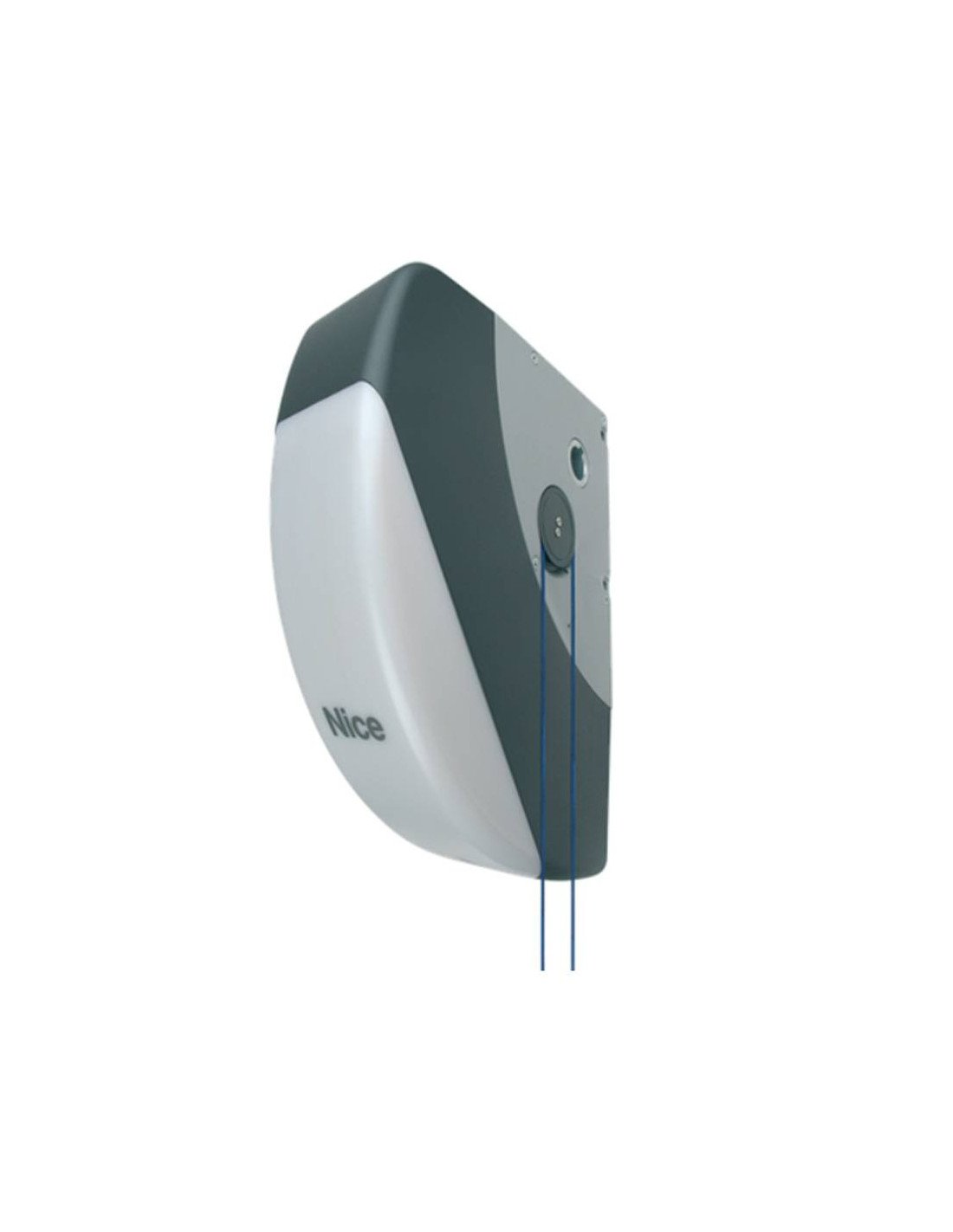

Engine Nice Soon for sectional doors up to 20m2

24 Vdc electromechanical motor, with absolute axis attack.

For balanced sectional doors up to 5 meters high, with anticated system (safety device in case of breakage of the springs).

Versatile: ideal in residential frames with garage doors also large, in multiuser frames also of intensive and industrial use with small sectional doors. For example, load points 3x3 m.

All in one: integrated control center. No guides, no zippers.

Easy to install: directly on the axis of the sectional door; very small dimensions and, above all, wide to facilitate assembly in all positions.

Very simple with the BlueBus system: allows two-wire connections only between the control center and the photocell pairs.

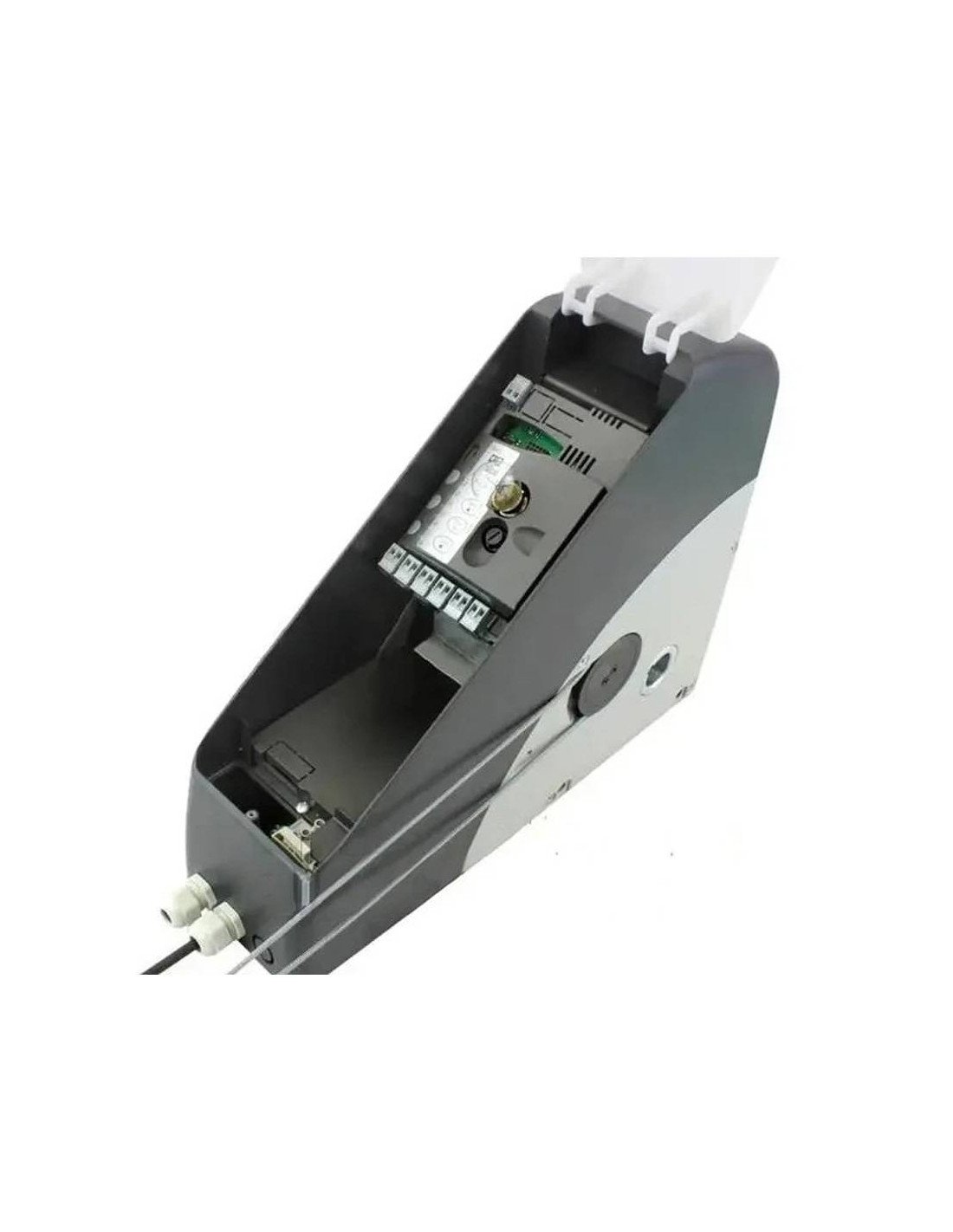

Practical: control center and PS124 backup batteries (optional), hosted inside and connected with a comfortable guided plug connector.

Energy savings: when the system is not used enters stand-by.

Fiable and precise: memorization of the end-of-the-speaker positions in opening and closing; gradual start-up and deceleration in opening and closing; absolute encoder technology guarantees long-term accuracy, reliability and maintenance of programmed values.

I 'm sure: detection of obstacles and monitoring of the absorption of the motor in the race, self-diagnosis through flashing light and courtesy light with LED.

Pre-installation to connect sensitive optical and resistive edges 8.2 KOhm of the latest generation.

Simple maintenance: removable terminals and receiver.

Easy to certify: exceeds impact tests without additional accessories.

TECHNICAL CHARACTERISTICS

I'M NOT GOING TO LIE

MANUAL

Instruction manual Nice SO2000

Video tutorial Nice SOON
