Motor kit EMFA MTCH NEW WIFI 800N and 1000N for sectional doors

Motor kit EMFA MTCH NEW WIFI for sectional and tilting doors

EMFA MTCH New WiFi It is an electromechanical equipment of 24 V designed to automate Sectional doors and tilting doors of a sheet with springs.

Is available in versions of 800 N and 1,000 N, with belt drive guides 3,350 mm or 4,350 mm. The guides are supplied games to facilitate their transport and assembly.

Its operation by jagged strap It provides a silent movement, while the remaining start and stop reduce the efforts transmitted to the engine and the door.

The engine incorporates WiFi connection, allowing to control the door from a mobile phone through the application Smart GDO of ET Technology, Available for Android and iOS devices.

Main features

• Internal motor of 24 V DC.
• Available with a traction force of 800 N or 1,000 N.
• Silent transmission by jagged strap.
• Integrated wifi To control the door from the mobile phone.
• Application Smart GDO Compatible with Android and iOS.
• Start and stop soft.
• Self-learning of travel and power control.
• Detection of obstacles with movement investment.
• Programmable automatic closing function.
• Radio receiver 433 MHz Open Code incorporated.
• Possibility of connecting security photocells.
• Input for alternative pushbutton.
• Connection for flashing lamp and safety contact.
• User unlocking to use the door in case of power failure.
• Designed to residential use.

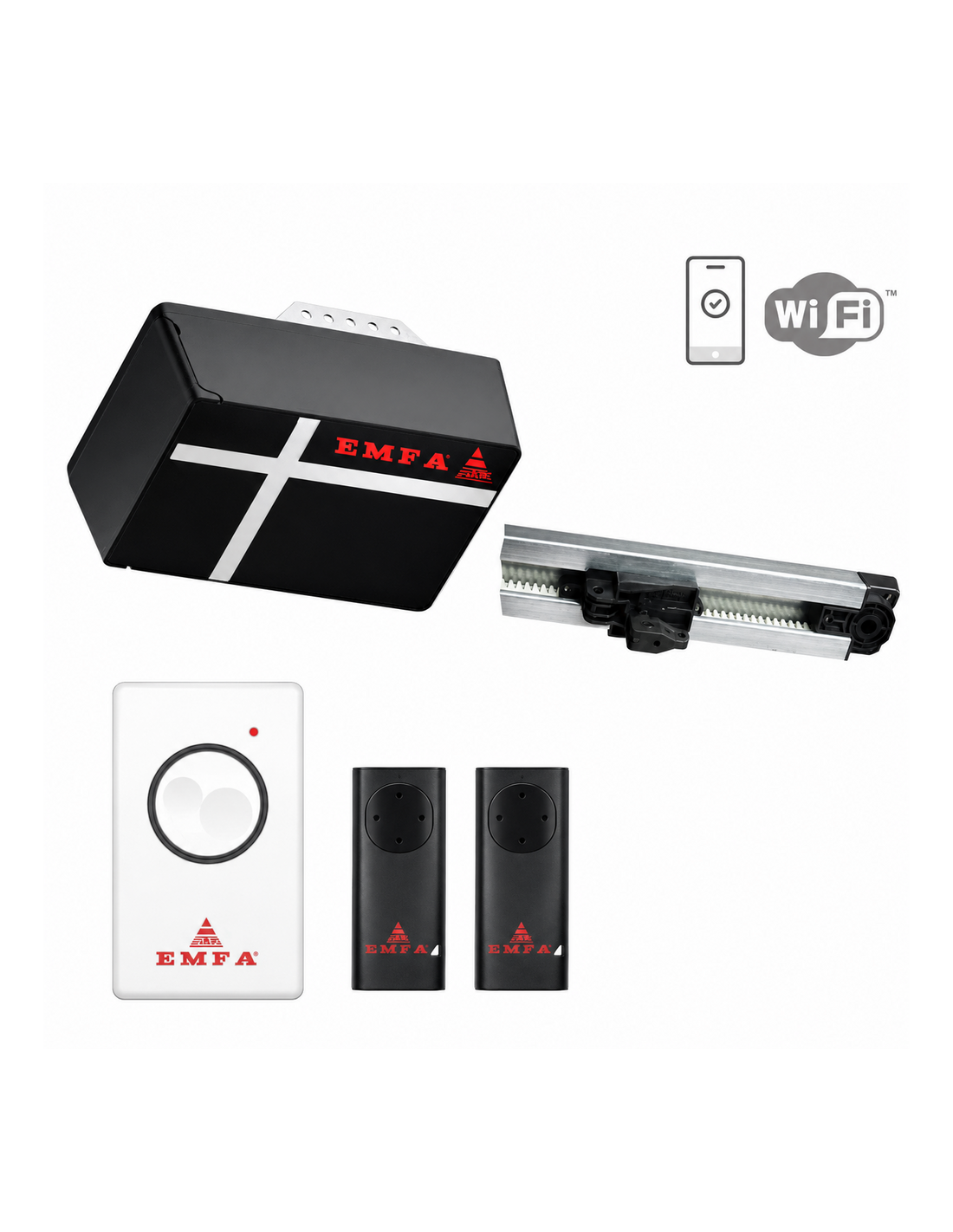

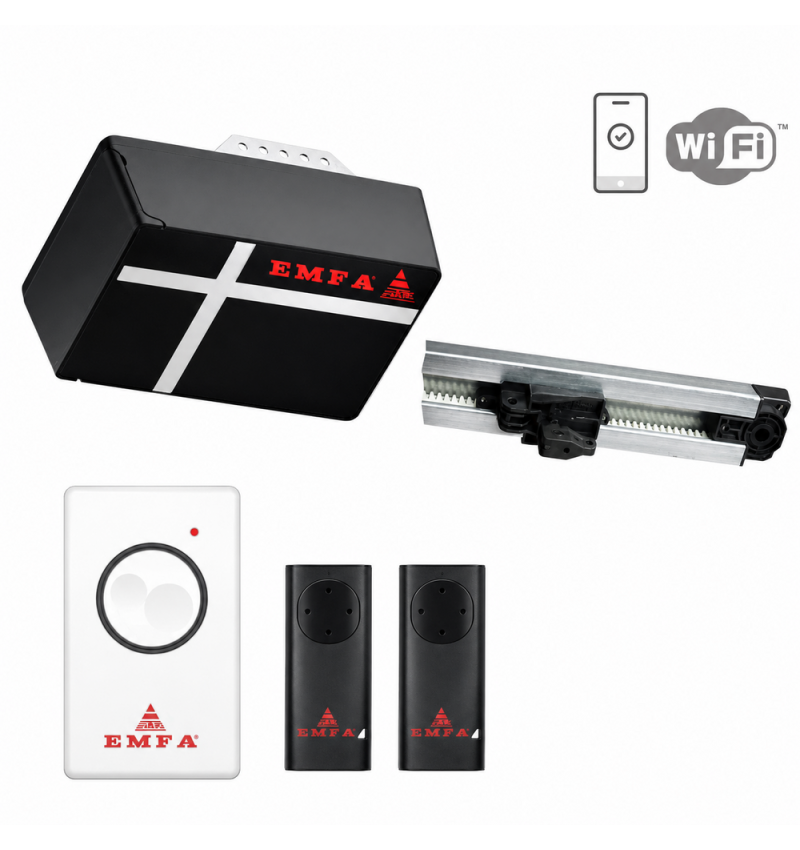

Kit content

• 1 engine EMFA MTCH New WiFi of 800 N or 1,000 N, according to the selected model.
• 1 Started guide with a belt transmission of 3,350 mm or 4,350 mm.
• 2 removals of 433 MHz.
• 1 wireless wall button for interior.
• Radio receiver and wifi module incorporated into the engine.
• Basic mounting accessories.

Technical characteristics

Models available

Select the motor power and the appropriate guide length for installation in the drop-down.

Important: The door must be correctly balanced and manually scroll without friction points. The choice of the engine must be carried out taking into account the weight, the surface, the height and the constructive characteristics of the door.

In certain tilting doors it may be necessary to install a curved arm or specific adapter, not included in the kit.
