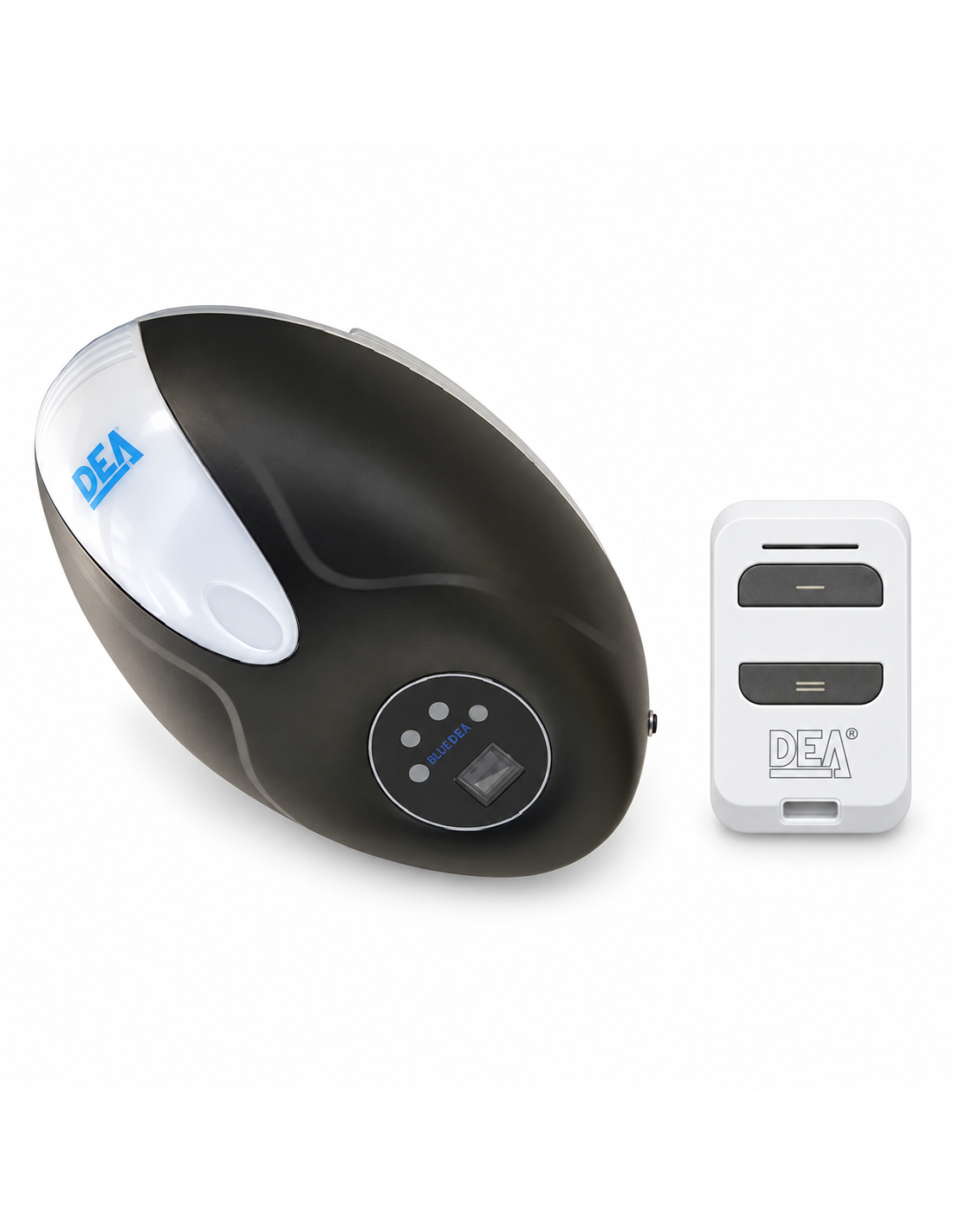

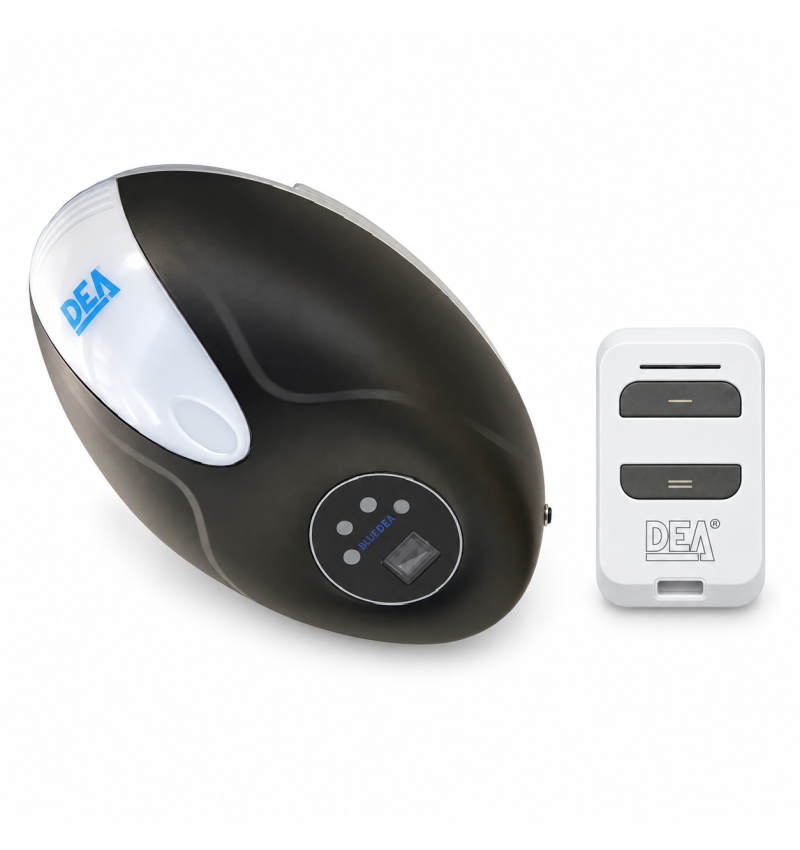

The DEA TEO 700 it is a roof automation of 24V and 1000N, indicated for the motorization of residential sectional doors up to 9 m².
This product corresponds only to the head of the TEO 700 engine and is specially thought about replacement in existing facilities.

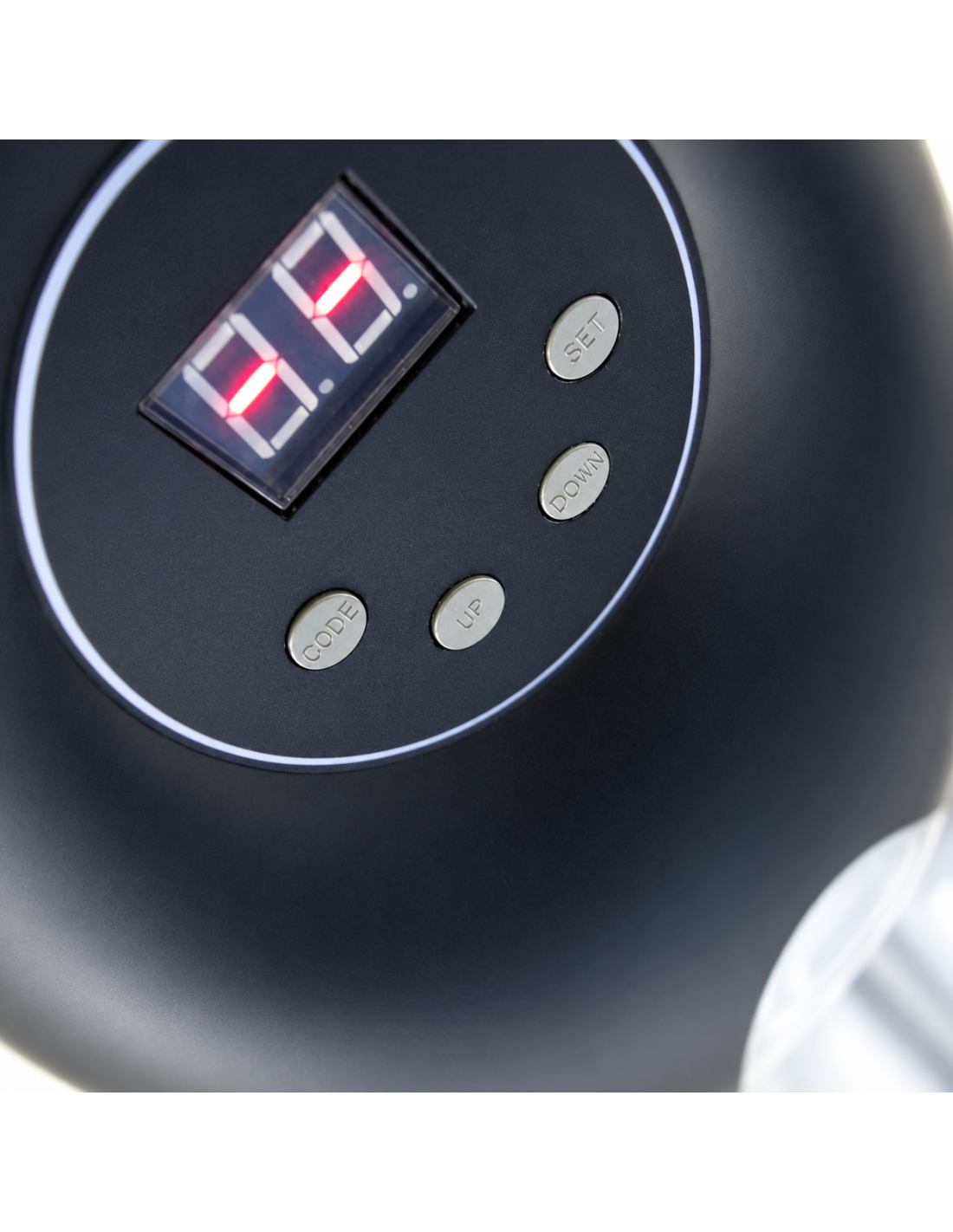

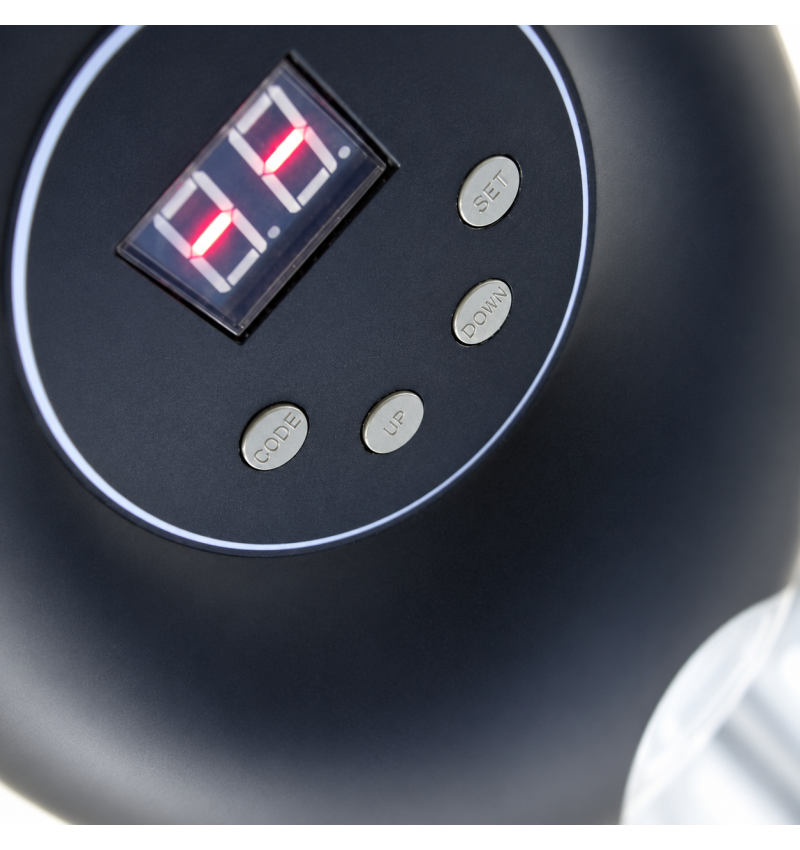

The operator incorporates maneuver box and receiver 433 MHz, and the outer buttons located on the cover allow the main programming operations without the need to disassemble it.
With the engine it is also supplied 1 gTX2 remote.
This article corresponds solely to the head of the Dea Teo 700 engine. . The drag guide is not included.
Is mainly thought to replace an existing TEO 700 engine, taking advantage of the original Guide Dea Teo 700 that is already installed.
The engine head Dea Teo 700 is not compatible with the guides of the old model of SPAZIO. If you have a Discontinued Spazio Automatism, you will not be able to reuse your guide directly with this engine head.
✓ Ceiling motor 24V teo 700.
✓ Maximum force of 1000N.
✓ Indicated for residential sectional doors up to 9 m².
✓ Built-in electronic maneuver box.
✓ Receiver 433 MHz built-in.
✓ Includes 1 gTX2 remote.
✓ Built-in courtesy light.
✓ Engine equipped with encoder for automatic position management.
✓ antiaplastamiento.
✓ Automatic speed and deceleration regulation in opening and closing.
This product is especially suitable when the existing TEO 700 engine head needs to be replaced but the original guide continues in good condition.
In this case the original TEO 700 Guide and only the motor assembly, avoiding replacing all automatism.
| Element | Included |
|---|---|
| Head Motor Dea Teo 700 | Yes |
| Maneuvering | Incorporated |
| Receiver 433 MHz | Incorporated |
| GTX2 | 1 unit |
| Guide | Not included |
| Model | TEO 700 |
| Motor feed | 24V |
| Strength | 1000N |
| Application | Residential sectional door |
| Maximum area indicated | Up to 9 m² |
| Technical information of the Central | |
|---|---|
| Feed | 230V AC ~ ± 10% (50/60 Hz) |
| Nominal power of the transformer | 100 VA (230 / 22V) |
| FUSE F2 (transformer) | 2.5A 250V |
| Output for auxiliary power | +24 V max. 200ma |
| Exit lamp | 24 V max. 15w |
| Radio receiver frequency | 433,92 MHz |
| Type of encryption of issuers | HCS ROLLING CODE |
| Maximum number of memorizable issuers | 20 |
| Engine Technical Information | |
|---|---|
| Motor feed | 24V DC |
| Absorbed | 100 W |
| Maximum force | 1000 N |
| Operating cycle | 15 maneuvers / h |
| Max. of maneuvering in 24 h | 35 |
| Operating limit temperature | -20 ° C / +50 ° C |
| Leaf speed | 9 m / min |
| Packing weight | 4.3 kg |
| Degree | IP30 |
