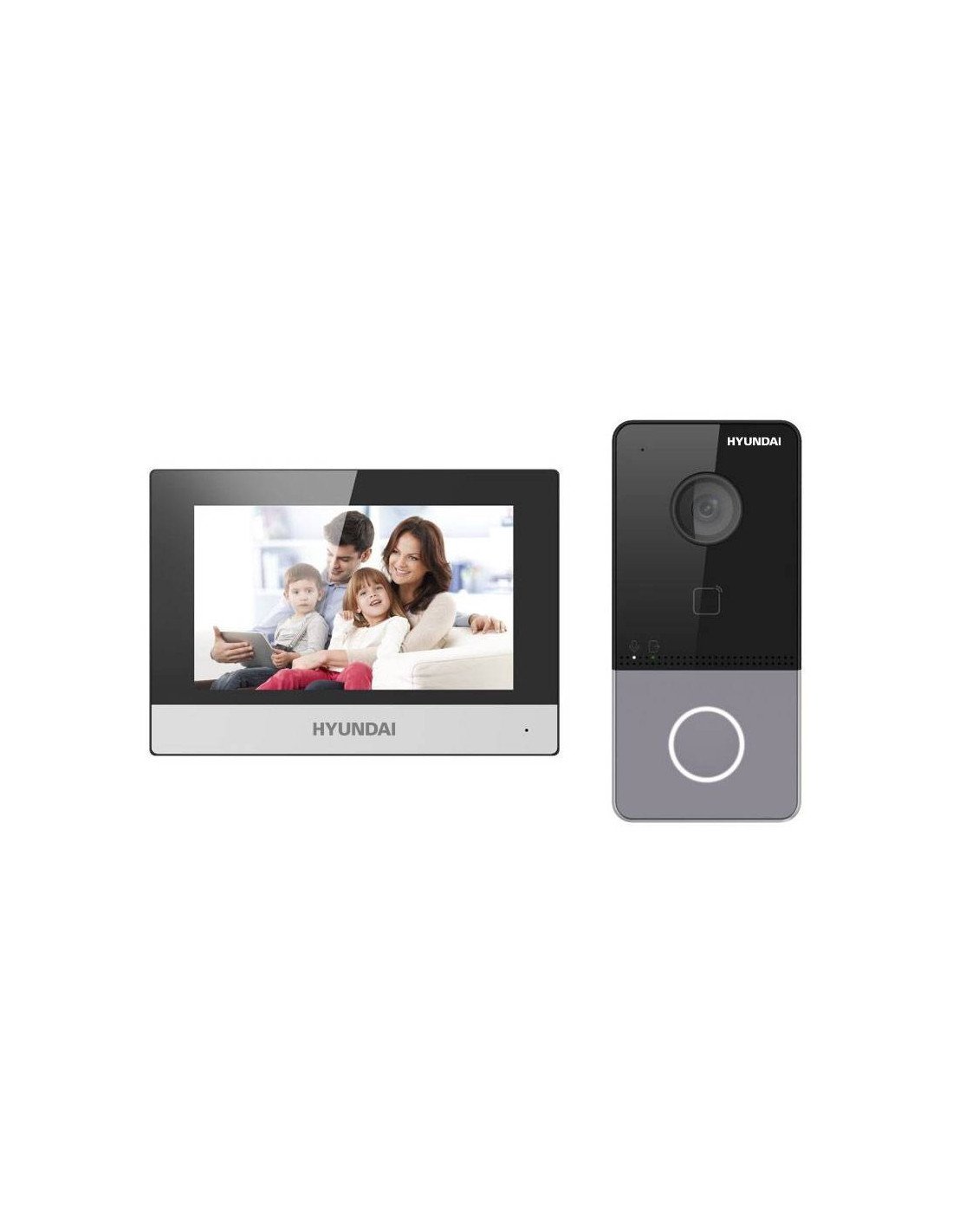

Video intercom kit HYUNDAI

» Video intercom with live view of up to 16 IP cameras

» 2MP resolution with Wifi and PoE

» Configuration via WEB interface

» Indoor monitor with 7" touch screen, Wi-Fi and supports PoE

» Receive video calls and unlock on mobile app anywhere, anytime

1x IP Video Door Entry Machine

• Outdoor HYUNDAI IP video intercom station suitable for outdoor use
• 1 call button
• 2 MP camera with a viewing angle of 131°(H), 78°(V)
• H.264 Video Format
• Night vision with infrared supplement up to 3 meters
• Picture Modes: BLC, True WDR, DNR
• Stream 1: 1080P at 30 ips, 720P at 25 ips
• Stream 2: D1 at 25 ips
• Video Sensor
• Built-in omnidirectional microphone and speaker
• Noise Suppression & Echo Cancellation
• Anti-sabotage tamper
• 4 Alarm Inputs
• 1 x RS485 port
• 1 x RJ45 port (10/100 Mbps)
• TCP/IP, RTSP protocols
• Power supply: 12V DC / PoE (802.3af)
• Power consumption: ≤10W
• Operating temperature of -40°C ~ +60°C
• Operating relative humidity of 10%~95% (non-condensing)
• IP65 degree of protection
• Dimensions: 65 (W) x 138 (H) x 27 mm
• Surface Installation

1x WIFI IP Monitor

• 7" TFT capacitive touch screen (1024x600)
• Built-in omnidirectional microphone and speaker
• G.711u audio compression
• Noise Suppression & Echo Cancellation
• 8 Alarm Inputs / 2 Outputs
• 1 x RS485 port
• 1 x RJ45 port (10/100Mbps)
• TCP/IP, SIP, RTSP protocols
• Built-in 802.11 b/g/n WiFi
• 1 Power Port
• Power consumption: ≤6W
• Operating temperature of -10°C ~ +55°C
• Operating relative humidity of 10%~90% (non-condensing)
• Indoor Installation Environment
• Dimensions: 200 (W) x 140 (H) x 15.1 mm
• Surface Installation
