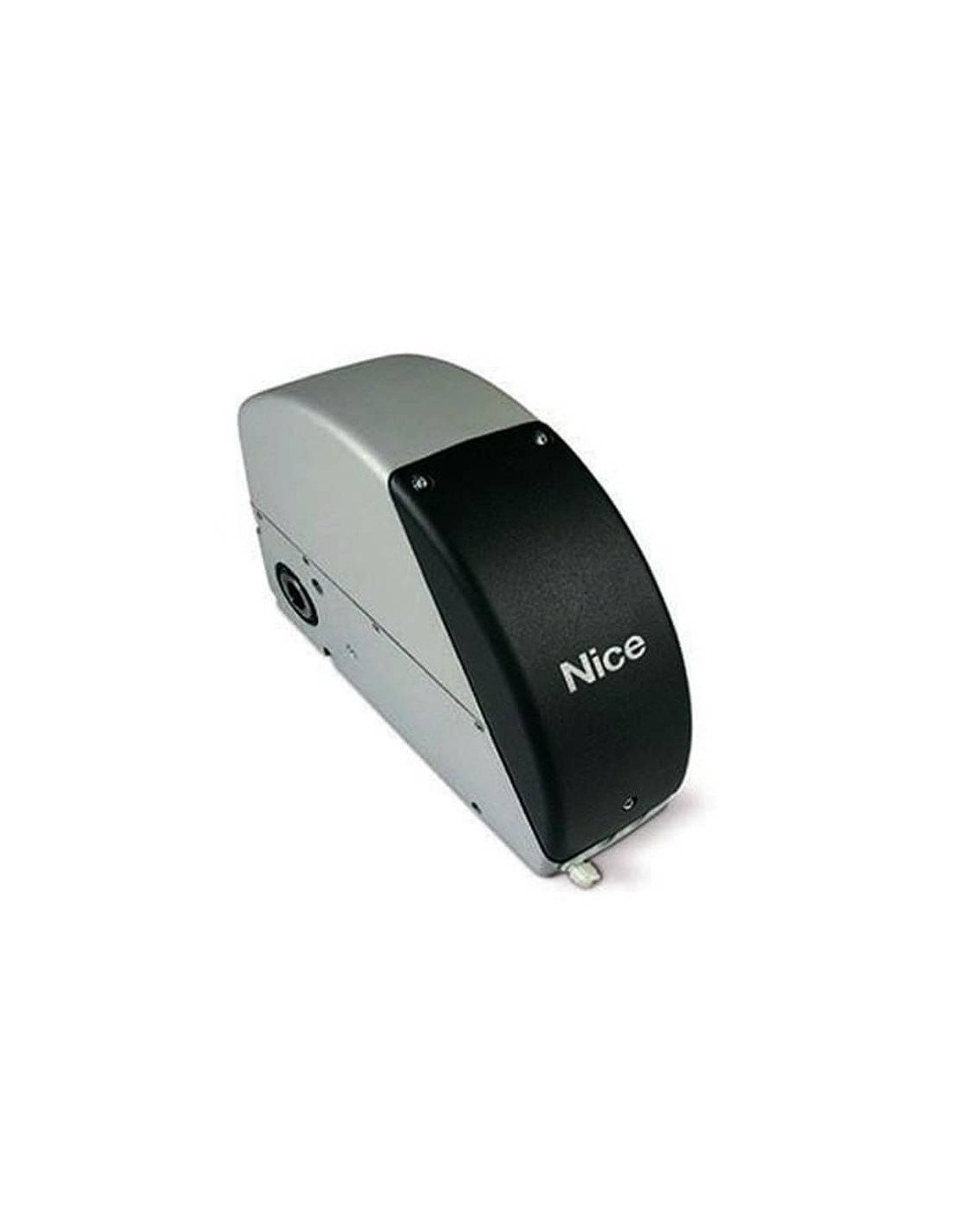

24Vdc electromechanical SUMO Nice motor for sectional and two-leaf sliding doors up to 35m².

Irreversible electromechanical geared motor 24 Vdc, with magnetic encoder without end-of-stroke regulation. Ideal for intensive use.

Compact and versatile: very small dimensions and especially in width, to facilitate assembly in all positions; Quick installation.

Easy installation: directly on the axis of the sectional door. Ideal for Ø 25.4 mm shafts and usable on Ø 31.75-35-40 mm shafts also with the CRA9 adapter.

Numerous functions with the separate control panel D-Pro 924:

• Memorization of the opening and closing end-of-career positions;

• gradual start-up and deceleration at closing;

• Option of powerless power with optional batteries;

• programming of the pause time and regulation of the speed of movement;

• Maintenance service warning (programmable depending on the number of manoeuvres chosen).

AVAILABLE MODELS

• SU2000: Irreversible 24 Vdc, with magnetic encoder, without limit switch, for doors from 15 m² to 35 m².

• SU2000V: Irreversible 24 Vdc, with magnetic encoder, without limit switch, fast, for doors from 10 m² to 25 m².

• SU2000VV: Irreversible 24 Vdc, with magnetic encoder, without limit switch, super fast, for doors from 10 m² to 15 m².

• SU2010: Irreversible 24 Vdc, with magnetic encoder, without limit switch, IP54, for doors from 15 m² to 35 m².

SPECIFICATIONS

DIMENSIONS

MANUAL

SUMO Nice Manual: Instructions & Use
