Motorcycles Beninca VN.S/M & VN.ST/MT for industrial sectional doors up to 40m2

Benincà vn engines for industrial sectional doors up to 40 m²

The range Benincà vn it is formed by electromechanical gearmotors for automation of industrial sectional doors up to 40 m², available in different versions of 230VAC and 400VAC.

Depending on the model, the engines can incorporate rapid unlock, manual maneuver by chain, control center, absolute encoder or ventilated motor for intensive use.

The different reduction relationships 1/20 and 1/40 they allow choosing the most suitable configuration according to the characteristics of the door and the type of installation.

Select the appropriate model in the product drop-down.

✓ Electromechanical gearmotors for industrial sectional doors.

✓ Versions available in 230VAC Single-phase and 400Vac three-phase.

✓ Available reduction relationships 1/20 and 1/40.

✓ New plastic crankcase that facilitates wiring operations, with front terminal and possibility of cable entry from three positions.

✓ Accessories available for chain transmission with relationship 1: 1 for off-center installation or 1: 1,8 for torque or speed multiplication.

✓ Accurate regulation system of the race endings in the corresponding versions.

✓ Microswitch safety system that interrupts the power during manual maneuver or unlock.

✓ Lubricated reductions in oil bath, with temperate steel screw and bronze gear.

✓ 4 race endes with micrometric regulation according to version.

What do the different versions mean?

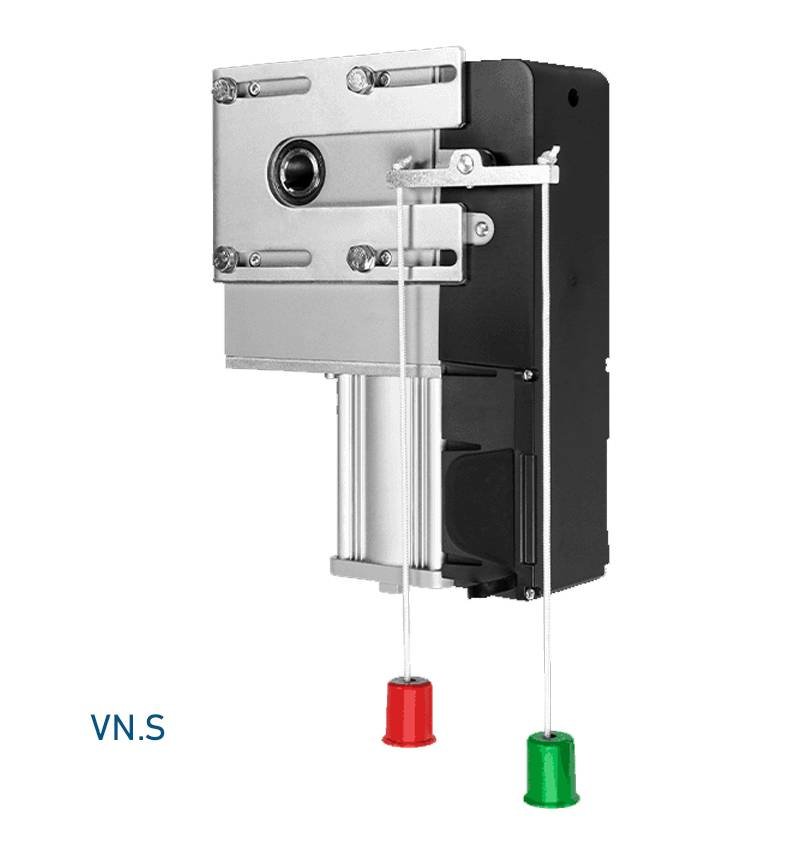

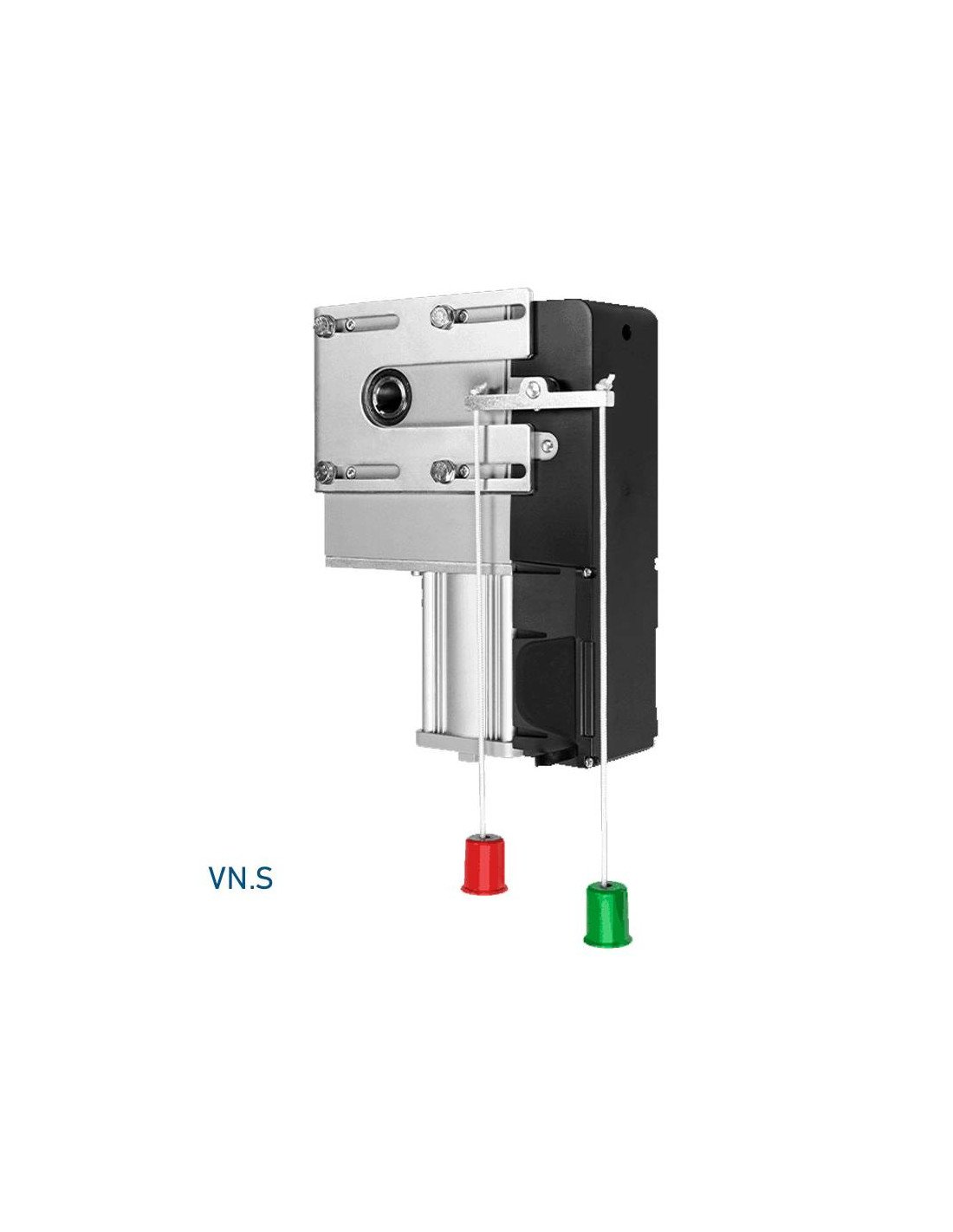

VN.S: versions with quick unlocking.

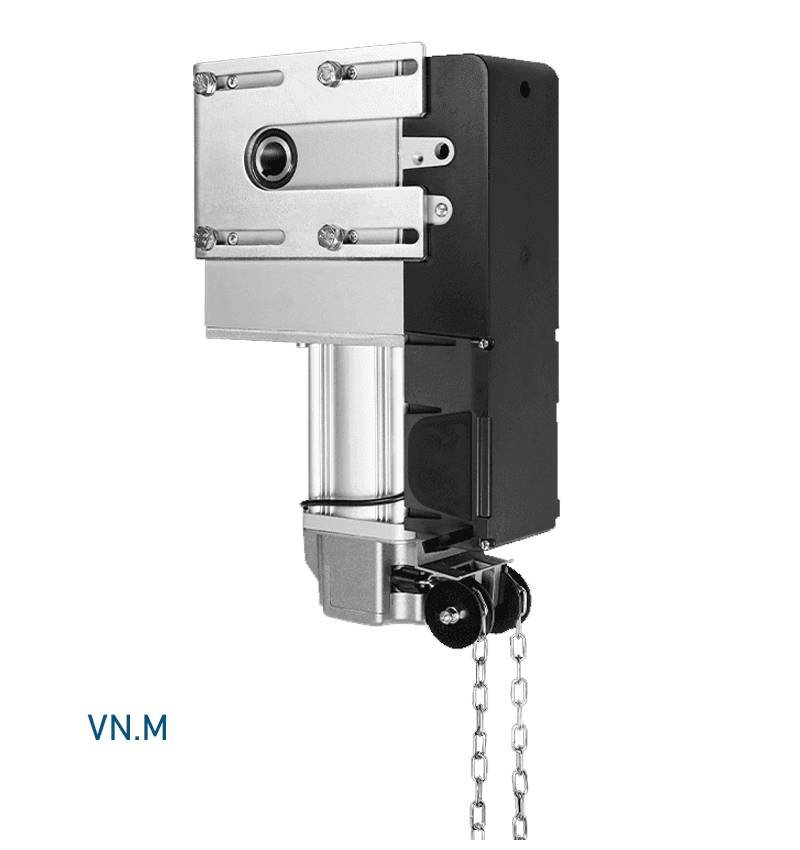

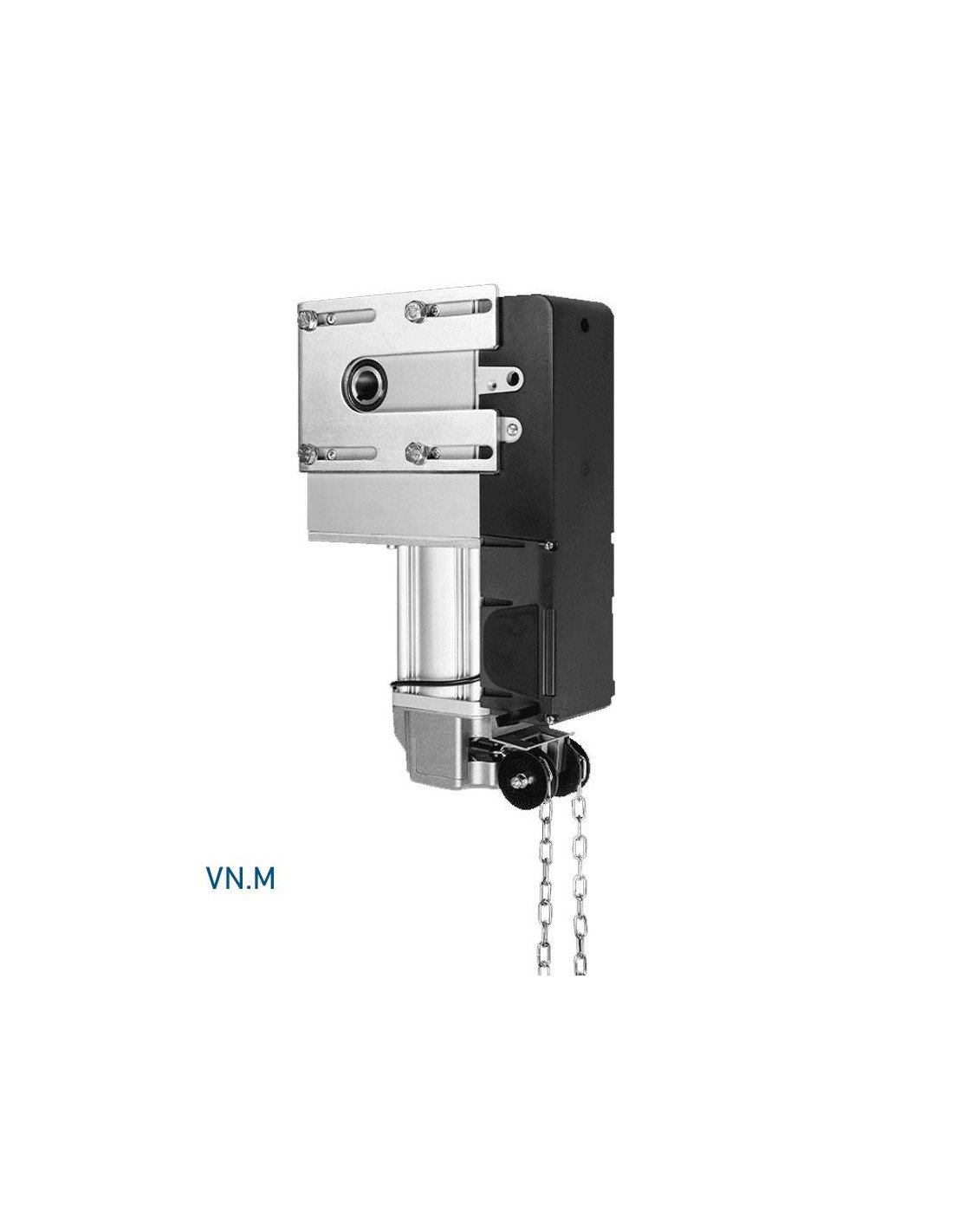

VN.M: versions with manual maneuver by chain.

VN.ST: three-phase 400VAC versions with fast unlocking.

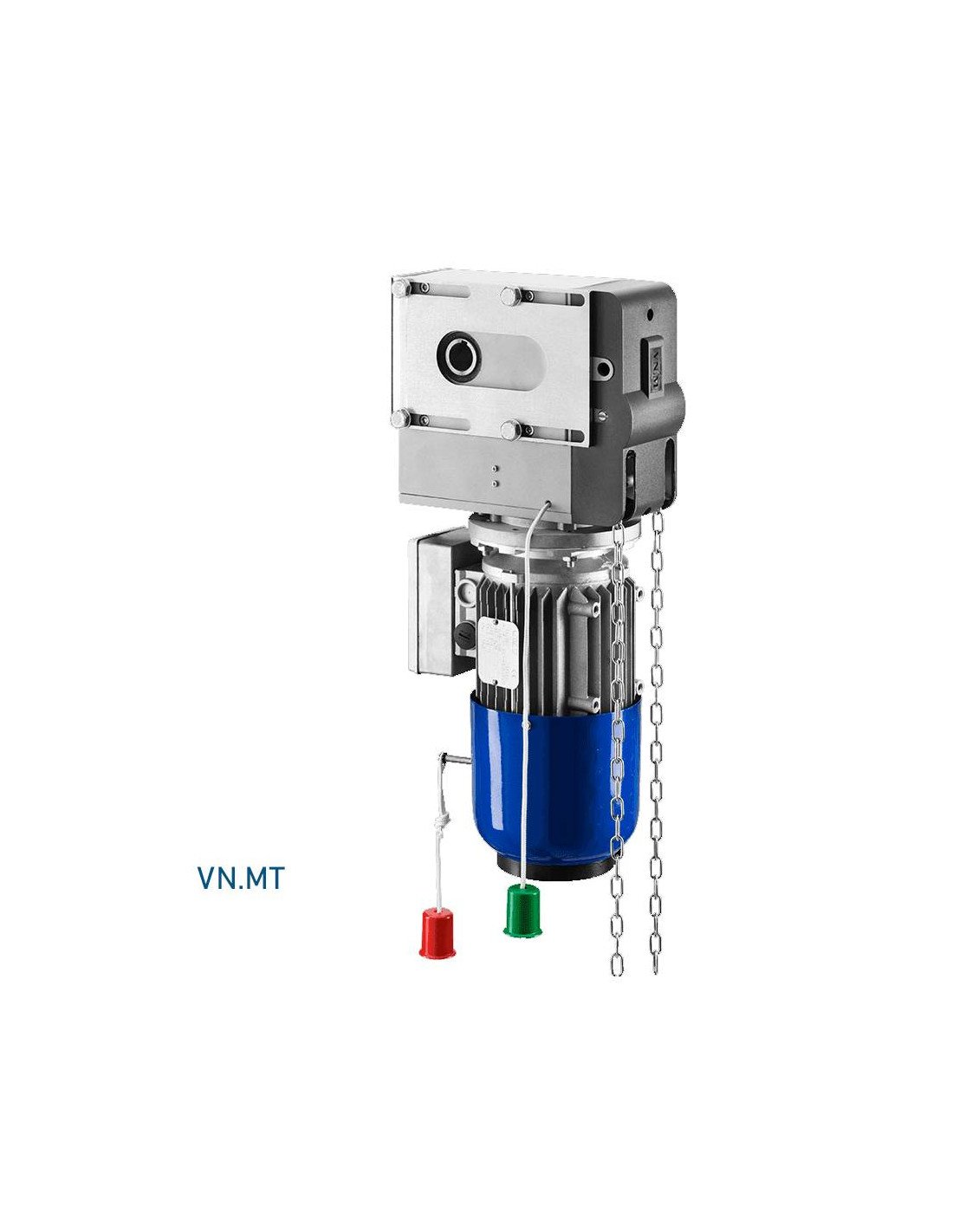

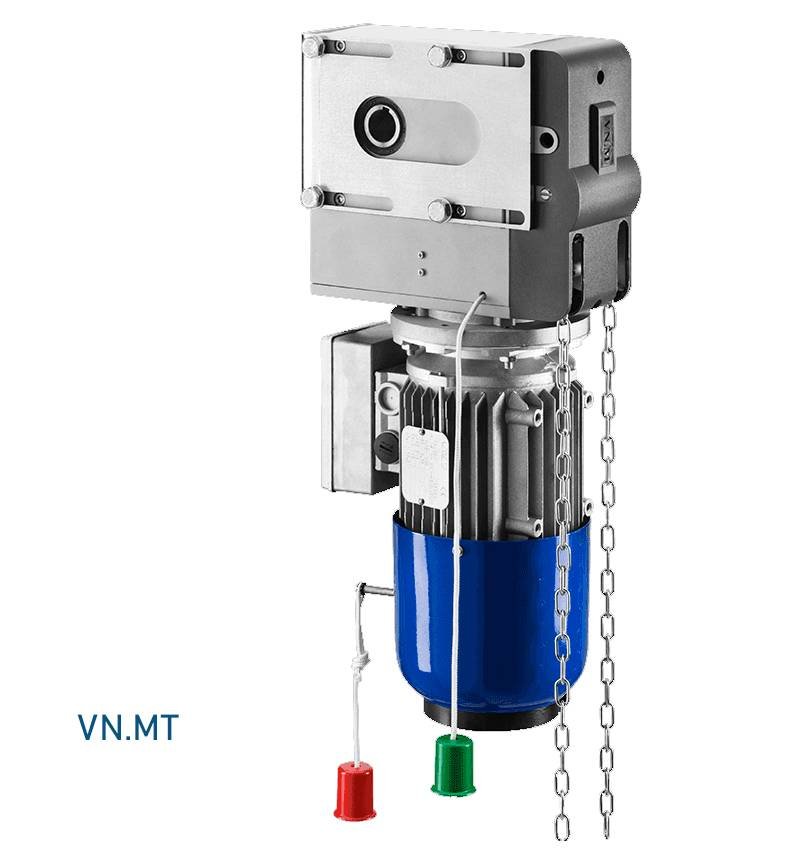

VN.MT: three-phase 400VAC versions with manual maneuver by chain.

UP: versions equipped with control center UP.VN for the operation of man present.

ESW: specific versions with additional electronic equipment according to the model.

V: special versions, such as VN.MT40V with a ventilated engine for intensive use.

On mobile devices: slide the table laterally to consult all models and features.

VN.S20

Gearbox 230Vac with fast unlocking and reduction ratio 1/20. It incorporates accurate regulation by 4 micrometric career finis.

VN.S20 UP

230VAC version with relationship 1/20 and central UP.VN incorporated. It allows man operation present by means of controls at very low safety voltage of 12Vdc.

VN.S20 ESW

230VAC version with relationship 1/20, unlock fast and absolute encoder. It allows to regulate from the center the opening and closing points and has a quick connection by coupling.

VN.S40

230VAC gearmotor with fast unlocking and reduction ratio 1/40.

VN.S40 UP

230VAC version with reduction 1/40, unlock fast and central UP.VN built-in for man operation present.

VN.ST20

Three-phase gearmade 400Vac, with quick unlocking and reduction ratio 1/20.

VN.ST20 ESW

Version of 400Vac with fast unlocking and reduction ratio 1/20.

VN.M20

Gearbox 230Vac with manual maneuver by chain and reduction ratio 1/20.

VN.M20 UP

Reduction 1/20, chain manual maneuver and central UP.VN incorporated for man's operation present at 12VDC.

VN.M20 ESW

230VAC version with chain manual maneuver, relationship 1/20 and absolute encoder. It allows to regulate the opening and closing endings from the plant.

This version is also available in kit with motor, cable 5 meters and central Thinky.

VN.M40

230VAC gearmotor with maneuver chain manual and reduction ratio 1/40.

VN.M40 UP

Reduction 1/40, manual maneuver by chain and central UP.VN for the operation of man present.

VN.MT20

Three-phase gearmade 400Vac with manual maneuver by chain and reduction ratio 1/20.

VN.MT20 ESW

400VAC version with chain manual maneuver, reduction 1/20 and absolute encoder, with fast wiring by coupling.

VN.MT40

400VAC three-phase gearmotor with manual maneuver by chain and reduction ratio 1/40.

VN.MT40V

Three-phase version of 400Vac with relationship 1/40, equipped with ventilated electric motor for intensive and electrofreno use, in addition to manual maneuver by chain.

The VN.S40V is a gearmotor 230Vac with reduction ratio 1/40.

This version uses a system of unlock by cable and handle.

It has a safety system by microswitch, reduction in oil bath and 4 race endes with micrometric regulation.

The range has specific accessories to adapt the system to the features of the installation.

■ Chain transmission 1: 1 for installations where the motor must be installed offset with respect to the axis.

■ Chain transmission 1: 1,8 to modify the torque or speed.

■ On the models Vn.m and VN.MT chain can be used to prolong the manual maneuver according to the installation height.

Important before selecting the model

The selection of the motor must be done taking into account the dimensions, weight, balanced, shaft, type of door, intensity of use and power supply available.

If you need to replace an existing engine, we recommend checking the exact engine reference installed, voltage, reduction ratio and manual maneuvering system before placing the order.
