Engine Pujol Marathon DC at 24V with M4 pin for sliding doors up to 700 kg for residential, community or industrial doors.

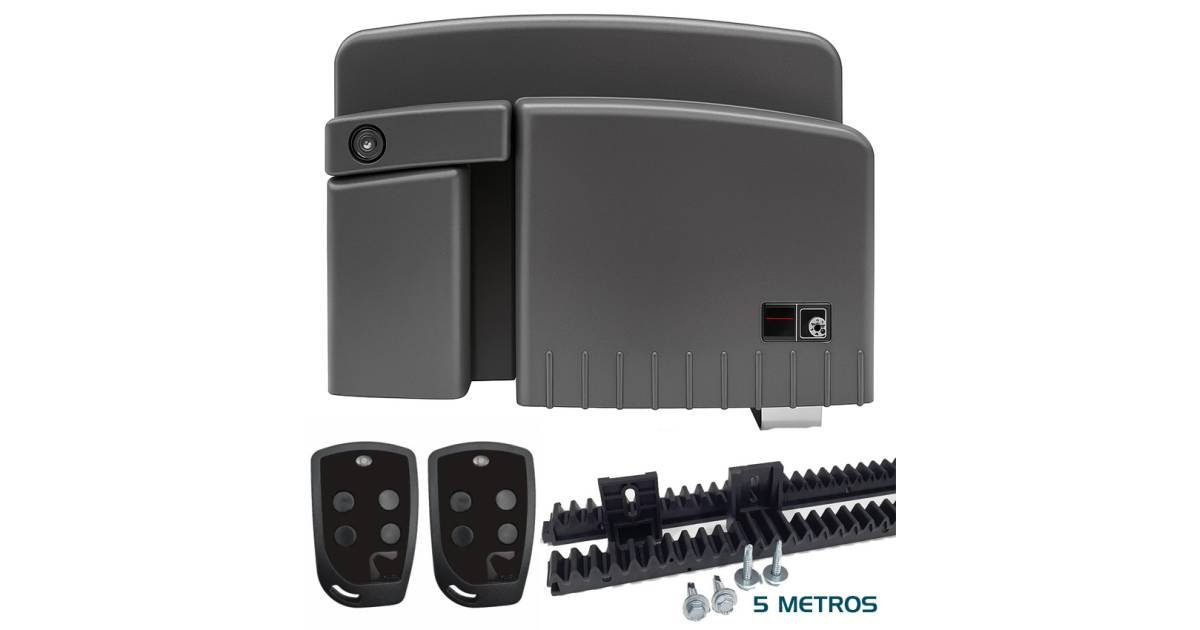

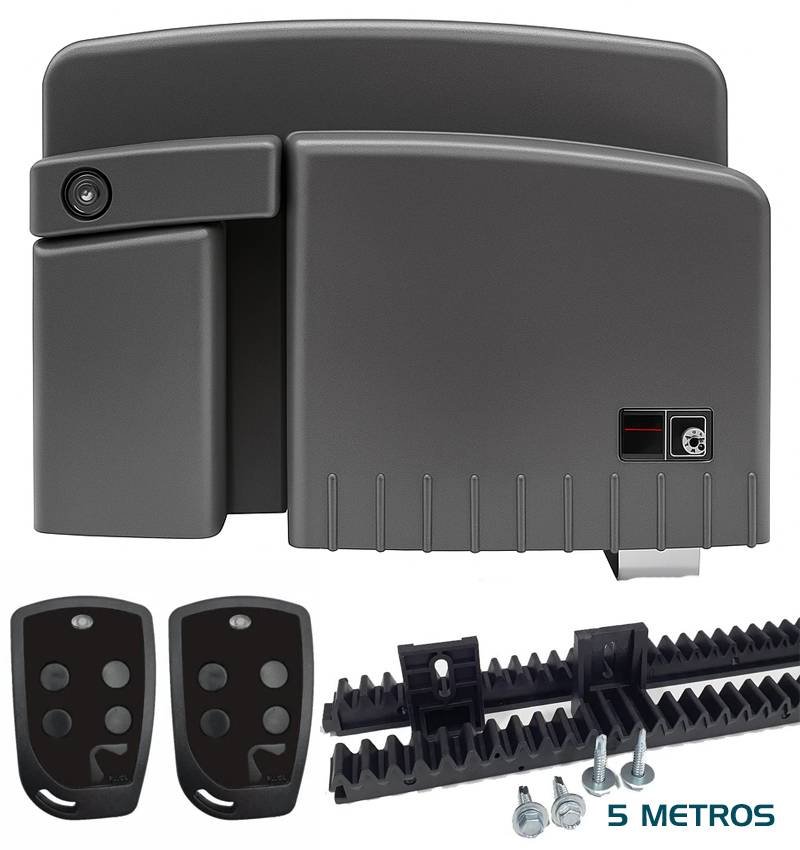

It contains 5 meters of Nylon zipper with its screw, external receiving antenna and 2 RollingCode Emitters.

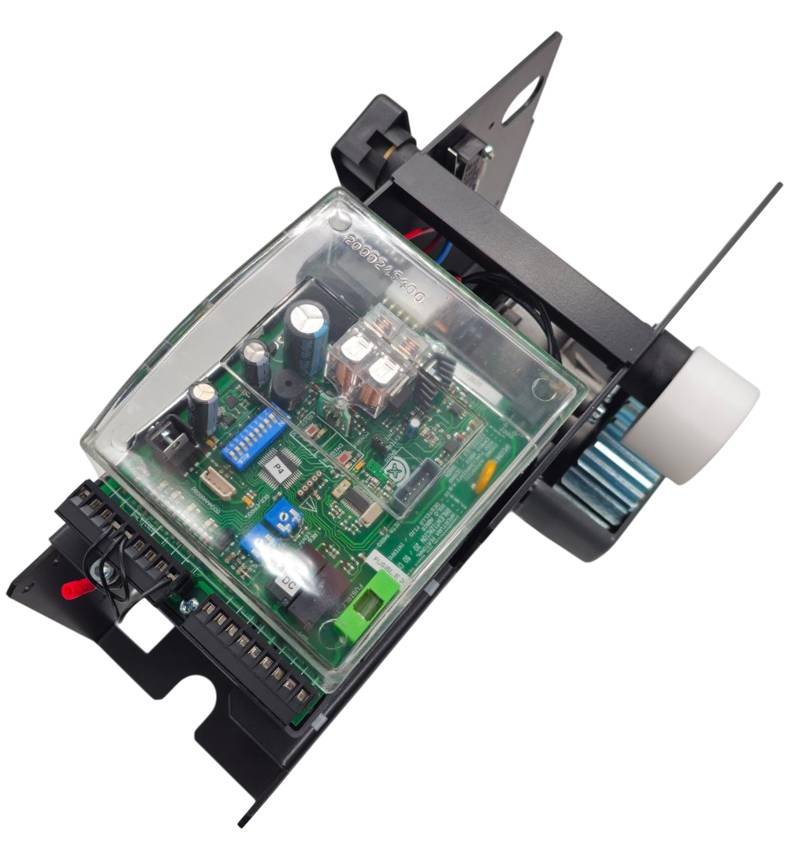

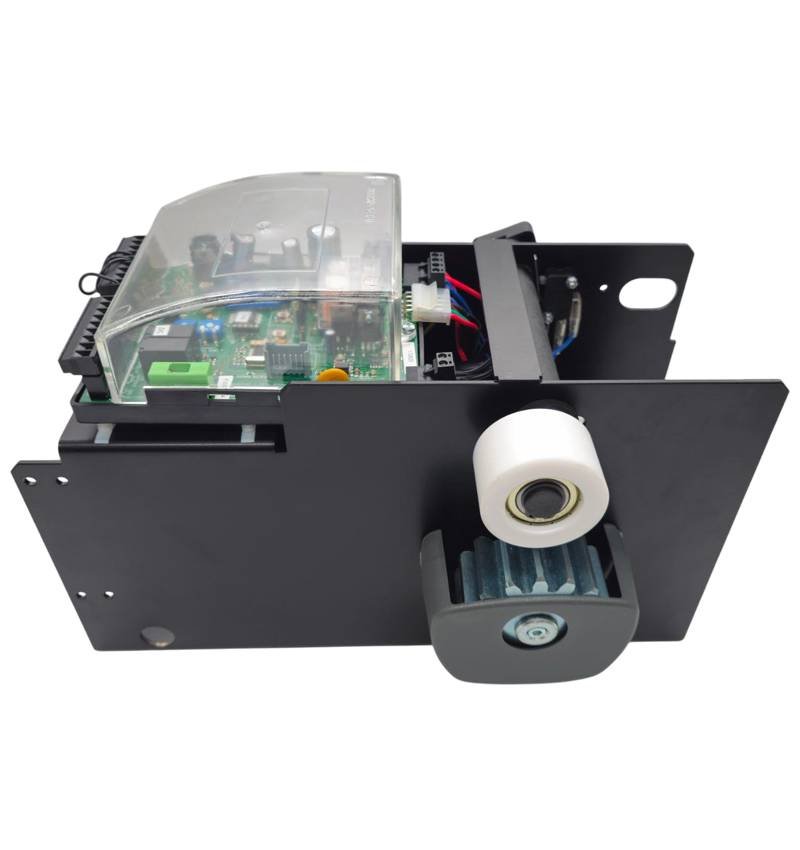

24v model with electronic equipment and integrated receiver for doors weighing up to 700 kg that performs a maneuver with soft start and stop both at opening and closing, easy unlocking for manual operation and tilting support. Optional emergency battery kit of 35 cycle range.

CHARACTERISTICS

• Food: 230 V +-10%
• Engine: 24V DC
• Maximum power absorbed: 120 W
• Maximum towing force: 22 kg
• Starting torque: 50 Nm
• Intensity: 2,6 Am
• Exit axle speedIt shall not exceed:
• Gate speed: 9 m/min
• Exit pinon module M4-16
• Auxiliary output: 24 V. current 150 mA
• Input for resistance band8.2 Kohm
• Protective fuse: 2A
• Operating temperature10o C. + 40oC
• Protection: IP 40

KIT CONTIENE

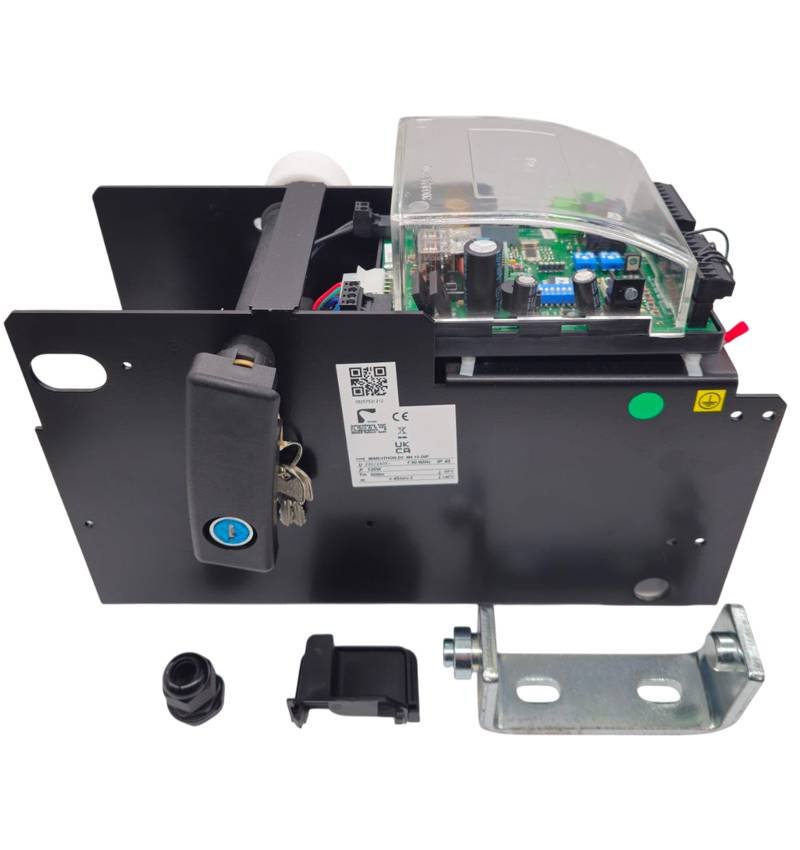

• 1 unit P3METZC011: Marathon DC 700 KG engine with built-in receiver box.
• 1 unit P3KCRE0010Pack of 5 meters of zipper Nylon M4.
• 1 unit 3900070234Receiver antenna outside.
• 2 unid P9EM4UB000It 's called the Rolling Code

MANUAL

Instruction manual Pujol Marathon DC 700
