Heavy-duty 24V KPONY Beninca motor for residential doors up to 400 kg with built-in receiver panel and anti-crush system.

CHARACTERISTICS

• 24 Vdc geared motor with built-in control unit and ESA SYSTEM energy saving system

• Anti-crush system with amperometric detection

• Predisposed for operation with batteries with no current

• The position of the control unit allows simple, agile and immediate programming operations

SPECIFICATIONS

• Power supply: 230 Vac (50-60Hz)
• 24 Vdc motor power supply
• Maximum current consumption 0.6 A
• Stand-by power consumption ≤ 1.5 W
• Maximum thrust 321 N
• Opening speed 10 m/min
• Duty Cycle 30%
• IP44 degree of protection
• KIT only version
• Built-in Central Yes
• Built-in receiver Yes
• Encoder No
• Virtual Encoder No
• Magnetic limit switches No
• Rack and pinion M4 Z14
• Operating temperature -20°C /+50°C
• GREASE Lubrication
• Maximum door weight 400 kg
• Weight 8.1 kg
• No. of motors per vane ---
• Kit weight: 8.5 kg
• No. of kits per pallet 40

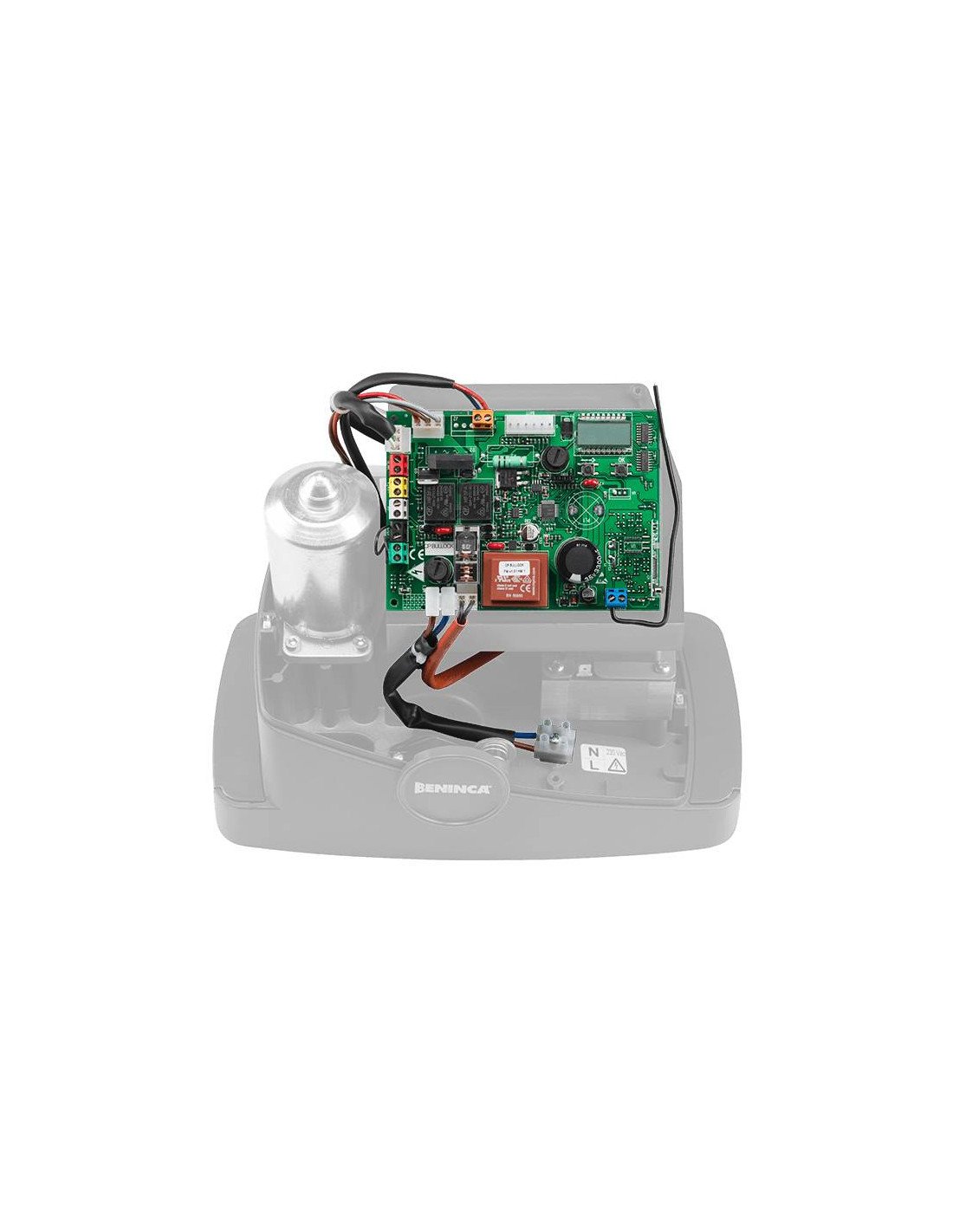

CP ELECTRONIC CONTROL UNIT. PONY

Built-in LCD display | Built-in radio receiver 433.92 MHz 64 codes and 3 radio encodings (Advanced Rolling Code, Rolling Code, Fixed Code) | Integrated ESA SYSTEM Energy-Saving Device | Colored Fixed Connection Strips | Automatic & Semi-Automatic Operating Logic | Engine End of Stroke Tickets | Step-by-Step Tickets & Stop | Programmable photocell input active at both opening and closing, or active only at closing | Photocell Test | Self-adjusting of operating parameters | Electronic torque adjustment | Anti-crush safety with ampere meter detection | Adjustable decelerations | Possibility to configure the pedestrian opening from the remote control.

MEASUREMENT

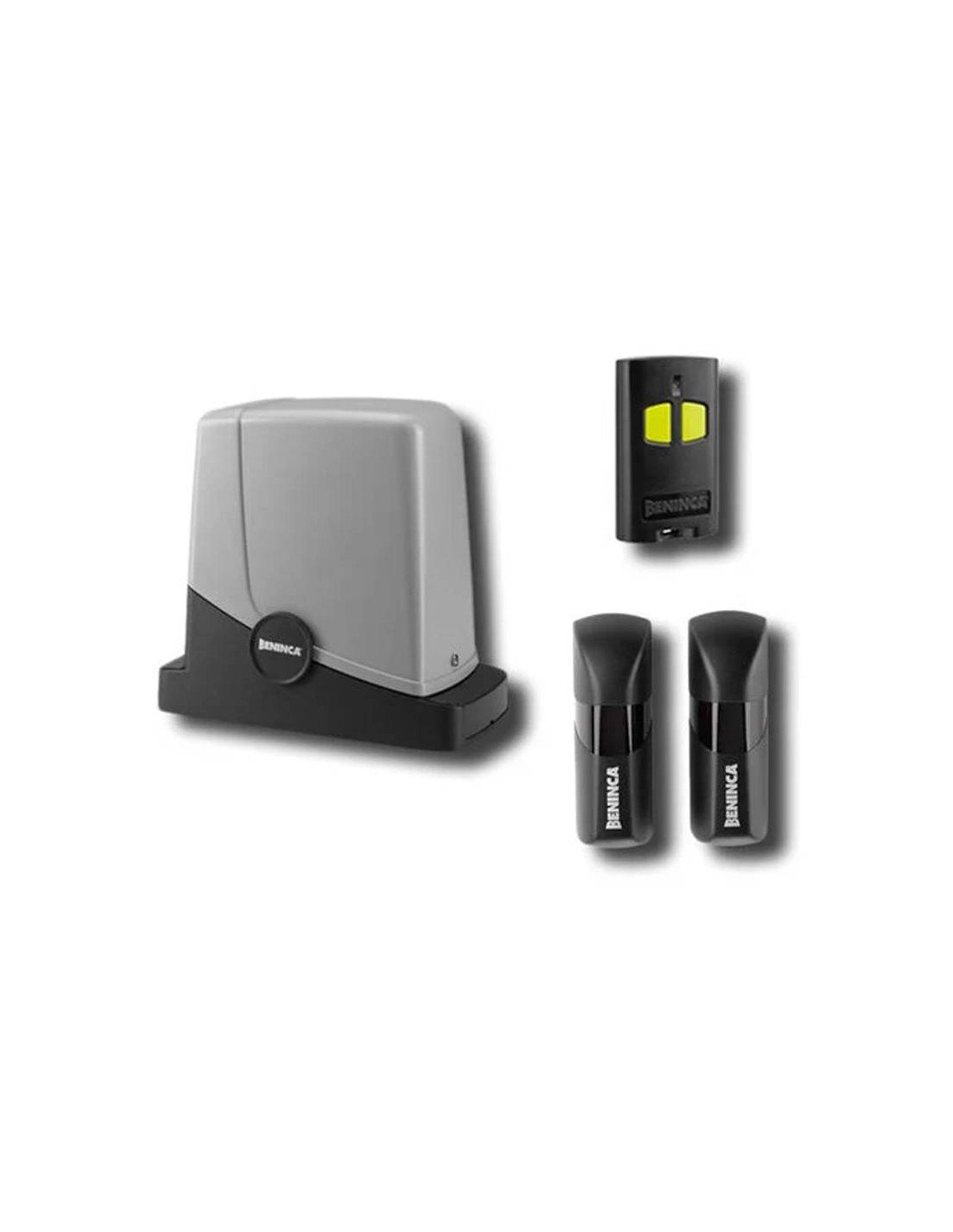

THE KIT CONTAINS

• PONY: 24 Vdc geared motor with built-in control unit
• PUPILLA. T: Pair of photocells adjustable in three positions, 14÷30 Vac/12÷30 Vdc power supply
• TO. GO2VA: 2-channel, 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code coding

MANUAL

PONY Beninca Instruction Manual
