KIT Sliding motor Beninca BULL424ESA intensive use 24Vdc for residential doors up to 450 kg. It incorporates a control panel with receiver and encoder.

CHARACTERISTICS

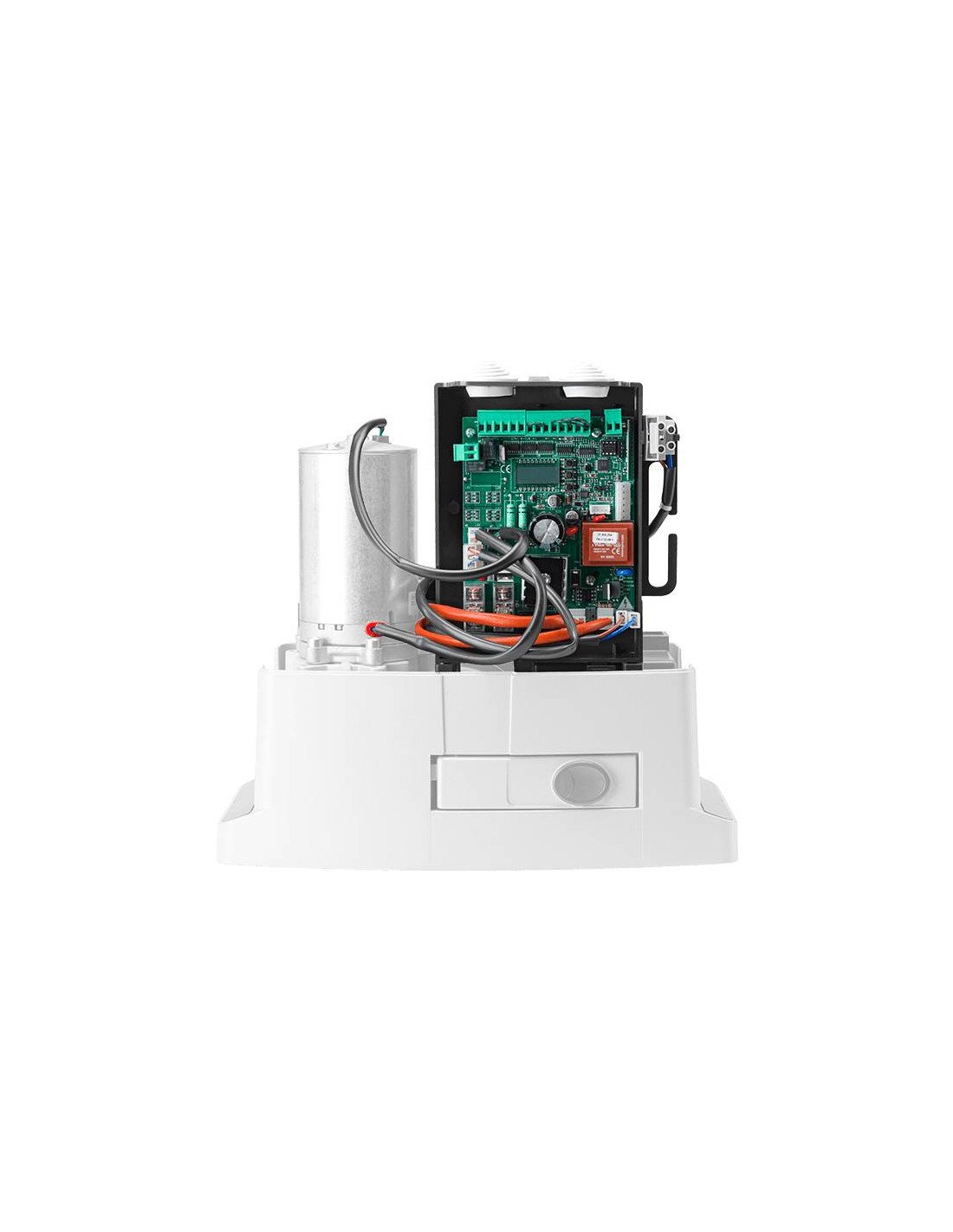

• Heavy-duty 24 Vdc geared motor with built-in power unit, ESA SYSTEM energy saving system and encoder

• The encoder device ensures maximum safety and precision during the movement of the door

• Anti-crush system with amperometric detection

• Predisposed for operation with batteries with no current

• Metal release lever

• Magnetic limit switches available as accessories (MLS)

SPECIFICATIONS

• Power supply: 230 Vac (50-60Hz)
• 24 Vdc motor power supply
• Maximum current consumption 0.4 A
• Stand-by power consumption ≤ 1.5 W
• Maximum thrust 428 N
• Opening speed 6.7 ÷ 11 m/min
• Duty cycle heavy use
• IP44 degree of protection
• Built-in Central Yes
• Built-in receiver Yes
• Encoder Yes
• Virtual Encoder No
• Magnetic limit switches No
• Rack and pinion M4 Z14
• Operating temperature -20°C /+50°C
• GREASE Lubrication
• Maximum door weight 450 kg
• Weight 10.4 kg
• No. of motors per vane 40
• Kit weight: 11.1 kg

CP CONTROL CENTER. B24ESA

Built-in LCD display | Built-in radio receiver 433.92 MHz 64 codes and ARC radio coding | Integrated ESA SYSTEM Energy-Saving Device | Removable Power Strips | Automatic, semi-automatic, and man-present operating logic | End-of-race tickets | Separate Inputs for Active Photocell in Open-Close and Active Photocell in Closing Only | Pedestrian entrance, step-by-step and stop | Safety Sensitive Edge Input N.C. or 8K2 | Two configurable outputs as an open door indicator pilot light, service light, second radio channel or zone light | Photocell Test | Self-adjusting of operating parameters | Electronic torque adjustment with automatic calculation for each point of travel (STC SYSTEM) | Anti-crush safety with ampere detection and encoder management | Adjustable decelerations | Possibility to configure parameters and manage remote controls with Advantouch system | Number of manoeuvres | Programming Access Password | Maintenance Notice

MEASUREMENT

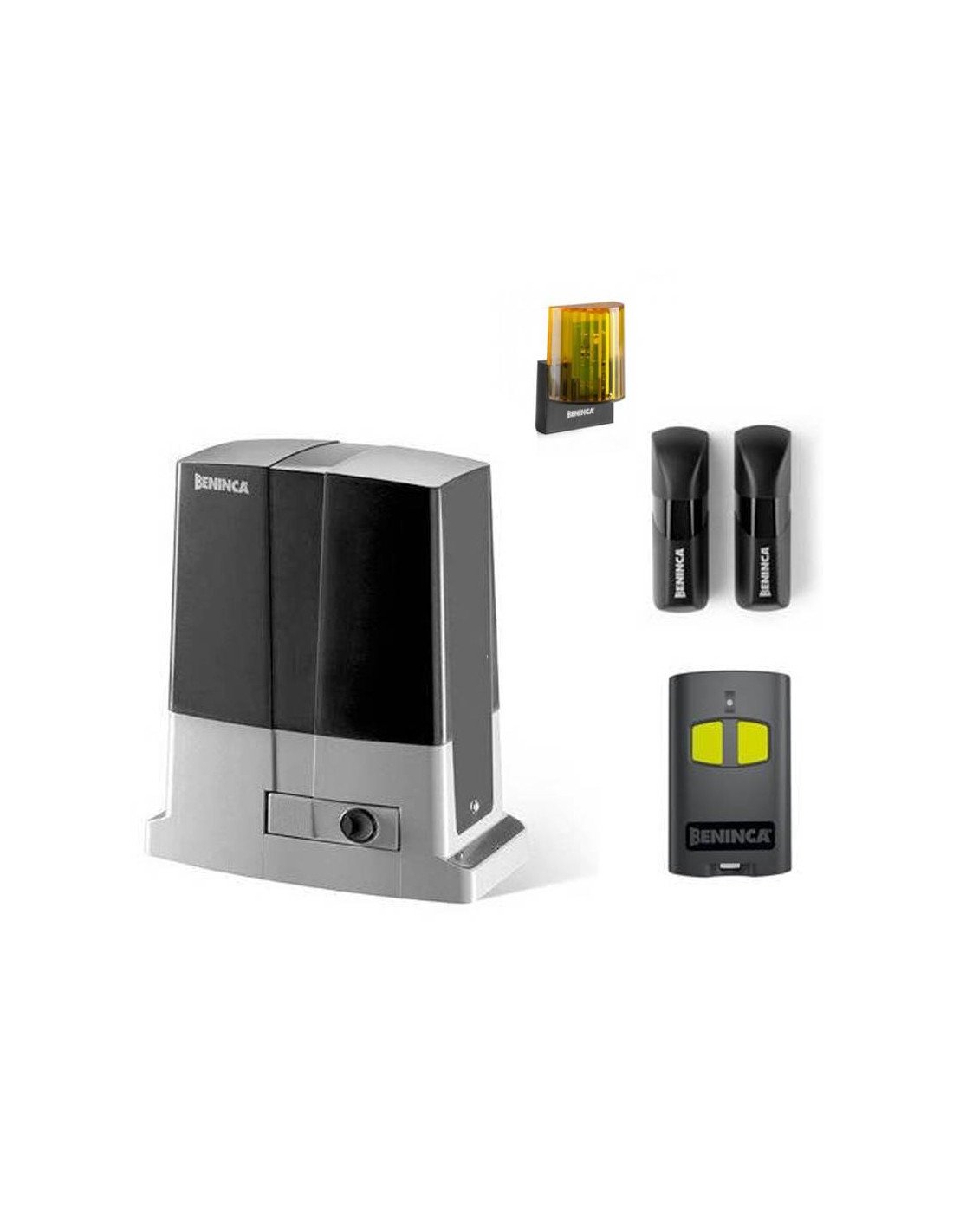

THE KIT CONTAINS

• BULL424ESA: 24 Vdc geared motor for intensive use with built-in control unit and encoder

• PUPILLA. T: Pair of photocells adjustable in three positions, 14÷30 Vac/12÷30 Vdc power supply

• LAMPY: 12÷255 Vac/dc flashing lamp with integrated antenna

• TO. GO2VA: 2-channel, 433.92 MHz transmitter with Advanced Rolling Code and Rolling Code coding

MANUAL

Instruction manual Beninca BULL424ESA

CP Beninca instruction manual. B24ESA
