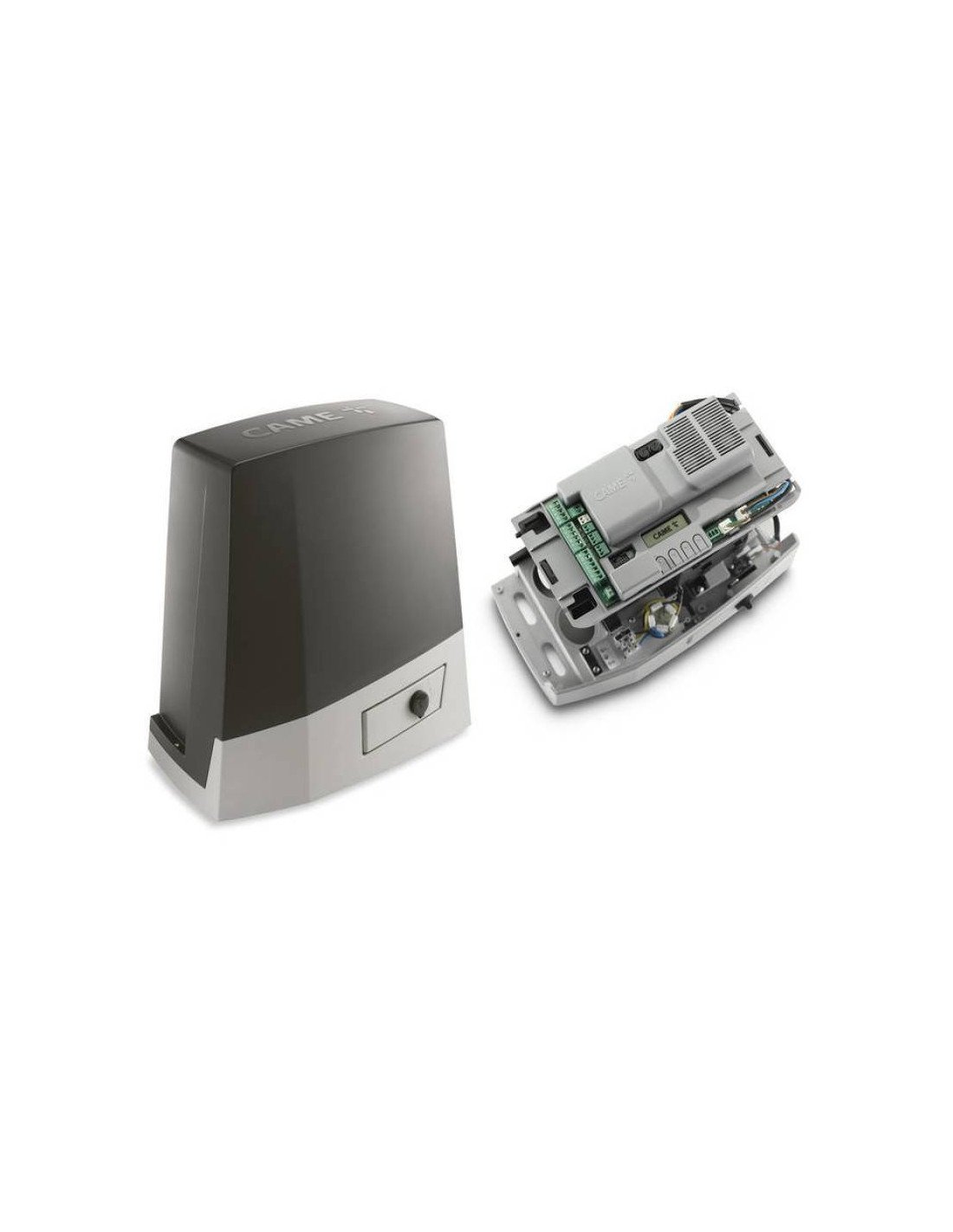

Motor kit CAME BKV15AGS at 36 V for sliding doors up to 1500 kg both residential and communal. Includes graphics card, Adaptive Speed & Torque Technology, 4 safety inputs, movement management and obstacle detection.

CHARACTERISTICS

• Motors with "Adaptive Speed and Torque Technology" to ensure smooth movement at constant speed over time.

• Electronic card with terminals, graphics screen and memory for up to 250 users.

• 4 configurable safety inputs for direct management of sensitive resistive edges (8k2Ω).

• Convenient unlock lever for manual opening of the door.

• Clock card provision 806SA-0120 for handling up to 8 opening and closing manoeuvres.

• Degree of protection against the elements (IP54).

• Preparation for the installation of magnetic running ends (001RSDN002).

• Developed with CONNECT technology for remote digital management via gateway or locally via CAME KEY.

TECHNICAL CHARACTERISTICS

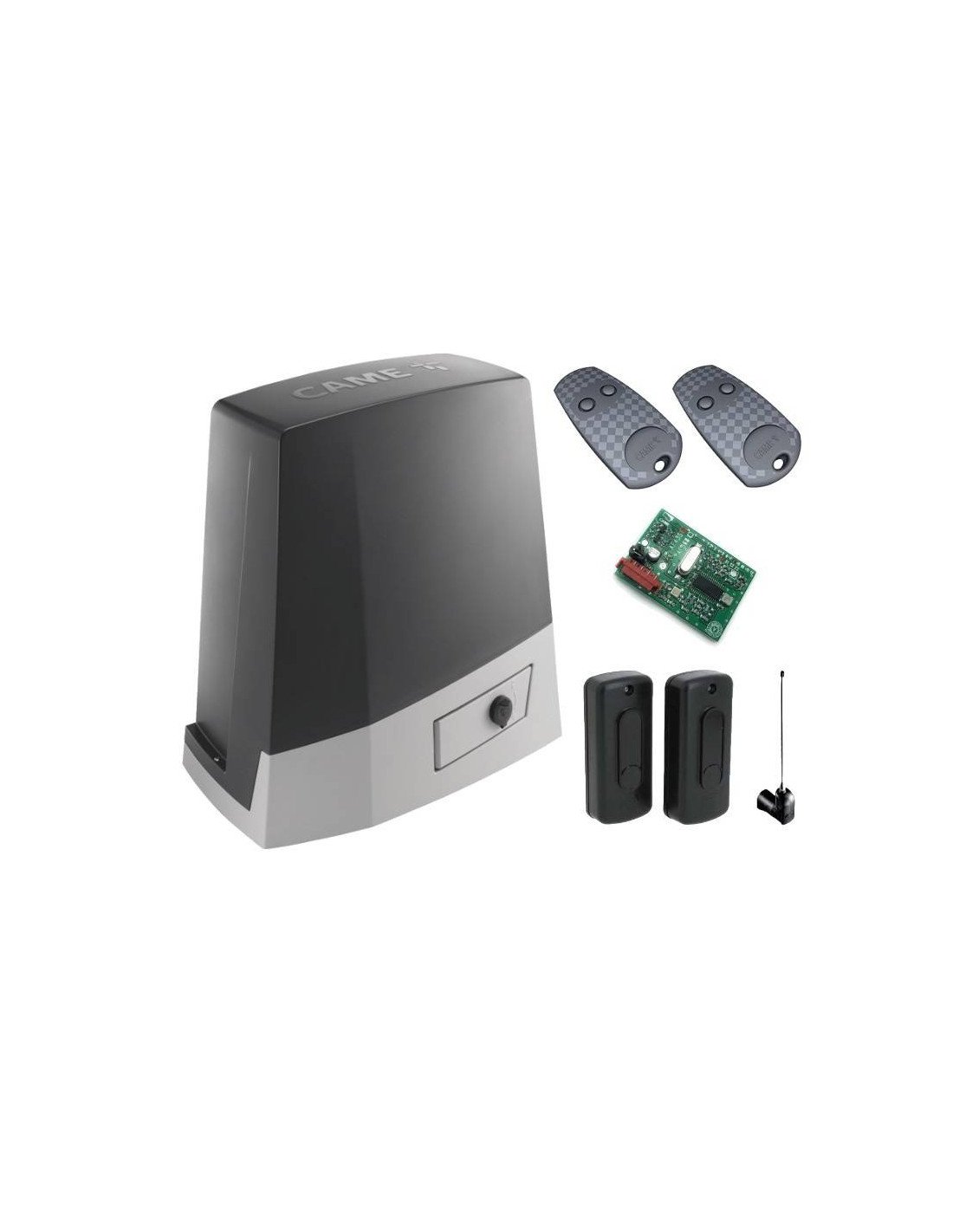

THE KIT CONTAINS:

■ 1 unit 801MS-0300Engine BKV15AGS 36Vdc for doors up to 1500 kg

■ 2 units 001TOP-432EE: 2 channel fixed code 433 MHz transmitter

■ 1 unit 001AF43SReceiver card 433 MHz

■ 1 unit 001DIR20: Pair of emitter-receiver photocells

■ 1 unit 001TOP-A433N: antenna 433 MHz

MEASURES

MANUAL

Instruction manual CAME BXV
