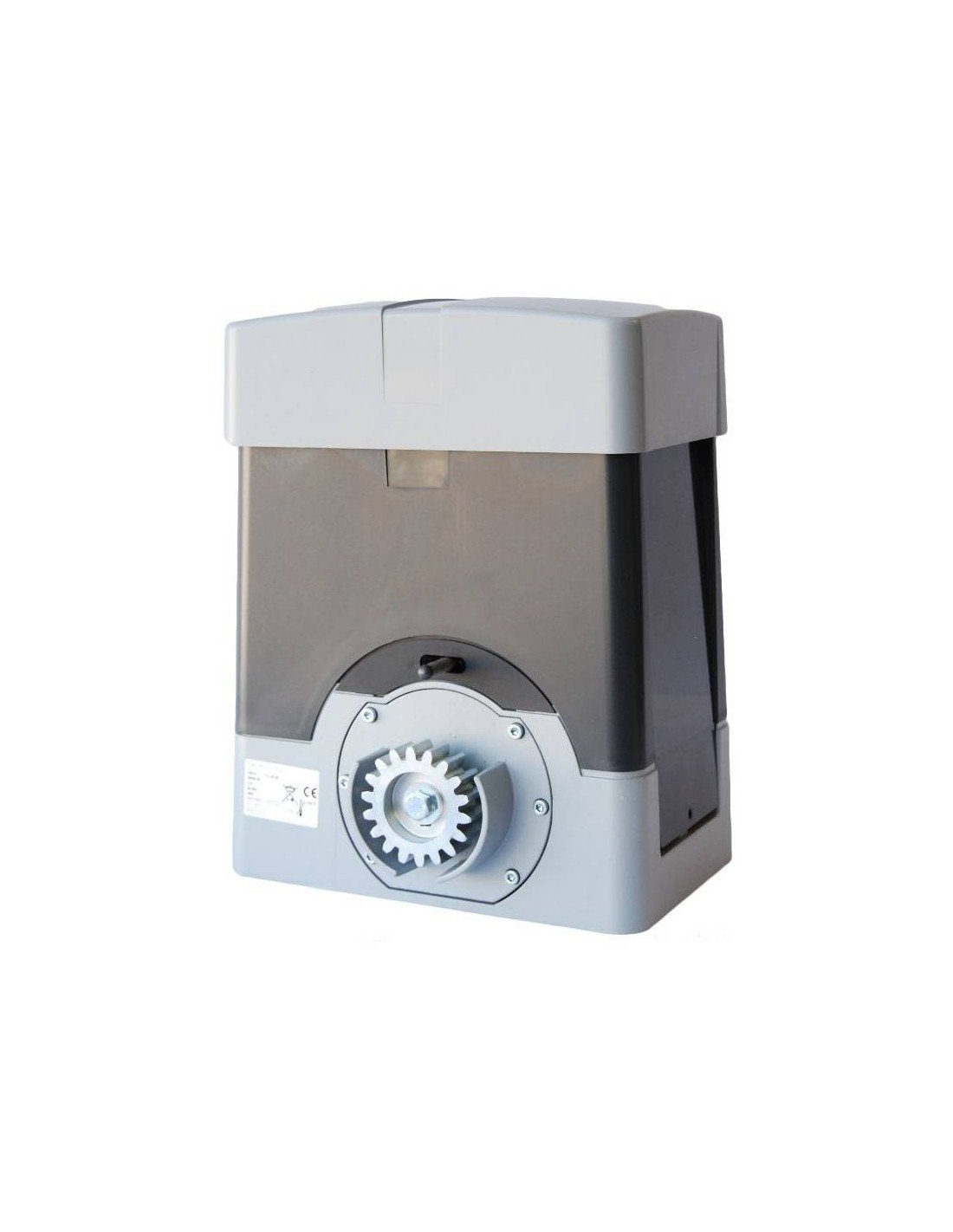

Sliding engine EMFA "COMEC 20 HE' for industrial doors up to 2000 kg. Version electromechanical 230Vac with built-in display. The COMEC 20 HE engine has the oil bath gearbox, prepared for intensive use and self-ventilated.

NotesThe following: radio frequency receiver not included. You can add it additionally from the product accessories.

CHARACTERISTICS

• Box embedded.
• Intensive use.
• Designed for industrial doors up to 2000 kg.
• With built-in encoder and anti-crushing-
• Adjustable slow speeds and soft stops.
• Self-taught programming.
• Guaranteed number of manoeuvres thanks to its self-ventilation.
• Reducing elements of high strength materials completely immersed in grease.
• End of life; supplied at 230v or 120v.
• It is irreversible. It ensures a perfect closure of the gate without the use of an electric lock.
• A custom key unlock enables manual manoeuvring of the cantilever in the absence of current.

TECHNICAL CHARACTERISTICS

• FoodFor the purposes of this Regulation, the following definitions shall apply:
• Engine power: 480W
• AbsorptionOTHER:
• Starting force50 Nm
• Degree of protection: IP54
• Class of insulation: F
• Interv. Thermal protection150 degrees
• Temp. of operation20o/+70oC
• Weight max. of the cancellationOTHER:
• VelocityThe following: 10.5m/min
• Capacitor: 31.5 μƒ
• Lubrication: GREASE AGIP BLASIA 100
• Other, of circular cross-section: M4
• Weight: 17KG
