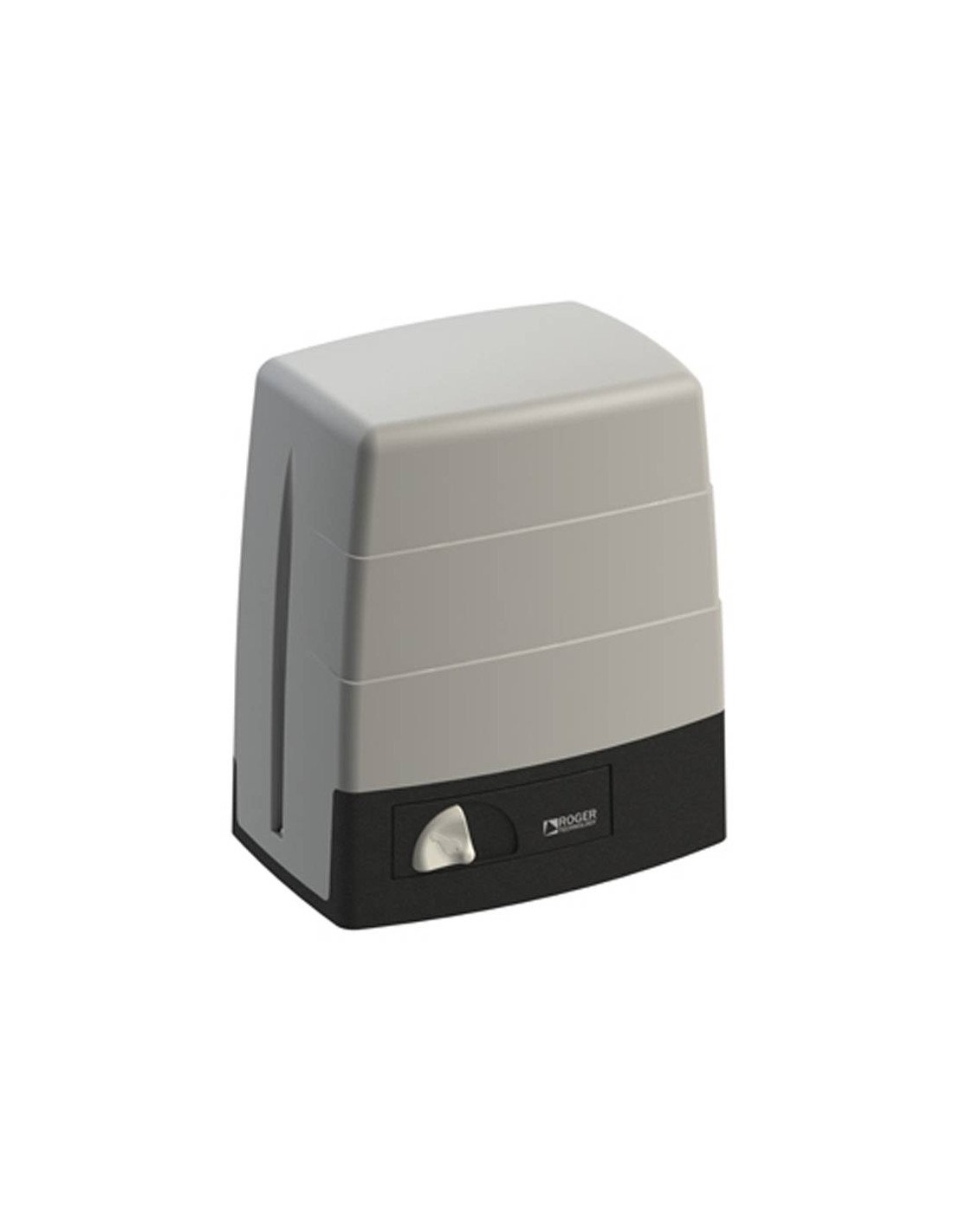

ROGER 400KG 230V sliding motor with magnetic finish

ROGER 400KG 230Vac with magnetic finish and h70 series digital manoeuvre box.

ROGER M30/324 motor irreversible electromechanical 230Vac for cancellations up to 400 KG for residential use, optical encoder, built-in digital frame H70 series, and magnetic career end.

Attention this product does not include receiver or commands

TECHNICAL CHARACTERISTICS

• Weight max door: other
• Line feed: 230V AC - 50Hz
• Engine power: 230V AC
• Nominal power: 210W
• Frequency of use: 50%
• Push: 250N
• Operating temperature: -20+55°C
• Protection degree: IP44
• Engine type: Irreversible
• Speed: 9.5 m/min (0.16 m/s)
• Thermoprotection motor: 150°C
• Condensador Incorporated: 12.5 μF
• End of race: Magnetic
• Integrated control table: H70/104AC
• Encoder: Optical
• External Pinion: Z15/mod 4
• Maximum dimensions of product (L x W x H): 250 x 165 x 290
• Packaging product weight (Kg): 10,7

DIMENSIONS AND COTAS

BANCADA ROGER

MANUAL

Instruction manual ROGER M30/324

Instruction manual ROGER table H70
