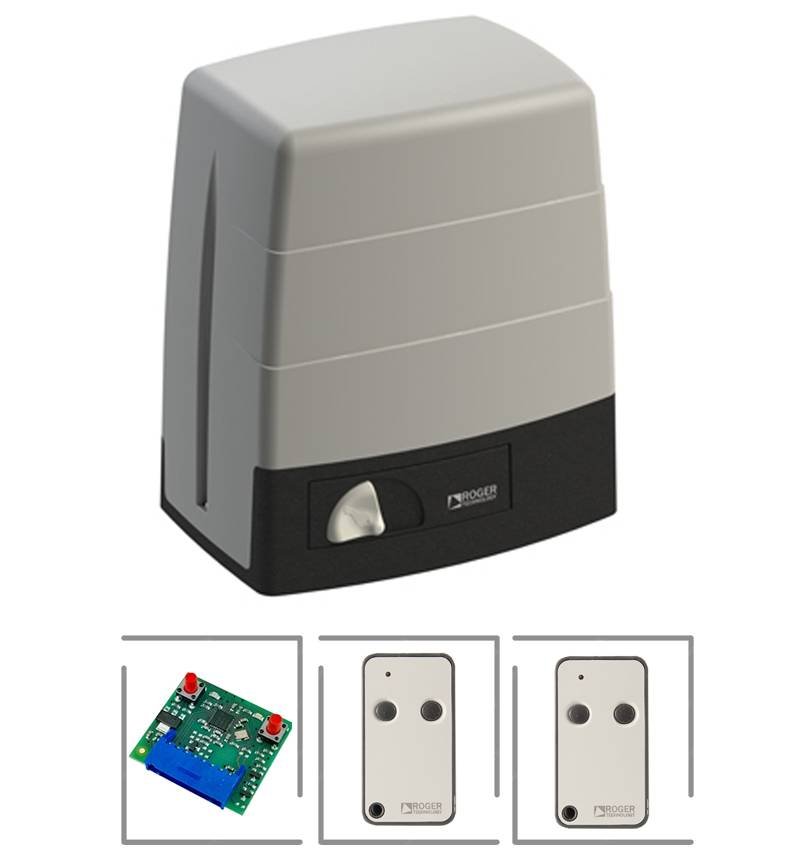

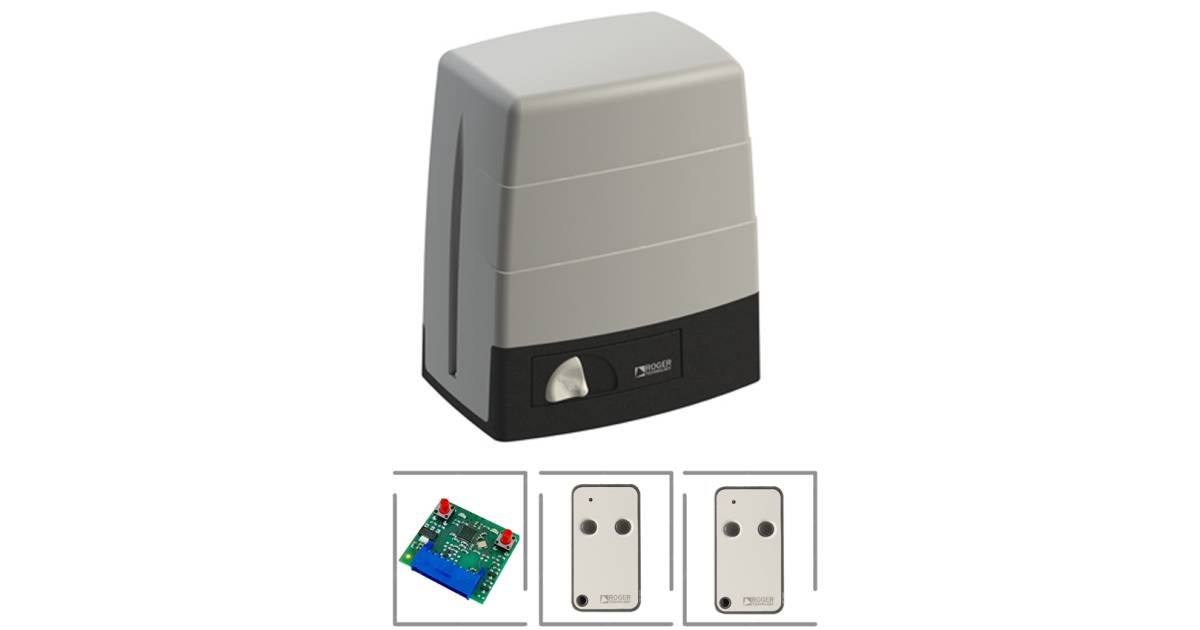

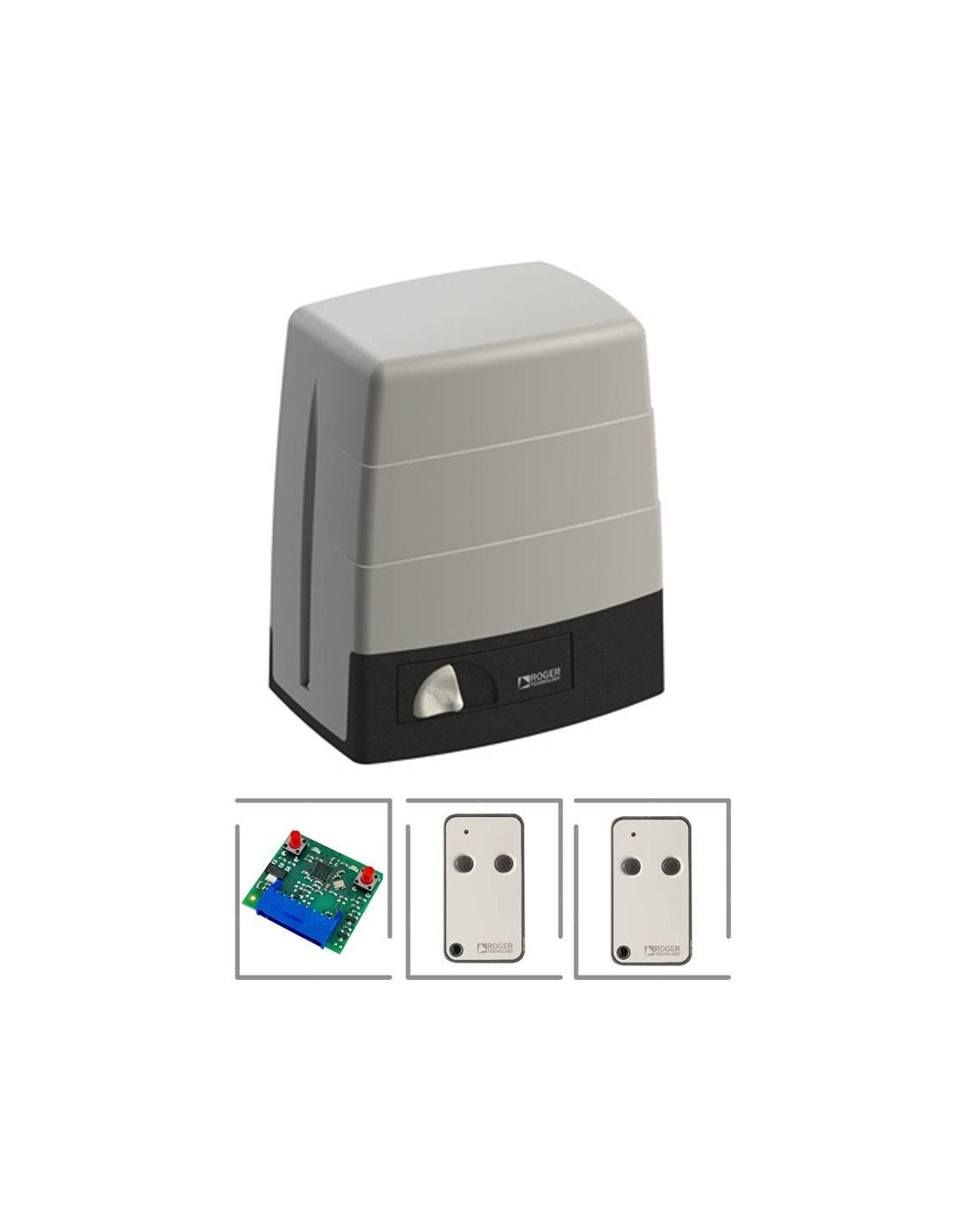

ROGER 400KG 230V Sliding Motor Kit with Magnetic Race End

Kit ROGER 400KG 230VAC sliding engine with magnetic career end and H70 Series built-in digital maneuvering box.

Roger M30 / 324 Motorreductor Electromechanical irreversible 230VAC for cancels up to 400 kg for residential use, optical encoder, built-in H70 series digital frame, and End of Magnetic Race.

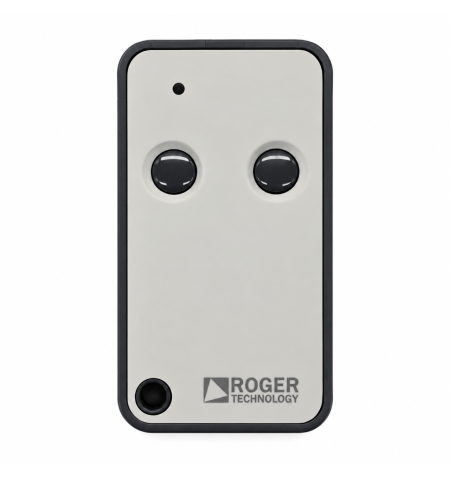

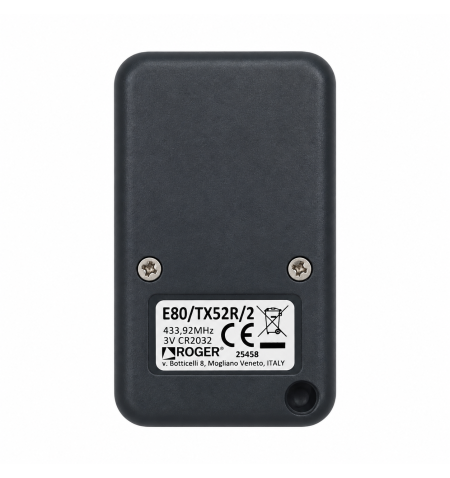

The kit contains plug-in receiving card and two Roger E80 emitters.

Technical characteristics

• Max Weight Door: 400 kg
• Food line: 230V AC - 50Hz
• Motor feed: 230V AC
• Nominal power: 210w
• Frequency of use: 50%
• Push: 250n
• Operating temperature: -20 + 55th C.
• Degree of protection: Ip44
• Motor type: Irreversible
• Speed: 9.5 m / min (0.16 m / s)
• Termoprotection Engine: 150th C.
• Built-in capacitor: 12.5 μF
• End of race: Magnetic
• Integrated control panel: H70 / 104ac
• Encoder: Optical
• External pinion: Z15 / MOD 4
• Maximum product dimensions (L x W x H): 250 x 165 x 290
• Weight of the packaged product (KG): 10,7

Dimensions and dimensions
