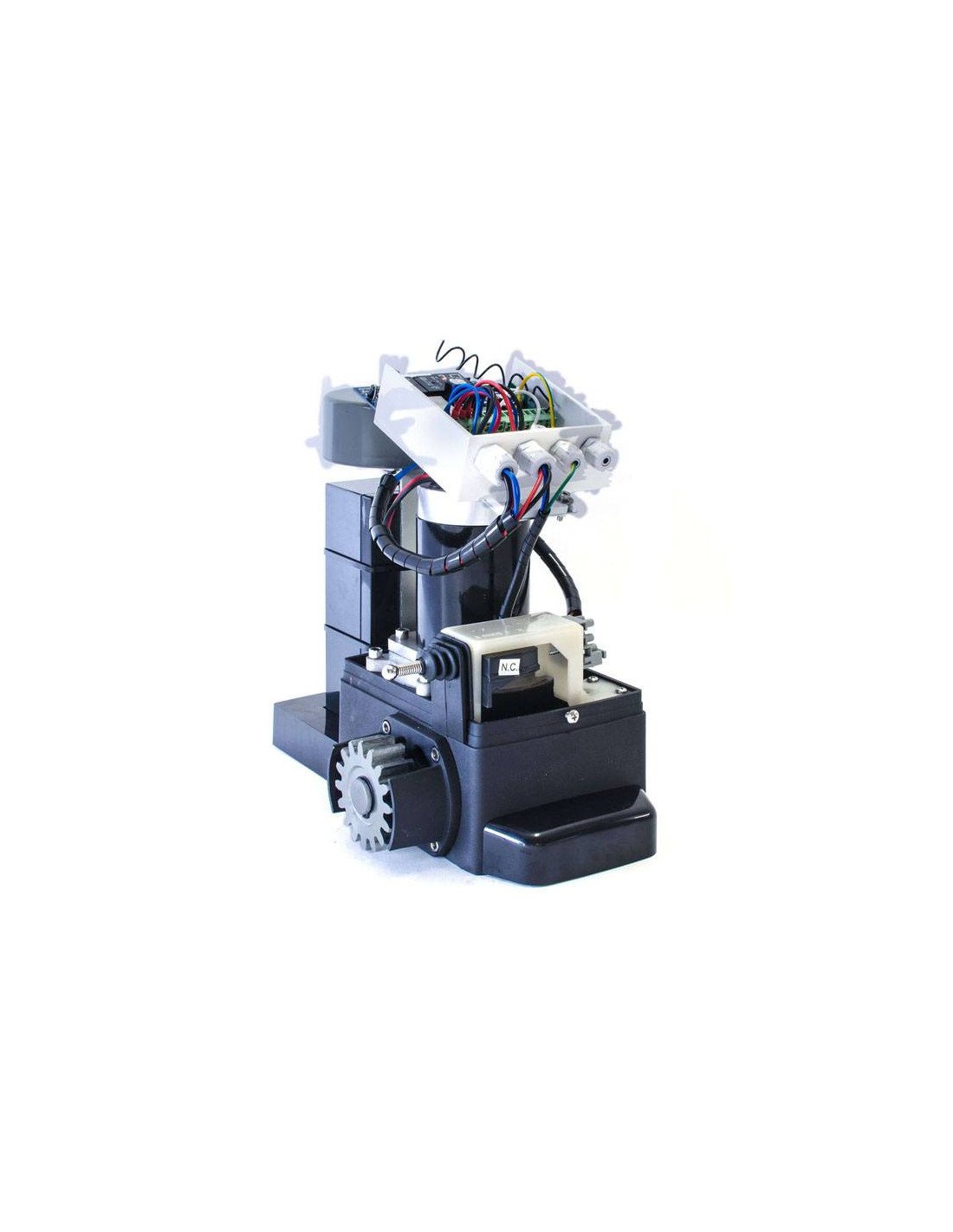

KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 2
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 3
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 5
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 4
KIT engine Motorline BRAVO524 24V oil and grease lubricated sliding doors
KIT engine Motorline BRAVO524 24V oil and grease lubricated sliding doors
KIT engine Motorline BRAVO524 24V oil and grease lubricated sliding doors
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 2
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 3
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 5
KIT Motor BRAVO524 at 24V lubricated in oil and grease for sliding doors - Picture 4

KIT engine Motorline BRAVO524 24V oil and grease lubricated sliding doors

KIT BRAVO524
€306.00
VAT excluded

370,26 €

Tax incl.

KIT engine Motorline BRAVO524 at 24Vdc with oil and grease lubricated reducer for sliding doors up to 500kg and IP44 protection.

Type of race finish



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



KIT engine Motorline BRAVO524 at 24Vdc with oil and grease lubricated reducer for sliding doors up to 500kg and IP44 protection.

BRAVO524 was developed to automate residential inline running gates, with a maximum weight of 500 kg.

With an irreversible electromechanical gear motor, powered by a 24Vdc electronic control unit. The irreversible system ensures that the gate is locked when it is not working.

It incorporates a programmable control unit that allows the adjustment of various parameters, such as: working time, rest time, anti-crush sensitivity and partial opening (pedestrian access).

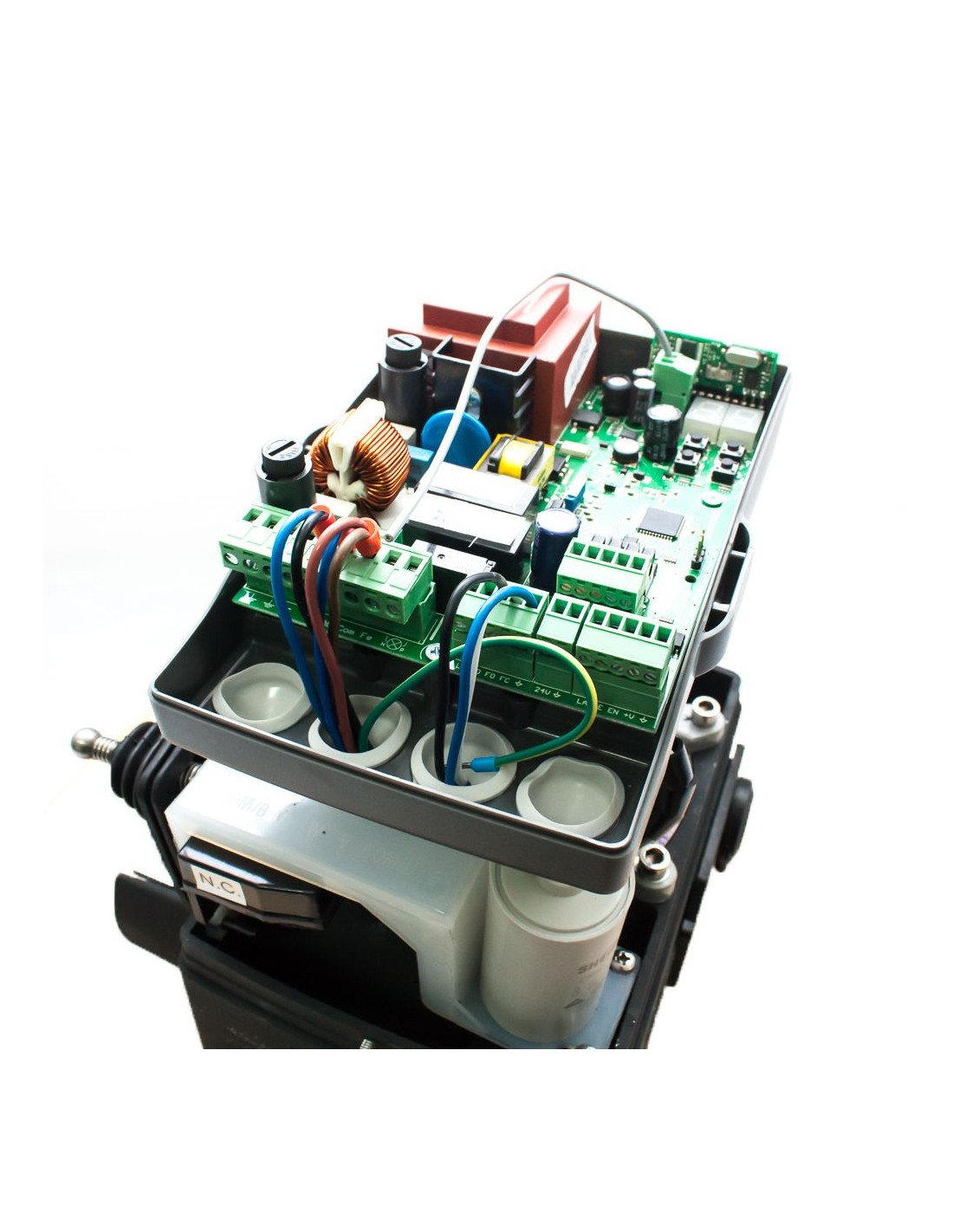

SECURE AND EASILY ACCESSIBLE ELECTRONIC

This product incorporates the control centre, allowing easier programming and maintenance.

COMPACT

Small dimensions for easy and comfortable installation.

QUIET

Motor and mechanical system developed for silent movement.

RESISTANT

The robust aluminium construction provides high strength and strength.

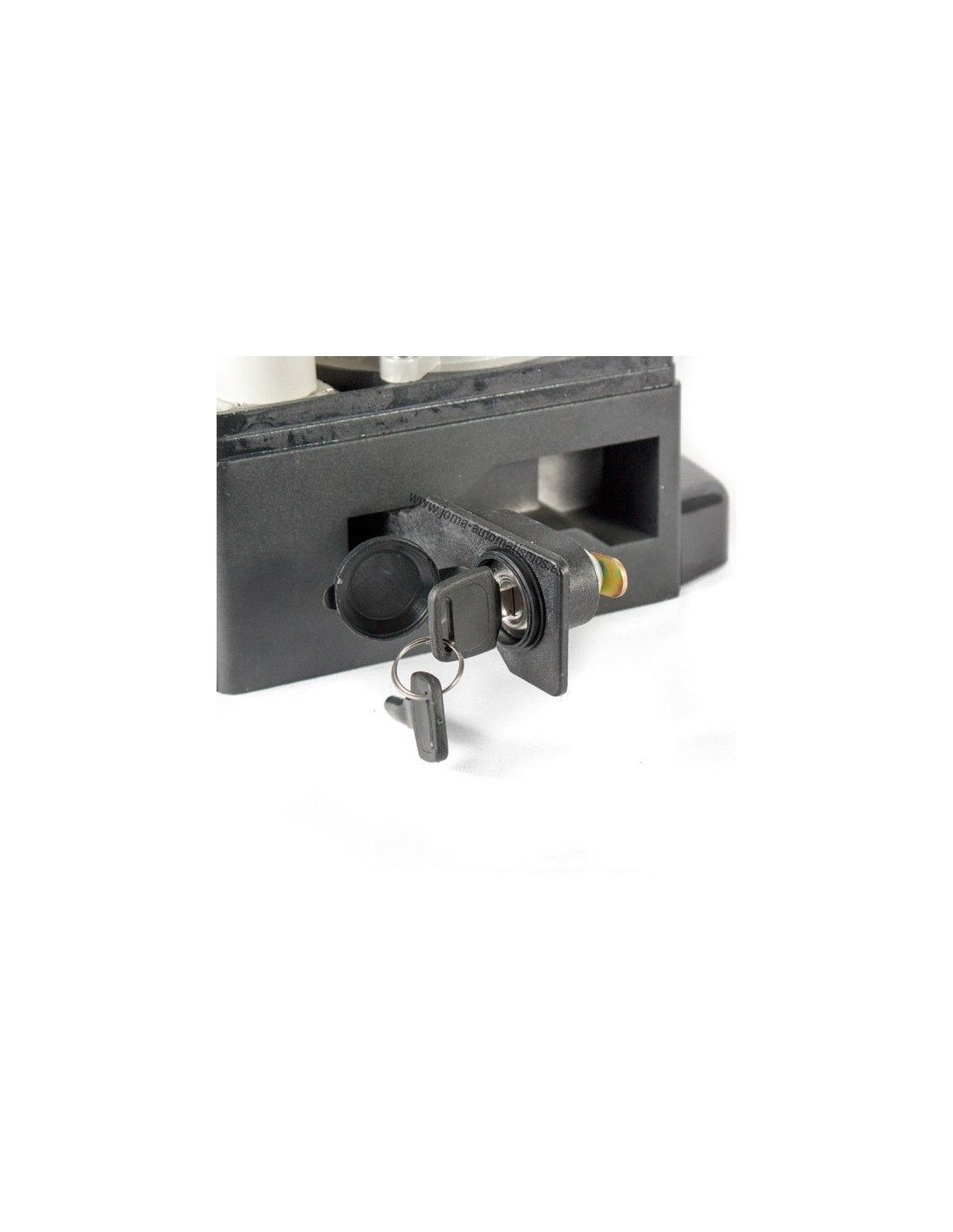

EMERGENCY UNLOCKING

It has an unlocking system for manual opening in case of failure.

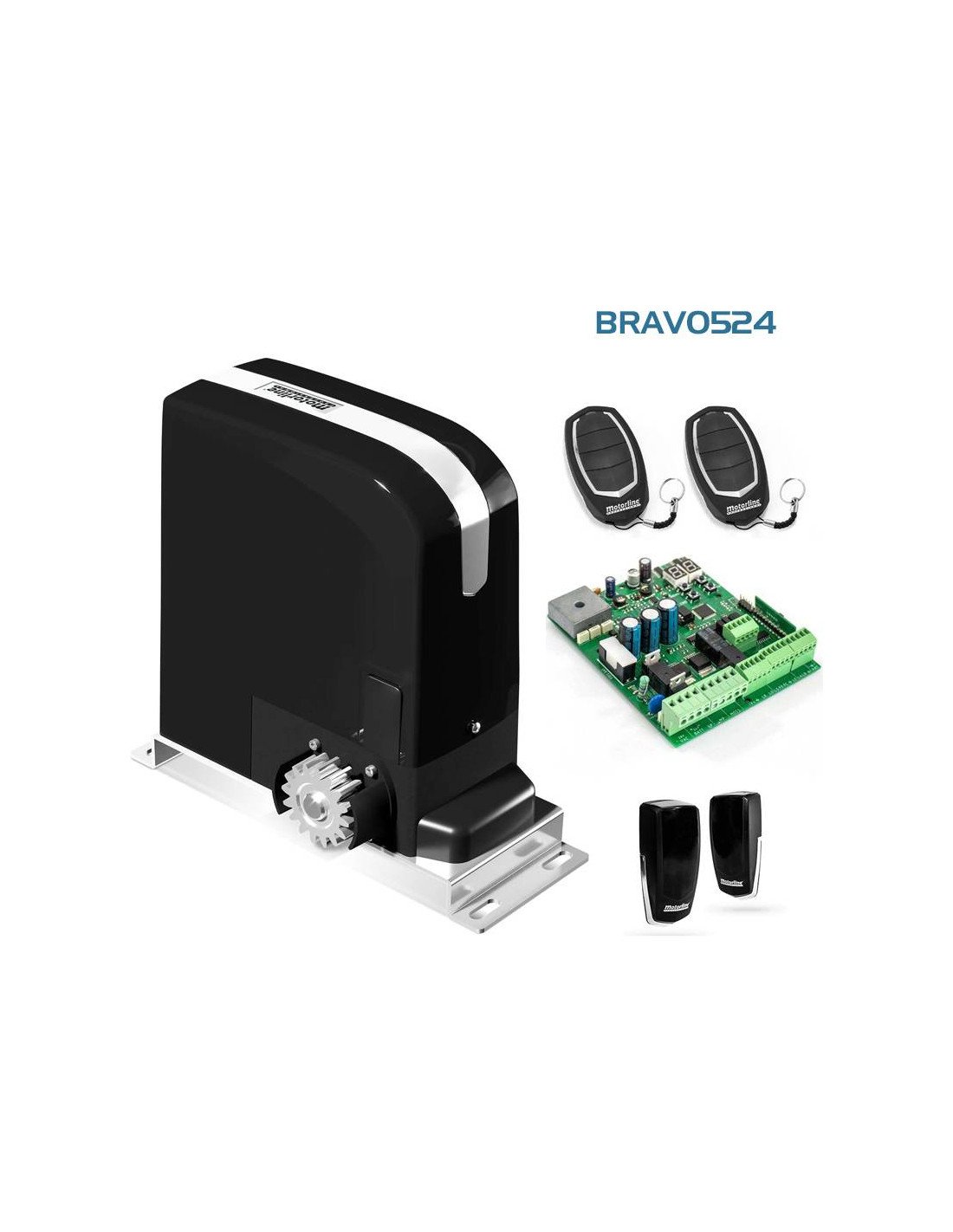

THE KIT CONTAINS:

  • 1 BRAVO524 24Vdc engine with oil and grease lubricated gearbox
  • 1 Central MC60
  • 2 FALK controls
  • 1 Set of photocells MF30
  • 1 Transformer TRF150VA-230V/110V

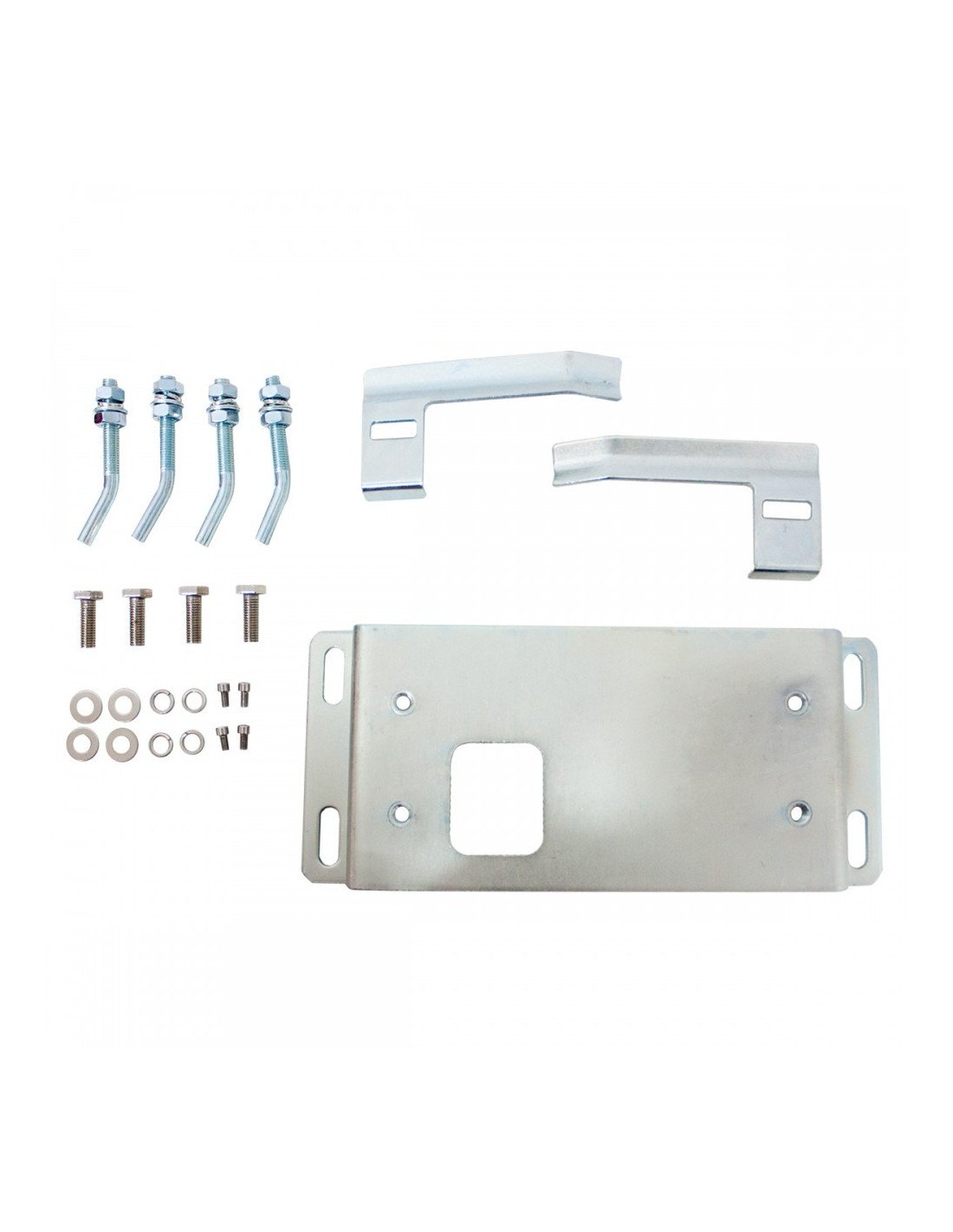

  • Mounting accessories

INSTALLATION VIDEO

PROGRAMMING VIDEO

MANUALS

Maximum door weight
Between 500 and 650 kg
Type of engine
Electromechanical 24V
Type of door
Community portal
Residential door
