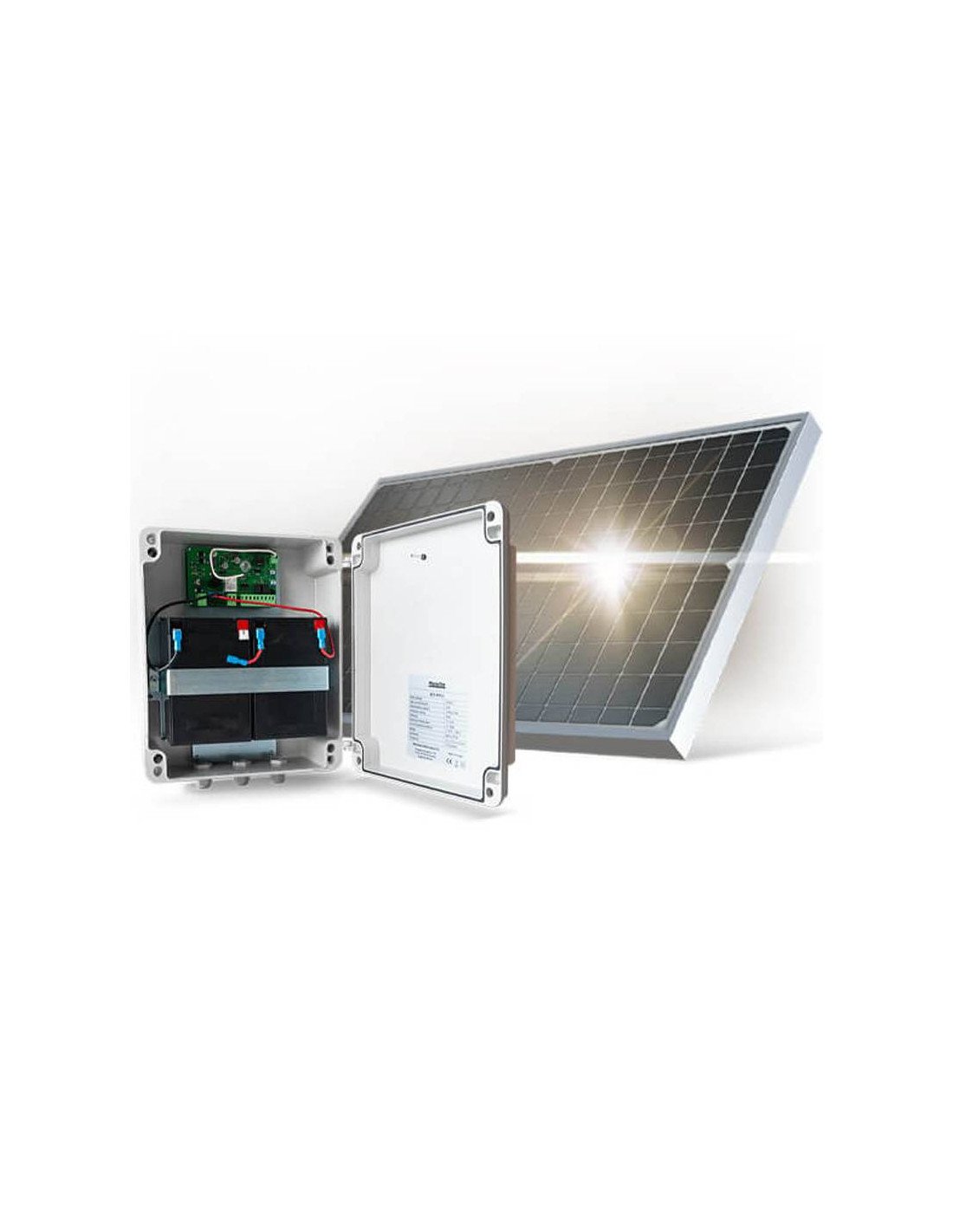

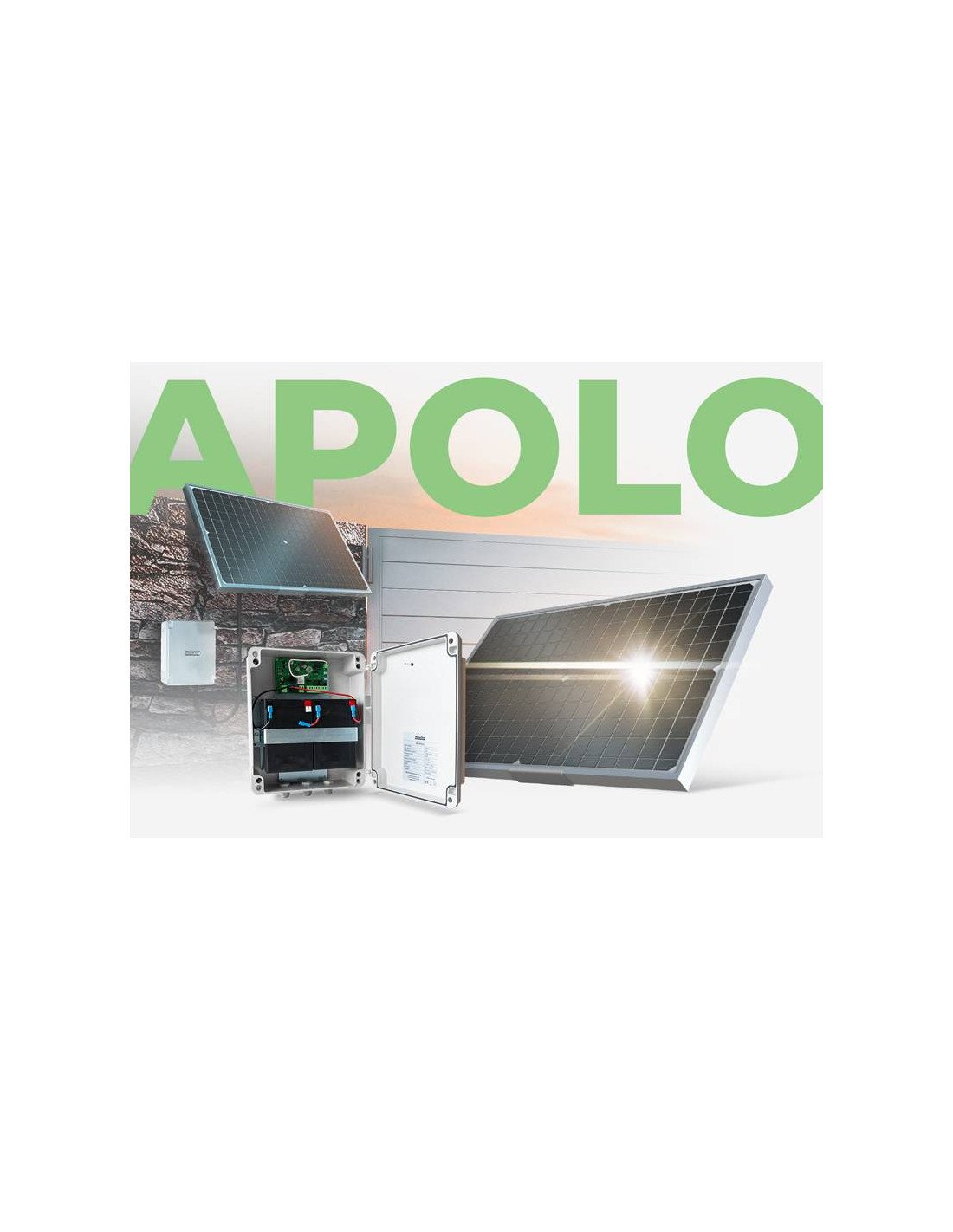

APOLO Motorline Solar Power System

APOLO is a solar energy system that allows the battery charge to increase through sunlight, thus optimizing the efficiency and autonomy of the automation. It is the ideal solution for gates distant from a fixed power grid and to simplify installations, when it is impossible to run electrical cables.

TECHNICAL CHARACTERISTICS BOX APOLO

• Nominal voltage 24Vdc
• Output Current 10A
• Battery Capacity: 14Ah
• IP65 degree of protection
• Operating Temperature (Battery)
• Discharge: -20°~60°C
• Load: -10°~60°C
• Storage: -20°~60°C
• Weight 9.5KG
• Dimension 300mm x 250mm x 120mm
• Standby power consumption 0.15W
• Maximum Solar Panel Voltage 50V
• Solar Panel Maximum Current 2A
• Maximum panel power 2 x 30W
• Battery voltage 24V
• Maximum output power 240W
• Operating temperature -25° to +55°C
• 10A fuse
• Built-in radio receiver 433.92 MHz
• Supported 12bit or Rolling Code commands
• Maximum Memory Capacity 100 (Full Opening) – 100 (Pedestrian Opening)

TECHNICAL CHARACTERISTICS S MSP30-72A (SOLAR PANEL)

• Maximum Panel Power (Voc) 30W
• Short Circuit Current (Isc) 0.916A
• Maximum Power Voltage (Vmp) 36.0V
• Maximum Power Current (Imp) 0.833A
• Test Temperature (Tc) 25°C
• Weight 3KG
• Dimension 355mm x 540mm x 25mm
• Cable length 3m
• Cable cross-section 2x1mm

• Can be installed anywhere without the need for wiring or excavation, even in the most remote or hard-to-reach places with mains power.

• Greater savings and respect for the environment thanks to free and clean solar energy: an ecological and smart choice with short-term benefits.

• Prolonged power without the risk of blackouts thanks to the low-consumption system that ensures operation even at night or in conditions of prolonged cloudiness, guaranteeing comfort and safety.

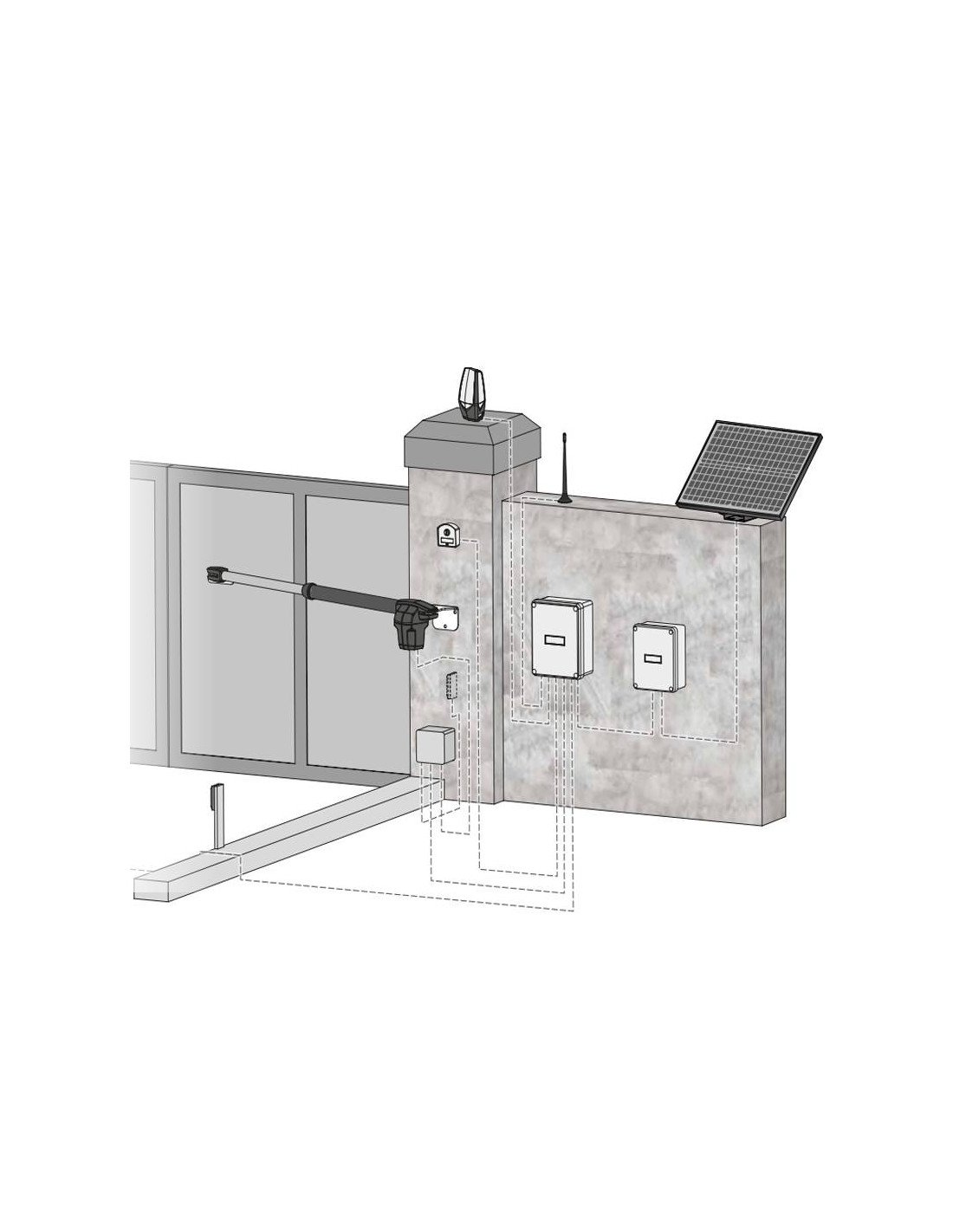

How does it work?

It's very simple.

1 The energy is absorbed by the panel and stored in the batteries through the charge controller

2 The APOLO controller switches off the control unit from the operator whenever it is on standby. This function makes it possible to reduce the standby current to almost zero, increasing the efficiency of the system.

3 When an order is sent via the control or pushbutton, the APOLO system switches the power back on to the control unit and then sends the opening or closing order to the operator.

MOTORLINE APOLLO DIMENSIONS
