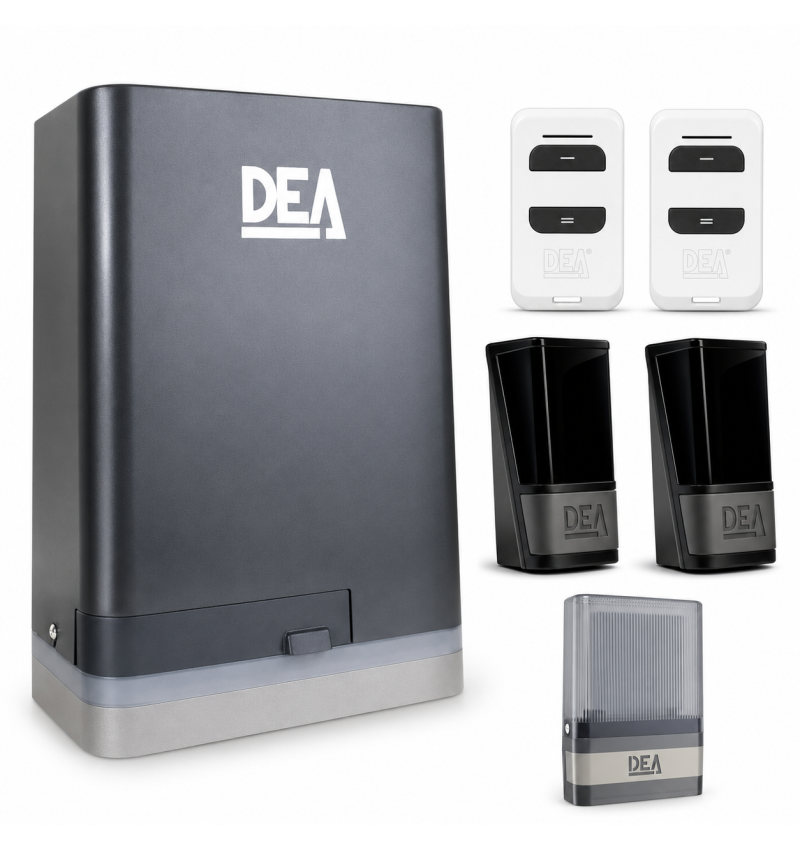

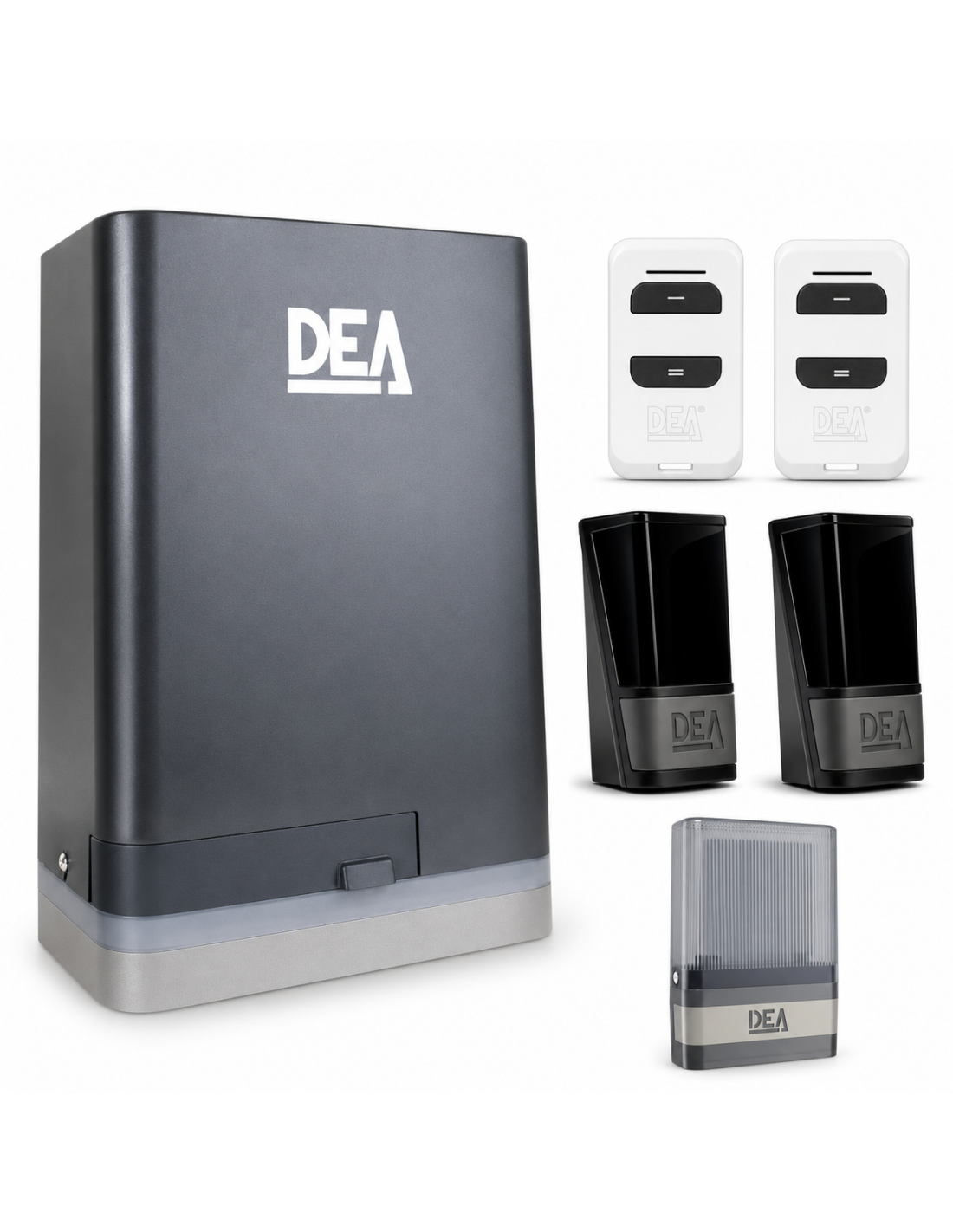

Kit Dea Livi 6 / 24X / M it is a complete solution for the automation of residential sliding doors up to 600 kg, equipped with electromechanical gearmotor 24V and electronic central DEA NET24N.
The whole also includes line-X PHOTOCELLS, lED signaling lamp DEA AURA-X with integrated antenna and 2 cANALS DEA CONTRAINS OF 2 CASE, forming a complete kit with original DEA SYSTEM components.
✓ COMPLETE KIT DEA FOR SLIDING DOORS UP TO 600 KG
Includes LIVI 6 / 24X / M + NET24N + LINE-X + AURA-X + 2 Controls GTX2.
Livi 6 / 24X / M 24V SLIDING ENGINE
The DEA LIVI 6 / 24X / M it is an irreversible electromechanical gearmotor designed to automate sliding doors up to 600 kg.
Its operation 24V, combined with the Net24N electronic power plant, allows precise regulation of the movement of the door, including speed, slowdown and electronic obstacle control.
- Electromechanical gearmotor irreversible of 24V.
- For sliding doors up 600 kg.
- Magnetic career endings.
- Approximate speed of 10 m / min.
- Electronic speed regulation.
- Adjustable slowdown.
- Electronic obstacle detection.
- Manual unlocking system.
- Electronic central integrated in automation.
24V engine with DEA electronics
The combination of the LIVI engine with the Net24N plant allows to obtain a progressive movement and configure different operating parameters according to the characteristics of each installation.
Technical characteristics of LIVI 6 / 24X / M
| Model |
DEA LIVI 6 / 24X / M |
| Type of automatism |
Sliding door |
| Recommended use |
Residential |
| Maximum door |
600 kg |
| Motor feed |
24V |
| Maximum absorbed power |
80 W |
| Maximum |
330 N |
| Speed |
10 m / min |
| Race |
Magnetic |
| Pinion |
Z16 |
| Electronic |
DEA NET24N |
| Degree |
IP44 |
Electronic Central Dea Net24N
The Livi 6 / 24X / M engine incorporates the electronic Central Dea Net24N, belonging to the electronic platform OF @ NET developed by ASA System for 24V Automation.
The plant allows to manage and configure the main parameters related to the movement and the safety of the door.
- Electronic engine management of 24V.
- Programming of the tour of automatism.
- Electronic speed regulation.
- Configuration of phases of slowdown.
- Regulation of sensitivity before obstacles.
- Management of security devices.
- Management of opening and closing orders.
- Configuration of pedestrian opening.
- Compatible with specific Accessories.
- Possibility of integration with the ecosystem DEA NETLINK through the corresponding devices.
✓ ELECTRONIC CENTRAL DEA NET24N
24V electronics allows to adjust parameters as the speed, slowdown and sensitivity before obstacles, getting a progressive maneuver and adaptable to each installation.
Line-X photocells included
The kit incorporates a game of line-X PHOTOCELLS composed by emitter and receiver, intended to increase safety during the operation of the automatic door.
- Composed emitter and receiver.
- Surface installation.
- Compact design.
- Approximate maximum range up 20 meters in adequate conditions.
- Designed specifically for automations of doors and accesses.
LED Lamp Dea Aura-X
The DEA AURA-X it is an LED signaling lamp that allows you to be visually warned when automatism is performing an opening or closing maneuver.
- Lighting technology LED.
- Multivolt feeding.
- Compatible 24V AC / DC, 120V AC and 230V AC.
- Antenna 433/868 MHz integrated.
- Adjustable support.
- Compact design for exterior installation.
✓ INTEGRATED ANTENNA IN THE LAMP
The Aura-X DEA incorporates an antenna compatible with frequencies 433 MHz and 868 MHz, allowing us to use the lamp itself as an installation point of the radio antenna.
2 cANALS DEA CONTRAINS OF 2 CASE
The set includes 2 manas Dea GTX2 to control the automation wirelessly.
- 2 channels.
- Labor 433 MHz.
- Serialized issuer.
- Compatible with coding HCS Rolling-Code.
- Compatible with coding Dip-Switch.
- Compatible with coding DEA D.A.R.T..
Content of the Kit Livi 6 / 24X / M
- 1 x Livi 6 / 24X / M 24V SLIDING MOTOR.
- 1 x Central Electronics DEA NET24N integrated into the engine.
- 1 x Line-X PHOTOCELL SET.
- 1 x LED Lamp Dea Aura-X with integrated antenna.
- 2 x Manas Dea GTX2 of 2 channels at 433 MHz.
⚠ ZIPPER NOT INCLUDED
The zipper needed to move the door is supplied separately. The type and number of meters needed according to the length and characteristics of the door should be selected.
Advantages of Livi 6 / 24X / M KIT
- Complete kit with original components Dea System.
- Automation 24V.
- For sliding doors up 600 kg.
- Magnetic career endings.
- Advanced electronic center NET24N.
- Regulation of speed and slowdown.
- Electronic obstacle detection system.
- Safety photocells included.
- LED lamp with integrated antenna.
- 2 gTX2 controls included.
- Possibility of expanding installation with compatible Accessories.
For what type of installation is it recommended?
The kit DEA LIVI 6 / 24X / M it is especially indicated to automate:
- Sliding doors of single-family homes.
- Particular garages.
- Residential entries.
- Sliding doors up 600 kg.
⚠ IMPORTANT BEFORE SELECTING THE ENGINE
The maximum weight of the door is not the only criteria to select an automatism. The dimensions of the door, wheel condition and guide, frogs, frequency of use, exposure to wind and particular features of installation.
AUTOMATING DEA WITH ELECTRONICS NET24N
The DEA LIVI 6 / 24X / M it combines a sturdy 24V gearbox with Net24N electronics, providing a complete solution to automate residential sliding doors with progressive and configurable operation.
Thanks to the accessories included in this kit —LINE-X, AURA-X and 2 controls gtx2— a complete configuration is available for automation with original DEA System devices.
Kit DEA LIVI 6 / 24X / M + NET24N + LINE-X + AURA-X + 2 GTX2: A complete solution for residential sliding doors up to 600 kg.
