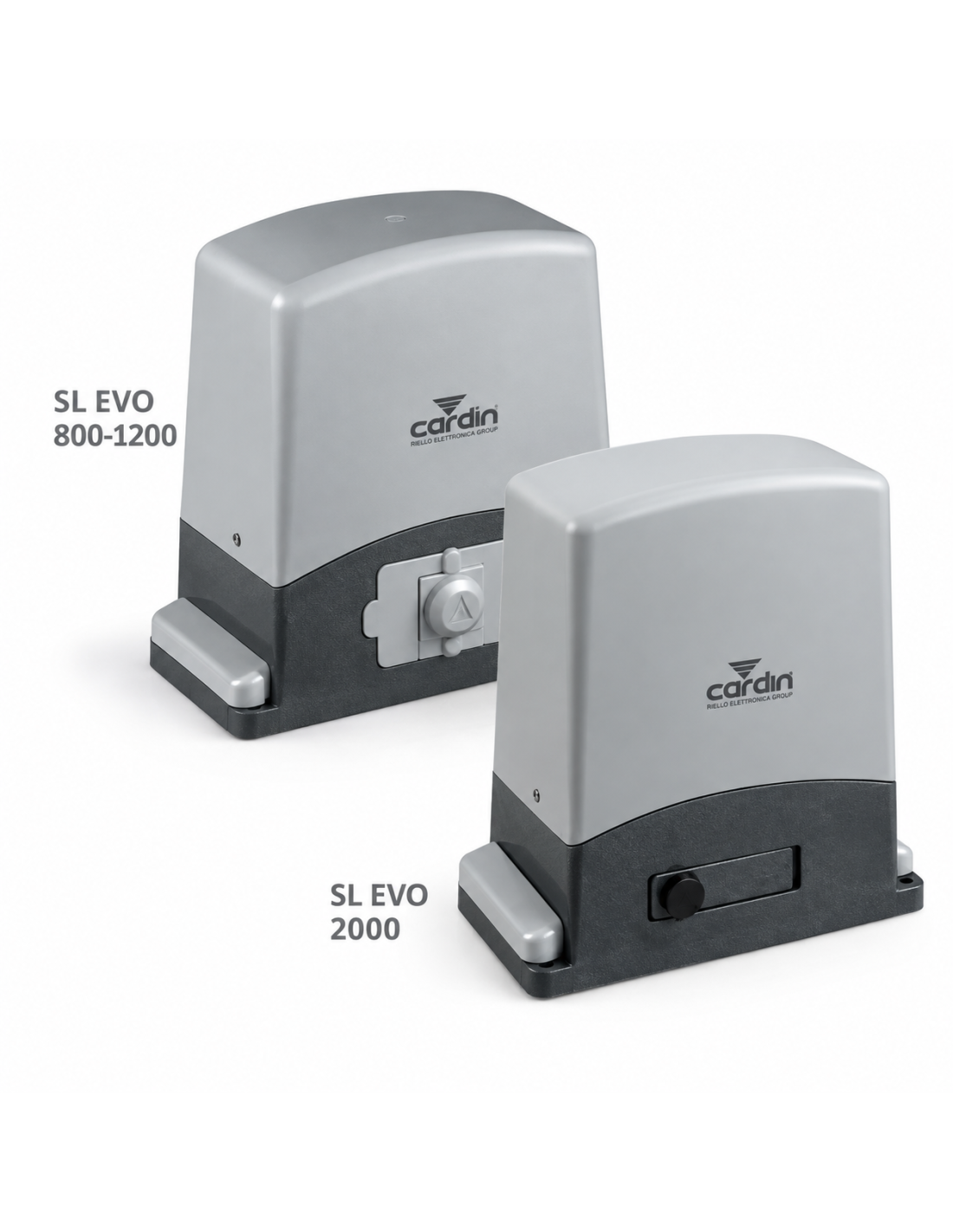

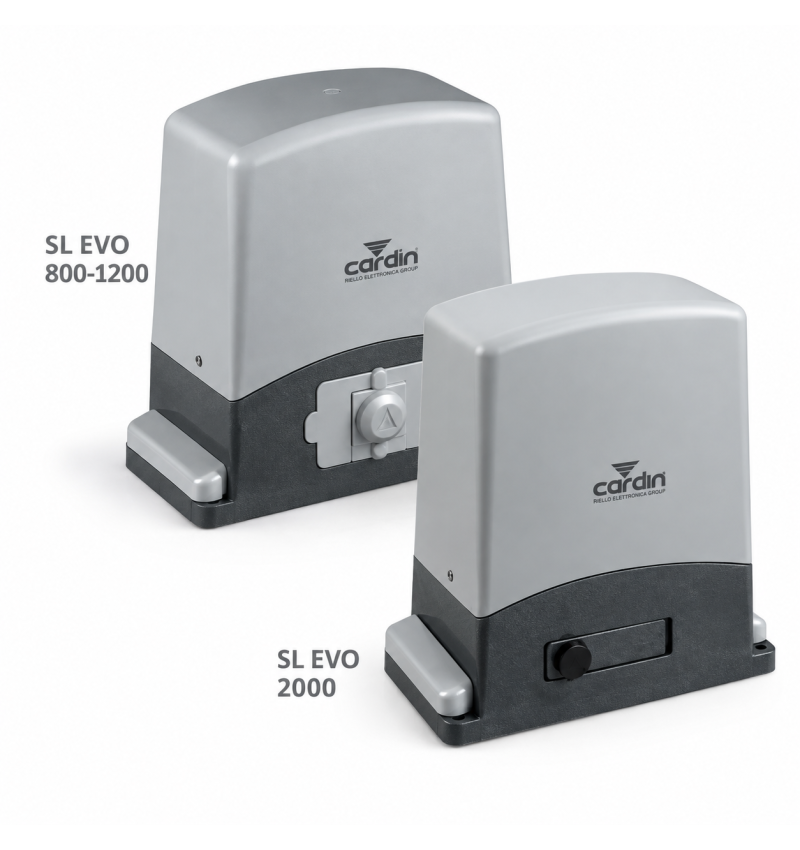

Cardin SL EVO 800/1200/2000 230V sliding engine with Central

Cardin SL EVO 800/1200/2000 230V SLIDING ENGINE

The range Cardin SL EVO it is formed by electromechanical gearmotors of 230VAC for sliding doors, especially indicated for residential, community and industrial facilities that require a robust and intensive use automation.

In this product you can select by means of the Village between the models SL EVO800, SL EVO1200 and SL EVO2000, for sliding doors up 800, 1,200 or 2,000 kg respectively.

The three models incorporate electronic Central T101, Encoder Anti-explashing, Magnetic Career End, Power Regulation and Electronic Deceleration in Opening and Closing.

The Motors SL EVO800, SL EVO1200 and SL EVO2000 work with the mechanical system lubricated in oil bath, reducing internal wear and favoring constant operation in installations with a high frequency of maneuver.

The radio receiver Open Collector is not included and you must be selected separately according to the command system you want to use.

Select the model in the drop-down

SL EVO800: for sliding doors up 800 kg.

SL EVO1200: for sliding doors up 1,200 kg.

SL EVO2000: for industrial sliding doors up 2,000 kg.

✓ Electromechanical motor 230Vac.

✓ Electronic Central T101 built.

✓ Encoder for movement control and anti-explaught system.

✓ Regulation of the push strength and sensitivity.

✓ Self-learning of the operating parameters.

✓ Electronic deceleration in opening and closing.

✓ Controlled start and stop.

✓ Magnetic career endings.

✓ Lubricated gearmotor in oil bath.

✓ Double dedicated entry for 8.2 kΩ resistive safety bands.

✓ Possibility of operation Master / Slave for installations with two synchronized sliding doors.

✓ Prepared to optional Bluetooth module for configuration and control.

✓ Prepared for plug-in receiver Open Collector.

✓ unlocking manual by key to release the door in case of absence of food.

Models SL EVO800, EVO1200 and EVO2000 they have a reducing system lubricated in oil bath.

This system helps maintain a constant lubrication of the mechanical components and reduces internal wear, being especially interesting in doors with a high frequency of use.

Cardin also has the optional hot heater, designed to help keep the oil at an adequate temperature in installations subjected to low temperatures.

The engines incorporate encoder, used by the plant to control the movement of the door and manage the detection of obstacles.

Electronics allows you to adjust the push strength and sensitivity and it has deceleration functions in the final phases of opening and closing.

The installation must be completed with the necessary security devices according to the characteristics of the door.

Receiver not included

The engines are prepared to install a open Collector plug-in receiver, but the radio receiver it is not included with the individual engine.

This allows you to select the appropriate receiver and cardin controls according to the desired frequency and radio system.

The range is ready to incorporate a optional Bluetooth module.

Using the compatible module, functions of configuration, control and information exchange with compatible cardin systems.

The plant allows to configure two automatisms in mASTER / SLAVE MODE.

This function is especially useful for installations formed by two sliding doors confronted that must work synchronized.

Important: Maximum weight of the door

The indicated maximum weights correspond to doors that move in a form regular, balanced and correctly maintained. If there are friction, unevenness, damaged wheels or defects in the guide, the mechanics of the door must be previously corrected before selecting the automation.

■ Cardin Open Collector receiver – for control by remote controls.

■ Compatible cardin controls – according to the receiver installed.

■ MODBT / MODBT2 – optional Bluetooth module.

■ HOT – electronic heater to maintain the oil temperature in cold environments.

■ PC / EVO – base of fixation to work.

■ LITTLE KIT – external unlocking system by cable.

■ Zipper M4 – necessary to transmit the movement of the pinion to the door.

■ Photocells and safety bands 8.2 kΩ – to complete the security devices of the installation.

■ 1 × motorreductor Cardin SL EVO, in the selected version: EVO800, EVO1200 or EVO2000.

■ Integrated T101 electronic center.

■ Manual unlocking system.

It does not include radio receiver, controls, zip, photocells, flashing lamp or other accessories.
