KIT Motor Came BK-1800 from 230V for sliding doors of up to 1,800 kg and up to 20 metres in length. What. It incorporates electronic card with programming display, built-in radio decoding and mechanical race endings.

Self-diagnosis of the safety devices.

Possibility of controlling an auxiliary lighting in the passing area.

CHARACTERISTICS

• Push: 1150 N
• Weight max. of the leaf: 1800 Kg
• Max. leaf length20 m
• Degree of protection: IP 54
• Power supply voltage (V-50/60 Hz): 230 AC
• DimensionsThe following: 325 x 255 mm
• Power supply (V-50/60 Hz): 230 AC
• Power : 480W
• Absorption: 4.2 A
• Velocity of manoeuvre: 10.5 m / min

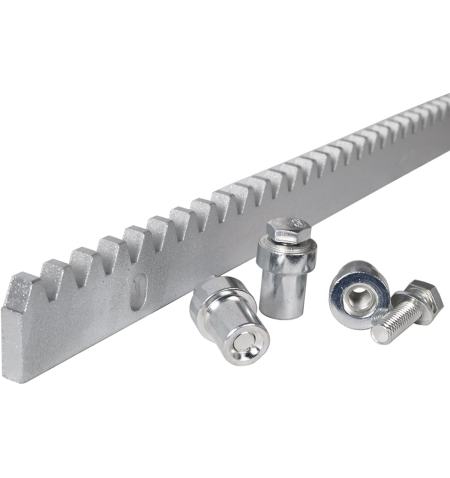

• Pinion module4 m
• Intermittent operation: 50%
• Operating room temperature: -20oC to +55oC
• Motor heat protection150 degrees
• End of racemechanic
• Instructions included

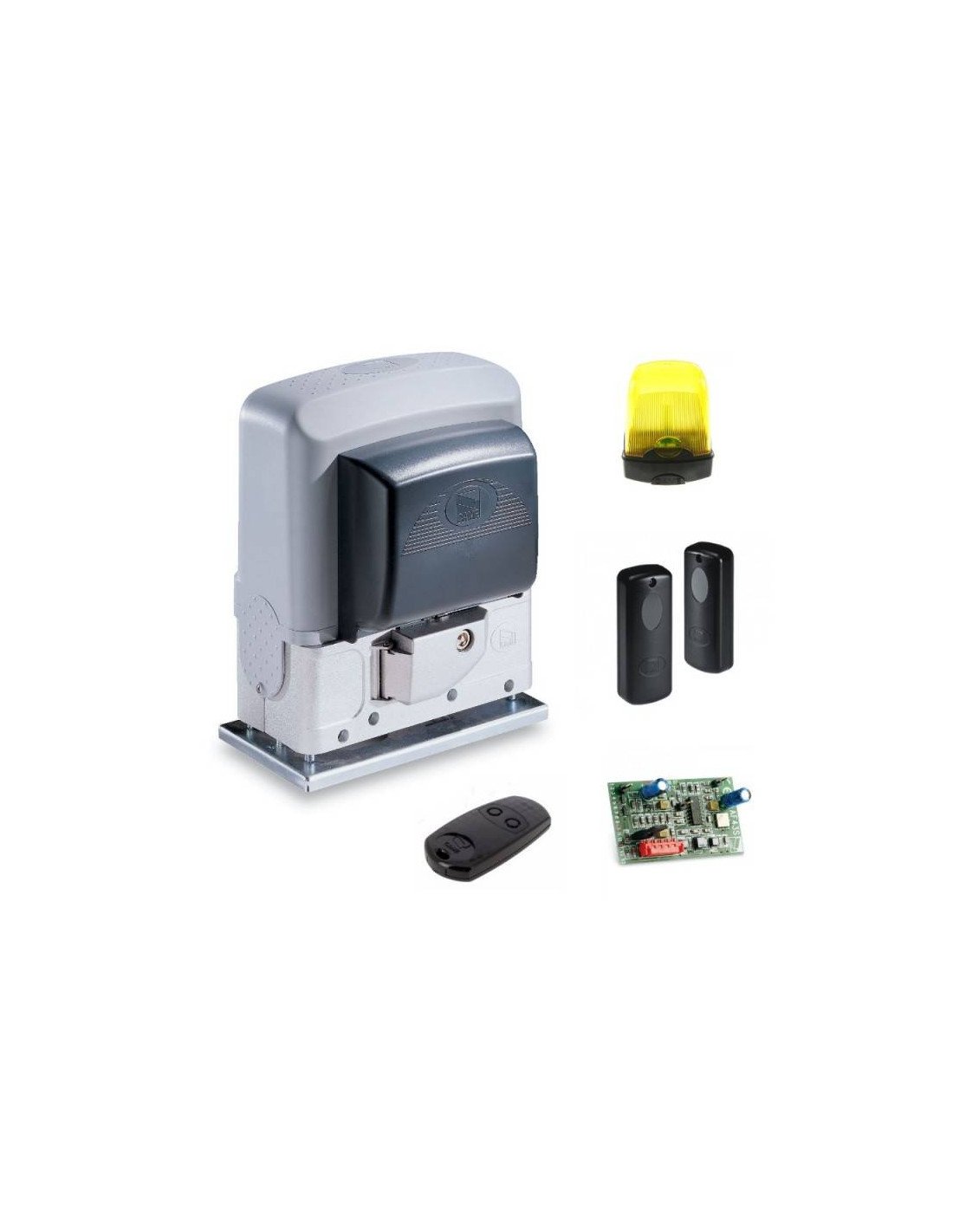

THE KIT CONTAINS:

• BK-1800: Sliding motor 230 V up to 1800 kg
• AF43S: plug-in receiver card
• UP-432EE: Garage control 2 channels fixed code 433.92 MHz
• SAY10: Surface photocell pair of 12 - 24 V AC - DC. Range , 10 meters .
• KLED: flashing indicator light with LED.

MANUAL

Manual downloading CAME BK
