Sliding engine CAME BXV10AGS 24V Up to 1000 Kg | Automatism sliding door

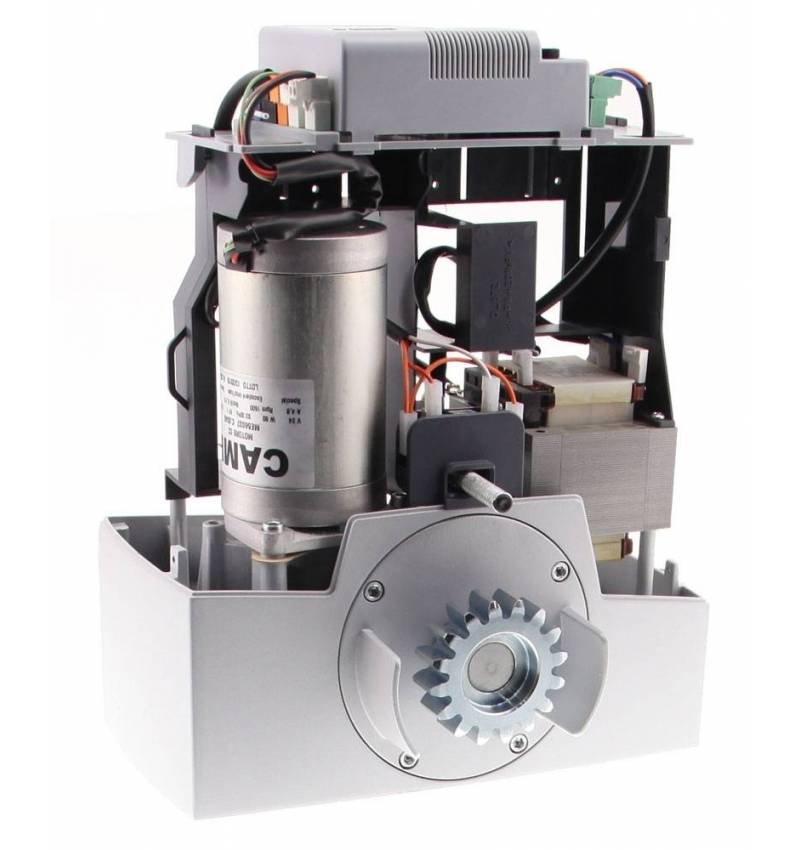

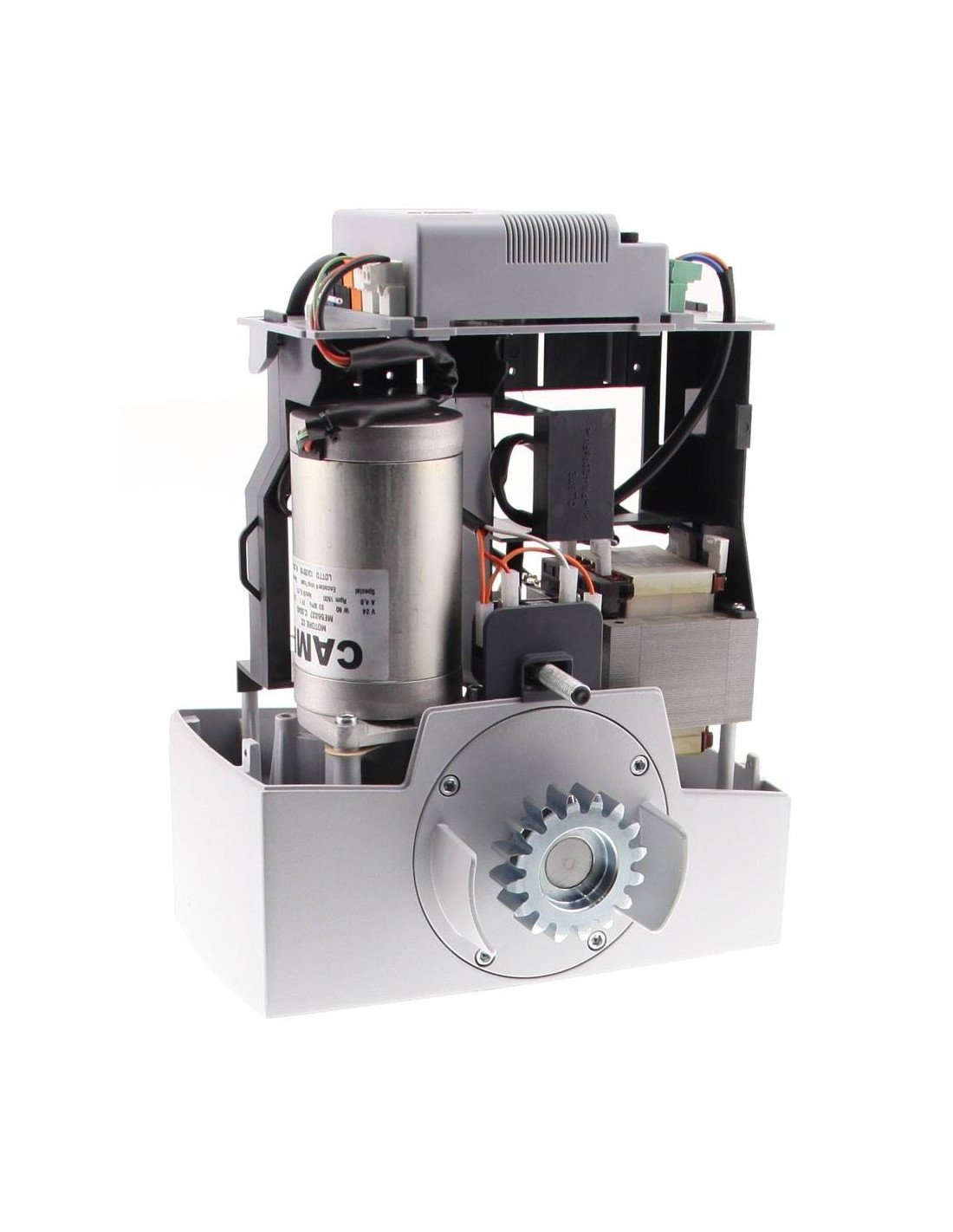

The sliding engine CAME Bxv10ags It is a professional solution of 24 V with mechanical career finishes Designed to automate sliding cancers up 1000 kg and 20 meters long, Ideal for residential facilities, neighborhood communities and accesses intensive use. Manufactured by the prestigious Italian company CAME, this operator stands out for its reliability, smoothness and advanced electronic management.

Integrates Electronic card with display, Built-in radio receiver and Obstacle detection by encoder, guaranteeing a safe and accurate maneuver. Has Autodiagnosis of security devices, possibility of connection in combined mode using accessories CSR and compatibility with connectivity systems CAME Connect, which allow local or remote digital management through Gateway or CAME Key.

The engine has a predisposition for backbat, Magnetic career endings and heating resistance, ensuring its operability even under demanding conditions or power supply cuts. Her color housing Ral7024 It provides a modern and resistant aesthetics for outdoor environments.

Thanks to its quick versions, with speeds of up 11 m / min, the CAME Bxv10ags becomes an excellent choice for those seeking a Automatism for sliding doors Powerful, safe and prepared for intensive use, with state-of-the-art technology and the backing of one of the industry's leading manufacturers.

Features

✔ Automatism equipped with encoder.

✔ Predisposition for operation in case of lack of power supply.

✔ Predisposition for installation of magnetic career and heating enders.

✔ Electronic card with Bornera, Screen and Memorization of up to 250 users.

✔ Autodiagnosis of security devices.

✔ Connection in combination using the CSR accessory.

✔ Developed with Connect technology for distance management at a distance through Gateway or locally CAME KEY.

Incorporates the ZN7 plant, Prepared to connect any safety device powered by 24V-AC / DC, such as photocells, as well as control devices, safety and luminous indication.

Built-in receiver with Ability for 250 issuers.

Separate terminals and Programming via Display to facilitate the stitching and diagnosis phases.

The maneuvering box is protected by a plastic housing to protect it from insects.

Technical characteristics - CAME 801ms-0230

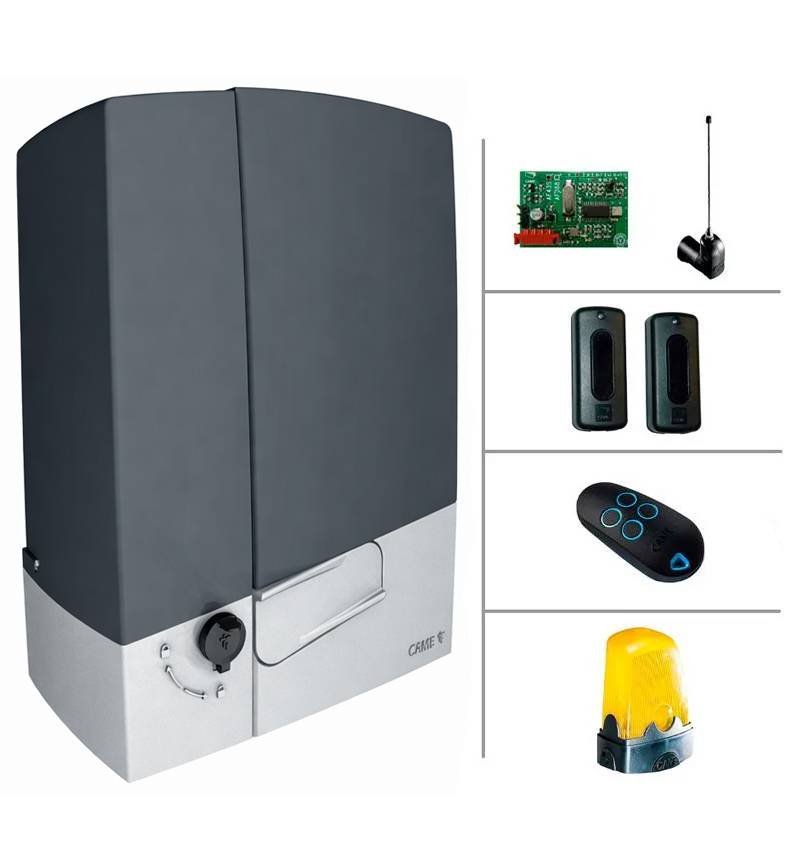

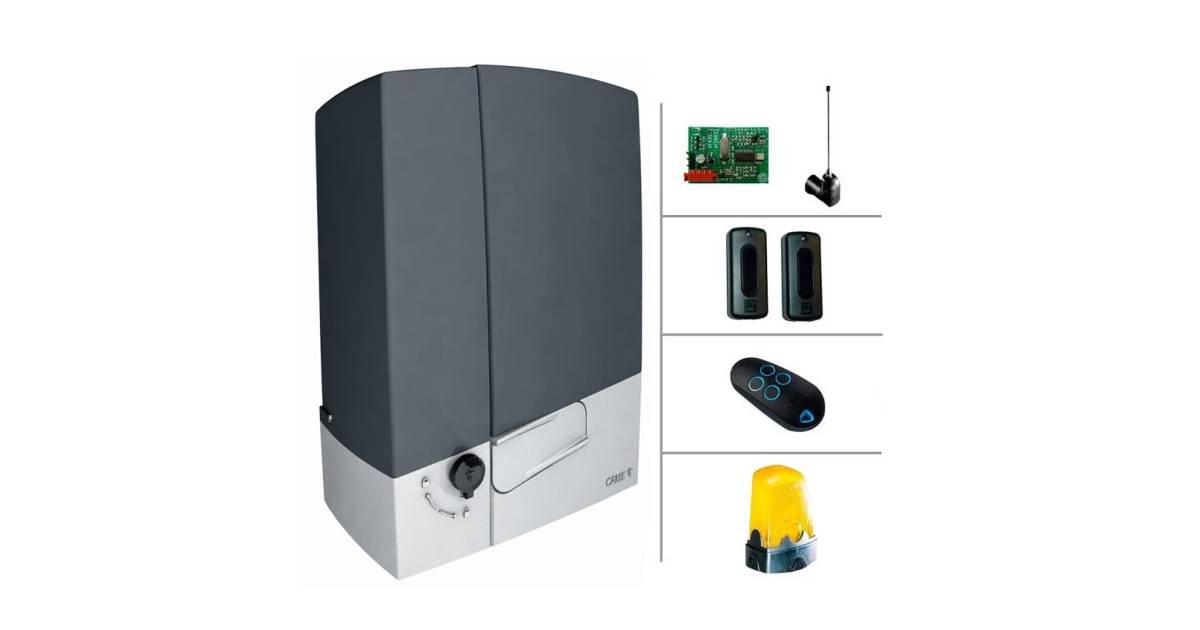

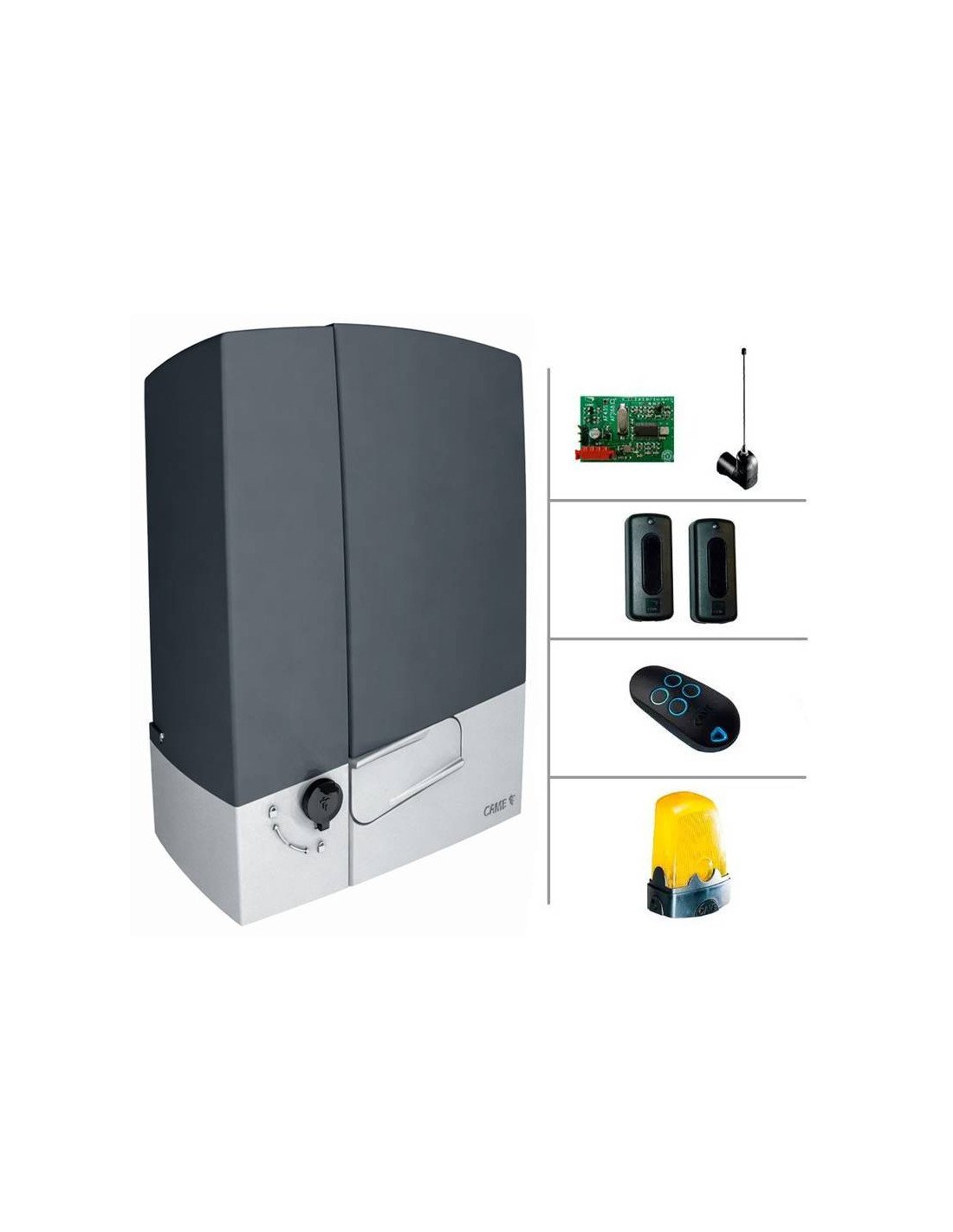

Kit content

• 1x 801ms-0230: 24V electromechanical motor up to 1000 kg with mechanical career finishes.
• 1x 806ts-0270: Top44RRB Emitter Rollingcode 433 MHz.
• 1x 001af43s: Plug-in radio frequency card 433.92 MHz.
• 1x 001dir10: Couple of synchronized photocells 12-24V up to 10 meters.
• 1x 001top-a433n: Antenna tuned to 433 MHz.

Measures

Documentation

Manual CAME Bxv
