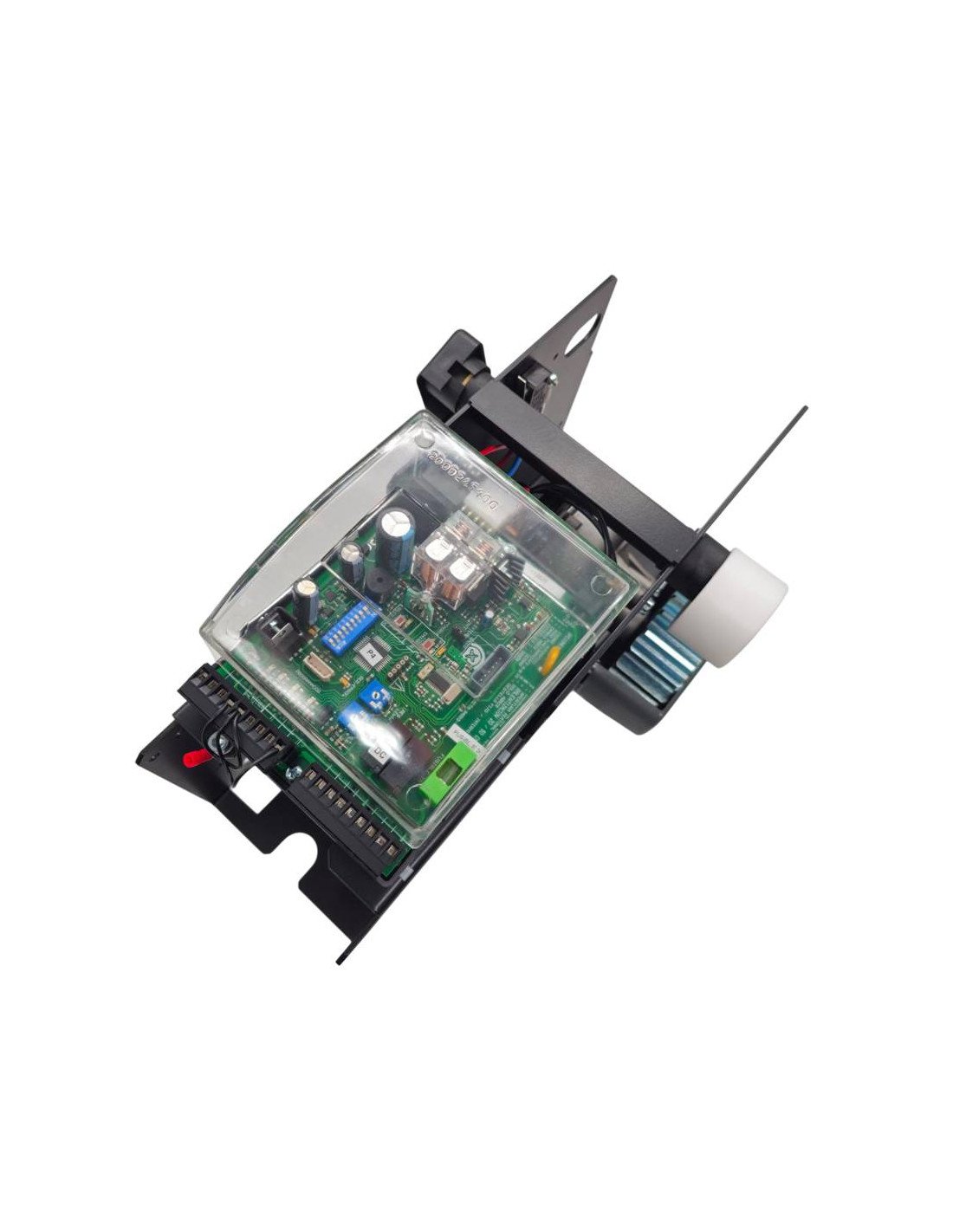

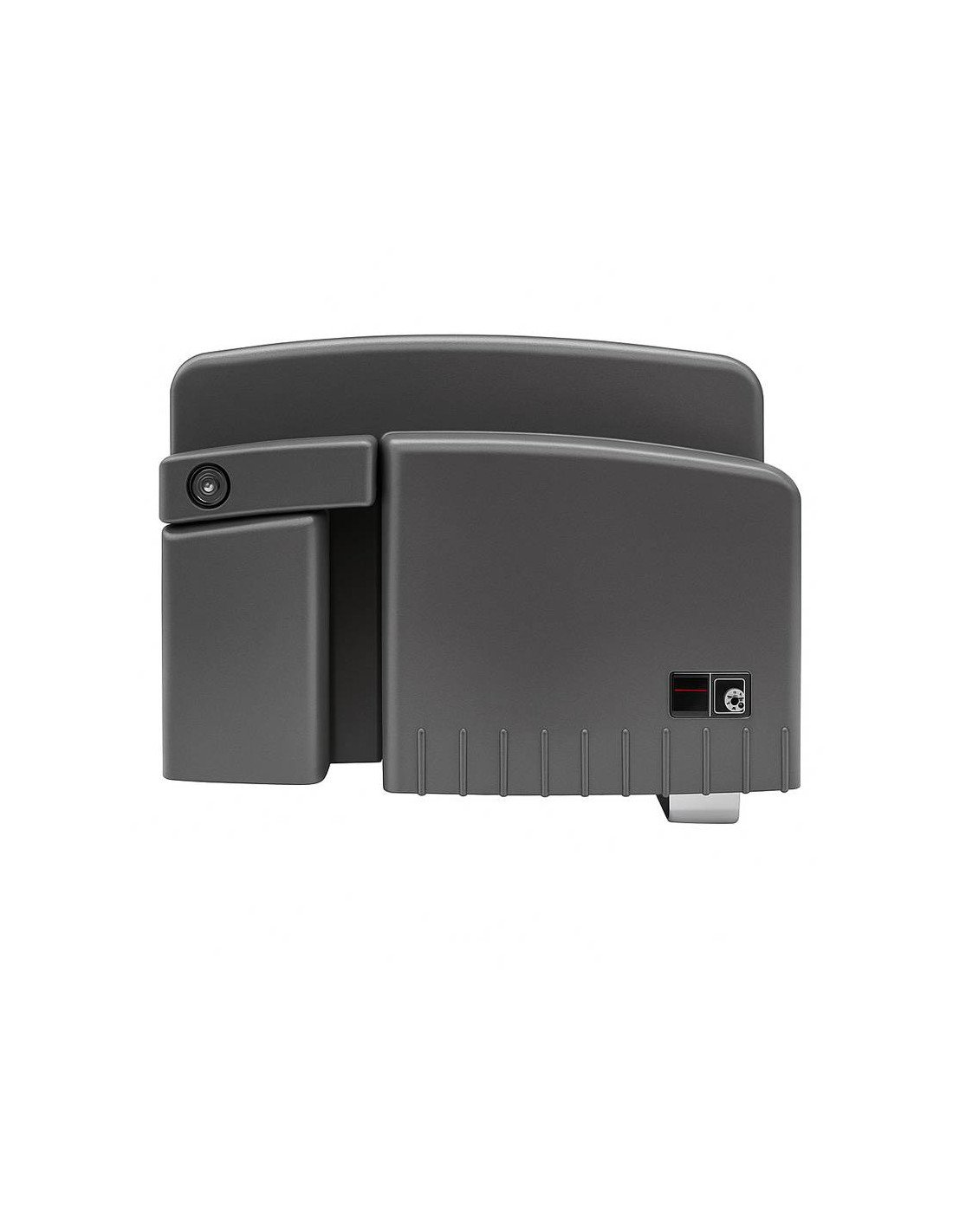

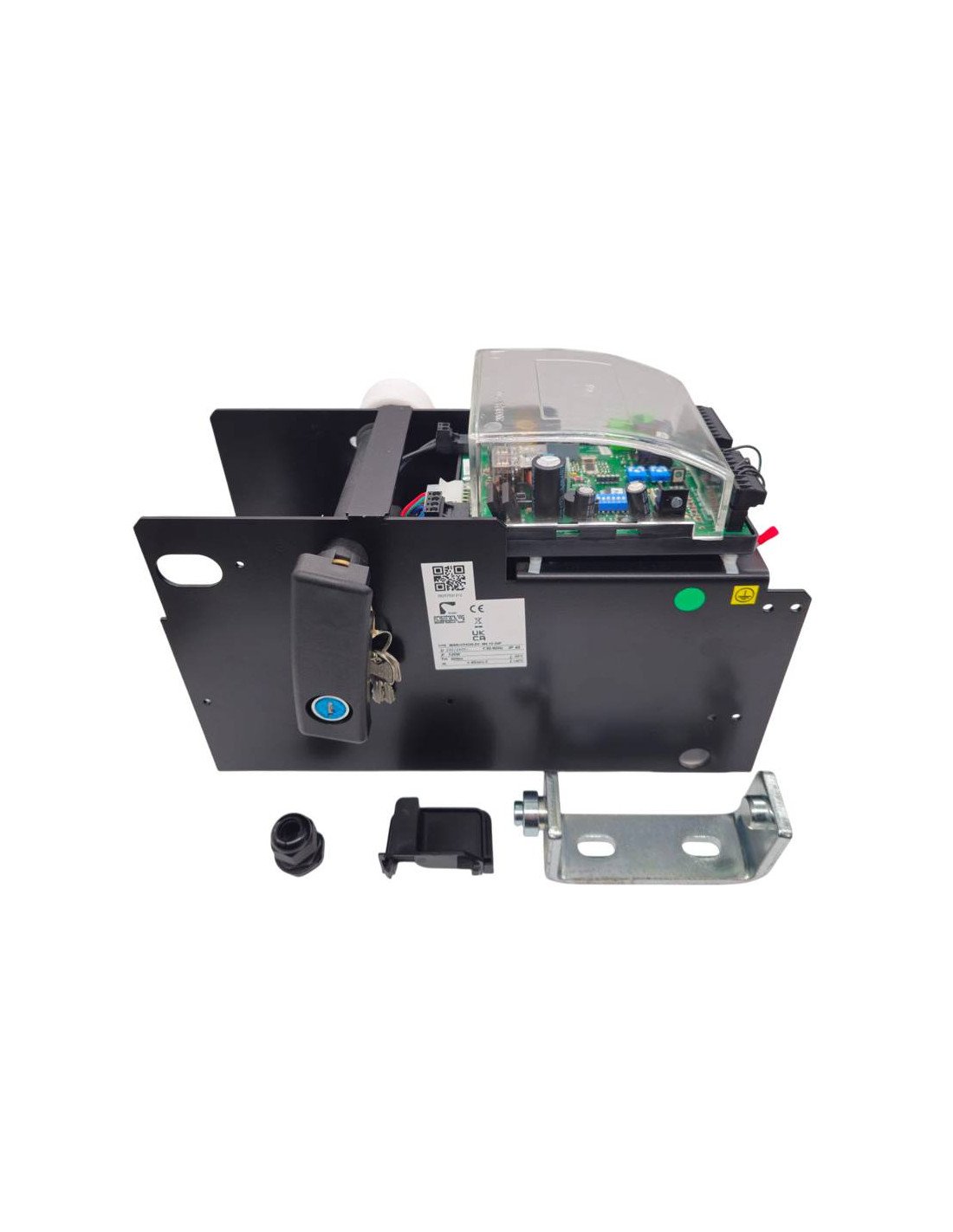

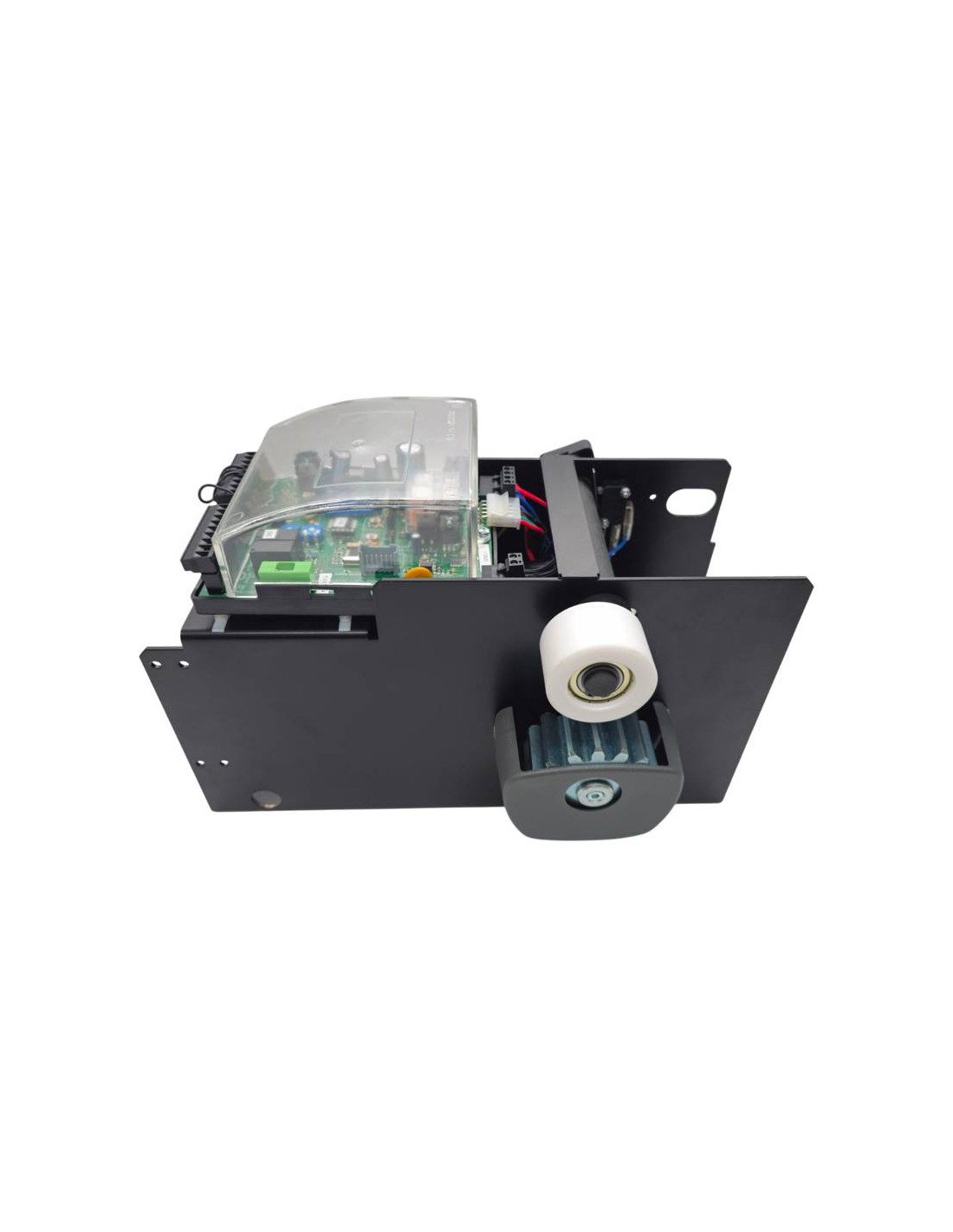

Engine Pujol Marathon DC at 24V with M4 pin for sliding doors up to 700 kg for residential, community or industrial doors.

24v model with electronic equipment and integrated receiver for doors weighing up to 700 kg that performs a maneuver with soft start and stop both at opening and closing, easy unlocking for manual operation and tilting support. Optional emergency battery kit of 35 cycle range.

CHARACTERISTICS

• Food: 230 V +-10%
• Engine: 24V DC
• Maximum power absorbed: 120 W
• Maximum towing force: 22 kg
• Starting torque: 50 Nm
• Intensity: 2,6 Am
• Exit axle speedIt shall not exceed:
• Gate speed: 9 m/min
• Exit pinon module M4-16
• Auxiliary output: 24 V. current 150 mA
• Input for resistance band8.2 Kohm
• Protective fuse: 2A
• Operating temperature10o C. + 40oC
• Protection: IP 40

MANUAL

Instruction manual Pujol Marathon DC 700
