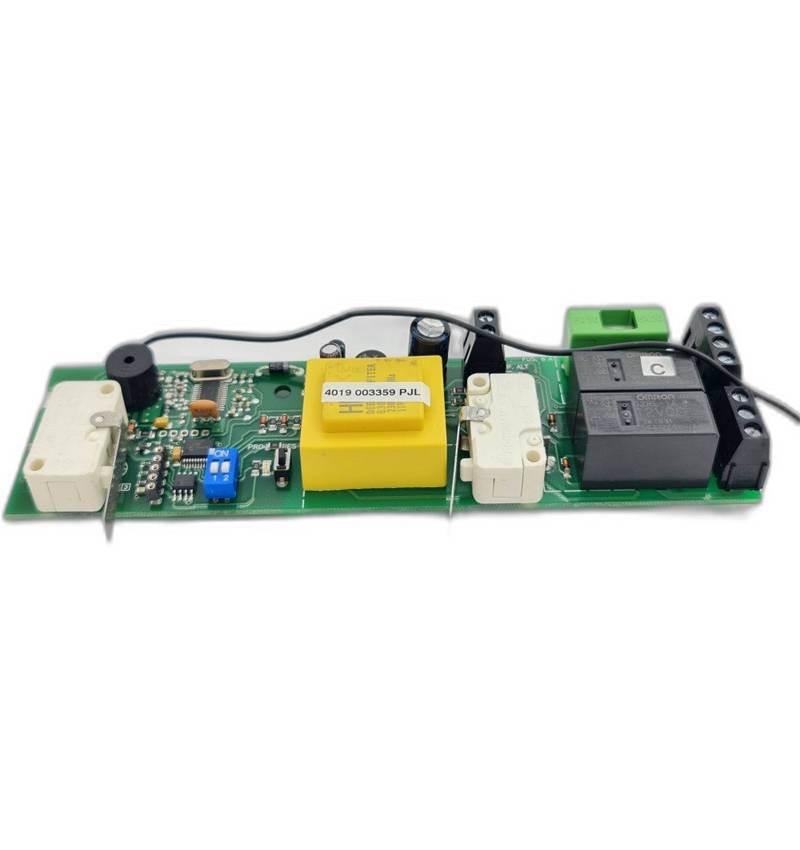

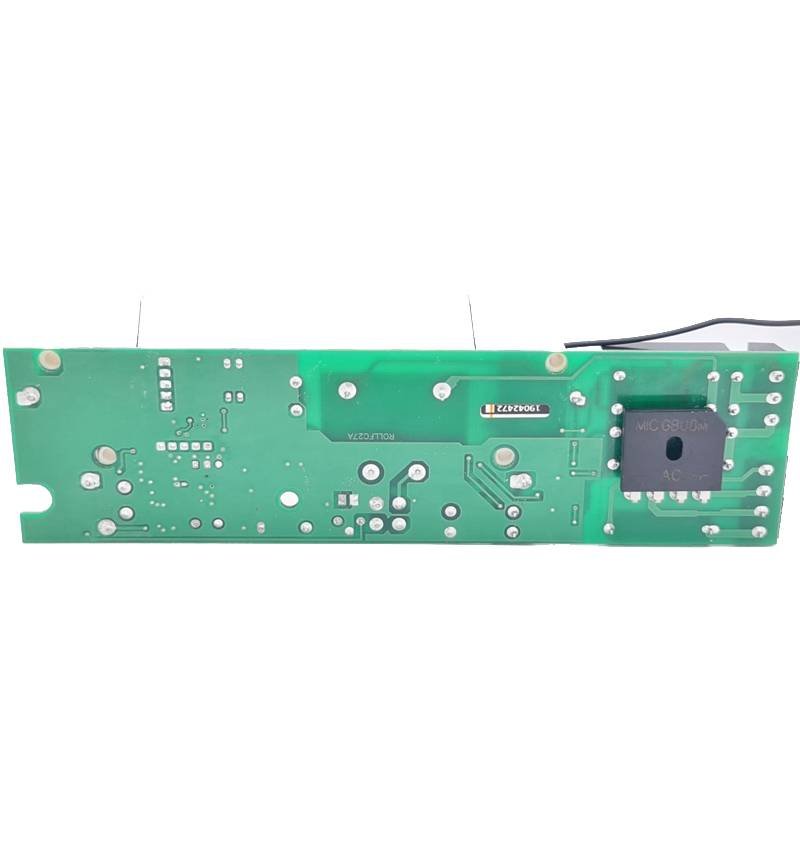

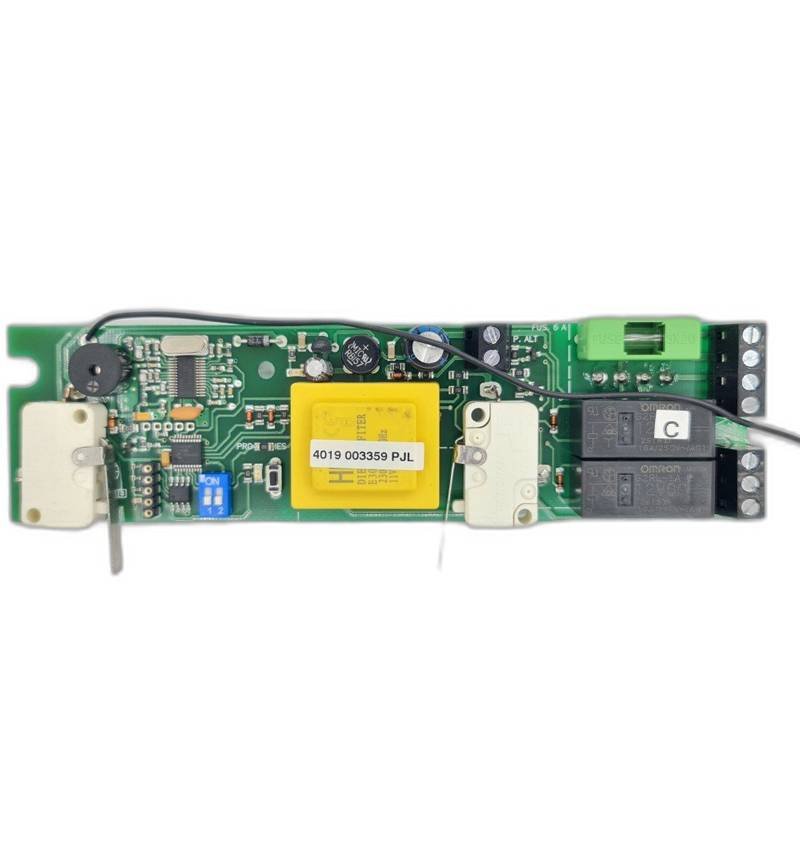

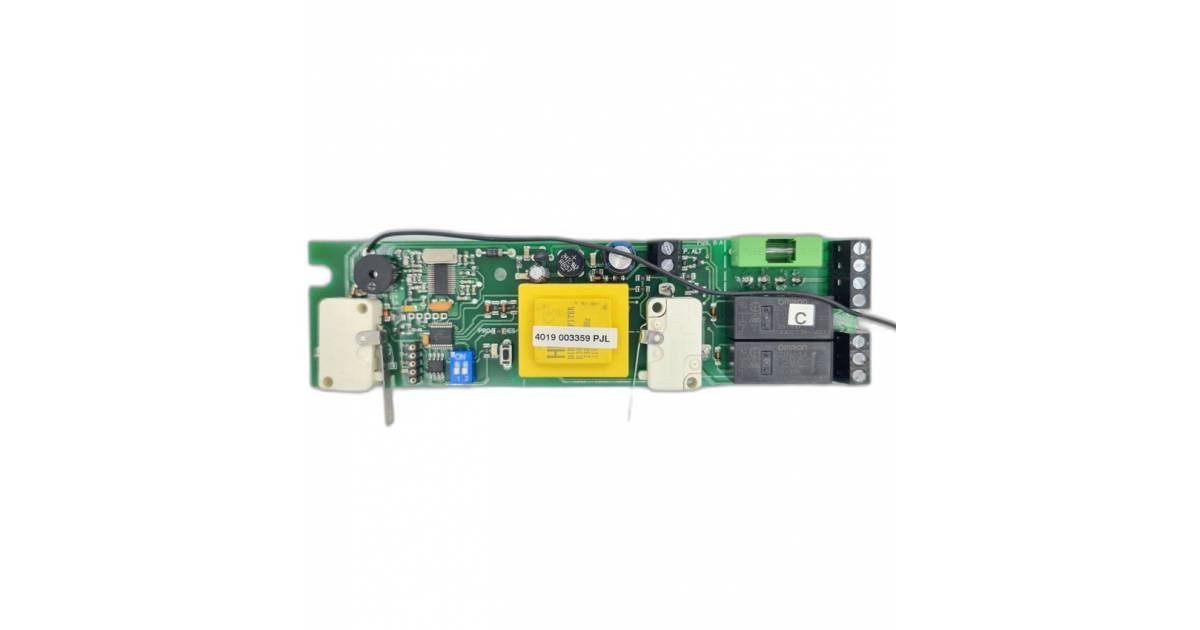

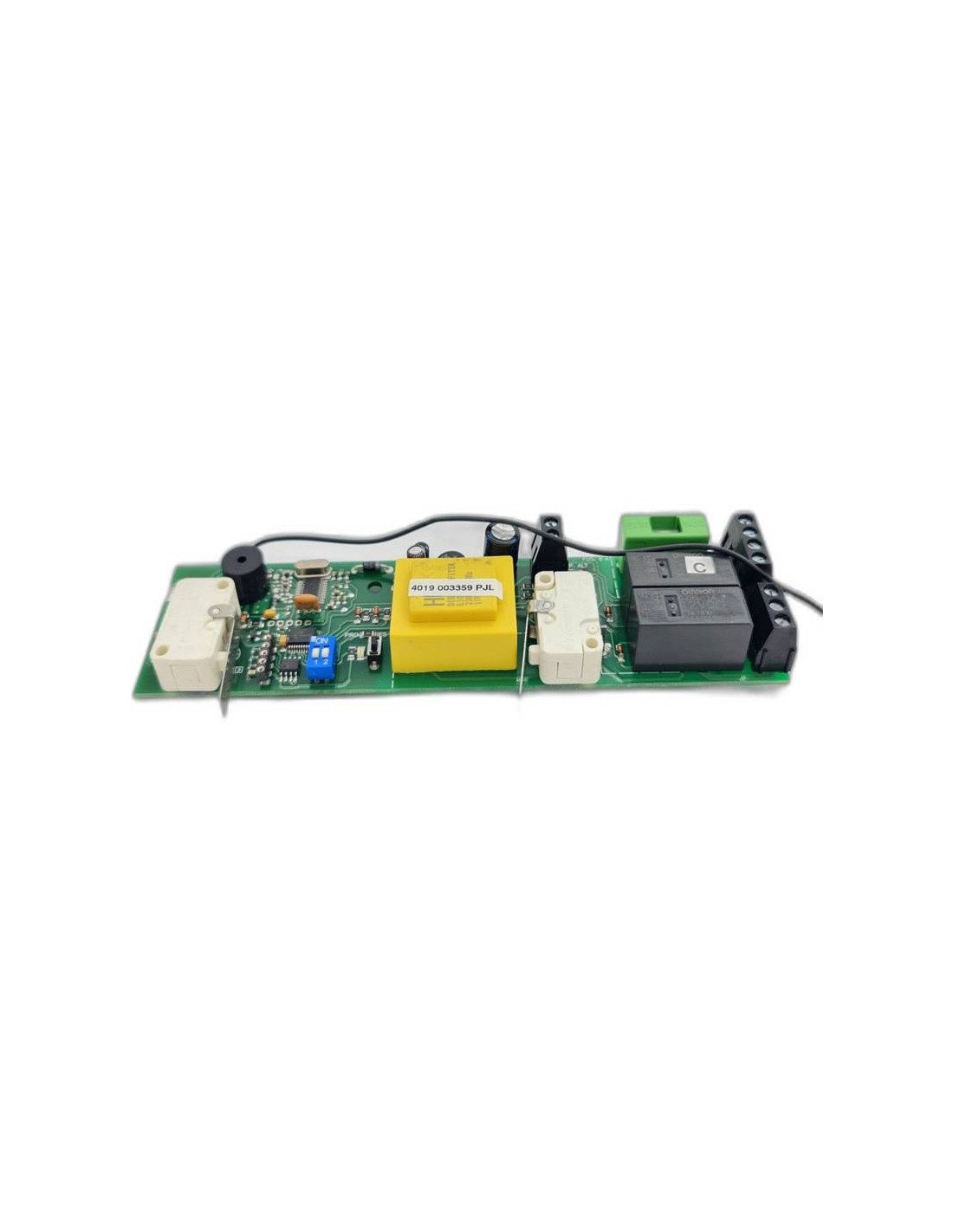

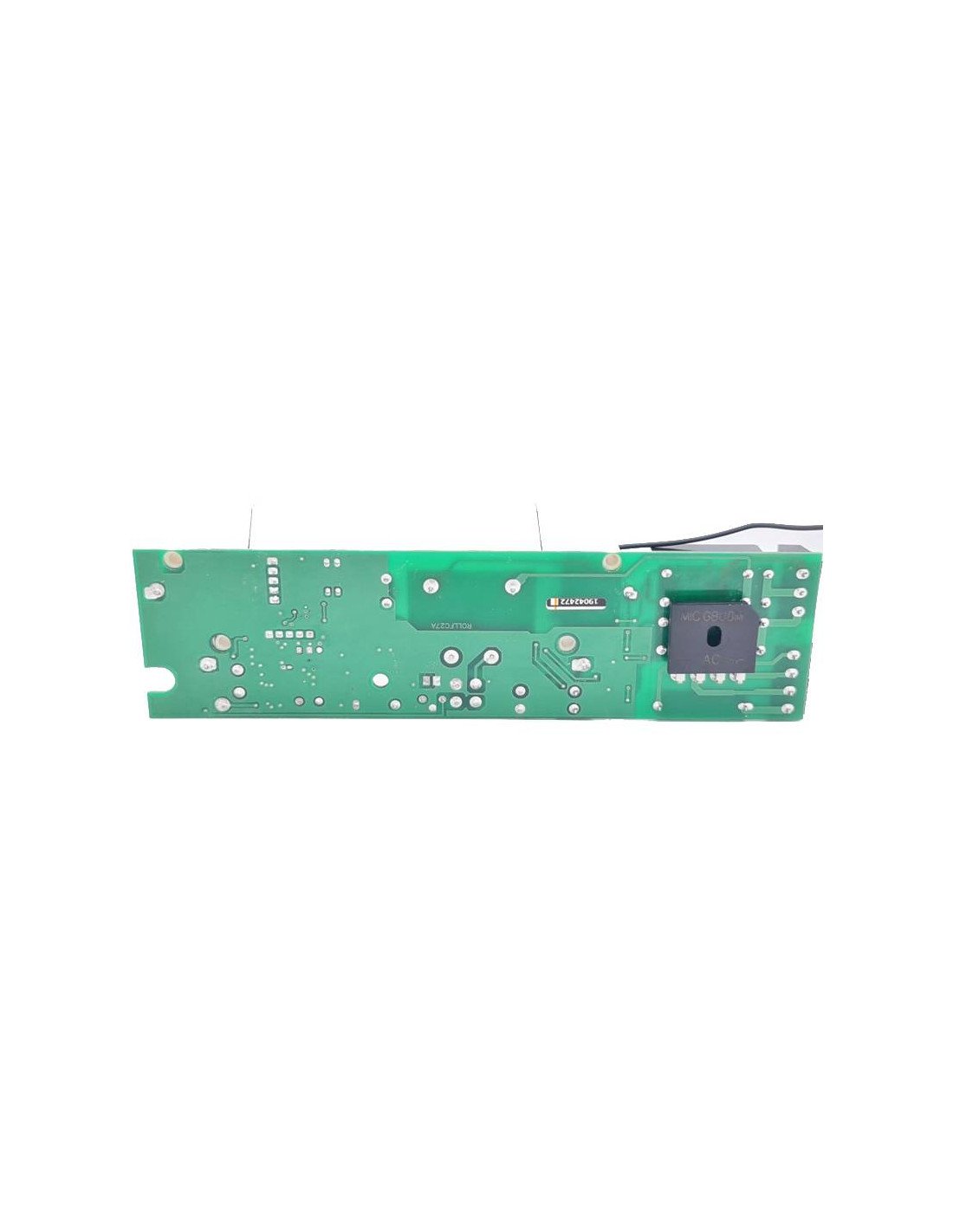

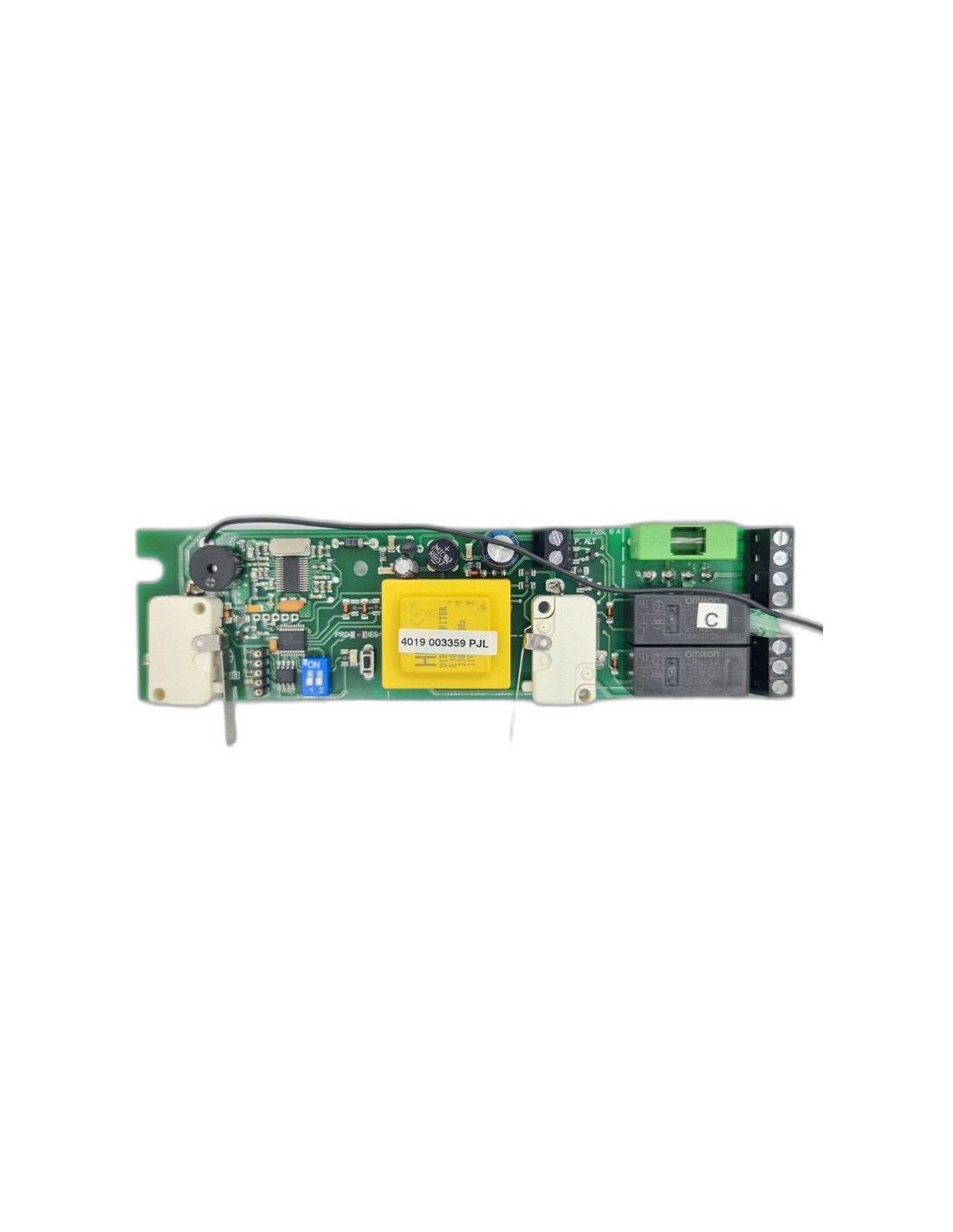

Single-phase control panel for roll-up doors incorporated with the Winner motor.

It incorporates the radio part compatible with dynamic code emitters (VARIO).

Manoeuvring inputs protected by zener diodes. Power input and motor protection by means of 6A fuse. LED network indicator.

OPERATION

The automation manoeuvres are carried out by means of the Alternative button "P.ALT" or by means of a dynamic code emitter (VARIO).

There is NO automatic closing in this automatism.

The manoeuvre ends when the corresponding HR is activated (opening or closing). There is a safety time of 2 minutes, if after this time the limit switch has not been activated, the engine stops.

CHARACTERISTICS

• Power supply: 220V ac 10%
• Engine Power: 0.5 HP
• Maximum Operating Time: 2 minutes
• Code Combinations: 72,000 Trillion Codes
• Number of Codes: 31 codes
• Code Programming: Self-Learning
• Function Selection: Code Function Memorized
• Frequency: 433.92 Mhz
• Approvals: Conforms to ETS 300-220/ETS 300-683
• Sensitivity: Better than -100dBm
• Range: Typical 50 meters
• Antenna: Built-in
• Working temperature: 0 to 70ºC

MANUAL

Instruction manual PUJOL WINNER RECEIVER CIRCUIT
