Electromechanical engine Clemsa AA 400 for folding doors up to 4 metres in length per sheet, of semi-intensive residential use (model 230V).

NotesThe following: even though this engine has a lock the use of an electric lock is recommended.

Electromechanical drive with locking, with electric running ends, for blades up to 4 m. I use S3 30%. 30 cycles an hour. Power 300 W. Intake 1,3 A. Thermal protection 140 oC. 400 mm race. Stem output speed of 1,6 cm/sec. Operating temperature from -20oC to 55oC. It weighs 7.8 kg. 230 Vac. Exposed components in stainless steel. Protected unlock with lock allowing movement of blade without power.

■ Electromechanical drive with articulated arm for semi-intensive use in folding doors up to 4 m wide that transmit motion to the blade by means of an endless screw.

■ Quick and easy installation thanks to a floating aluminium fork which compensates for possible structural defects in the cantilever.

■ Maximum anti-crush safety thanks to an electronic device to regulate engine shutdown.

■ It is equipped with electric running ends for opening and closing.

■ Unlocking, fully locked, allows manual movement of the blade even without power supply.

■ All components exposed to atmospheric agents are made of stainless steel and the aluminium body is painted with double layer for increased durability and safety.

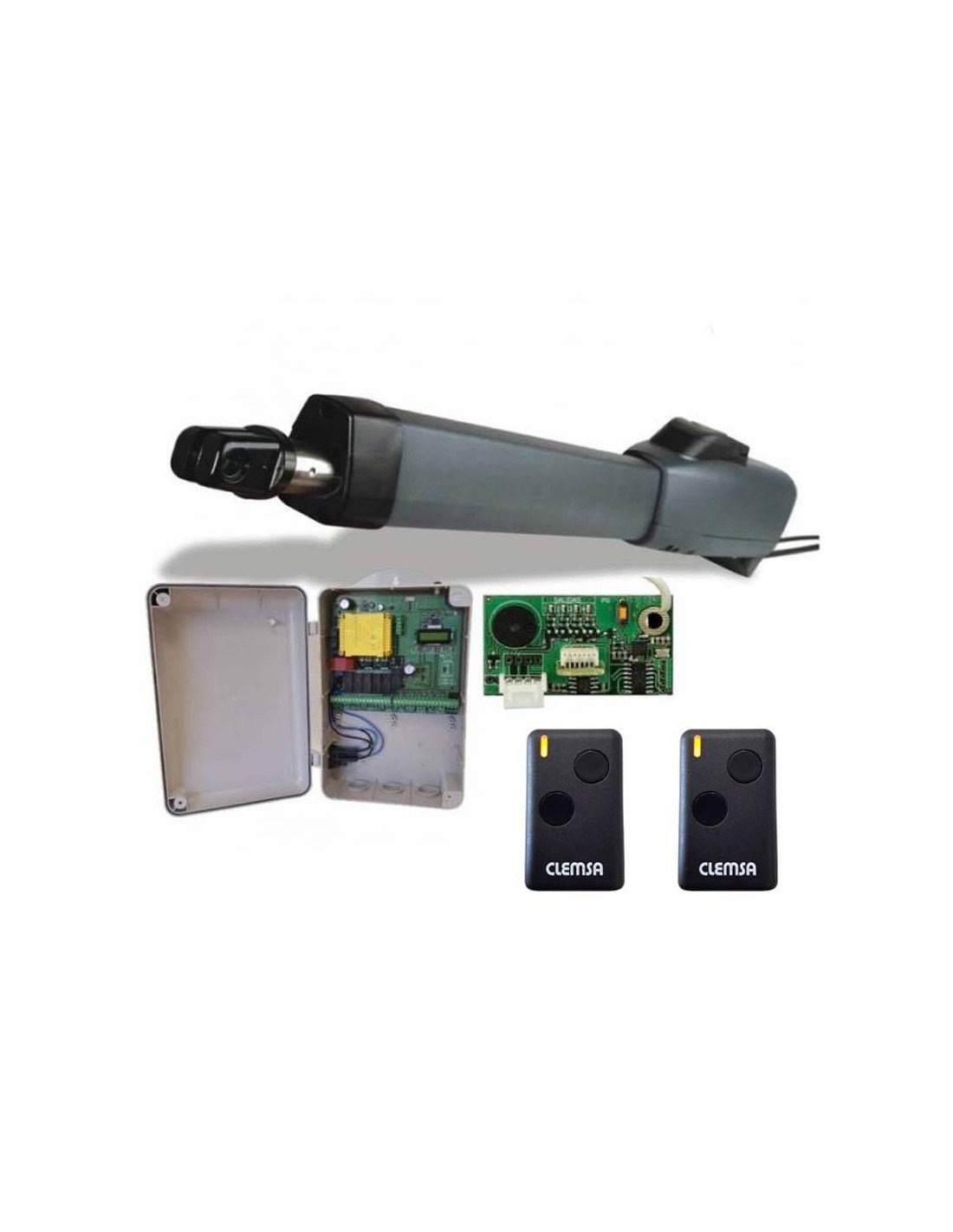

THE KIT CONTAINS:

• 1 unit AA400 B: Electromechanical drive shaft 400 mm with lock.
• 1 unit CLASS 16Table of manoeuvres at 230 V
• 1 unit OTHER: Receiver card for 400 users
• 2 unid N2SMutanCode 433.92 MHz is transmitting:
• Anchors for installation

MANUAL

Instruction manual Clemsa AA400
