Kit Electromechanical engines V2 24V NYK for residential lights up to 2 m per sheet, equipped with a mechanical opening cap.

CHARACTERISTICS

• Equipped with mechanical opening cap.

• Mechanical closing cap available as an accessory.

• Single right and left sheet version.

• Adjustable mounting brackets to speed up engine installation

TECHNICAL CHARACTERISTICS

• Maximum leaf length: 2 metres
• Maximum leaf weight: 250 kg
• Power supply: 24 V
• Absorption in vacuum: 0,4 A
• Absorption with load: 6 A
• Maximum power: 80 W
• Opening time 0 ÷ 90°: 16 sec
• Maximum towing distance: 320 mm
• In the case of vehicles of categories M1 and N2 with a maximum mass exceeding 2000 kg:
• Maximum thrust: 1500 N
• Operating temperature is -20 ÷ +55 oC
• Protection degree: IP44
• Working cycle: 50%
• Weight: 6 kg

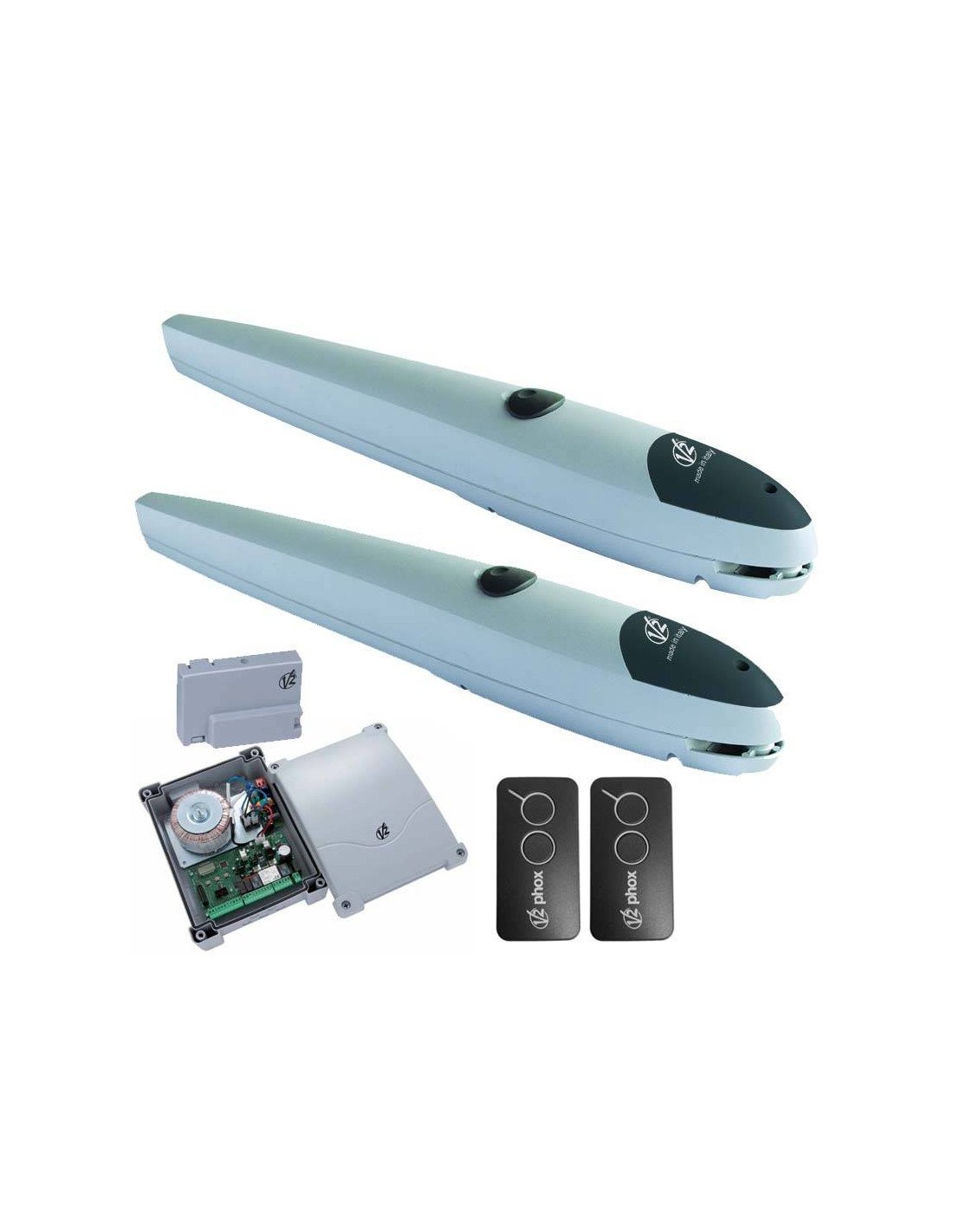

THE KIT CONTAINS:

• 2 24 V NYK electromechanical motors
• City2 game board
• MR2 receiver frequency 433 MHz
• 2 controls PHOX-2 Rollingcode 433 MHz

MEASURES

MANUAL

Instruction manual V2 OTHER
