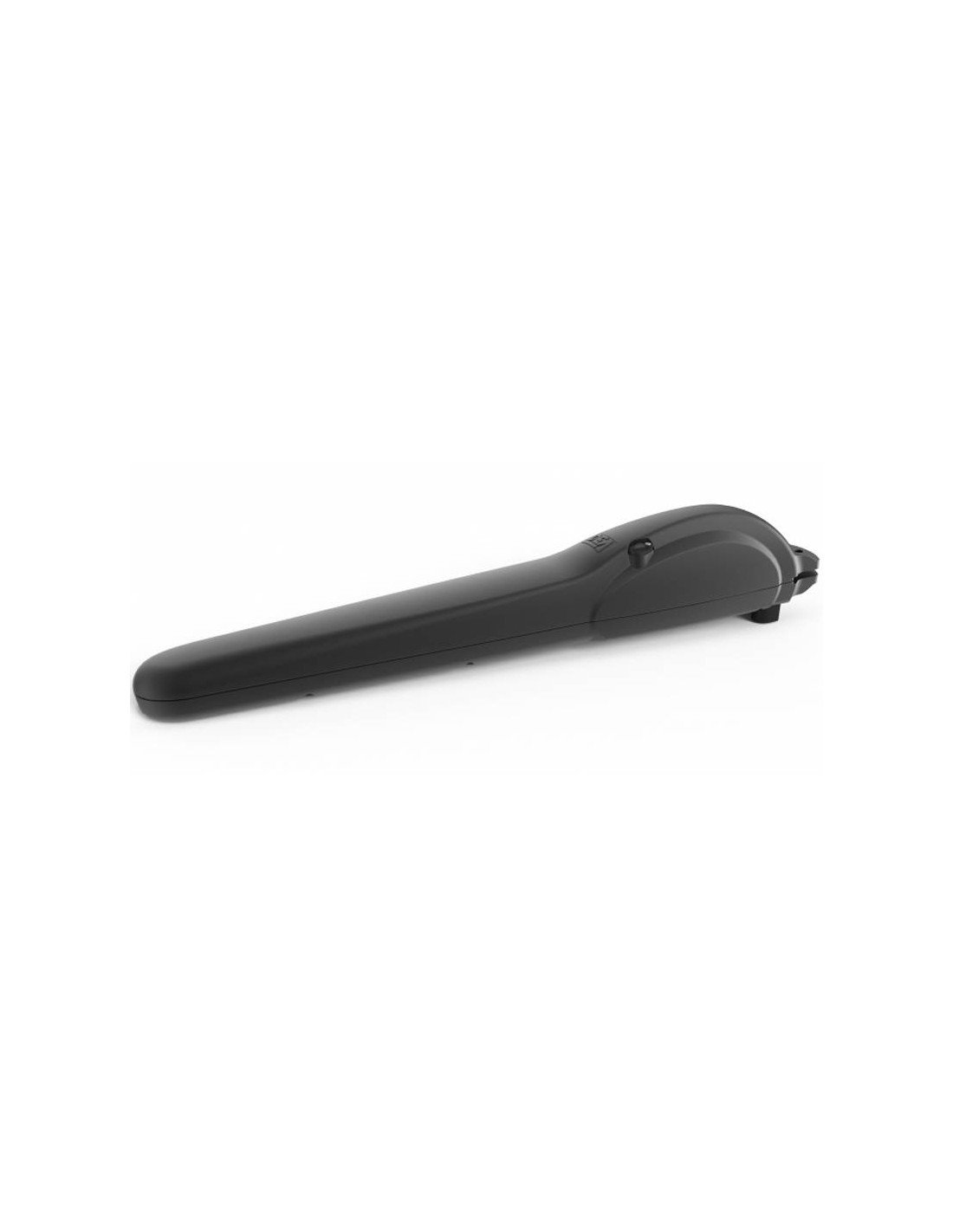

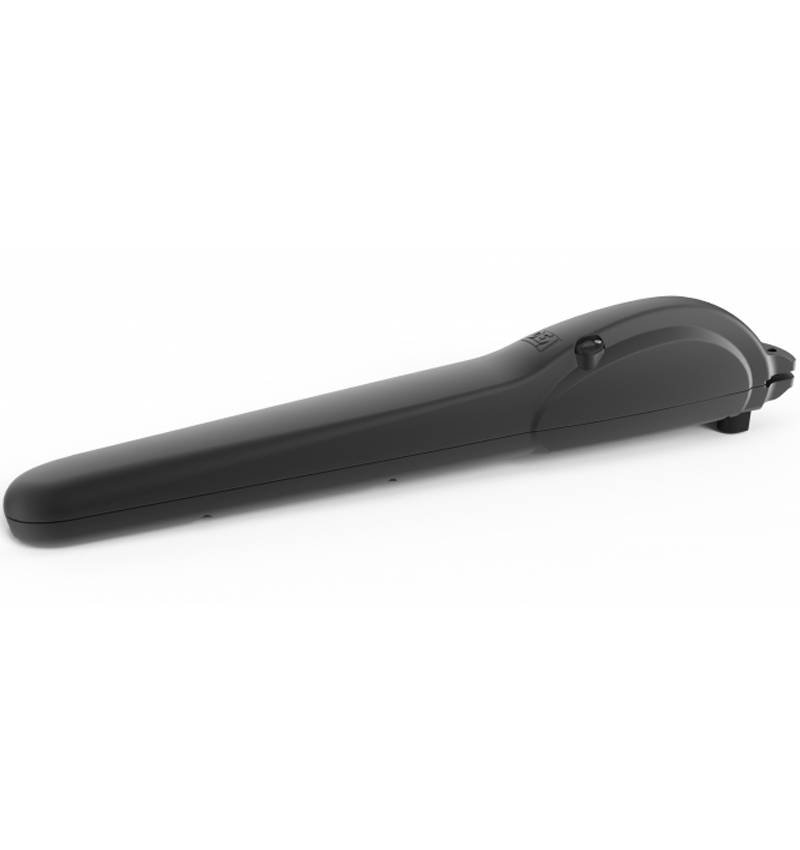

The MAC is an electromechanical engine for automation of beating doors for residential use, available in versions of 230V and 24V.
The range is formed by three different models, allowing to select leaf engines up to 3 meters or, in the case of the MAC / 24 / E version, for leaves up 2 meters.

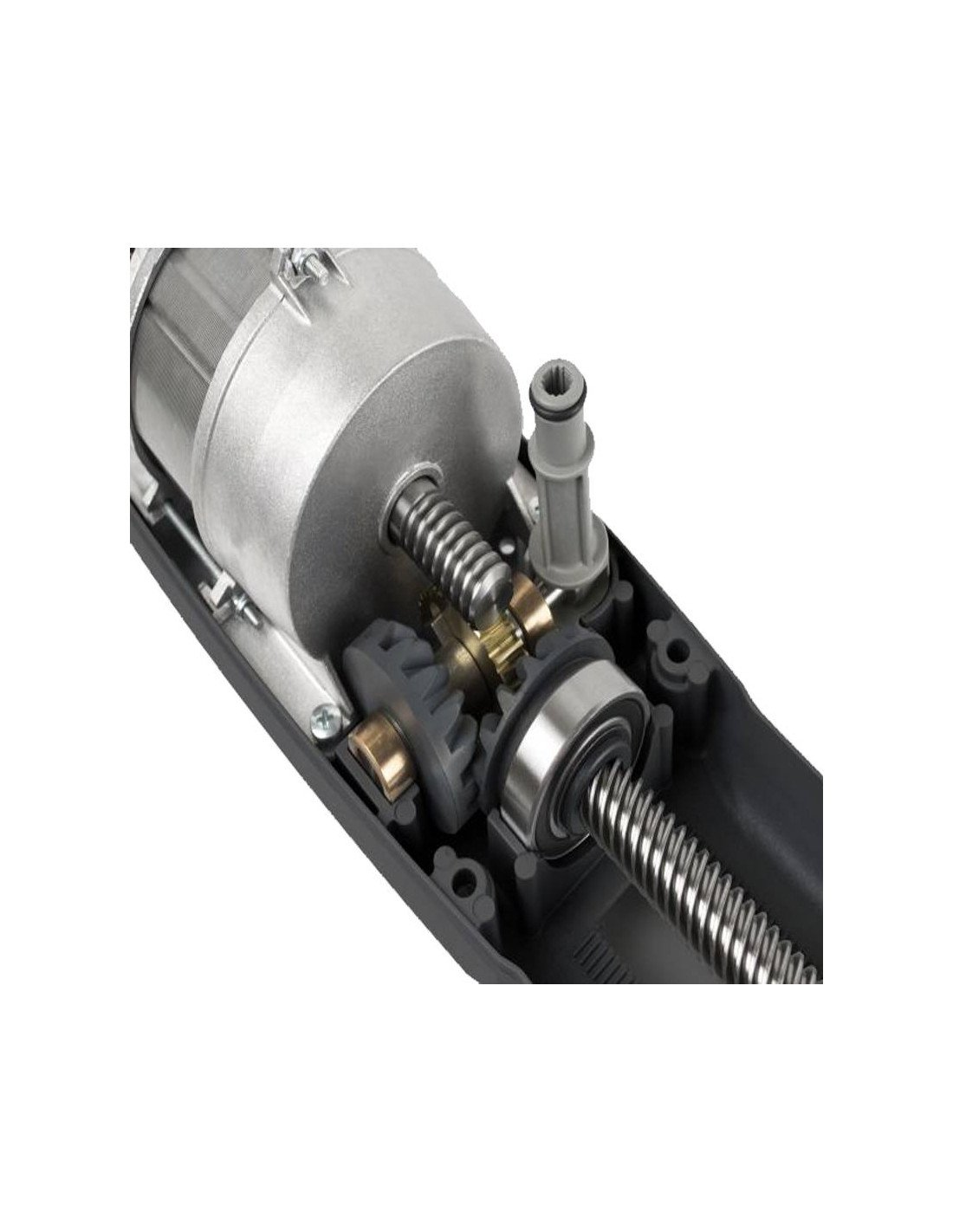

Its monoblock construction and its internal mechanics with steel and bronze gears provide a robust and reliable solution for residential automation.
This product corresponds to 1 motor unit of Mac.
Use the drop-down product options to select the MAC version of 230V, MAC / 24 of 24V or MAC / 24 / E of 24V.
✓ Opening the door up to 110 °.
✓ Robust construction gearbox thanks to its monoblock body.

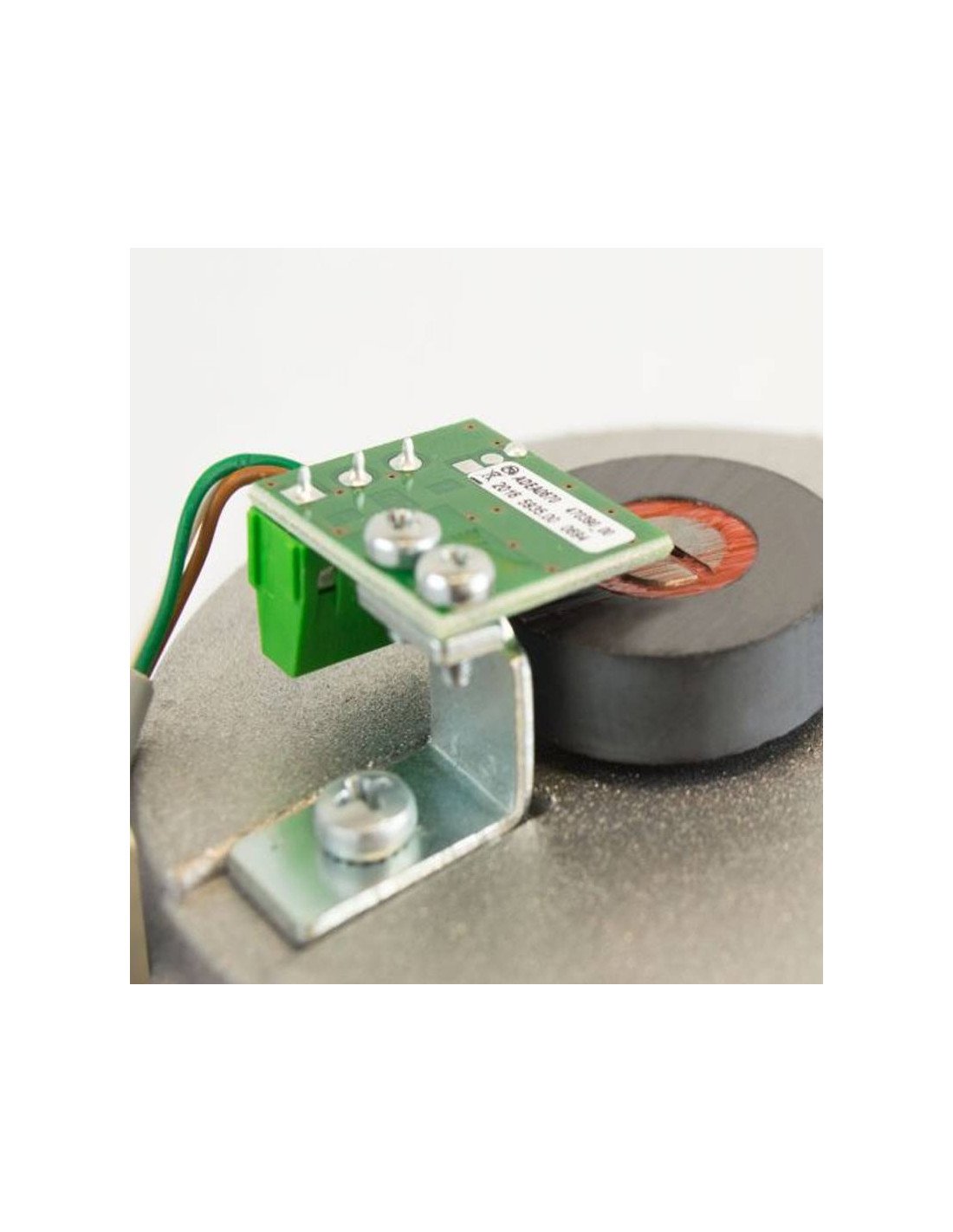

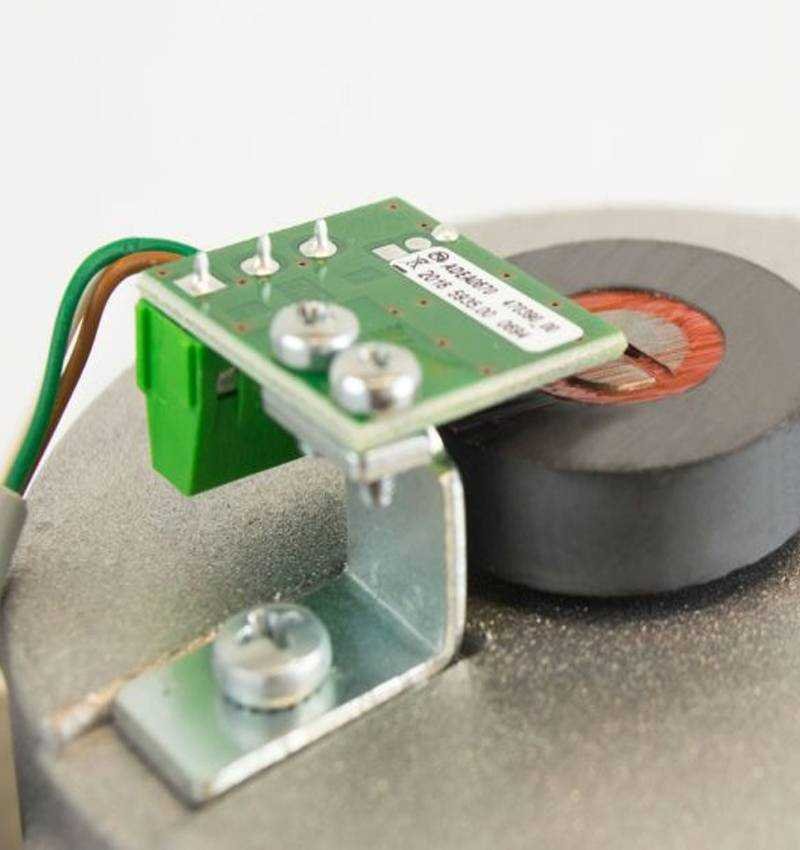

✓ Possibility of installing optional mechanical race enders, allowing to avoid the installation of mechanical stops on the ground.
✓ The fixing plates supplied as standard are prepared for welding installation.
✓ Possibility of using optional adjustable or articulated fixing plates for installations that require greater versatility.

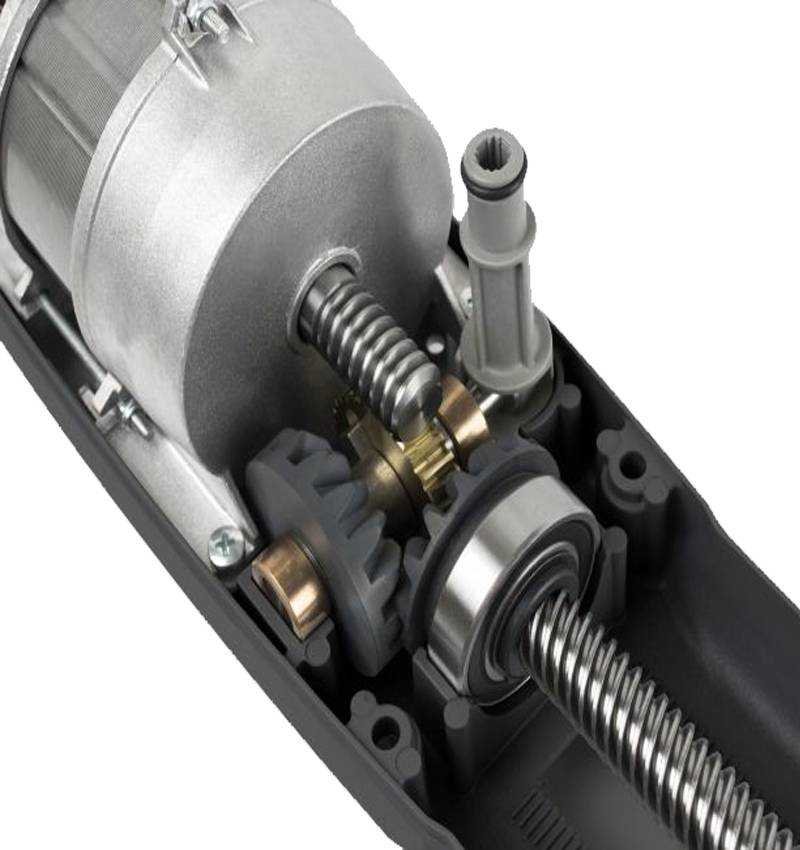

✓ Precision mechanics through steel and bronze gears, designed to provide reliability and durability.
✓ Compatible with the range of Range maneuvers OF @ NET and with the system NETLINK.
✓ Compatible with NETCOM using an installation equipped with the corresponding DEA devices.
| Model | Reference | Feed | Max. sheet |
|---|---|---|---|
| MAC | 625010 | 230V | Up to 3 m |
| MAC / 24 | 625040 | 24V | Up to 3 m |
| MAC / 24 / AND | 625043 | 24V | Up to 2 m |
MAC 230V: traditional version of 230V for leaves up to 3 meters. Offers the greatest maximum force of the range, with up 1650 N.
MAC / 24: 24v version for leaves up to 3 meters. It allows a cycle of superior use and a speed greater than the 230V version.
MAC / 24 / AND: 24v version destined to leaves up to 2 meters. It is the fastest model of the range, although it has a lower maximum force.
| Features | MAC | MAC / 24 | MAC / 24 / AND |
|---|---|---|---|
| Motor feed | 230V ~ ± 10% (50/60 Hz) |
24V DC | 24V DC |
| Maximum absorbed power | 300 W | 60 W | 50 W |
| Maximum force | 1650 N | 1000 N | 500 N |
| Maximum speed | 16 mm / s | 20.2 mm / s | 21.5 mm / s |
| Opening time at 90 ° * | 20.9 s | 16.5 s | 15.5 s |
| Operating cycle | 18 maneuvers / pm |
40 maneuvers / pm |
10 maneuvers / pm |
| Max. of maneuvering in 24 h | 90 | 90 | 45 |
| Built-in condenser | 8 μF | — | — |
| Operating temperature | -20 ° C +50 ° C |
-20 ° C +50 ° C |
-20 ° C +50 ° C |
| Thermal protection of the engine | 150 ° C | — | — |
| Packing weight | 8.8 kg | 8.8 kg | 8.8 kg |
| Sound level | <70 dBA | <70 dBA | <70 dBA |
| Degree | IPX4 | IPX4 | IPX4 |
* Calculated time considering the maximum rout of the rod without decelerations.
The maximum length of the sheet is not the only parameter that should be checked. Before selecting and installing the motor it is necessary to verify the geometric installation dimensions indicated by DEA to confirm that the tour and opening angle are compatible with the door.
■ 1 × mac gerass in the selected version.

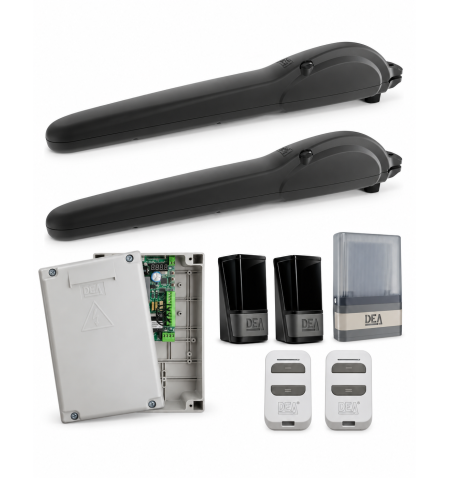

Important: this article corresponds to the individual engine. The maneuvering, controls, photocells, flashing lamp and other automation accessories are not included unless expressly indicated.
Mac technical sheet:
See Technical Data Dea Mac
Instruction Manual:
See user manual of Mac
