Manufacture from materials of any heading Erreka ARC 230V for articulated arms for swing doors up to 2,5 m with wide pillars. What. The arms are available in 450mm or 650mm.

CHARACTERISTICS

■ Practical unlocking system with key or safe with key.

■ Especially suitable for wide pillars.

■ Very quiet.

■ High degree of protection against water and dirt (IP44).

■ Suitable for all temperatures between -20/+60.

The articulated arm ARC motor is specially designed for residential swing doors of a maximum length of 2.5m per blade up to 300 kg weight.

It is a 230Vac motor with safety for obstacle detection and electronic soft stop.

The 230Vac AR220C articulated arm locked motor with a maximum force of 320Nm is recommended for residential doors up to 2.5m blade length. The use of an electric lock is mandatory when the length of the blades is greater than 1,80 m.

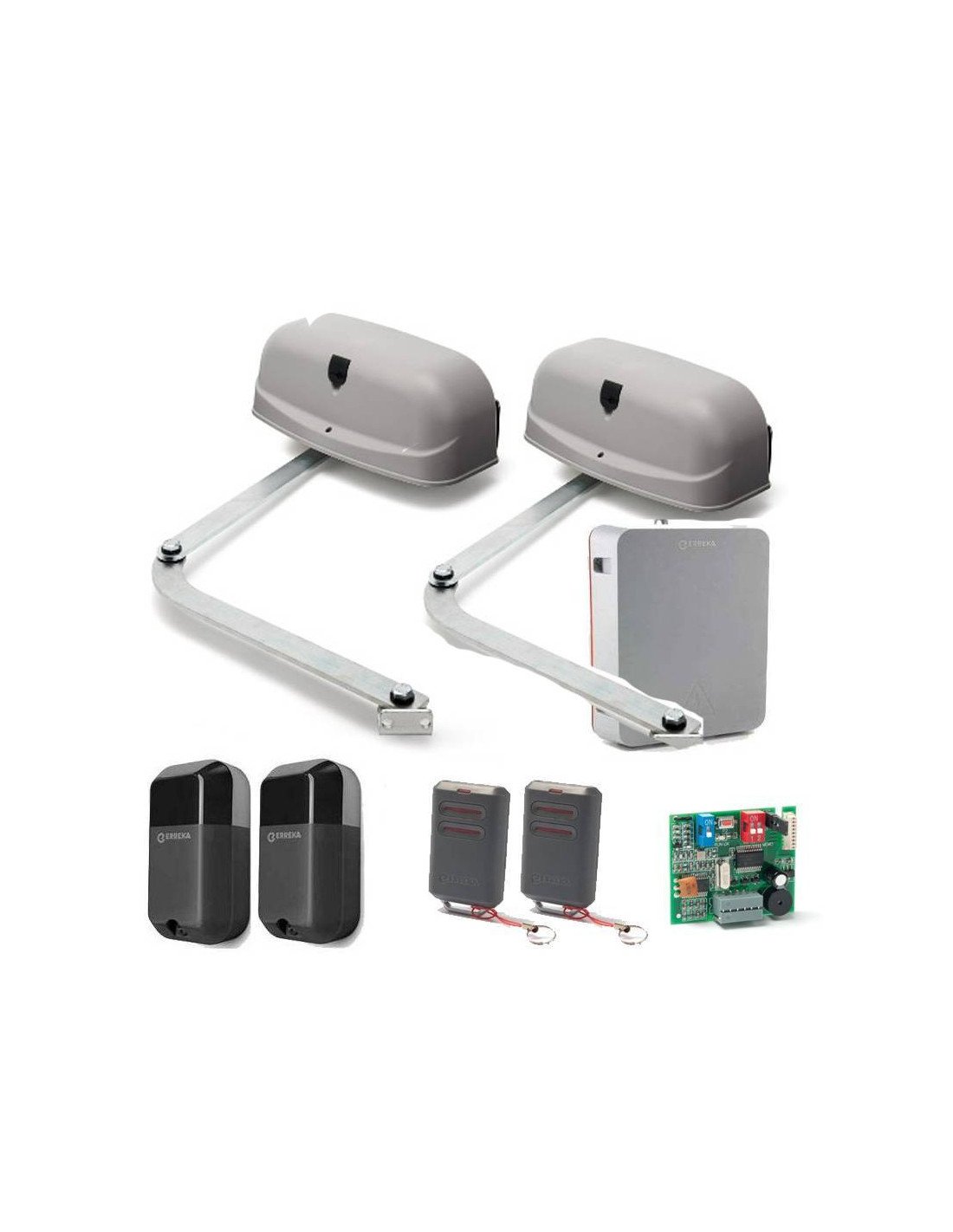

KIT CONTIENE

■ 2 units AR220C: Electromechanical arm motor, 230 Vac, locked

■ 2 units AAR01 or AAR02: 450 mm articulated arm or 650 mm articulated arm (choose from the drop-down)

■ 1 unit VIVO-M201: Analogue table for one or two 230Vac motors

■ 1 unit IRRE2: Plug-in receiver card 433 MHz

■ 2 units KU02: Kuma 3 channel 433 MHz

■ 1 unit FT06: Pair of emitter-receiver photocells

TECHNICAL CHARACTERISTICS

ACTION

MANUAL

Technical data sheet Erreka ARC

Instruction manual Erreka ARC
