Kit's OXYGEN SARGON 230V electromechanical motors for residential swing doors up to 4m in length per leaf.

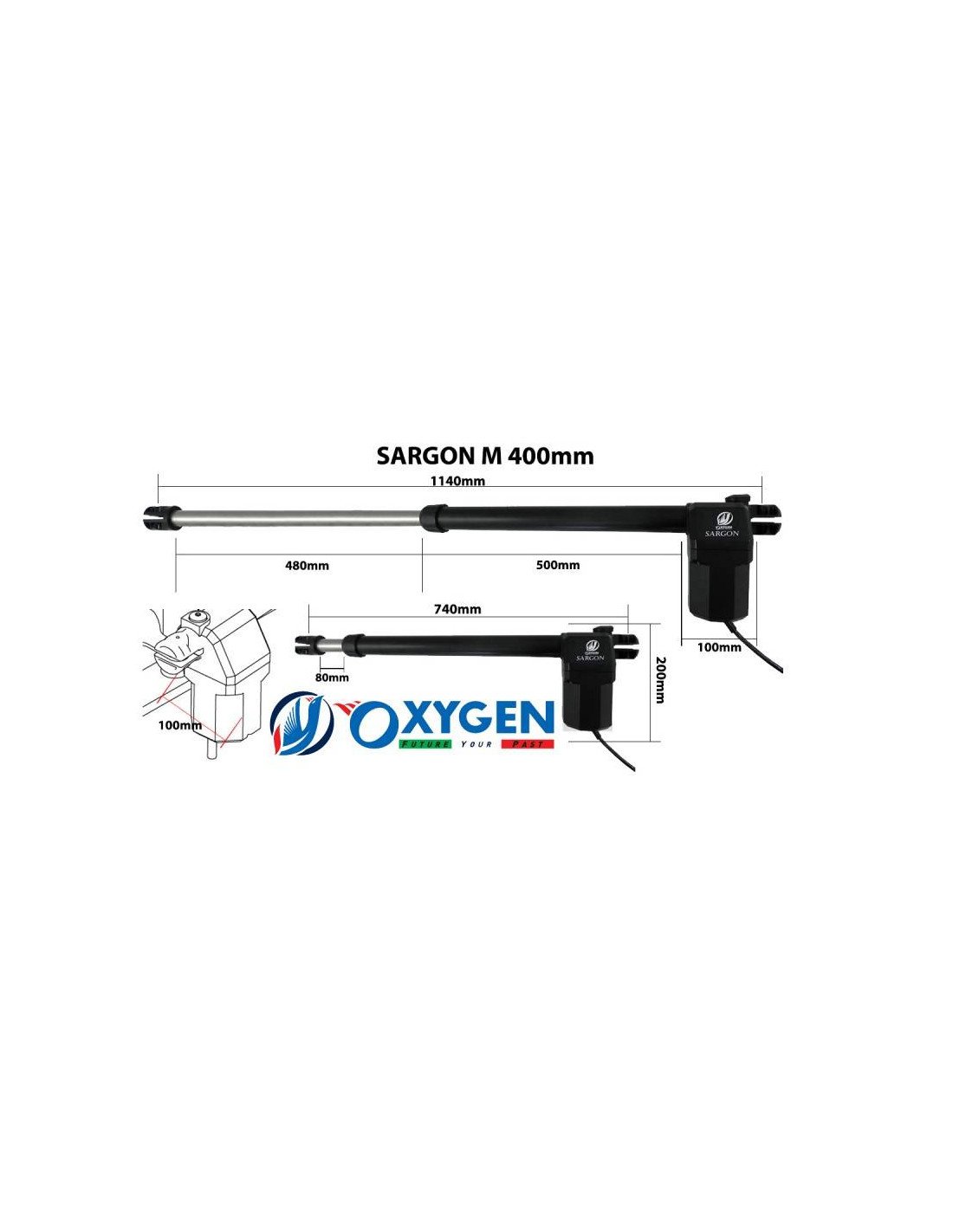

The SARGON series motors have a 400 mm stem and are designed to be used on lightweight doors up to 250 kg.

SARGON ENGINE FEATURES

• Power supply: 230Vac
• Shank travel: 400 m
• Maximum door length: 4 meters
• Maximum door weight: 250 kg
• Power: 330 W
• Power consumption: 1.8 A
• Maximum thrust: 1600 N
• Operating temperature: -25°C + 60°C
• Opening time: 22 sec
• Thermal protection: 150°C
• Duty cycles: 35%
• Lubrication: Grease

CHARACTERISTICS OF THE NEREA FRAME

• Automatic or step-by-step operation (open-close-stop)
• Programmable automatic shut-off
• Programmable pedestrian opening
• Safety photocell connection
• Force regulation and initial starting by trimmer
• Deceleration regulation
• Connection for flashing light

TECHNICAL CHARACTERISTICS OF THE NEREA FRAME

• Power supply : 230 Vac 50-60 Hz 1600 W max.
• Intermittent output : 230 Vac 500 W max.
• Motor output : 230 Vac 50/60 Hz. 500 W max.
• Electric lock output : 12 Vdc 15 W max.
• Photocell power supply : 24 Vac 3 W max.
• LV safety devices and controls : 24 Vdc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Op transmitters. : 12-18 Bit or Rolling Code
• Max TX Codes in Memory : 150 (CODE or CODE PEAT.)
• Card dimensions : 140 x 125 x 45 mm.
• Container dimensions : 190 x 140 x 70 mm.
• Degree of protection : IP 56

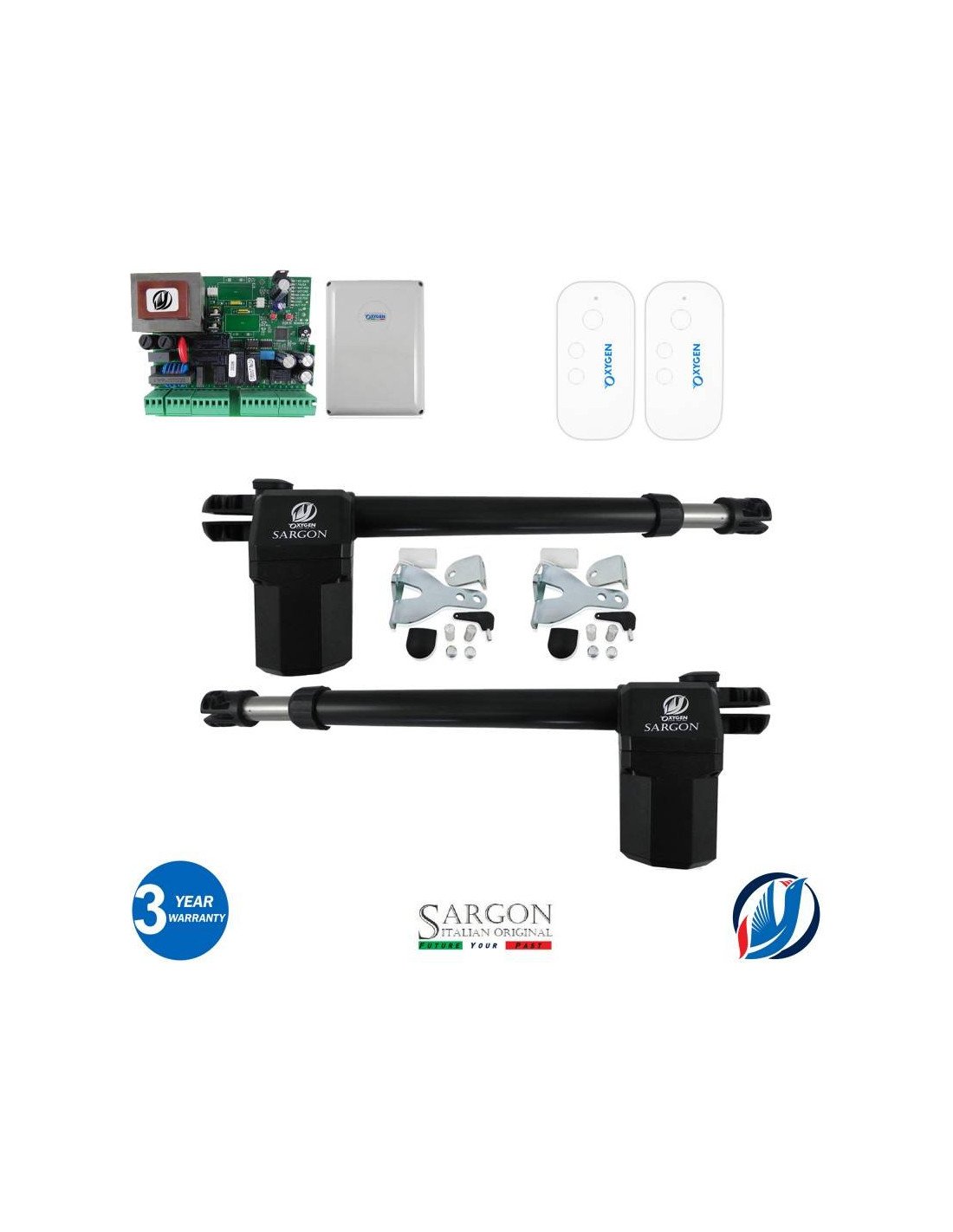

THE KIT CONTAINS

• 1x Sargon Left Engine
• 1x Sargon Right Engine
• 1x Nerea 230V Control Unit with Integrated Receiver
• 2x 433 MHz Controllers

MANUAL

SARGON Instruction Manual

NEREA Instruction Manual
