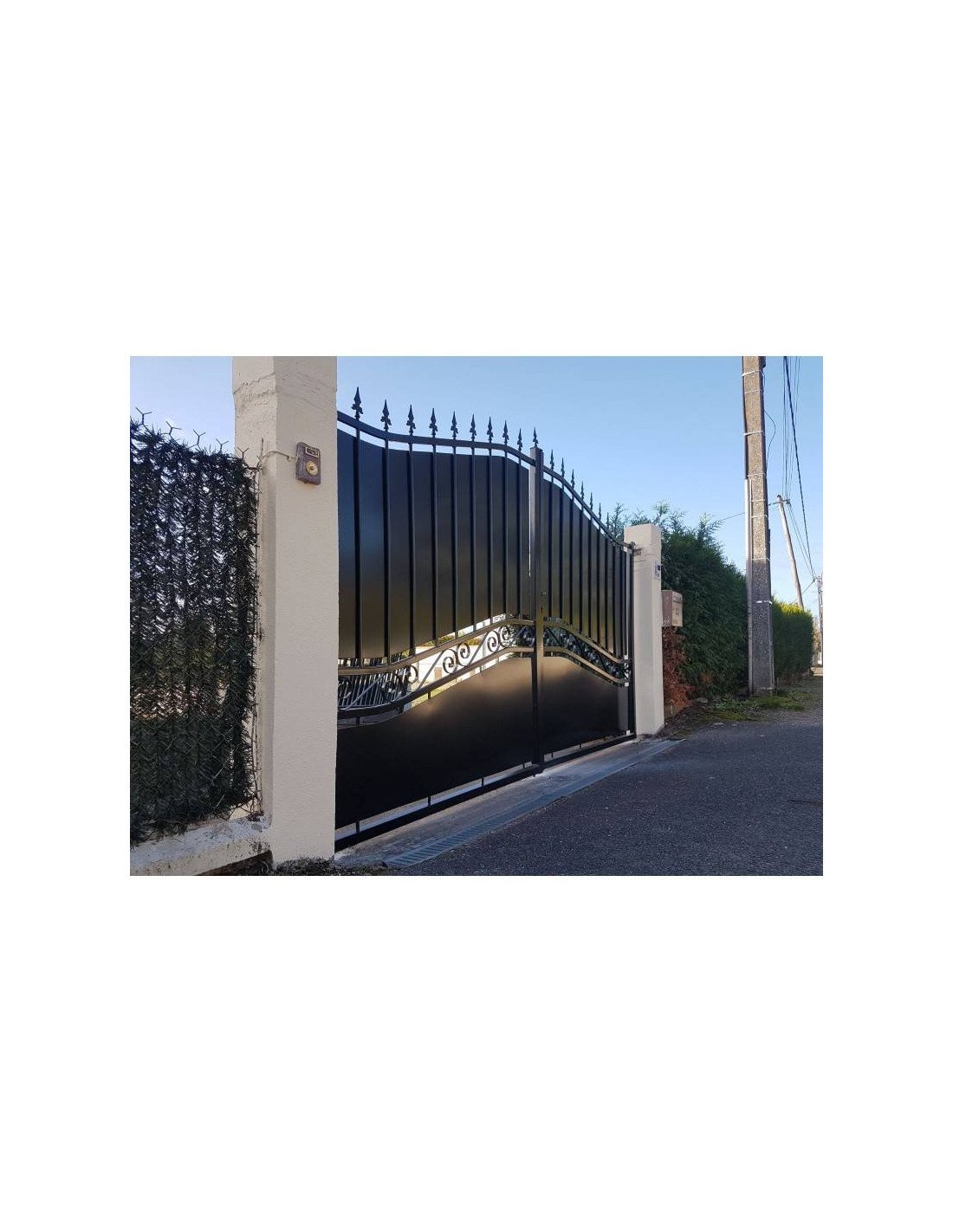

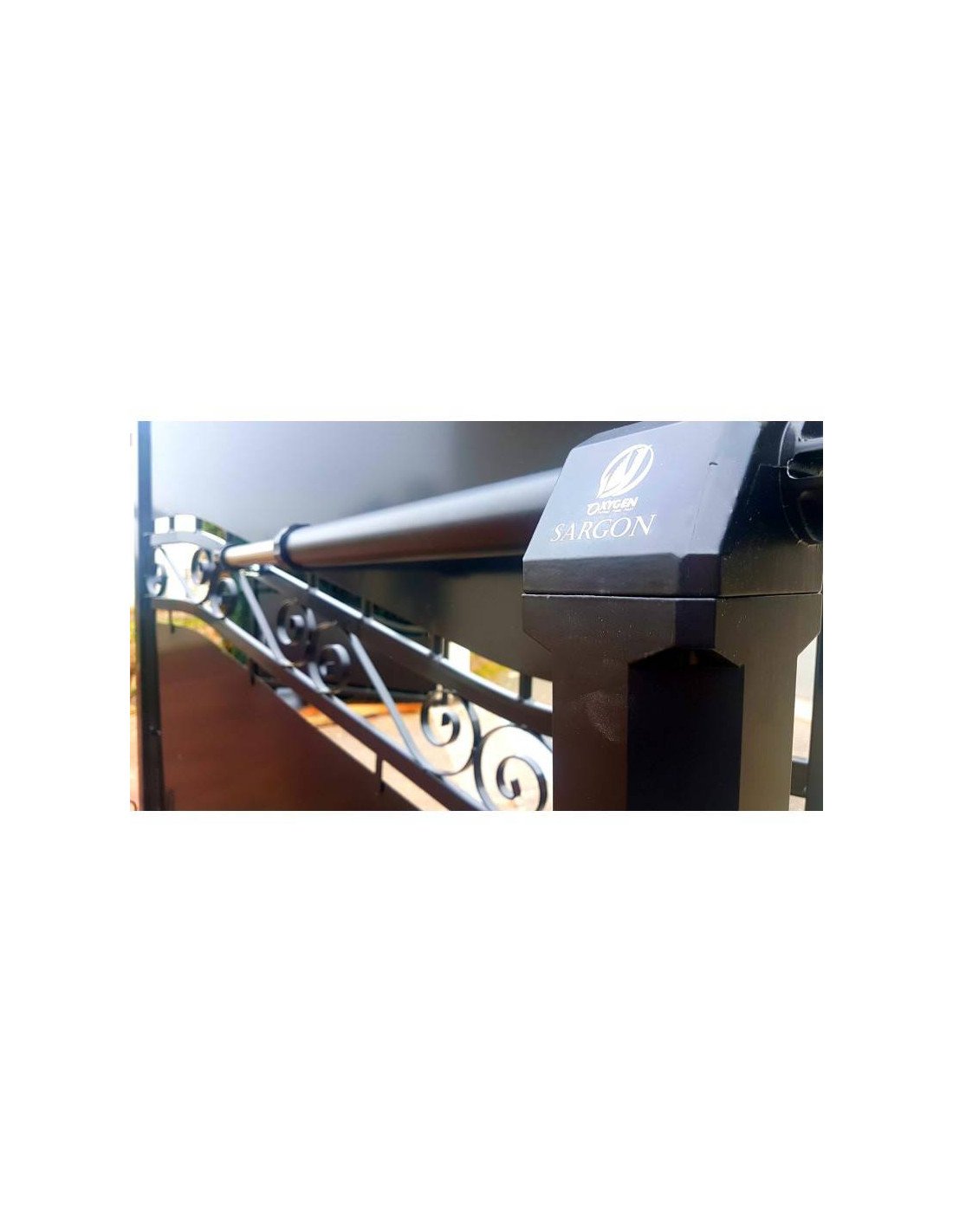

OXYGEN SARGON 230 V electromechanical motor for residential swing doors up to 4 m in length per sheet.

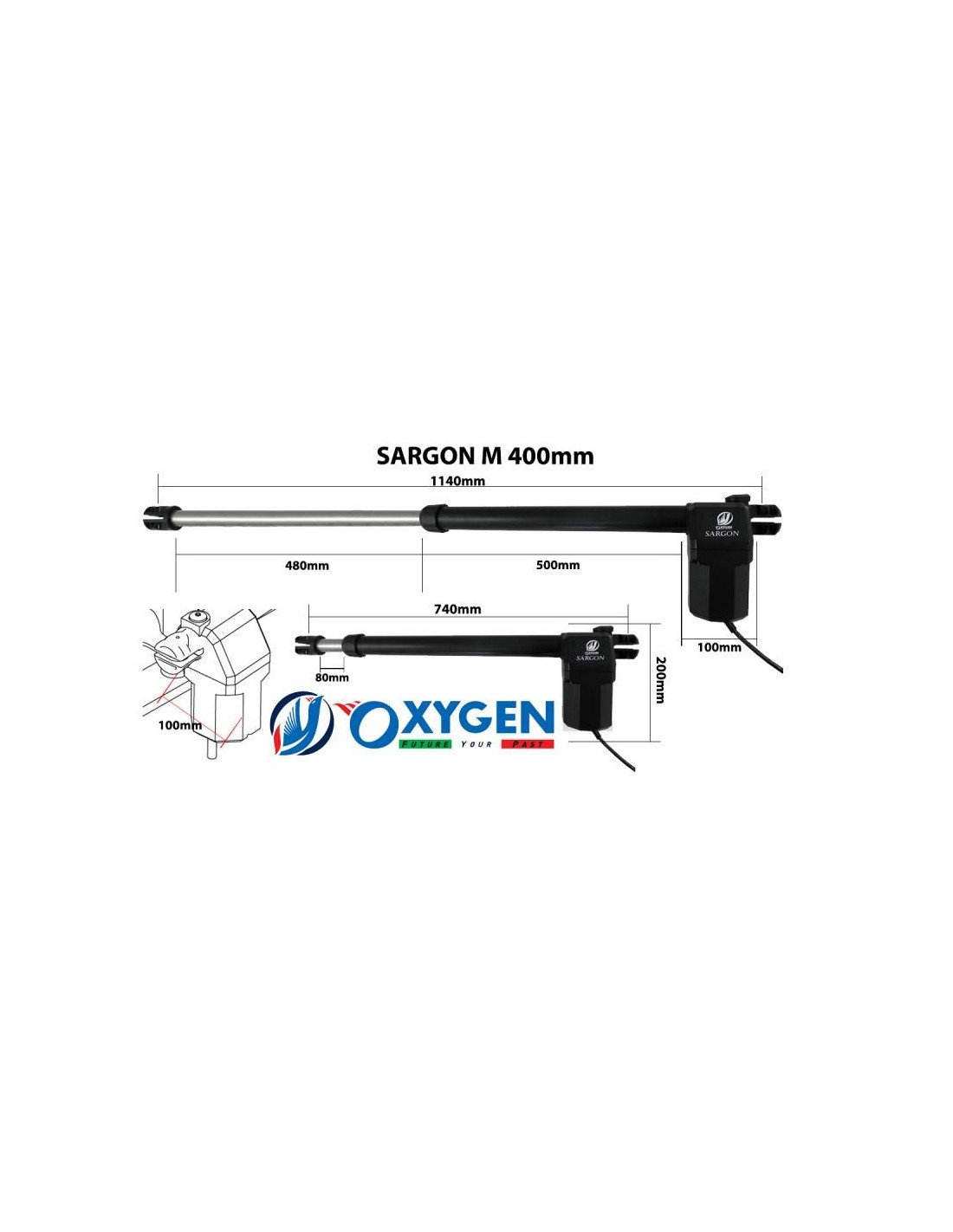

The SARGON series engines have a 400 mm stem and are designed for use in lightweight doors up to 250 kg.

CHARACTERISTICS OF THE SARGON ENGINE

• FoodOther: 230Vac
• Path of stem400 m
• Maximum length of door4 meters
• Maximum weight of doorother:
• Power: 330 W
• Power absorbed: 1.8 TO
• Full thrust: 1600 N
• Operating temperature25°C + 60°C
• Opening hours22 seconds
• Thermal protection: 150°C
• Work cycles: 35 %
• LubricationFat

CHARACTERISTICS

• Automatic or step-by-step operation
• Automatically programmable shutdown
• Programmable pedestrian opening
• Connected safety photocells
• Force regulation and initial start by trimmer
• Control of deceleration
• Connection for flashing light

TECHNICAL CHARACTERISTICS

• Food : 230 Vca 50-60 Hz 1600 W maximum.
• Intermittent output : 230 Vca 500 W maximum.
• Output from engines For the purposes of this Regulation:. 500 W maximum.
• Power lock output : 12 Vcc 15 W maximum.
• Power supply for photovoltaic cells : 24 Vca 3 W maximum.
• Safety devices and controls in BT : 24 Vcc
• Working temperature : -10 to 55 °C
• Radio receiver : see model - Optical transmitters. : 12-18 Bit or Rolling Code
• Maximum TX codes in memory : 150 (CODE or PEAT code.)
• Card dimensions The following: 140 x 125 x 45 mm .
• Dimensions of the container The following: 190 x 140 x 70 mm .
• Degree of protection : IP 56

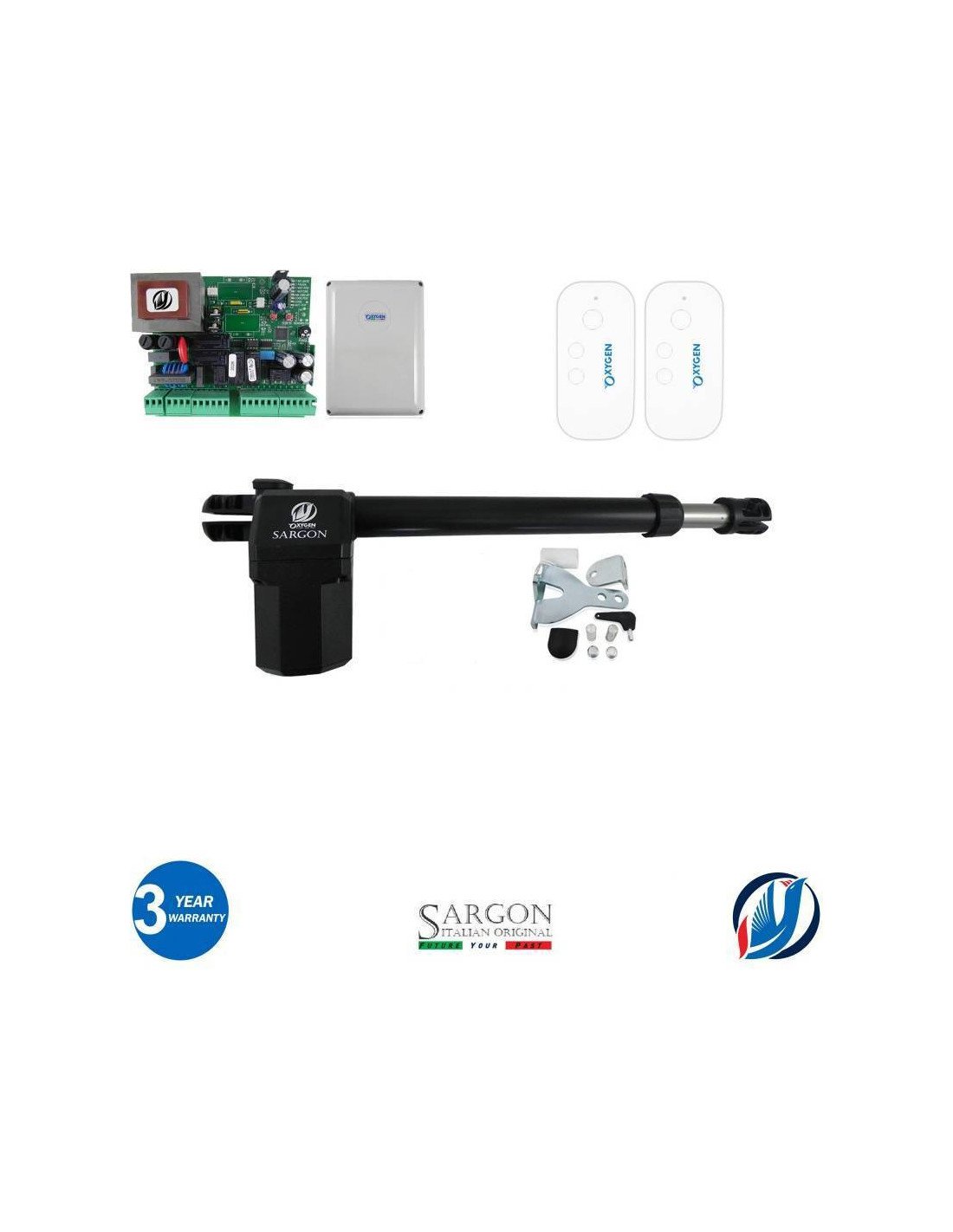

THE KIT CONTAINS:

• 1x Engine Sargon 400 stem (choose left or right side)
• 1x Nerea 230V control unit with integrated receiver
• 2x controls 433 MHz

MANUAL

Instructions for use

NEREA instruction manual
