KIT Hydraulic engine Aprimatic FORTY 65 SP heavy use for hinged doors up to 6 metres in height. With installation of pump off the blade to prevent transmission of vibration the structure of the building.

Built-in anti-crush safety valves. Speed deceleration at the end of the route. 20mm diameter barrel and 270mm useful stroke.

CHARACTERISTICS

• Heavy duty hydraulic operator.
• Separate pump that prevents noise and vibration in the metal door.
• Built-in pressure relief valves.
• Quiet operation and very reliable.
• Operator with deceleration on opening and closing.
• Maximum leaf width 6,0 m.
• Useful length of stem 270 mm.
• Built-in five-foot whips.

CHARACTERISTICS OF THE PUMP

• Maximum pressure: 640 daN.
• Unlocked hydraulic pump.
• Flow rate 1 l/min.

TECHNICAL CHARACTERISTICS

MEASURES

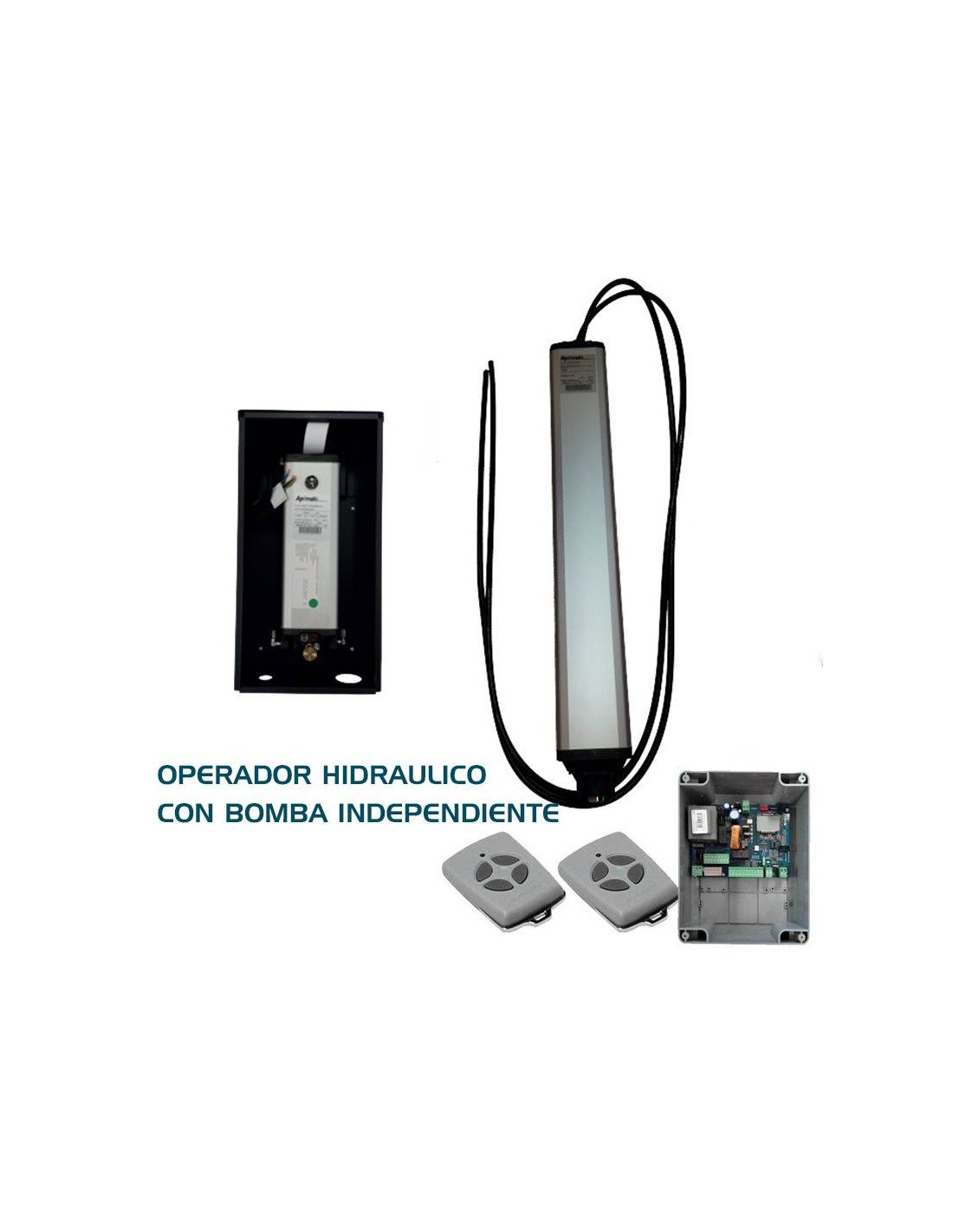

CONTENT OF KI

• 1 unit 664123000Q0This is Operator Forty 65 6M S.
• 1 unit 664122500Q0: hydraulic pump 1 litre.
• 1 unit 665200000Q0: A40 DG manoeuvre chart with built-in receiver.
• 2 units TX4E: 4 channel transmitter Rollingcode 433 MHz.
• 1 unit of APRIMOIL AF32: Packed hydraulic oil.

MANUAL

Technical data sheet Aprimatic FORTY 65 SP
