KIT DITEC PWR25H 24V electromechanical motors for heavy-duty swing doors with leaf lengths up to 2.5 meters.

The PWR25H 24Vdc DITEC irreversible actuator is intended for frequent and intensive use. With fixing brackets, mechanical stops and plastic worm protection brackets.

Easy: it is enough to loosen a single screw to be able to remove the plastic cover and access the terminals for the electrical wiring.

Strong: automatism composed of two resistant die-cast aluminiums that guarantee perfect resistance to torsional and cutting forces.

Practical: manual release that guarantees opening with minimum effort and removable cover for easy access to the screw for adjustments and maintenance operations.

SPECIFICATIONS

• Electromechanical automatisms: irreversible for blades up to 2.5 metres
• Race Management: Mechanical Stop
• Maximum capacity: 400 kg x 1.5 m | 200 kg x 2.5 m
• Motor power: 24Vdc
• Maximum power: 5A
• Power consumption: 55W nom. / 120W max
• Thrust: 2000N
• Aperture speed: 10÷60 sec / 90°
• Maximum stroke: 350 mm
• Maximum automatic opening: 110º
• Intermittency: 30 consecutive cycles at 20°C
• Class of service: frequently tested up to 150,000 cycles
• Unlocking for manual opening: keyed
• Operating temperature: -20°C ÷ +55°C (-35°C ÷ +55°C with NIO activated)
• Degree of protection: IP44
• Weight: 7.8 kg

INSTALLATION MEASURES

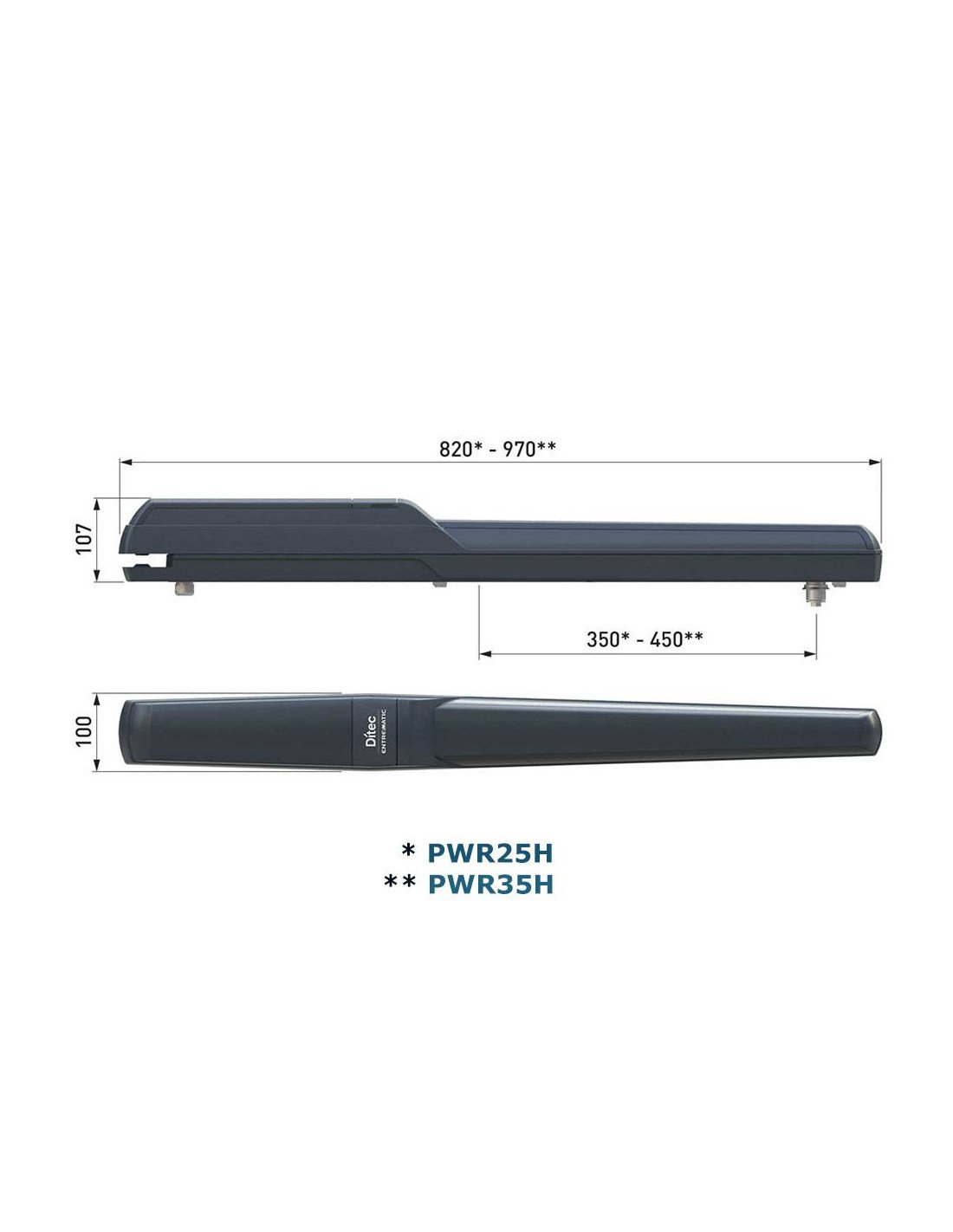

ENGINE MEASUREMENTS

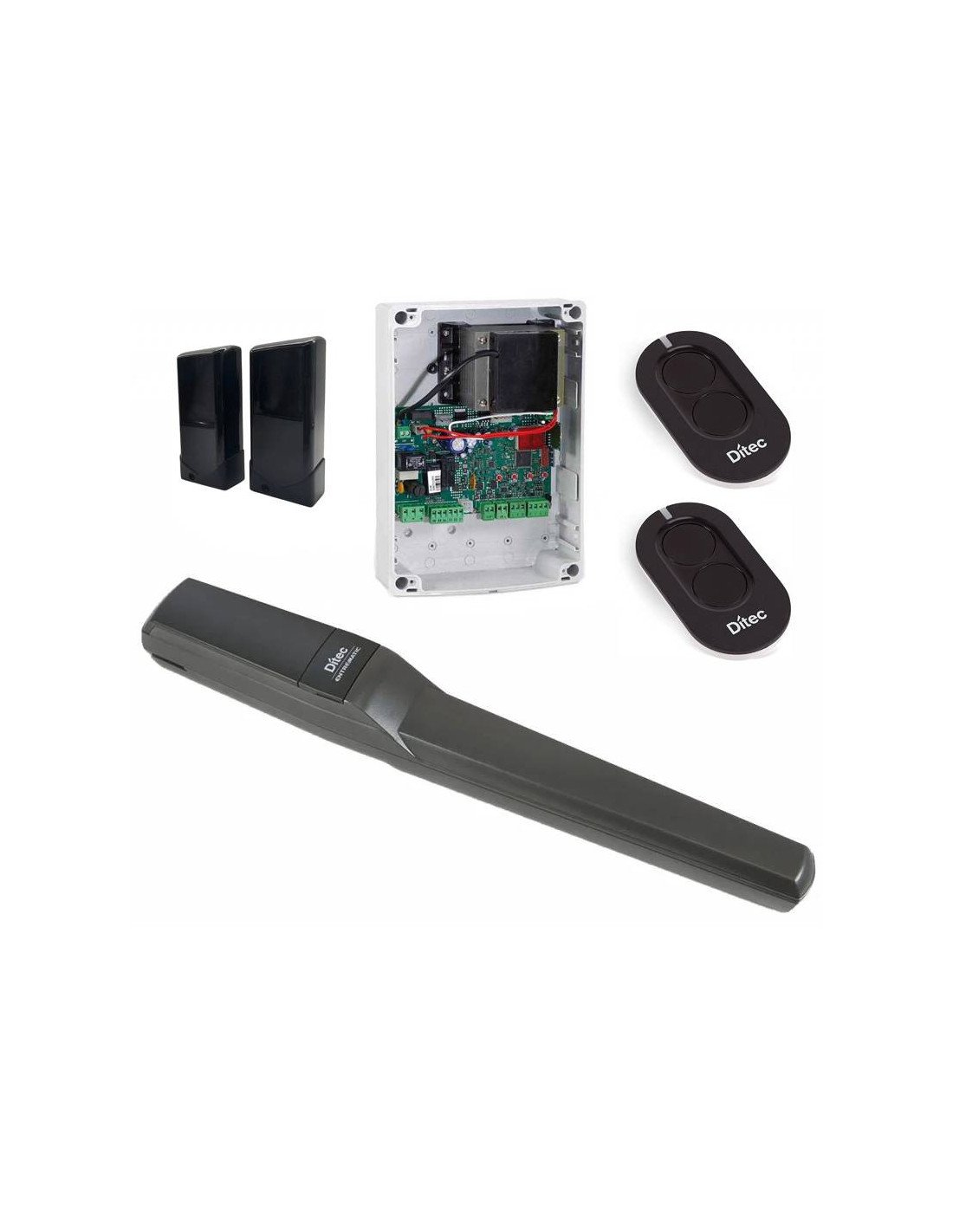

THE KIT CONTAINS

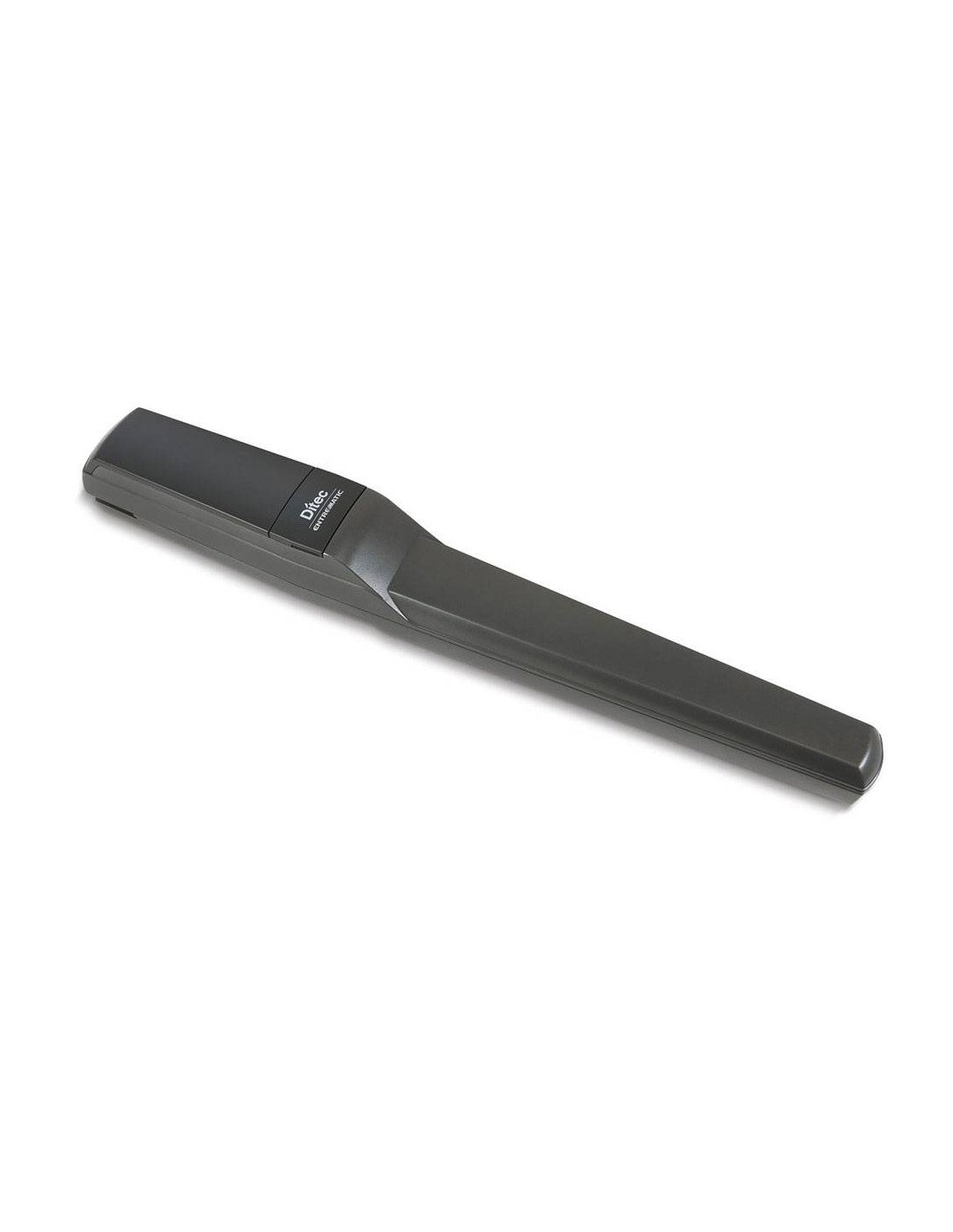

■ 1pc PWR25H: Electromechanical operator 24V 2.5m per blade.

■ 1pc BIOS2 24V: 24V operator center with built-in receiver.

■ 2 pc TECH3: Rollingcode 433 MHz transmitter.

■ 1 FTALL unit: Emitter-receptor photocell pair.

MANUAL

Instruction manual DITEC PWR25H/PWR35H

BIOS2 24V Electronic Central Operating Manual
