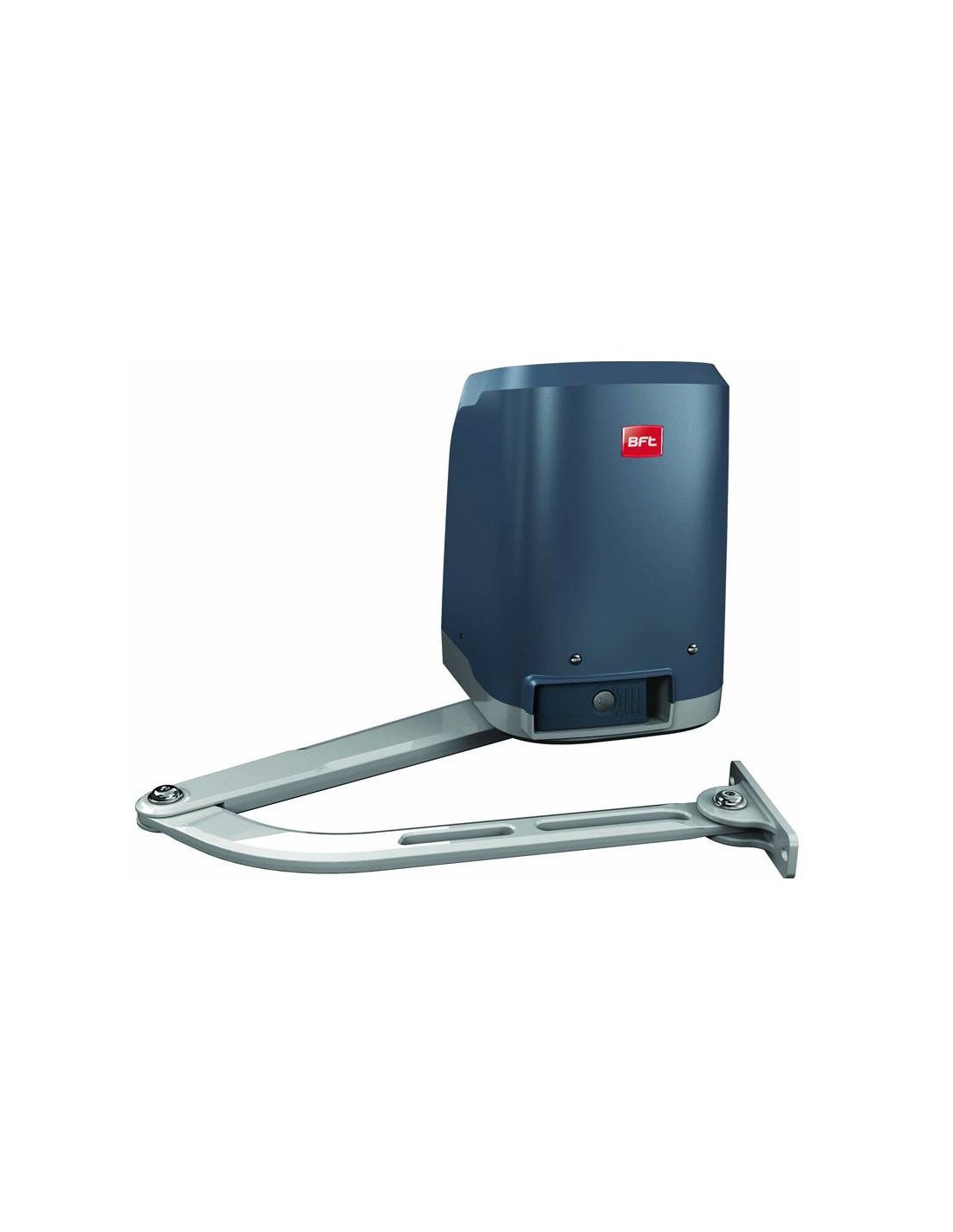

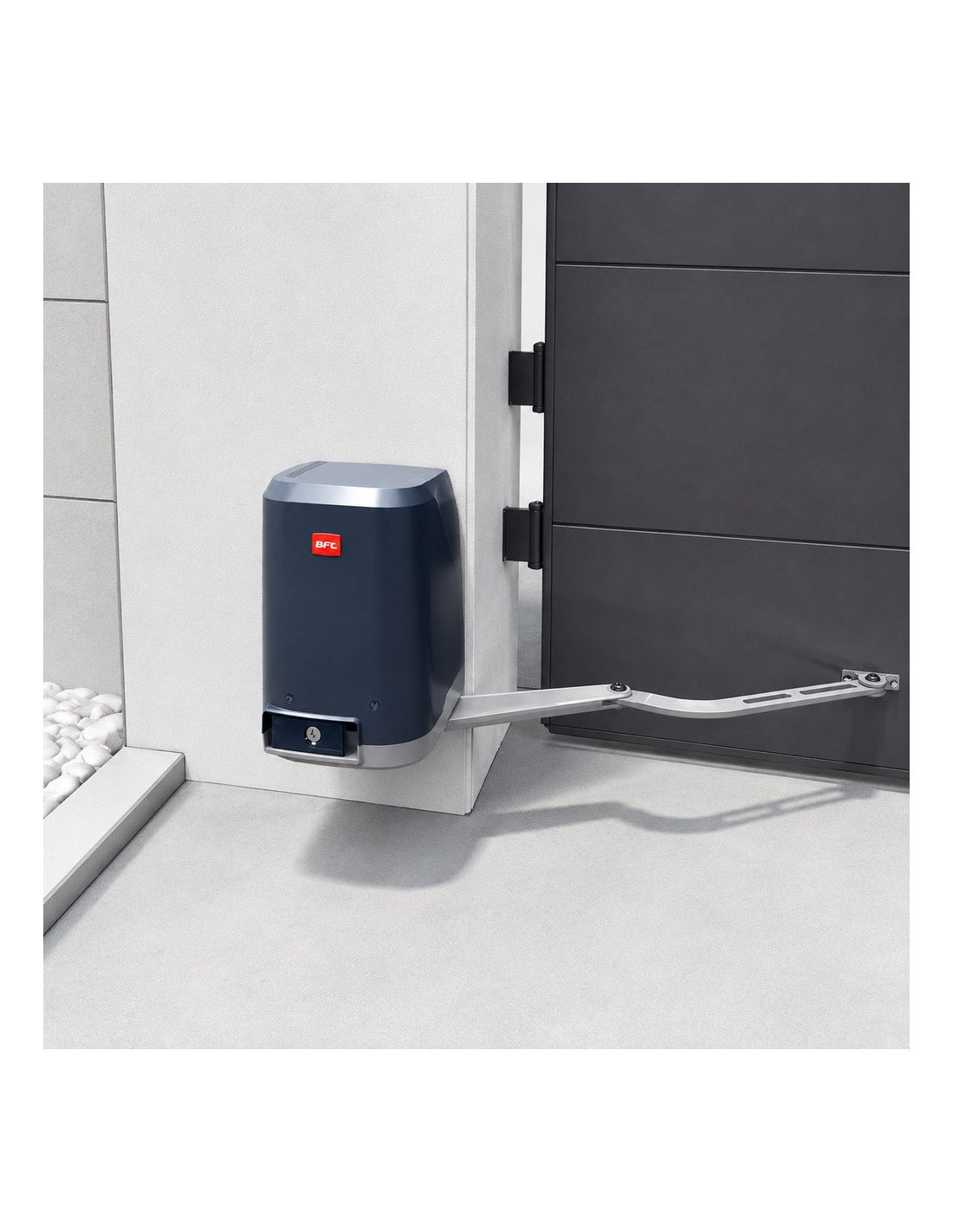

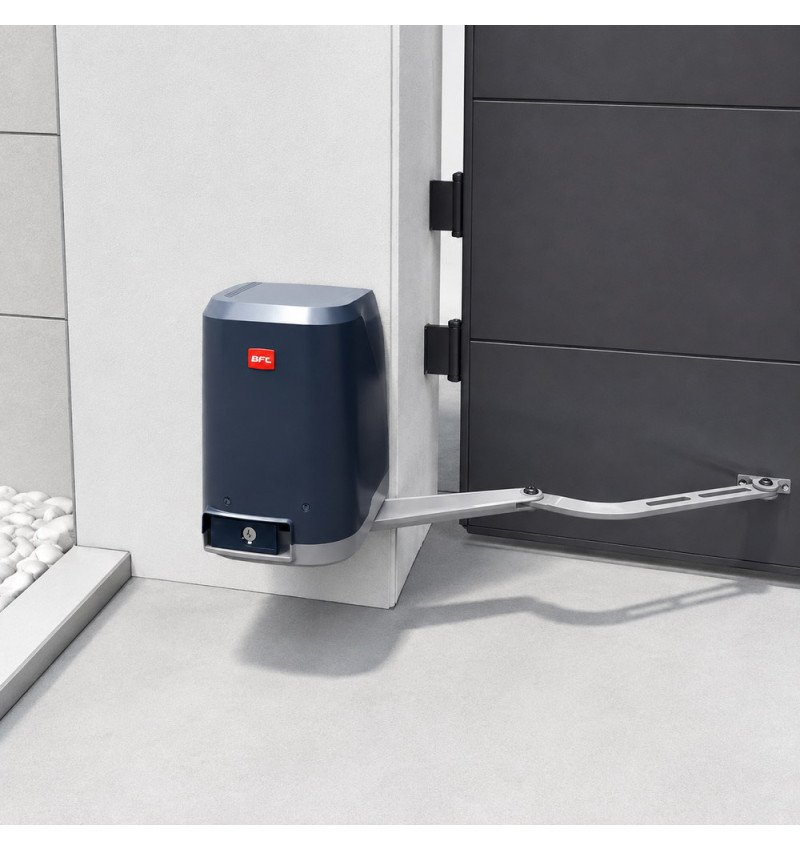

Articulated motor BFT "VIRGO SMART BT A" residential swing doors up to 2 meters or maximum 200 KG. The main actuator incorporates a control panel with a 433 MHz receiver.

Electromechanical articulated arm operator for residential use for swing gate leaves up to 2 m and a maximum of 200 kg. Ideal for any installation requirement, it allows you to easily solve problems related to large pillars thanks to the lever system. Control unit, control switch and mechanical stop blocks integrated into the operator.

BUILT-IN ELECTRONIC BOARD AND RECEIVER

THALIA: Thalia control card for one or two 24 V electromechanical operators for swing doors

• Application: control panel with display for 1 or 2 24 V operators for electromechanical swing gates
• Card power: 230 V single-phase
• Power supply: 24 V DC 180 W maximum per operator
• Key features: removable terminal blocks with new colour standard, simplified programming by on-screen scenarios and integrated two-channel receiver, anti-crush based on the D-Track system, deceleration in opening and closing and electronic self-learning.
• Main Functions: Automatic Reopening, Quick Lock, Partial Opening, Dead Man Function
• Compatibility: LIBRA, LIBRA R, LIBRA MA R

SPECIFICATIONS

AVAILABLE MODELS

• VIRGO SMART BT A 20 (P930129 00002): 24 V electromechanical irreversible operator for swing gates weighing up to 200 kg and up to 2 m long, with integrated control unit. Electromechanical limit switch.
• VIRGO SMART BT A 20 SLAVE (P930130 00002): 24 V irreversible electromechanical operator for swing gates weighing up to 200 kg and 2 m long. Electromechanical limit switch.

MANUAL

Instruction manual BFT VIRGO SMART BT A
