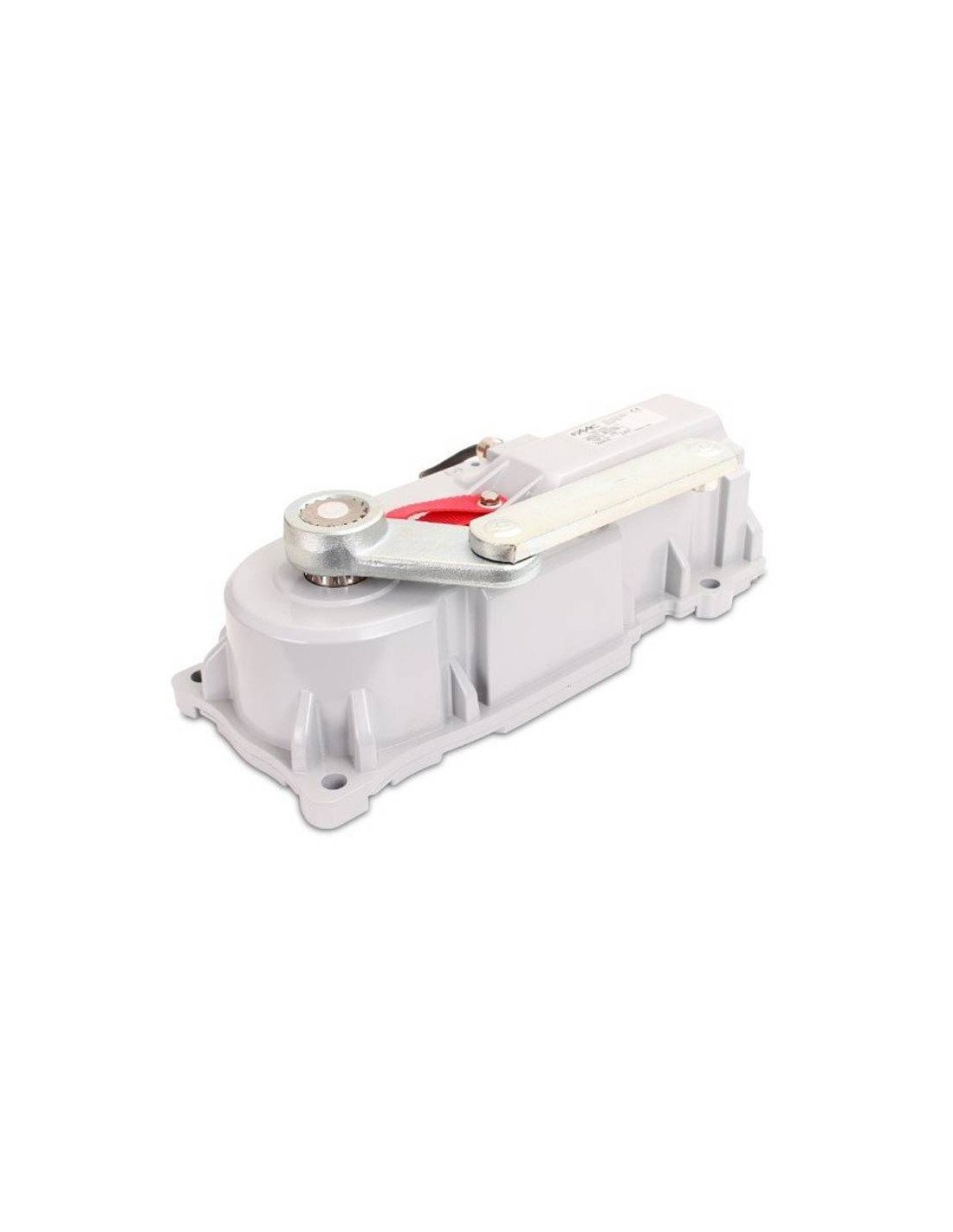

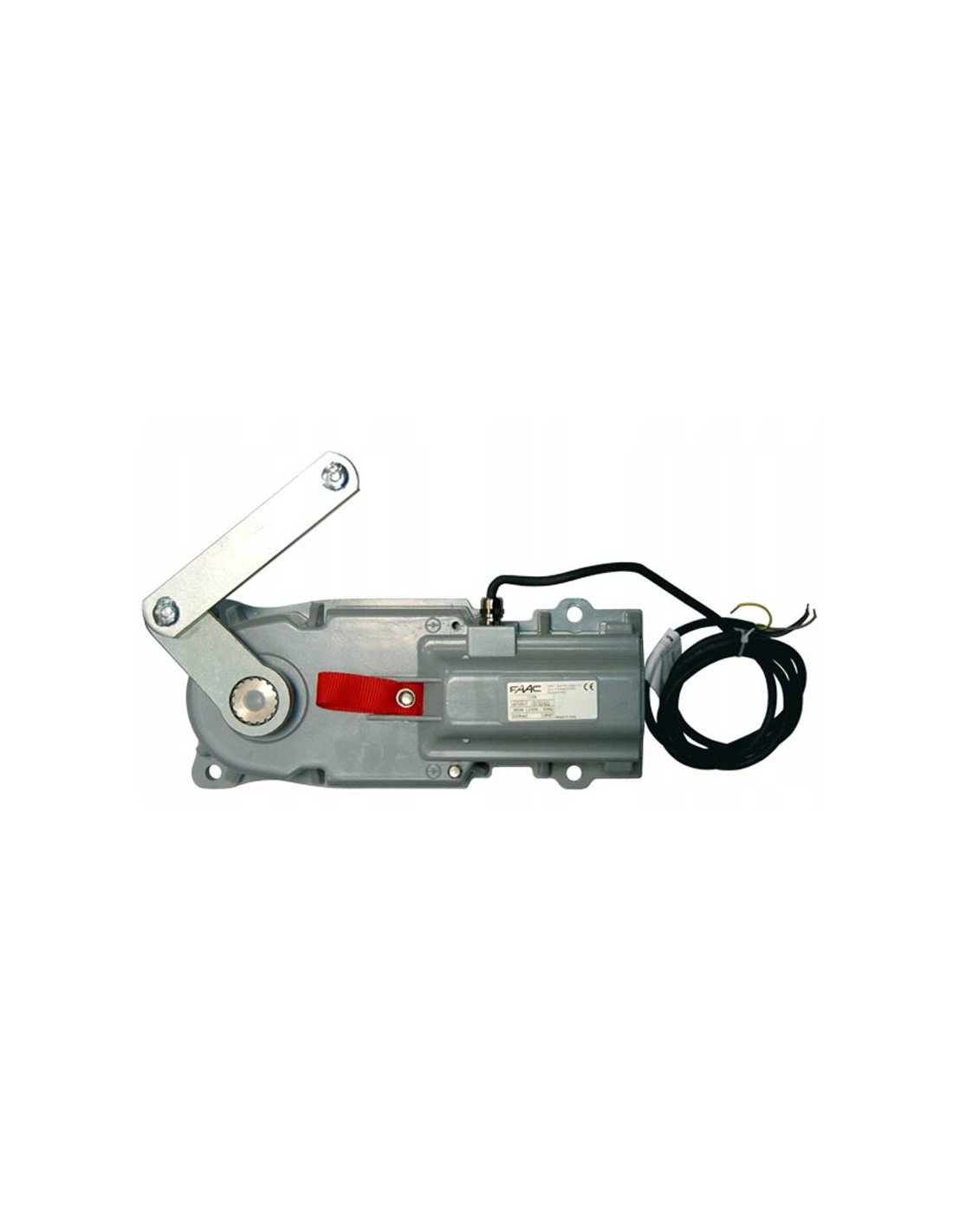

Engine buried FAAC 770N for residential doors up to 3.5m

Engine buried FAAC 770N for residential doors up to 3.5 meters per sheet.

Electromechanical operator available in version 230Vac or 24V.

✓ Invisible operator

✓ Possibility of access to the operator without removing the sheet

✓ Manual unlock with double lever accessible from both inside and outside the property (patentado)

✓ Up to 2 meters without electric lock

✓ Up to 3.5 meters using electric lock

TECHNICAL CHARACTERISTICS FAAC 770N 230V

• Model: 770N 230V
• Power pressure: 220-240V~ 50/60 Hz
• Electric motor: Asynchronous Monophase
• Max. power: 380 W
• Par max.: 330 Nm (*)
• Max angular velocity: 6°/sec (*)
• Max. sheet weight: 500 Kg. (see chart)
• Maximum blade opening angle: 110° (140° and 180° with optional kit)
• Operating environment temperature: -20°C ÷ +55°C
• Thermal protection: 140° C
• Protection Degree IP 67

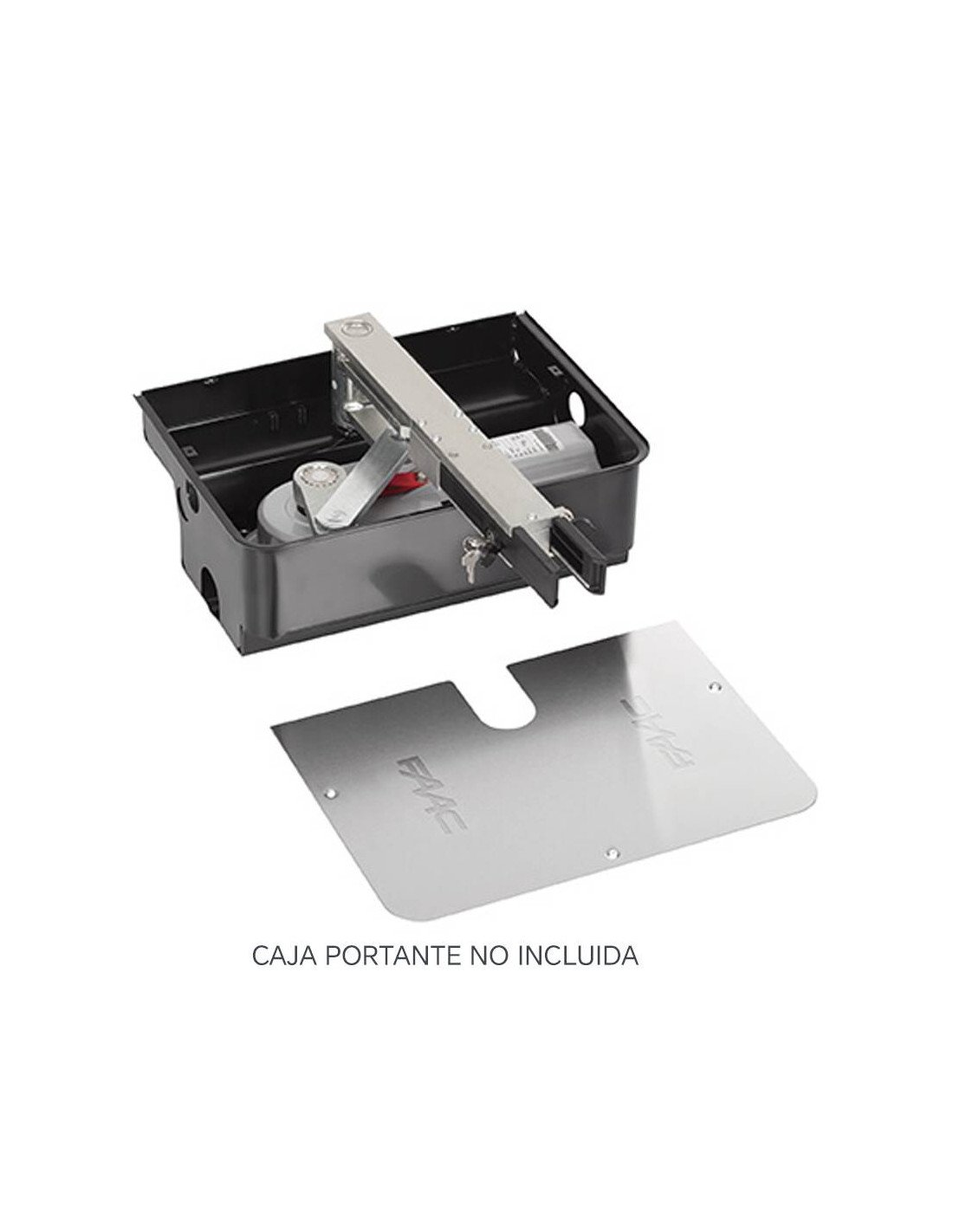

• Weight 12 kg (with 14 kg carrier box)
• Type and frequency of use S3 - 30%
• Max length of blade 2 m (3.5 m with electroclosed)
• Operator dimensions 360 x 150 x 140 mm 430 x 307,5 x 214 mm)
• Electronic equipment Not included

TECHNICAL CHARACTERISTICS FAAC 770N 24V
