APRIMATIC XT524B 日本語 Electromechanical motors Batteries

KIT Motors Aprimatic XT524B electromechanical 24Vdc irreversible for residential or community doors of semi-intensive use up to 4.5 meters or 450KG.

✓ Mechanical race ends in opening and closing.

✓ Robust chassis made of injected aluminium.

✓ The unlocking of these engines can be dismantled by Torx key.

Technical characteristics:

• Leaf length4.5 m
• Sheet weight: 450 kg
• Food: 24Vdc
• Type of transmission: Helical gear
• Race: 540 mm
• Push force: 3000 N
• Working factor: 50%
• Cycles: 90 maneuvers/day
• Protection: IP44
• Working temperature: -20 oC/+50 oC
• Maximum current: 6 A
• Power absorbed: 144 W
• Unlock: Metal key
• Dimensions: 1117,5 x 136 x 126 mm

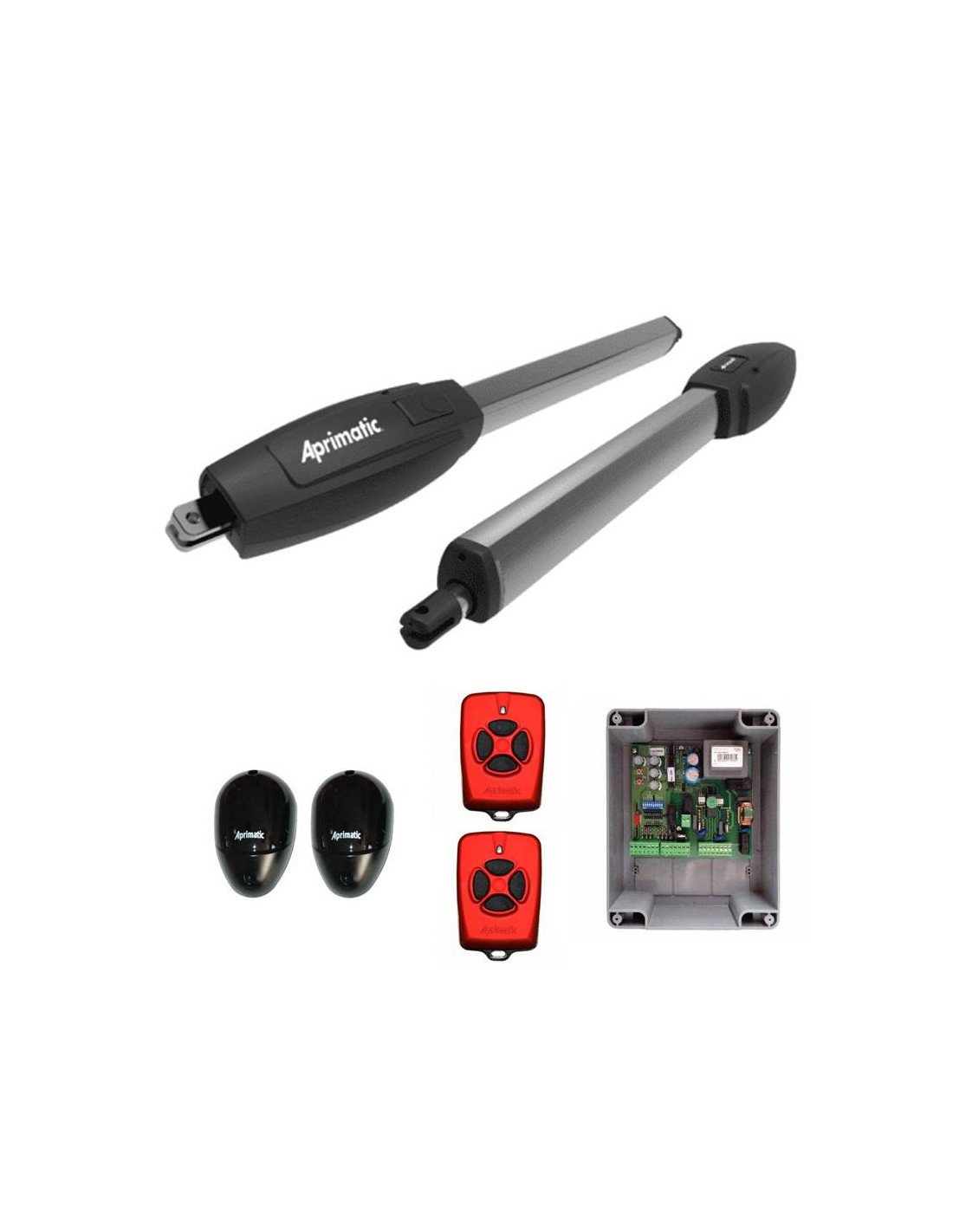

KIT Contents:

• 2 operators XT 524B to 24 Vcc
• Type of maneuvers AB 224DG
• 2 TX4S quadrant transmitters
• Couple photocells ER 10

Measures and details Aprimatic XT524B

Manual

Instruction manual Aprimatic XT524B
