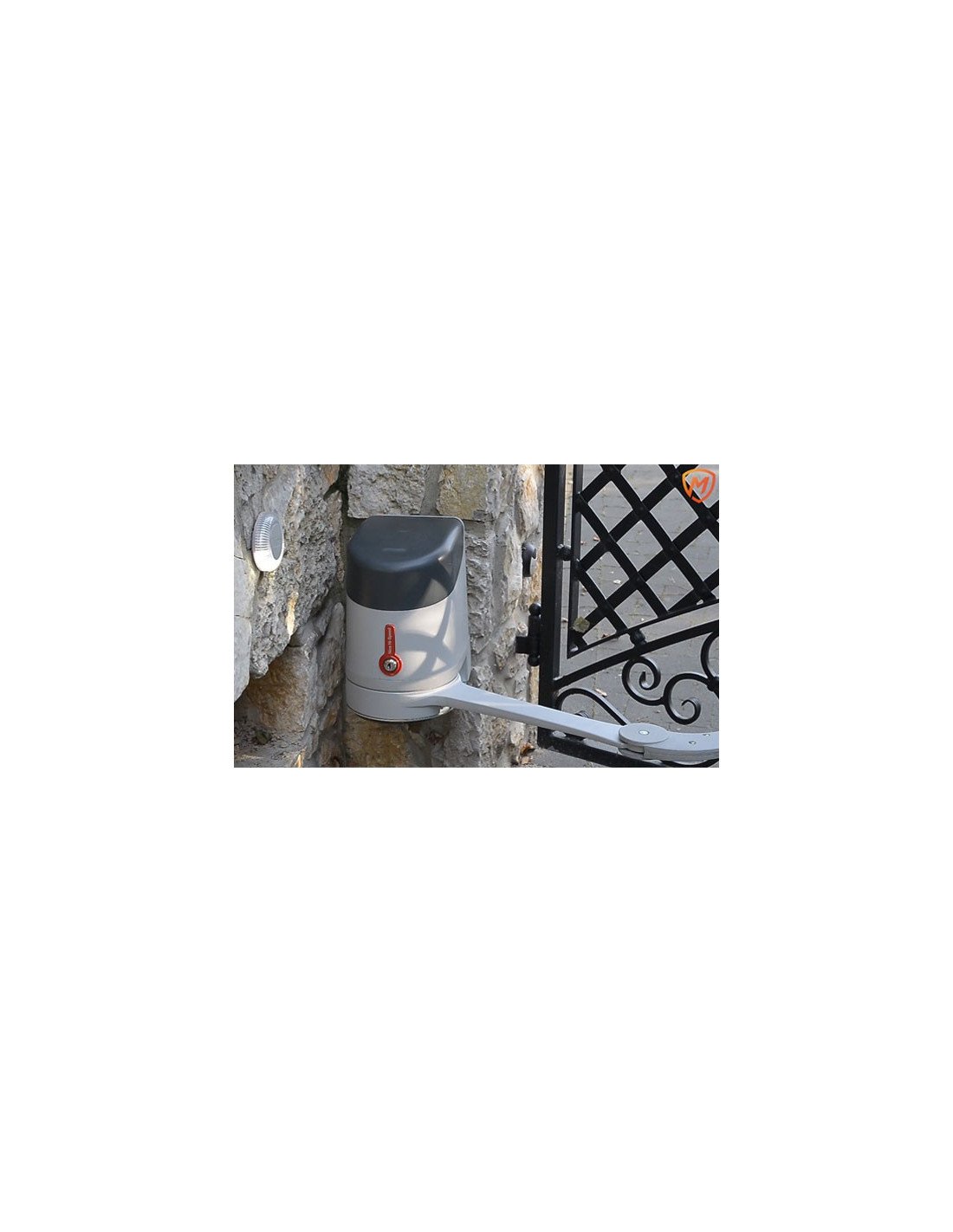

Engine for the fast drive (HS technology) for hinged doors with sheets of up to 3 m or 270 kg.

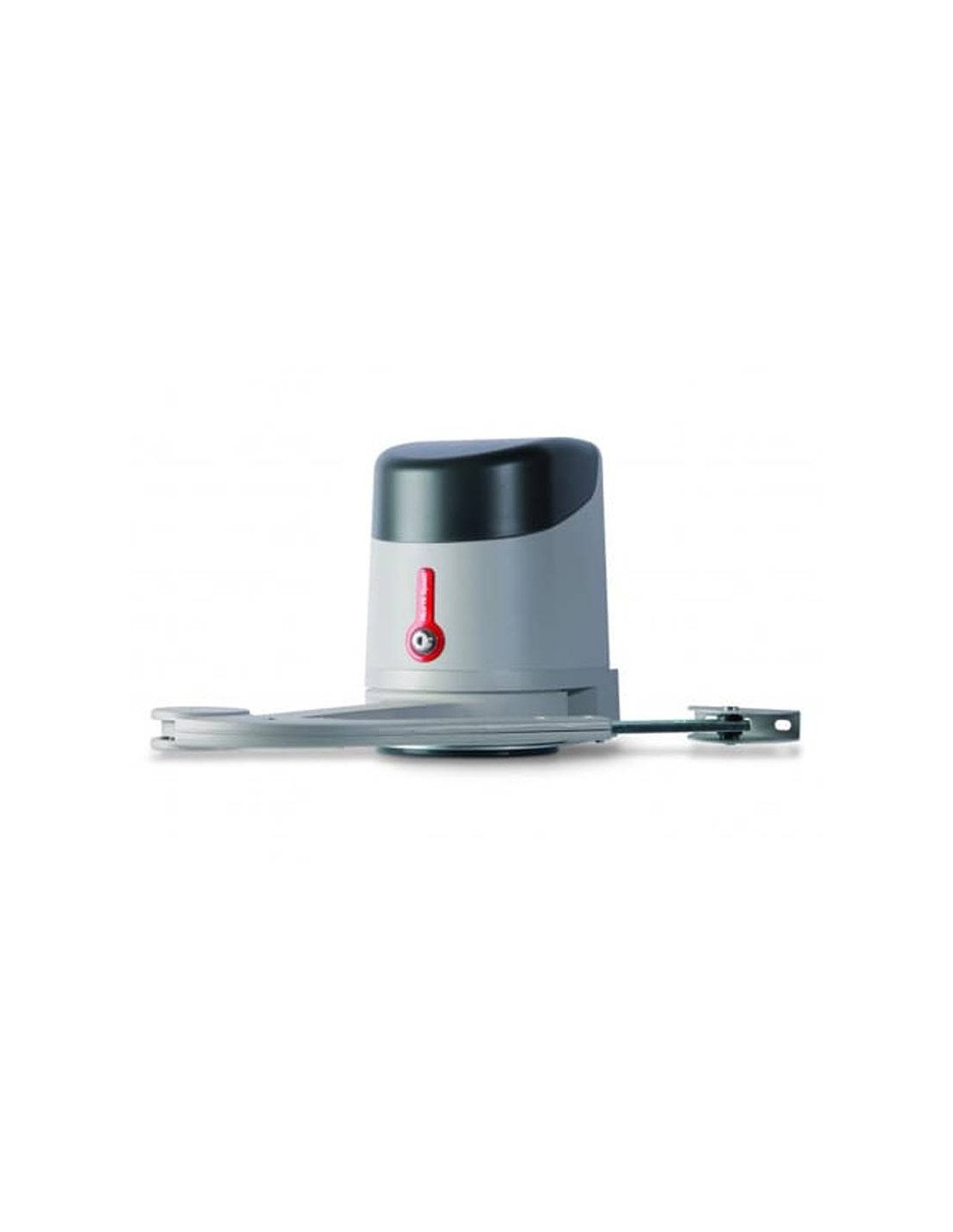

Motor gearbox electromechanical with articulated arm, external mounting, 24 Vdc, with magnetic encoder.

Ideal for residential applications also in the presence of large columns.

Ideal for heavy use and fast manoeuvres: opening to 90o in approximately 10 seconds.

CHARACTERISTICS

Powerful and reliable: thanks to the 500 Nm torque and encoding technology, for its millimeter precision and reliability.

Safety of movement: with dual technology obstacle detection.

Sturdy: thanks to the aluminium case with polyester paint, resistant to atmospheric agents.

Two versions: 24Vdc irreversible with opening and closing stroke: with built-in hub (HK7024) and without hub (HK7224).

Easy and fast installation: the articulated arm is adjusted in length for maximum flexibility.

Simple and precise regulation of race objectives: mechanical stoppers and micrometric control screws.

No power outages: with the optional batteries (PS124) located inside the gearbox.

For the purpose of this Regulation, the following definitions shall apply:The following:

• easy programming with single button
• self-learning of opening and closing career goals
• self-diagnosis of defects
• scheduling of break time
• footwear
• deceleration at opening and closing
• detection of dual technology obstacles
• predisposition to connect the latest generation of sensitive bands

RANGE OF PRODUCTS

• HK7024HS: Irreversible 24Vdc, fast, with magnetic encoder, with articulated arm and built-in center.
• HK7224HS: Irreversible 24Vdc, fast, with articulated arm, no built-in central.
