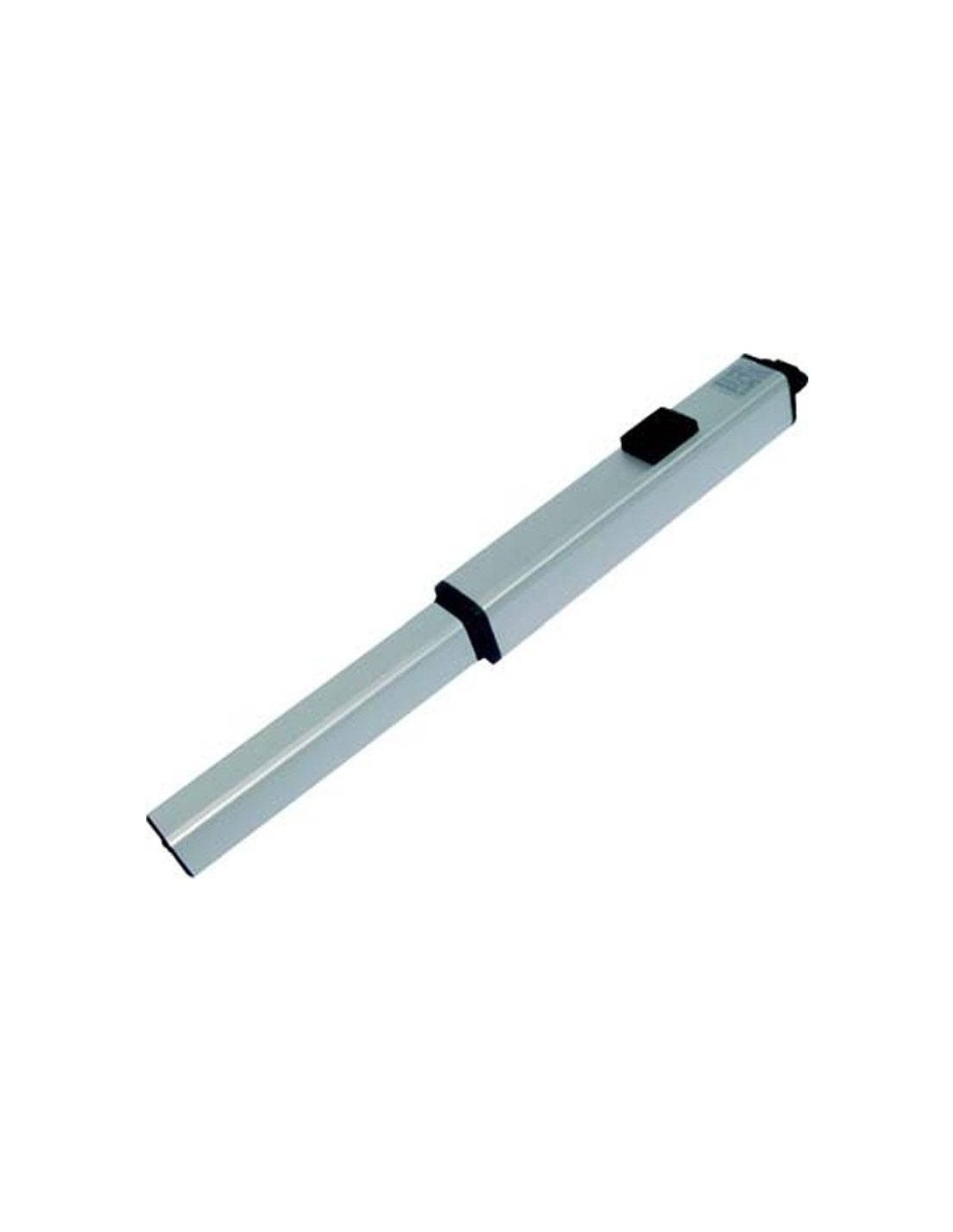

Hydraulic motor Aprimatic TWENTY 270 semi-intensive for swing doors up to 4m
TWENTY 270
€381.00
VAT excluded
461,01 €
Tax incl.
Hydraulic operator Aprimatic TWENTY 270 for swinging canes one or two leaves, semi-intensive use. Speed deceleration closing. Built-in anti-crush safety valves. Quick emergency release. Useful length of stem 270 mm. Stem diameter is 16 mm.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Hydraulic operator Aprimatic TWENTY 270 for swinging canesOne or two leaves, semi-intensive use. Speed deceleration closing. Built-in anti-crush safety valves. Quick emergency release. Useful length of stem 270 mm. Stem diameter is 16 mm.
CHARACTERISTICS
- Quiet and reliable.
- It's a crush safety valve.
- Versions with or without lock
- Deceleration at end of route with A40 DG.
- Table A40DG command TX4S
- Stem diameter of 16 mm
- Rear anchorage flange with mechanical protection of the power cord.
TWENTY 270 C
- Hydraulic operator with lock on lock.
- Maximum leaf width 1,80 m.
- Unlocked by security key.
- It doesn't need an electric lock
TWENTY 270 SF
- Hydraulic operator without lock.
- Maximum blade width 4m.
- It needs an electric lock.
MANUALS
TECHNICAL SPECIFICATIONS
| TWENTY 270 | |
|---|---|
| FOOD | For the purposes of this Regulation: |
| POWER | 250 W |
| STRENGTH | 5500 N |
| TRAVELLED | Other |
| LINEAR SPEED | 1, 3 cm/s |
| DECELERATION AT THE END OF THE JOURNEY | Electronic with A40 DG |
| CYCLES/HOUR | 35 c/h |
| THERMAL RANGE | -20 oC/+70 oC |
| HEAT PROTECTION | IP 55 |
| VERSION OF LOCK | SF: Unlocked |
| C: Closing lock | |
| WEIGHT | 7 kg |
| BUILT-IN CONDENSER | 6,3 μFg |
| LEAF WIDTH | 3,0 m |
- Type of engine
- Hydraulic
- Sheets from the door
- 1-leaf door
