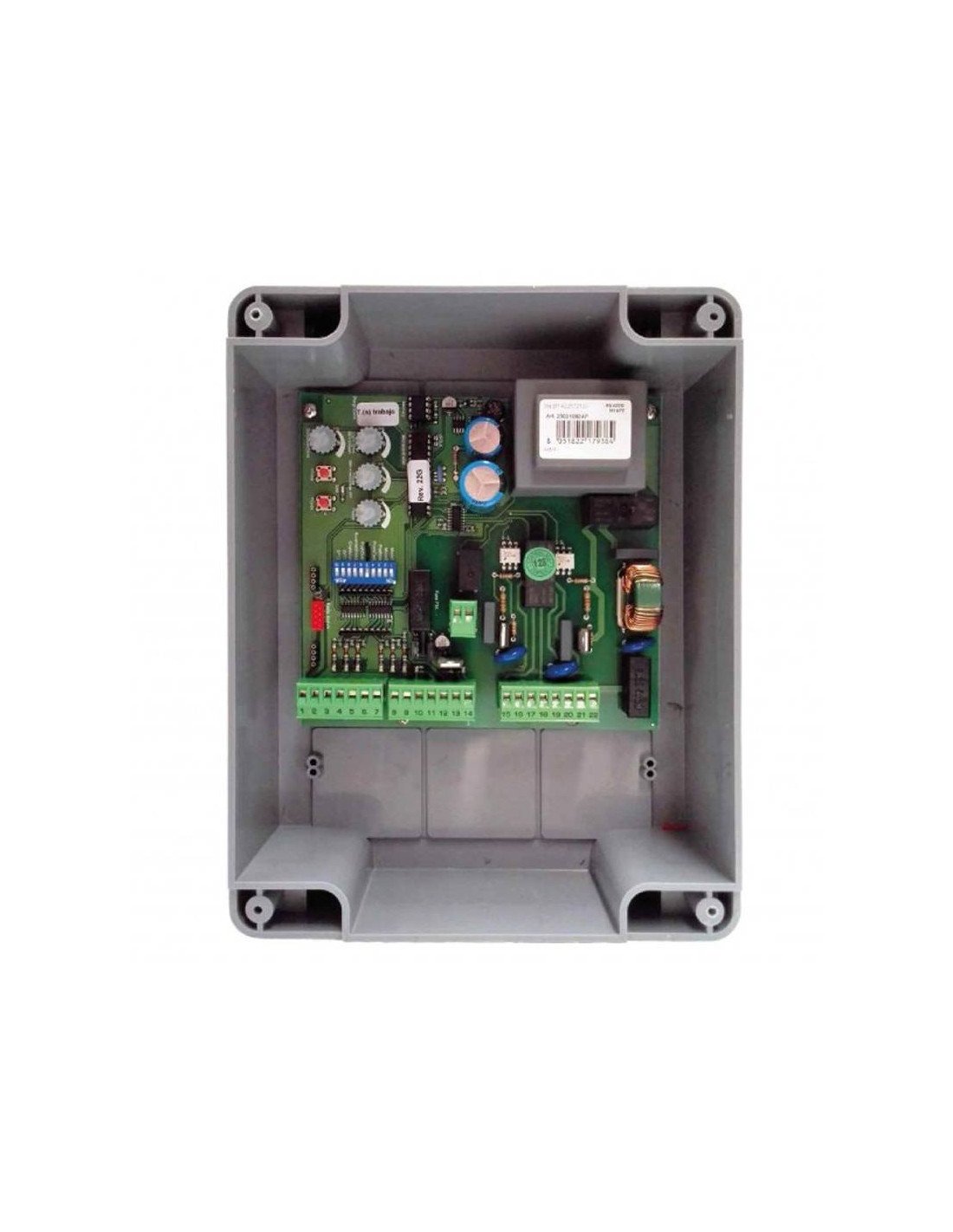

Table of manoeuvres Aprimatic A45M for 1 or 2 sheet swing doors

Table of manoeuvres Aprimatic A45M for 1 or 2 sheet swing doors

665180000Q0
€136.00
VAT excluded

164,56 €

Tax incl.

Analogue manoeuvring table for 1 or 2 sheet swing doors with built-in receiver. What. Includes electronic deceleration at end of run. Motor thrust force control by torque limitation.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



Analogue manoeuvring table for 1 or 2 sheet swing doors with built-in receiver. What. Includes electronic deceleration at end of run. Motor thrust force control by torque limitation.

The A45M electronic card has been designed to maneuver one or two folding operators with no end run. It has very small dimensions, four different operating modes, the possibility of regulating numerous parameters through the use of the trimmer and the dip switch, in addition to the possibility of having the investment without additional devices on an electromechanical motor.

CHARACTERISTICS

  • Programmable working time operation with deceleration at the end of the journey.
  • Control of engine torque.
  • Electric lock control for operators without lock.
  • Discount on working time in case of investment during closure.
  • NC safety band connection and 8K2 resistive.
  • Security entrances in both directions of manoeuvre, closing and opening.
  • Built-in receiver up to 16 Apricode transmitters.
  • Photocell test is closing.
  • Built-in garage light function.

TECHNICAL SPECIFICATIONS

A45M
Card supply voltage The measurements shall be carried out in accordance with the following formula:
Transformer 230V / 115V In this case, the measurements shall be carried out in accordance with the following formula:
P1: Vn = 115 V ~, Io = 43.3 mA; S1: Vnom = 17.5 V ~, Vo = 20.2 V ~, I = 0.69 A
Power absorbed 7.5 W
Charge to max. engine 500 W x 2
Charge to max. Manufacture from materials of any heading Power supply
Charge to max. Dry contact 1A / 240Vac
Max lamp load 24V 24 V Max 3 V Led
Temperature of the room -20°C TO +50°C
For the purposes of headings 8421 and 8422: 1 TO
Method of programming Self-learning page 12
Logic of operation Automatic or safety/ P.Paso1 / P.Paso2 /
Man present / 2 Switches
Opening/closing time Adjustable in self-programming
Pause time Adjustable with trimmer from 0 to 120 s
Activation time dry contact Adjustable with trimmer from 1 s to 120 s / Working time from 0 to 2 min
Push force Adjustable with trimmer
Brake Adjustable with trimmer
Late yesterday In self-learning
Revenue from terminals Antenna / Stop / Start / Pedestrian start /
Photocells 1 and 2 / Costa
Exit from terminals Power supply accessories 24V / motors 230V 500W x 2 /
Electric lock 12V 15VA max/ Alim. 24V TX photocell /
Capacitors
Card size Of a thickness of
External connectors characteristics For the purposes of this Regulation, the following definitions shall apply:

MANUALS

Type of frame
Frame for swing motor
Two-leaf pendulum board
