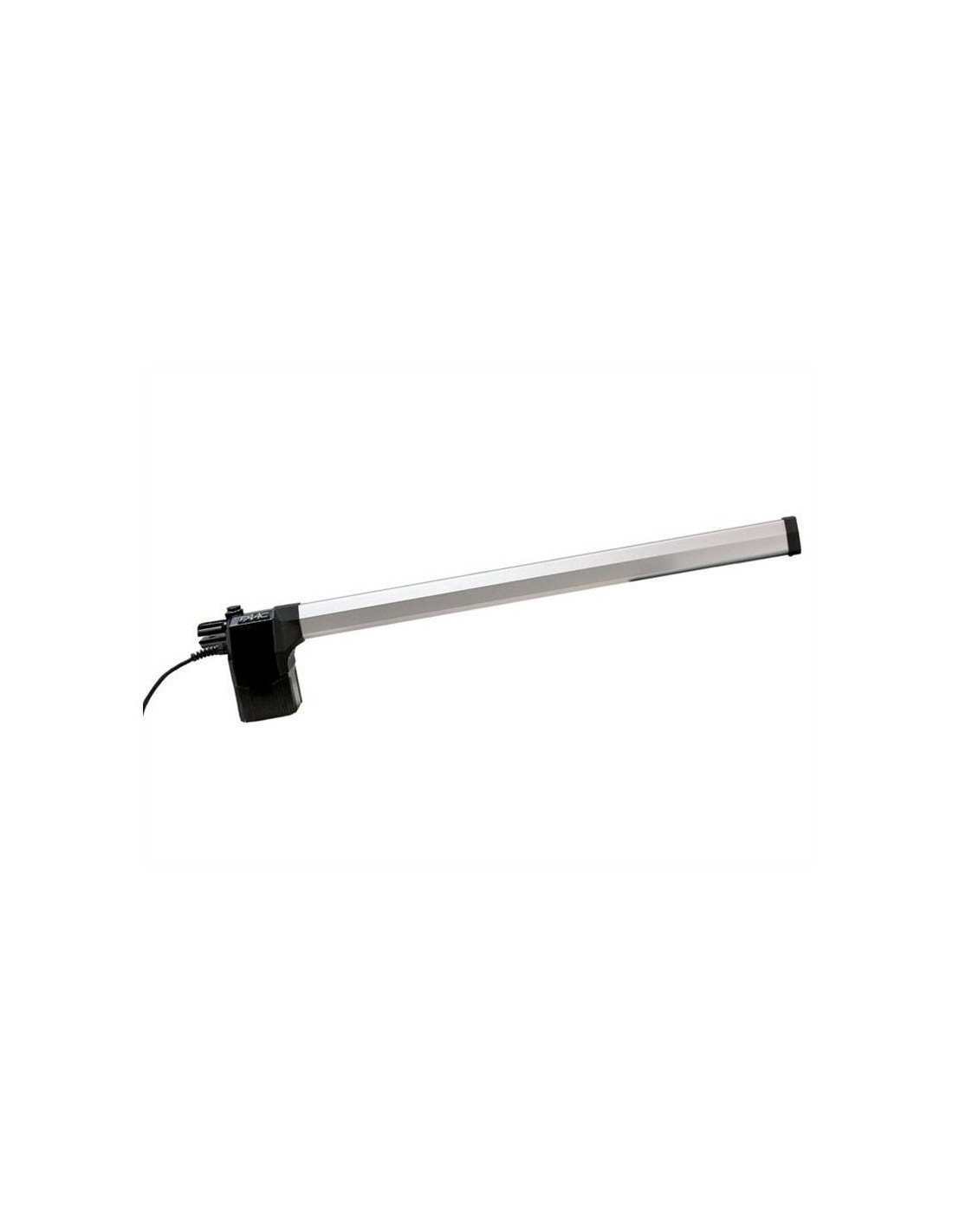

230V electromechanical FAAC 412 motor for swing doors up to 1.80m, ideal for residential gates.

• Irreversible actuator, no electric lock required.

• Simplified installation and maintenance.

• Unlocking device accessible from the rear shutter of the actuator.

SPECIFICATIONS

• Supply voltage 220-240V~ 50/60 Hz
• Single-phase Asynchronous Electric Motor
• Max. power 280 W
• Max. thrust force 3500 N (*)
• Max. rod speed 16 mm/s (*)
• Shank travel 290 mm
• Max. sash opening angle 110°
• Ambient operating temperature -20°C ÷ +55°C
• Thermal protection 140°C
• Degree of protection IP 44
• Weight 6.5 kg
• Frequency of use S3 - 30%
• Max. blade length 1.8 m
• Fixing bracket Rear attack for welding/screwdriving
• Dimensions (L x W x H) 1000 x 90 x 195 mm
• Electronic equipment Not included

The package includes: an electromechanical actuator (DCH. or LEFT), accessories for installation, an unlocking key and an 8 μF 400 V starting capacitor.

MANUALS

Instruction manual FAAC 412
