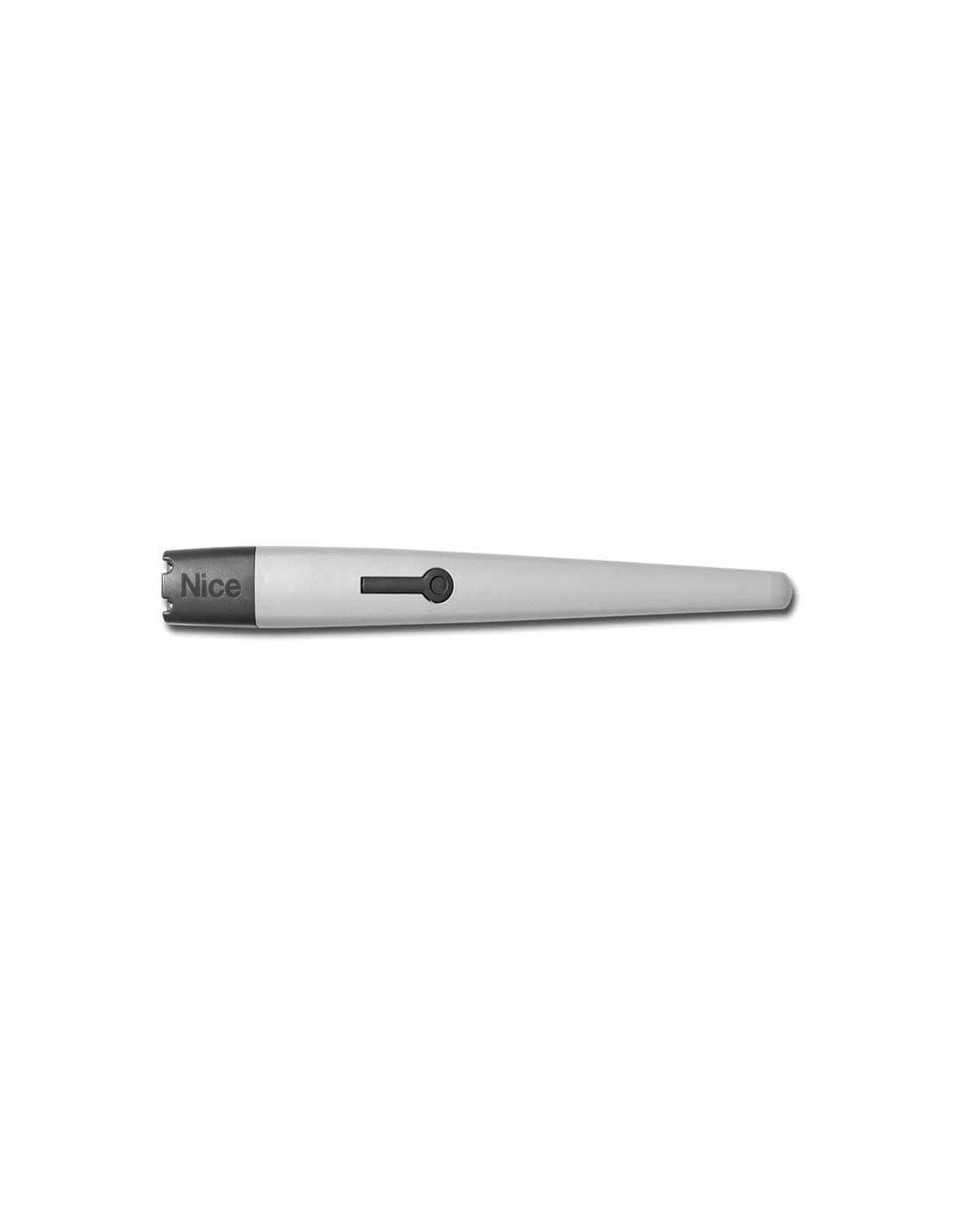

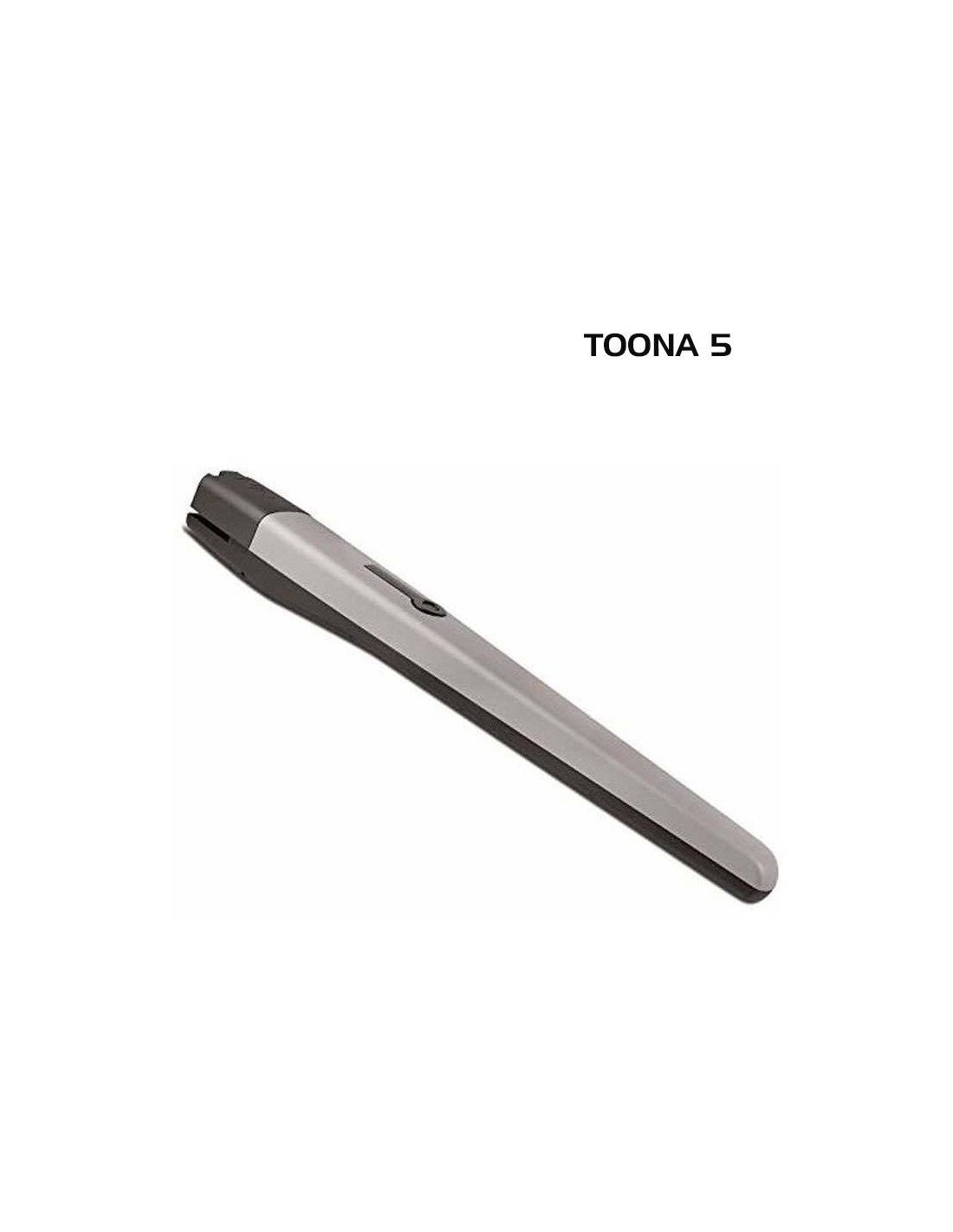

Electromechanical engine NICE model TOONA 5 external mounting for residential swing doors with blades up to 5 metres. Also available in 24Vdc version, with magnetic encoder.

Reliability and long-term durability: by its housing composed of two robust aluminium wrappers with polyester paint; more resistant to atmospheric agents.

Internal moving components entirely of steel, light alloys and technopolymers.

TO5024I ideal for heavy workloads with the torque of 2200 Nm, it can operate with continuous cycle in large canals.

Quietly: arrangement of the internal organs with patent and bronze nut.

Wide and comfortable compartment for connections: quick and easy access from above to the internal parts, located in the upper engine compartment.

Easy installation and maintenance: with built-in condenser.

Recommended command centresThis is MC800, Moonclever MC824H for TO5024 and TO5024I.

Version 24 Vdc, with magnetic encoder. Ideal for heavy use, compatible with the Moonclever MC824H command center:

• simple programming with a single button;
• self-learning of career goals at opening and closing;
• self-diagnosis of abnormalities;
• scheduling of break time;
• footpath;
• deceleration in opening and closing;
• obstacle detection with dual technology;
• a voltage of not more than 300 V;
• pre-installation to connect sensitive edges of the latest generation.

MODELS AVAILABLE

■ TO5024: Irreversible, 24 Vdc, with magnetic encoder, mechanical stop at opening.

■ TO5024I: Irreversible, 24 Vdc, with magnetic encoder, mechanical stop in opening, for intensive use.

■ TO5015: Irreversible, 230 Vac, slow, with end run in opening.

■ TO5016: Irreversible, 230 Vac, slow, with end run on opening and closing.

■ TO5605Reversible, 230 VAC, fast, with end run in opening.

■ TO5624I: Reversible, 24 Vdc, with magnetic encoder, mechanical lock on opening; for heavy use.

TECHNICAL CHARACTERISTICS

MANUAL

Toona 5 instruction manual
