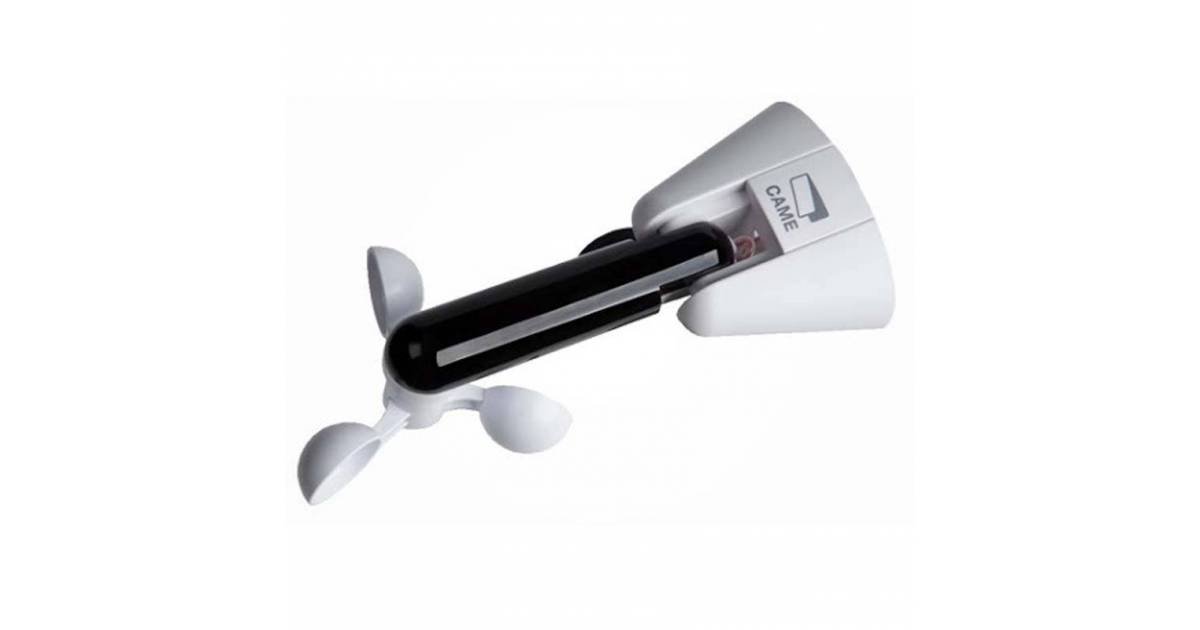

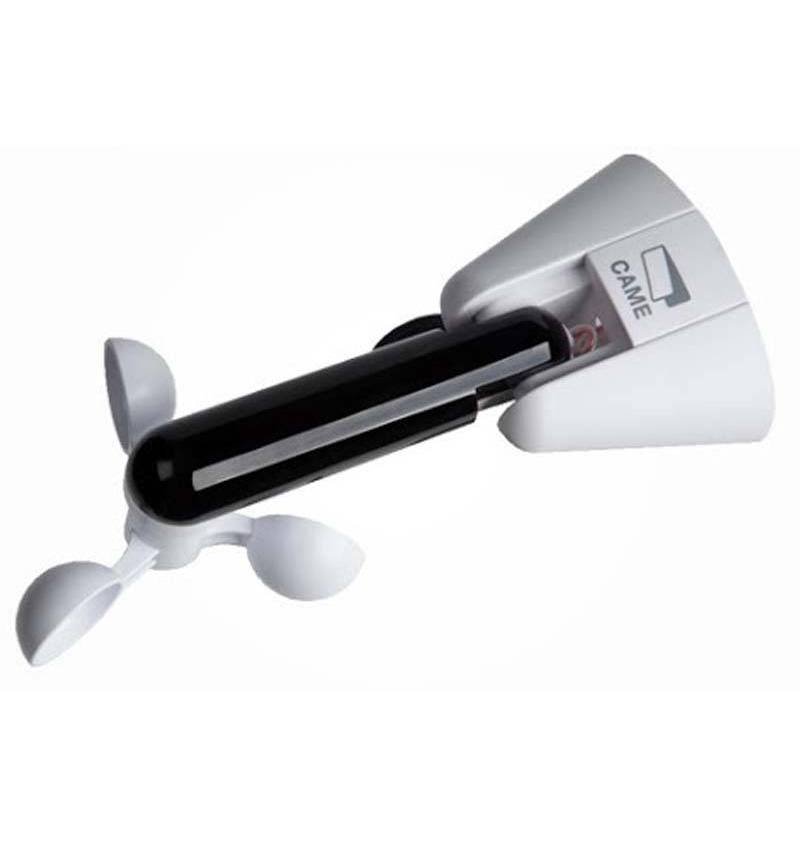

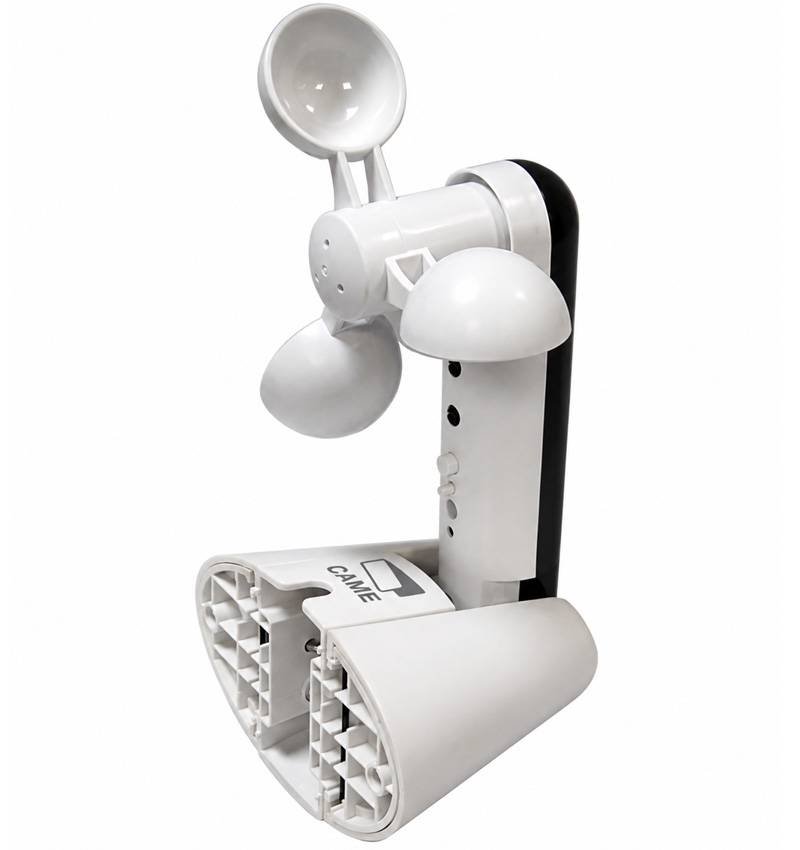

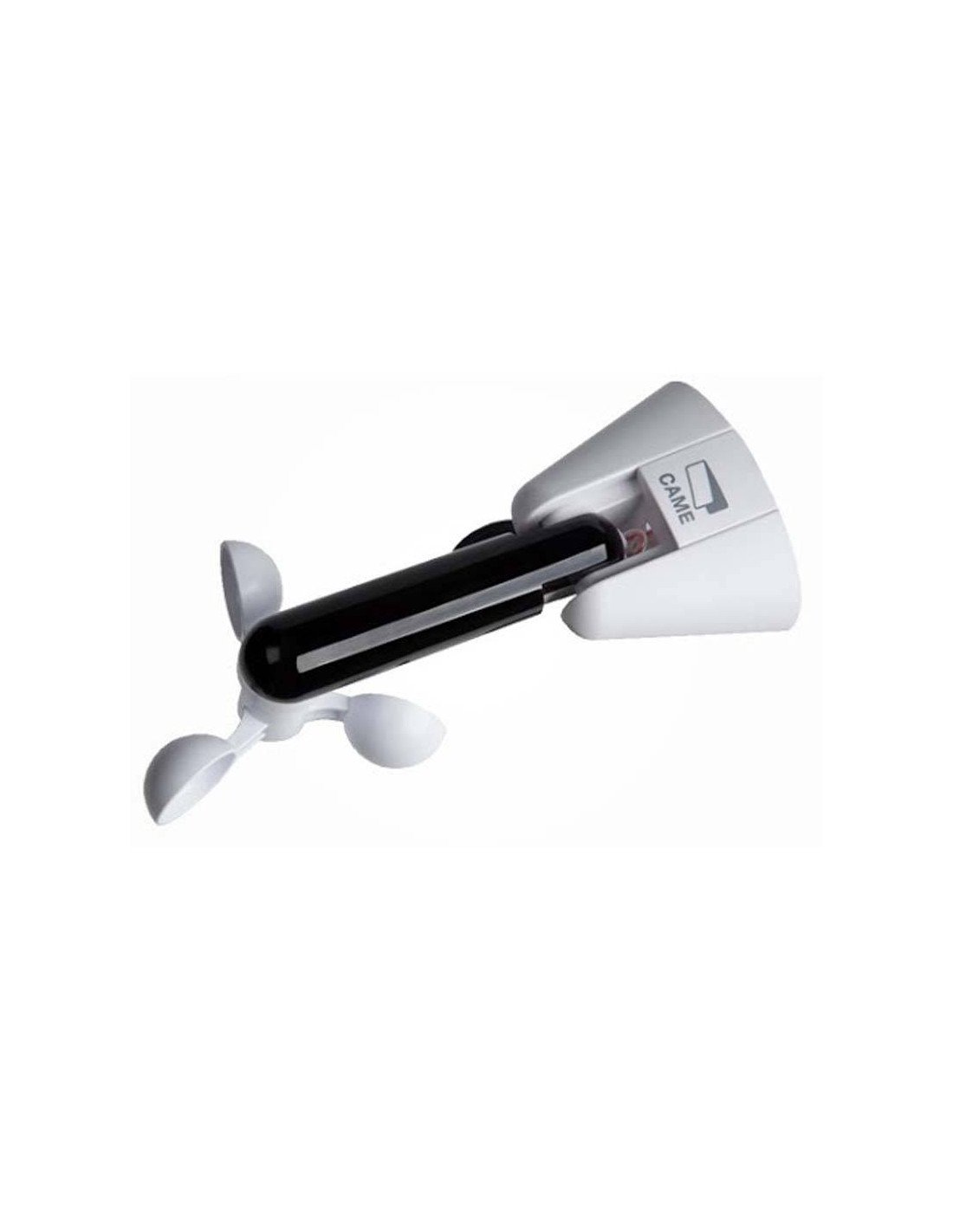

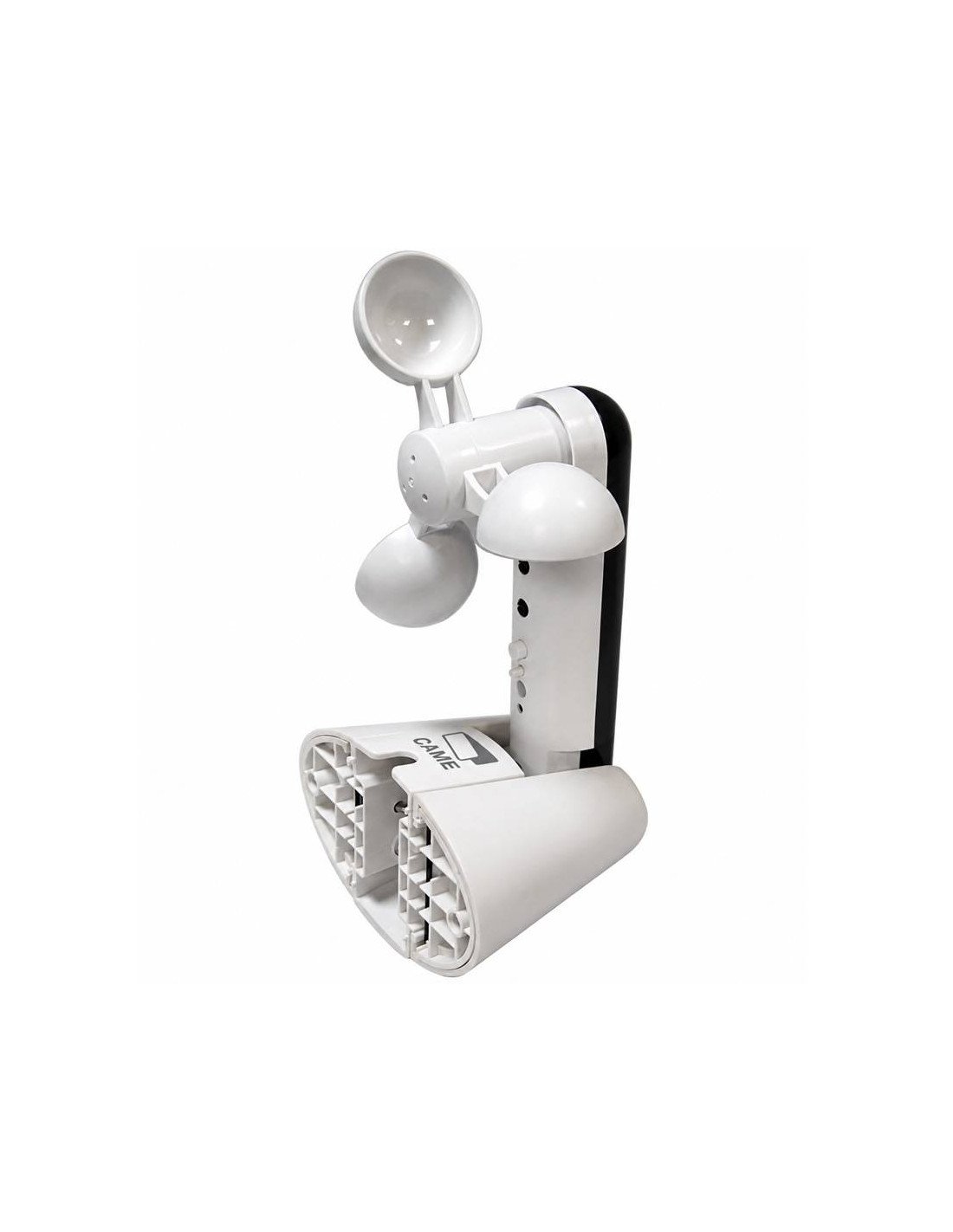

Meteorological central CAME Strauss KLT 2.0 for sun and radio wind

Meteorological central CAME 809XG-0110 Strauss KLT 2.0, designed for the automatic management of awnings, blinds, curtains and rolling systems depending on the conditions of sun and wind.

This radio weather sensor allows you to send automatic orders to the engine when it detects excess wind or a certain level of solar luminosity. It is an ideal solution for automation CAME with a compatible radio receiver, especially in installations where you want to protect the awning against wind and improve comfort by automatic opening by sun.

Meteorological sensor CAME for awnings, blinds and roller systems

The weather power plant CAME Strauss KLT 2.0 combine a wind sensor and a sun sensor on the same device. Its operation by radio avoids having to wire a direct order to the motor, since it transmits the actuation signals by frequency 433,92 MHz.

When the wind exceeds the configured level, the control panel sends a closing order to collect the awning and protect the installation. When the solar luminosity exceeds the selected threshold, you can order the automatic opening of the awning to provide shade.

Main features of CAME 809xg-0110

• Radio weather center for automatic control by sun and wind.
• Reference CAME 809xg-0110, Model Strauss KLT 2.0.
• Compatible with motors and accessories with radio receiver appropriate.
• Adjustable wind sensor 5 to 40 km / h.
• Adjustable sun sensor from 5 to 60 klx.
• Wind alarm with priority about solar function.
• Activable sun function and remote deactivable by compatible emitter.
• Integrated Display for adjustment and display of parameters.
• Degree of protection IP65, Suitable for exterior installation.
• Scope radius of up to 100 m outdoors and up to 20 m inside.

Working of wind alarm

The wind function is designed to protect the awning or rolling system against wind racks. When the speed exceeds the threshold configured for approximately 2 seconds, the meteorological power plant enters alarm status and sends a closing order.

During the wind alarm, the awning remains collected. Once the alarm is finished, the system maintains an approximate security time of 20 minutes before allowing normal operation again.

Operation of the sun alarm

The sun function allows the awning to operate automatically when the luminosity exceeds the configured level. Depending on programming, if sunlight is maintained above the threshold for approximately 5 minutes, the control panel sends an opening order.

When the low luminosity of the configured level, the control panel can order the closure after an approximate time of 15 minutes. In case of a rapid drop of luminosity below 15 Klux, the closure is made after approximately 3 minutes.

Advantages of installing a sun-wind weather center

• Greater awning protection facing excessive wind.
• Most comfortable automation, without the need to manually operate the awning as a function of the sun.
• Radio Installation, reducing the need for control wiring to the engine.
• Sensitivity adjustment to adapt the installation to the environment conditions.
• Outdoor use thanks to its IP65 protection.

Technical characteristics CAME 809XG-0110 Strauss KLT 2.0

Configuration of wind levels

Sun levels configuration

Installation

The meteorological power plant must be installed in an area exposed to air and solar rays, avoiding protected areas where wind or luminosity can not correctly measure. The body of the sensor must be installed horizontally to ensure a correct reading.

The feed is made at 120/230 V AC. For abroad installations, it is recommended to use suitable exterior cable and always respect the indications of the manufacturer and the current regulations.

Compatibility

The CAME 809XG-0110 is designed to work with engines and accessories with compatible radio receiver. Before installing it, it is important to verify that automation use the same radio frequency and that the associated emitter is compatible with the sun function.

Important note: according to the manufacturer's manual, the issuers prior to the year 2022 are not compatible with the sun function.

Summary

The meteorological central CAME 809XG-0110 Strauss KLT 2.0 it is a practical solution to automate awnings, blinds and rolling systems through sun and wind sensors. Its radio operation, its IP65 protection and its adjustment levels make it a highly recommended accessory for facilities where comfort, automation and protection is sought against adverse weather conditions.
