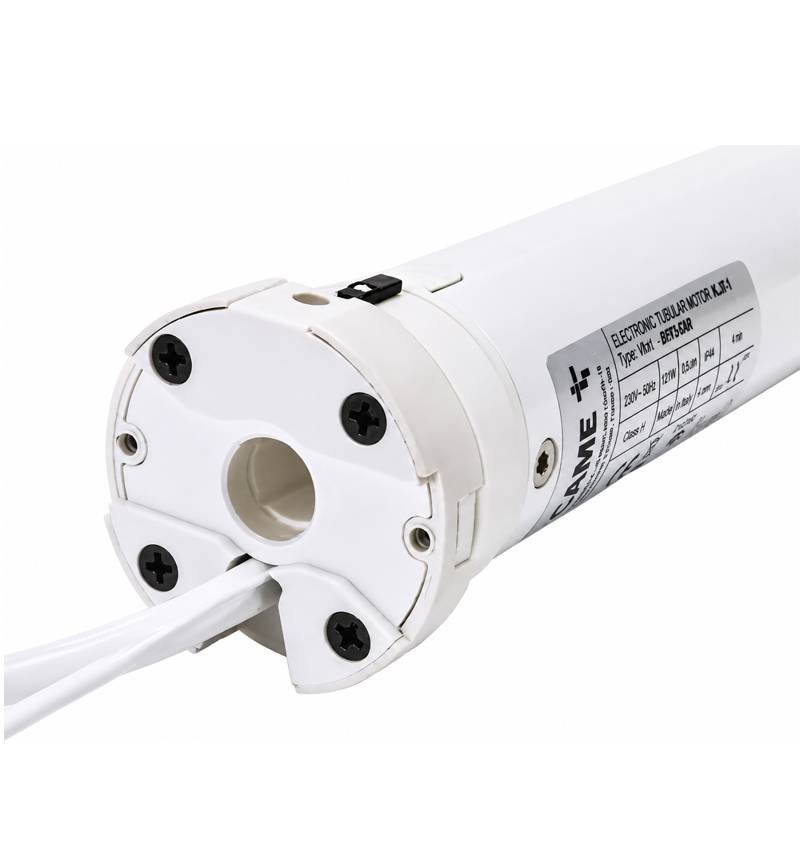

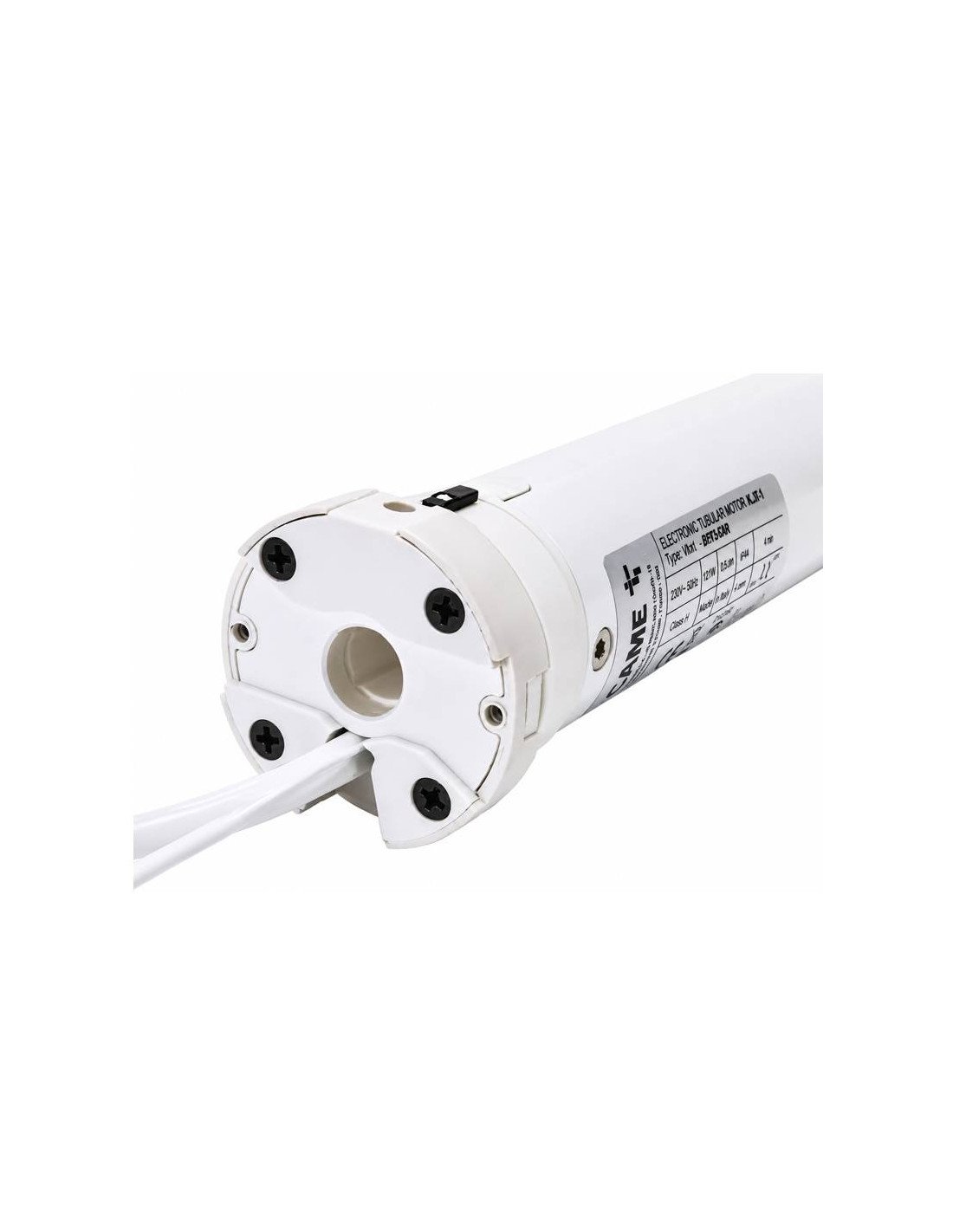

Tubular CAME KLW 5 Ø45 with Electronic Career End, Radio 433MHz and Wi-Fi integrated

Tubular CAME KLW 5 20 NM, 30 NM and 50 NM with radio and Wi-Fi

The range CAME KLW 5 it is formed by tubular motors of 230 VAC for automation of roller shutters and systems, available in versions of 20 Nm, 30 nm and 50 nm.

All models incorporate end of electronic race, radio a receiver 433,92 MHz and integrated Wi-Fi module, allowing control and configuring automation through compatible emitters and mobile devices.

The range uses tubular motor Ø45 mm and star-shaped head, plus system of sensitive detection of obstacles to improve safety during movement.

Select the model and motor pair in the drop-down that you need: 20 nm, 30 nm or 50 nm.

Models available

✓ 809Y5-0220 — CAME KLW 5 20 Nm / 15 rpm.

✓ 809Y5-0230 — CAME KLW 5 30 Nm / 15 rpm.

✓ 809Y5-0250 — CAME KLW 5 50 Nm / 12 rpm.

✓ Tubular motor CAME KLW 5.

✓ 230 VAC.

✓ Available in 20 Nm, 30 nm and 50 nm.

✓ Diameter of the engine Ø45 mm.

✓ End of Electronic Race.

✓ Radio receiver 433.92 MHz integrated.

✓ Built-in Wi-Fi module.

✓ Control through the application CAME Shade Master.

✓ Head in star-shaped.

✓ Sensitive detection of obstacles.

✓ Possibility of configuring a intermediate or favorite position.

✓ Automatic operation or by action maintained according to configuration.

The set is supplied with the selected motor in the drop-down:

■ Version 20 NM: 1 × CAME KLW 5 Ref. 809Y5-0220.

■ Version 30 NM: 1 × CAME KLW 5 Ref. 809Y5-0230.

■ Version 50 NM: 1 × CAME KLW 5 Ref. 809Y5-0250.

■ 1 × 001YK5101: octagonal adapter 59 × 0.6 mm.

■ 1 × 809XG-0050: quick coupling support for star head.

The CAME KLW 5 it allows controlling the shutter by means of a compatible radio emitter.

Once the electronic strokes are configured, the blind can perform the opening or complete closure by means of a command command, the maneuver can be stopped when necessary.

Also allows you to configure a intermediate position, useful to leave the blind in a certain position.

Thanks to Wi-Fi integrated, the engine can be connected to the network for management through the application CAME Shade Master.

KLW 5 models incorporate system sensitive detection of obstacles.

This function allows detecting a resistance during movement and act on the maneuver according to the configuration of the automation, improving the protection of the blind and the mechanical system.

Important before selecting the engine

The necessary pair depends on weight, diameter of the axis, dimensions and characteristics of the blind.

Select the appropriate version in the drop-down: 20 Nm, 30 nm or 50 nm. For the electrical installation, a bipolar switch of disconnection must be provided and follow the manufacturer's instructions.
