Tubular CAME KLW 5 with Electronic Race End, Radio 433.92 MHz and Wi-Fi integrated

Tubular CAME KLW 5 with Electronic Race End, Radio 433.92 MHz and Wi-Fi integrated

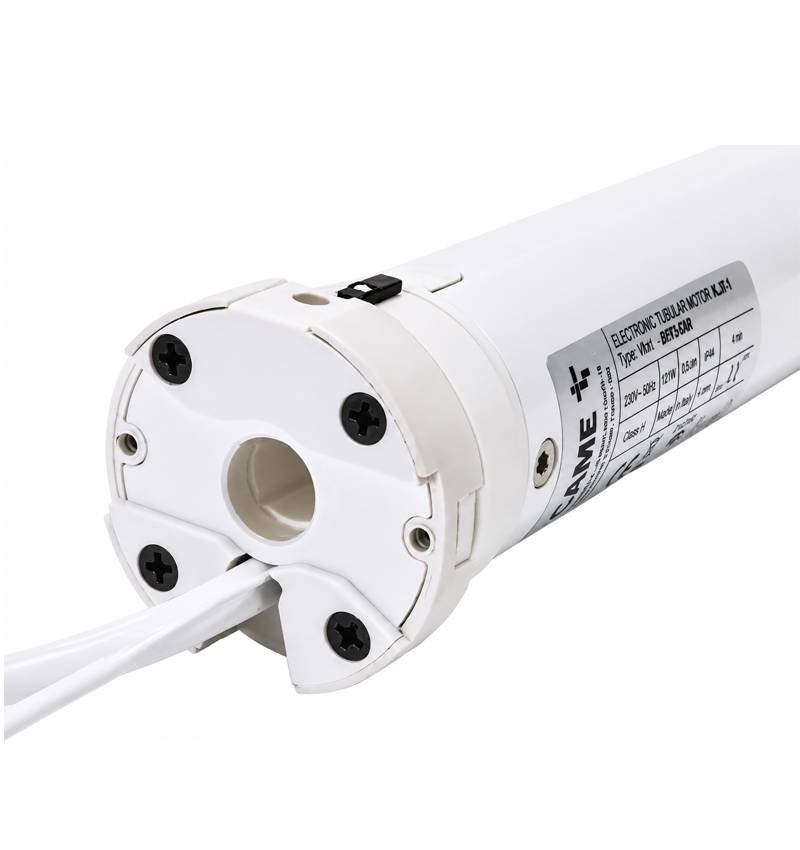

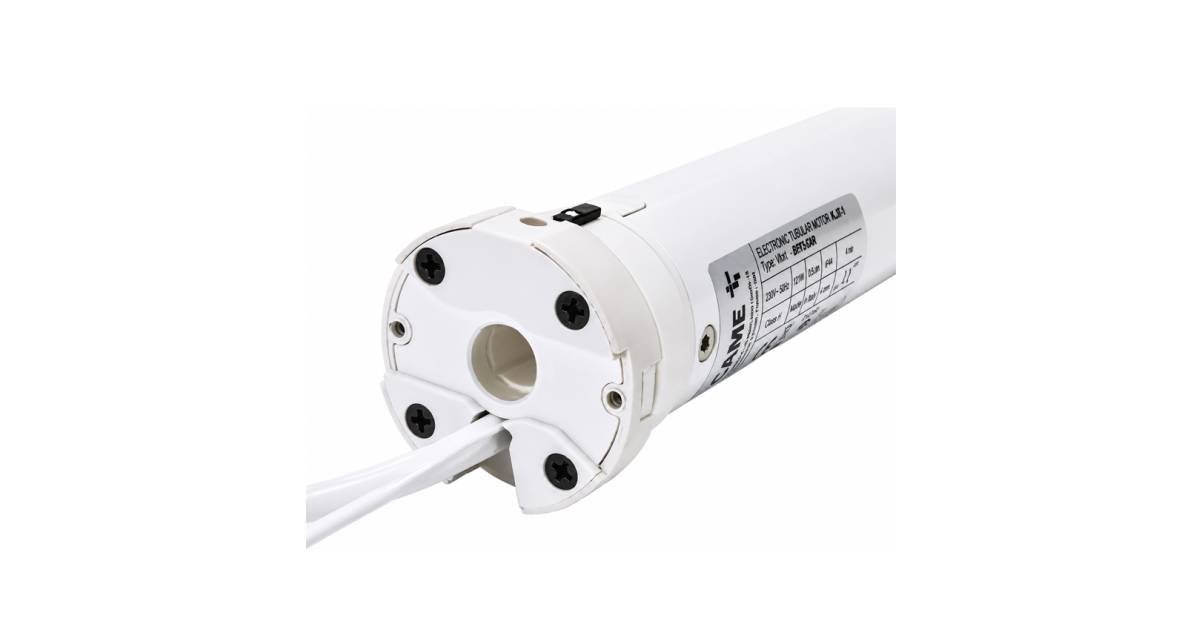

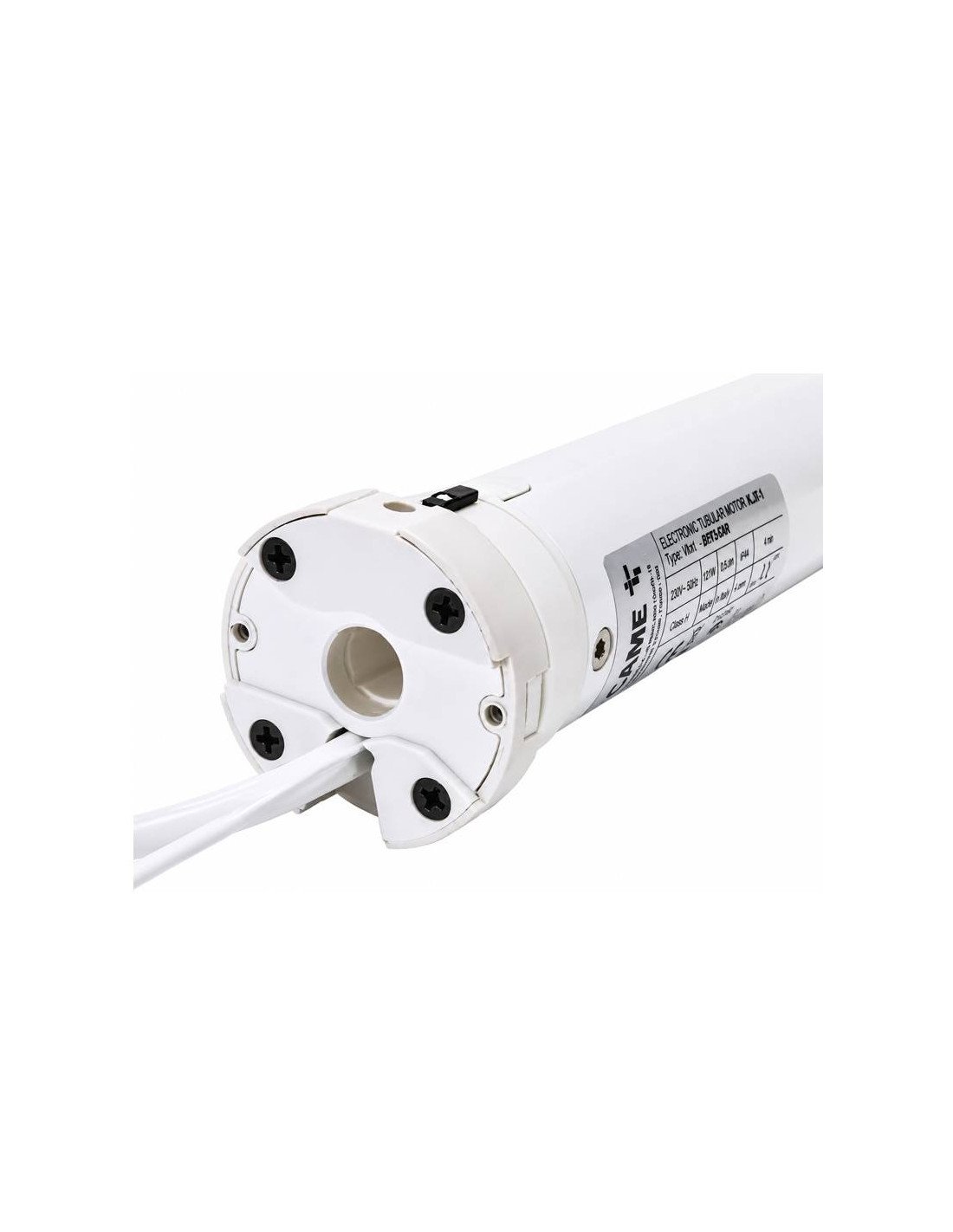

The tubular CAME Klw 5 It is a single-phase asynchronous engine designed for the automation of blinds and rolling systems. Incorporates End of Electronic Race, Radio A Receiver 433,92 MHz and Integrated Wi-Fi module, allowing control by emitter and also from mobile devices through the corresponding application.

This model belongs to the series Klw 5, with Ø 45 mm, feeding 230 V AC and maximum torque 20 nm. Its star-shaped head facilitates installation with compatible accessories, and has function of Sensitive detection of obstacles To improve safety during movement.

The motor allows automatic operation by emitter, with full opening and closing once the race enders are configured. It also has a way of main action, intermediate position and possibility of management using Wi-Fi for remote control.

Main features

• Tubular CAME Klw 5 For blinds and roller systems.
• Food 230 V AC.
• End of Electronic Race configurable.
• Radio receiver 433,92 MHz integrated.
• Built-in Wi-Fi module for control using APP.
• Maximum torque of 20 nm.
• Star-shaped head.
• Sensitive detection of obstacles.
• Intermediate or favorite position function.
• Compatible with emitters CAME Enabled for this system.

Characteristic table

Package content

1x 809y5-0220: Tubular motor KLW 5 20NM 15RPM

1x 001yk5101: Octagonal adapter 59x0.6mm

1x 809xg-0050: SUPPORT Fast hitch head on star

Operation

The motor CAME KLW 5 allows control by radio transmitter. Once the race end, the blind can be opened or closed fully by pressing the corresponding knob, and the movement can be stopped at any time by the stop key.

Also allows you to configure a intermediate position, Useful to leave the blind at a given opening. In addition, thanks to the integrated Wi-Fi module, the engine can be linked to the home network to control it from the mobile using the app CAME.

Security and obstacle detection

During operation, the engine has obstacle detection. In case of finding a resistance during closing, the motor can stop and partially invest the maneuver to release the obstacle. In opening, the engine stops the race.

Electrical connection

Note: For the electrical installation, a bipolar switch of disconnection must be foreseen and the connection following the manufacturer's instructions.
