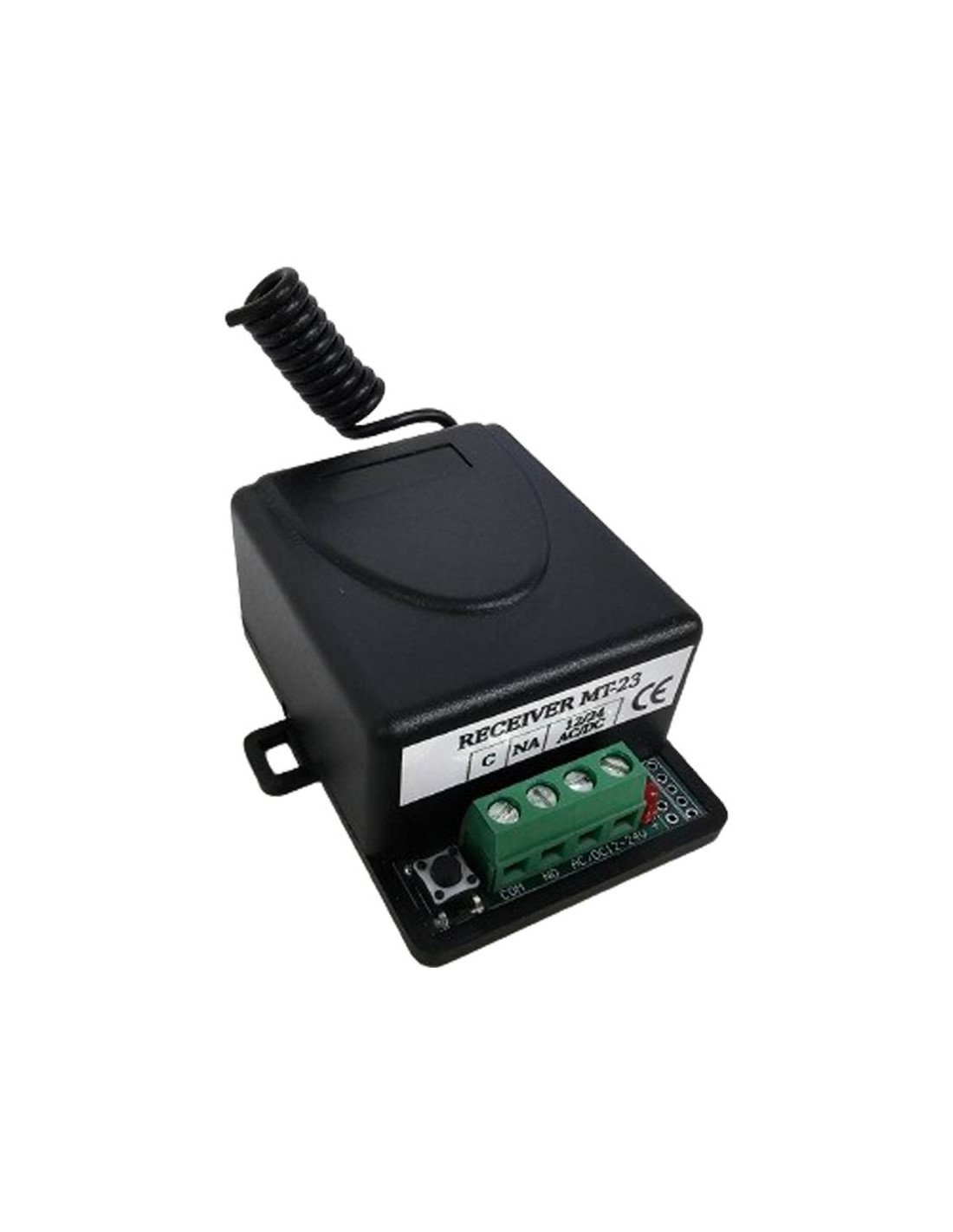

The MT-23 is a receiver that automatically tunes to the frequency of the remote control without the need to select the frequency via dip-switch.

It works with both fixed and evolutionary code commands at the same time.

The receiver is tuned to a single frequency.

SPECIFICATIONS

• Power supply: 12 to 30V AC/DC
• Frequencies: 433.92 – 868.35MHz – AM/FM
• Codes: Fixed and Evolutionary
• Capacity: 512
• Channels: 1 - Mono-Stable
• Temperature: -20ºC to 60ºC
• Relay Contacts: 3A

CONNECTION

Strip:

1 & 2: Normally Open Relay Contacts

3 & 4: Power supply from 12 to 30 Vdc/ac

OPERATION

By pressing the S1 button:

• If the LED stays solid, it indicates that the receiver is not tuned to any frequency
• If the LED flashes slowly, it indicates that the receiver has already been tuned to a certain frequency
• To tune the receiver to a new frequency, the memory must first be cleared.

Memory Erase:

Hold the S1 button pressed for 10 seconds, the LED starts flashing fast and turns off, codes and frequency erased.

Tune:

• Press the S1 button and release, the LED lights up and stays on steady.
• Press and hold the button on the original remote control as close as possible to the receiver to avoid environmental interference
• When the frequency is detected, the receiver starts to make slow flashing, press and hold the original knob until the LED makes 3 fast flashes and returns to slow flashing, The receiver is already tuned to the new frequency and the knob is registered.

CONTROL PROGRAMMING

Manual:

• Press the S1 button and release, the LED starts flashing slowly
• Press the button on the remote control you want to register, the LED will make 3 fast flashes and continue with slow flashes waiting for another button or another new control of the same frequency to be pressed.
• If no other button is pressed, after 5 seconds the LED turns off and the receiver is ready to operate.
• If the LED does not flash rapidly, it indicates that the control is not of the same frequency to which the receiver is tuned (to tune the receiver to another frequency see the tuning section) or it is a control that the receiver does not detect

Remote:

Remote registration only works with evolutionary code knobs by pressing the hidden button on the original controller. From here the process is the same as the manual

Things to keep in mind :

• The remote control must be previously registered in the receiver
• The serial of the hidden pushbutton must start with E or F.

LIST OF COMPATIBLE CONTROLLERS

• AERF: VDA, Hydom, Aerf standard, E. Garcia, TMP Link, TMP Trim, Portamatic, Medva
• APRIMATIC: TR, TM, TM4, TR4, TX2M, TX4M
• Clemsa: Mutancode, Mastercode
• Beninca: TO. GO, T2WV, IO, CUPID, LOT2WCV, CUPID 4, IO, LOT, ROLLKEY, T2 VW, T4, TO GO2 VW, TO GO4 VW
• BFT: MITTO, KLEIO, TRC2, TRC4, GHIBLI
• DEA: TR MIO, GENIE GREY, MIO TR2, MIO TR4
• ERREKA: SMAT, SUN, ROLLER, IRIS, MOON, KUMA
• FAAC: XT2 868 SLH, T3 868 SLH
• JCM: NEO, GO
• NICE: SMILO, FLO, FLOR, ONE, INTI
• PUJOL: VARIOCODE
• V2: PHOENIX, TCX, TSC, TRC, HANDY
